2
Contents
2. TECHNICAL DATA 60-684. EASE OF USE and
COMFORT 96-113
Dimensions 60
Engines 66
Weights 68 Exterior 4
Access 5
Instruments and
controls 6
Load space 8
Rear fi ttings 10
Sitting
comfortably 11
Seeing clearly 13
Ventilation 14
Monitoring 15
Passenger
safety 16
Driving safely 17
Starting 19
Eco-driving 20
FAMILIARISATION
4-21
Front seats 96
Retractable
passenger seat 98
Rear bench seat 99
De-icing and
demisting 103
Air conditioning 104
Front fi ttings 107
Load space
fi ttings 109
Rear layout 111
Interior lighting -
courtesy lamps 113
3. TECHNOLOGY on
BOARD 69-95
Trip computer/
Confi guration -
Personalisation
of the vehicle 69
Rear parking
sensors 73
Audio equipment 74
Steering mounted
controls 75
Bluetooth hands-free
system 78
1. READY TO SET
OFF 22-59
Instrument panels 22
Warning lamps 23
Fuel gauge 30
Coolant
temperature 30
Indicator 31
Remote control 32
Key 34
Alarm 36
Opening 37
Closing 40
Lighting stalk 42
Wipers stalk 44
Cruise control 45
Fixed
speed limiter 46
Mirrors 47
Electric windows 48
Steering wheel
adjustment 49
Manual gearbox 49
Electronic
gearbox 51
Hill start assist 55
Stop & Start 56
61
2
Dimensions
TECHNICAL DATA
DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country.
Light van (in mm)
L1
L2 (Worksite Pack)
L Overall length
3 864
3 881
H Overall height
1 721
1 742
Height with roof bars
1 782
1 803
A Wheelbase
2 513
B Front overhang
760
777
C Rear overhang
591
D Overall width
2 019
Width (with mirrors folded)
1 816
E Width of front track
1 469
1 464
F Width of rear track
1 465
G Height of load sill
527
544
I Length of interior fl oor
1 523
J Maximum interior load height
1 205
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046
Volume
(m
3
)
2.5
63
2
Dimensions
TECHNICAL DATA
Combi (in mm)
Standard
All-terrain
L Overall length
3 959
3 970
H Overall height
1 721
1 742
Height with roof bars
1 782
1 803
A Wheelbase
2 513
B Front overhang
855
866
C Rear overhang
591
D Overall width
2 019
Width (with mirrors folded)
1 816
E Width of front track
1 464
F Width of rear track
1 465
G Height of load sill
527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046
65
2

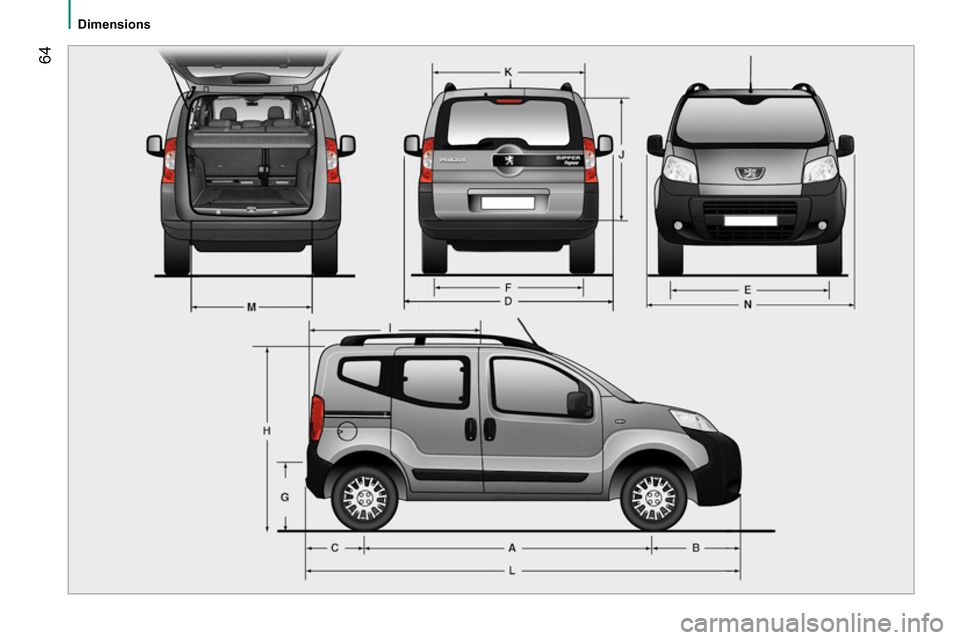

Dimensions
TECHNICAL DATA
Combi (in mm)
Standard
All-terrain
L Overall length
3 959
3 970
H Overall height
1 721
1 742
Height with roof bars
1 794
1 803
A Wheelbase
2 513
B Front overhang
855
866
C Rear overhang
591
D Overall width
2 019
Width (with mirrors folded)
1 816
E Width of front track
1 464
F Width of rear track
1 465
G Height of load sill
527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046
174
Exterior
EXTERIOR (LIGHT VAN)
Rear lamp, direction indicators,
3 rd brake lamp .......... 42-43, 153-154
Right-hand side:
fuel fi ller cap, fuel tank ................... 163
fuel cut-off ...............................163-164
Load space ............................. 109-110
Rear doors ......................32, 34, 37-41
Opening/Closing to180° ............ 38, 40
Number plate lamps ...................... 153
Rear parking sensors ...................... 73
Spare wheel, changing a wheel,
tools .....................................144-146
Towing, lifting ................................. 161
Towbar ....................................137-138
Dimensions .................................60-61
Accessories ............................139-140
Roof rack ....................................... 139
Key, remote control, battery ........32-34
Central locking ..................... 32, 39, 40
Opening/Closing front windows ....... 33
Confi dential card.............................. 35
Alarm ............................................... 36
Wiper blades.................................. 155
Door mirrors ..................................... 47
Side repeater ................................. 152
Front lamps, foglamps, direction
indicators ................. 42-43, 150-151
Headlamp beam height adjustment ... 43
Changing bulbs.......................150-154
Opening/Closing doors ...32, 34, 37-41
Opening the bonnet ....................... 166
Menu - autoclose ................. 38, 40, 71
Brakes, pads.......................... 169, 171
Hill start assist ................................. 55
Braking assistance ................. 115-116
Trajectory control .................... 116-118
Tyres, pressures ............................ 162
Snow chains .................................. 149
