2014 Peugeot 508 Hybrid Owner's Manual

47
508_en_Chap02_ouvertures_ed02-2014
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
th
erefore, never leave anyone inside
the vehicle when it is deadlocked.
Using the key
F turn the key to the rear in the driver's door lock to lock the vehicle completely.
F
t
u
rn the key to the rear again within five
seconds to deadlock the vehicle. Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
Using the remote control
F Press the closed padlock to lock
the vehicle completely or press
the closed padlock for more
than two seconds to close the
windows automatically in addition
to locking.
Using the electronic key
By the doors:
F W ith the electronic key in the recognition
zone, press a finger on the door handle (at
the markings) to lock the vehicle.
F

W
ithin five seconds, press the door handle
again to deadlock the vehicle. By the tailgate (SW only):
F

W
ith the electronic key in the recognition
zone, press the button to lock the vehicle.
F
W
ithin five seconds, press the button to
deadlock the vehicle.
F
P
ress the closed padlock again within
five

seconds to deadlock the vehicle.
2
Access

48
508_en_Chap02_ouvertures_ed02-2014
Locking/ unlocking from the inside
Automatic central locking of the
doors
the doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
to a
ctivate or deactivate this function, press
and hold the button until a message appears in
the screen.
If the vehicle is deadlocked or locked
with the remote control or the door
handles, the button is not active. In this
case, use the key or the remote control
to unlock. Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency. F

P
ress the closed padlock to
locate your locked vehicle in a
car park.
Locating your vehicle
F Press the button.th is allows the doors and the boot to be locked
or unlocked.
th
is is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.
When carrying large objects with the
boot open, you can press this button to
inhibit the boot open alert signal. When
locking from inside, the door mirrors do
not fold.
Access

49
508_en_Chap02_ouvertures_ed02-2014

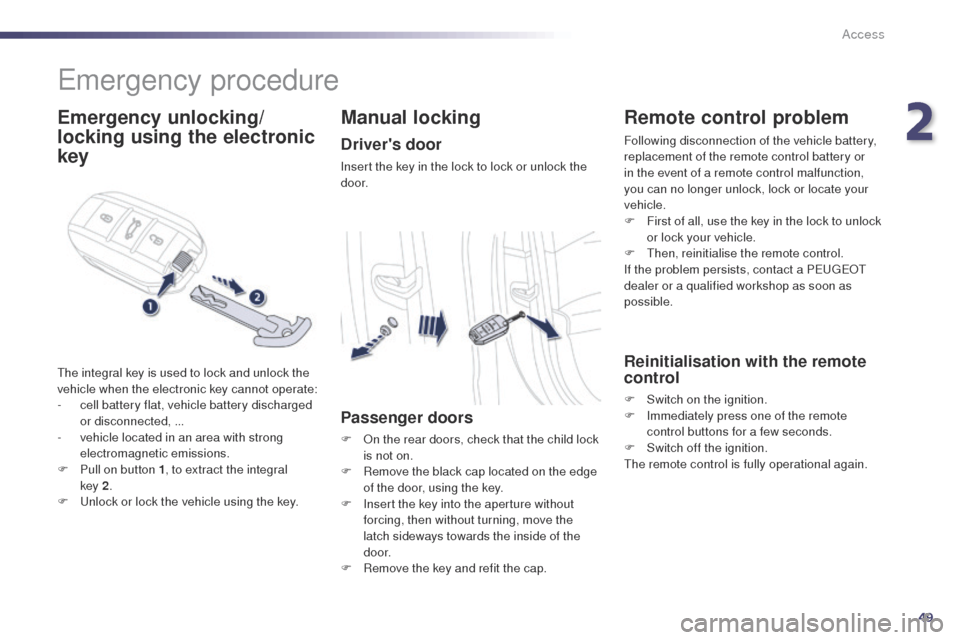

emergency procedure
Emergency unlocking/
locking using the electronic
key
the integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-
c
ell battery flat, vehicle battery discharged
or disconnected, ...
-

v
ehicle located in an area with strong
electromagnetic emissions.
F

P
ull on button 1 , to extract the integral
key


2.
F
u
n
lock or lock the vehicle using the key.
Manual locking
Driver's door
Insert the key in the lock to lock or unlock the
d o o r.
Passenger doors
F On the rear doors, check that the child lock is not on.
F

R
emove the black cap located on the edge
of the door, using the key.
F

I
nsert the key into the aperture without
forcing, then without turning, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the key and refit the cap.
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F
t
hen
, reinitialise the remote control.
If the problem persists, contact a P
e

uge
Ot

dealer or a qualified workshop as soon as
possible.
Reinitialisation with the remote
control
F Switch on the ignition.
F I mmediately press one of the remote
control buttons for a few seconds.
F

S
witch off the ignition.
th

e remote control is fully operational again.
2
Access

50
508_en_Chap02_ouvertures_ed02-2014
Changing the battery of the key
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
P
e

uge
Ot
dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta

ke them to an approved collection
point.
Reinitialisation with the
electronic key
F Switch of the ignition.
F I mmediately press one of the remote
control buttons for a few seconds.
F

S
witch on the ignition
th

e electronic key is fully operational again.
Changing the battery of the
electronic key
Battery ref.: CR2032 / 3 volts.this replacement battery is available from a
P
e

uge
Ot
dealer or a qualified workshop.
A message is displayed in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a pointed object at
the key ring.
F

S
lide the flat battery out of its location.
F

S
lide the new battery into its location
observing the original direction of fitment.
F

C
lip the cover in place starting at the front.
F

R
einitialise the electronic key.
Access

51
508_en_Chap02_ouvertures_ed02-2014
Lost keys, remote control, electronic key
Visit a PeugeOt dealer with the vehicle's V5 registration document and your personal identification documents.th
e Pe ugeOt dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
the high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock
the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
th

e remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
the Keyless en try and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a Pe ugeOt dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
2
Access

52
508_en_Chap02_ouvertures_ed02-2014
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
the system checks for opening of the vehicle.the alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
the system checks for any variation in the
volume in the passenger compartment.
th

e alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
the system checks for any change in the
attitude of the vehicle.
th

e alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
the system checks for the putting out of
service of its components.
th

e alarm is triggered if the battery, the
central control unit or the wires of the
siren are put out of service or damaged.
For all work on the alarm system,
contact a P
e

uge
Ot
dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control or lock the vehicle
using the Keyless
e
n
try and
Starting system.
th
e monitoring system is active: the indicator
lamp on the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless e
n
try and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds.
F
P
ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless e
n
try
and Starting system.
Deactivation of the volumetric
monitoring
the volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
Access

53
508_en_Chap02_ouvertures_ed02-2014
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a window partially open,
-
w

ashing your vehicle,
-
c

hanging a wheel,
-

h
aving your vehicle towed,
-

t
ransportation by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
F Switch of the ignition and within ten seconds, press this button
until the indicator lamp is on
continuously.
F
g
e
t out of the vehicle.
F

P
ress the locking button on
the remote control immediately
or lock the vehicle using the
Keyless
e
n
try and Starting
system.
th

e exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
to b

e effective, this deactivation must be carried
out each time the ignition is switched off.
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
this is indicated by sounding of the siren
and flashing of the direction indicators for
thirty


seconds.
th

e monitoring functions remain active until
the alarm has been triggered eleven times in
succession. F

P
ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless e
n
try
and Starting system to deactivate
the exterior perimeter monitoring.
F
P
ress the locking button on the
remote control or lock the vehicle
using the Keyless e
n
try and
Starting system to activate all the
monitoring functions.
th
e indicator lamp in the button
again flashes once per second.
When the vehicle is unlocked using
the remote control or unlocked
using the Keyless
e
n
try and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
to deactivate the monitoring functions:
F
u
n
lock the vehicle using the key in the
driver's door lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. t
h
e
indicator lamp in the button switches off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key in the driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a P
e

uge
Ot
dealer or a
qualified workshop.
*

A
ccording to country.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F t
o a
void triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless
e
n
try and Starting
system.
2
Access

54
508_en_Chap02_ouvertures_ed02-2014
electric windows
1. Left hand front electric window switch.
2. Right hand front electric window
switch.
3.
R

ight hand rear electric window switch.
4.
Le

ft hand rear electric window switch.
5.
D

eactivating the rear electric window
switches,
lo

cking the rear doors
(

child lock). Manual operation
to o

pen or close the window, press or pull the
switch gently. t
h
e window stops as soon as the
switch is released.
Automatic operation
(depending on version)to o pen or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
the

electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not operate.
t
o r
eactivate them,
switch the ignition on again.
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
th

e safety anti-pinch function is not active
during this operation.
Deactivating the rear window
controls
For the safety of your children, press switch 5
t o prevent operation of the rear windows
irrespective of their position.
th

e interior controls for the rear doors are also
deactivated.
When the button is pressed down, the warning
lamp is on, the switches are deactivated. When
the button is raised, the switches are active, the
warning lamp is off.
Access
