2014 Peugeot 308 buttons

146
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
In the event of a fault with the active cruise control, you are alerted by an audible signal and display of the message message "Driving aid functions fault". Have the system checked by a PEUGEOT dealer or a qualified workshop.
When the cruise control is working, take care if making a maintained press on one of the cruise control programmed speed modification buttons: this can lead to a very quick change in the speed of your vehicle. Do not use the active cruise control on slippery sur faces or in heavy traffic. When descending a steep hill, the cruise control may not be able to prevent the vehicle from exceeding the programmed speed. When ascending a steep hill or when towing, it might not be possible to attain or maintain the programmed speed.

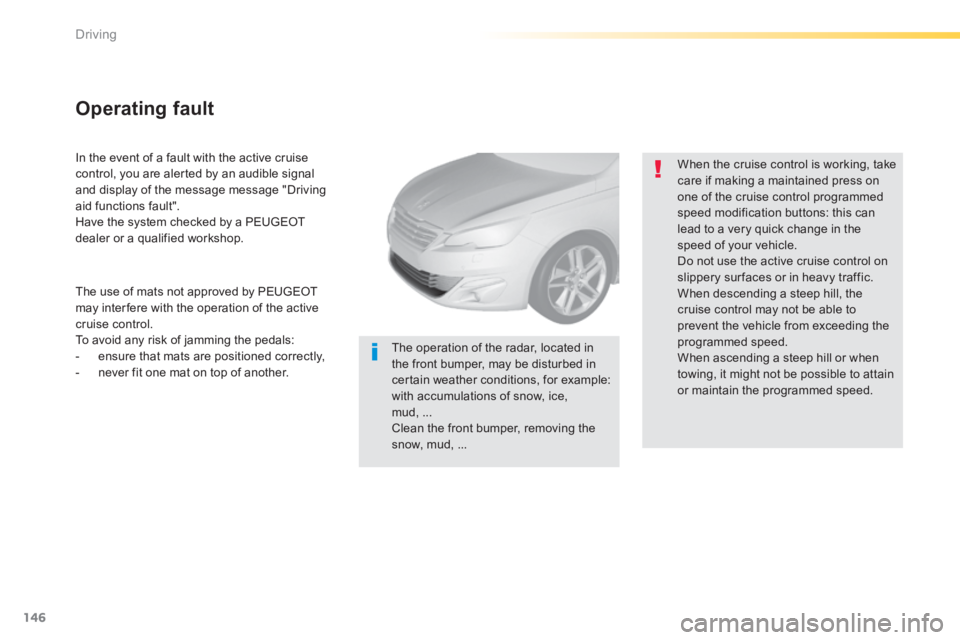

Operating fault
The operation of the radar, located in the front bumper, may be disturbed in certain weather conditions, for example: with accumulations of snow, ice, mud, ... Clean the front bumper, removing the snow, mud, ...
The use of mats not approved by PEUGEOT may inter fere with the operation of the active cruise control. To avoid any risk of jamming the pedals: - ensure that mats are positioned correctly, - never fit one mat on top of another.

191
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013
Reinitialisation of the system is done with the ignition on and the vehicle stationary.
 Press " Under-inflation initialisation ".
 Confirm the instruction by pressing " Ye s Confirm the instruction by pressing " Ye s Confirm the instruction by pressing " ", an audible signal and a message confirm the reinitialisation. The under-inflation alert can only be considered reliable if reinitialisation of the system is done with the the four tyre pressures correctly set.
Touch screen
The new pressure settings registered are considered to be reference values by the system.
Screen C
 Press the MENU button for access to the main menu.  Press the "  " or "  " buttons to select the Personalisation-configuration menu, then confirm by pressing the OK button.
Snow chains
The system does not have to be reinitialised after fitting or removing snow chains.
From the " Driving assistance " menu of the touch screen:

01
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Use the buttons on either side of the touch screen for access to the men\
us, then press the virtual buttons in the touch screen.
Each menu is displayed in one or two pages (primary page and secondary \
page).
GENERAL OPERATION
In very hot conditions, the system may go into stand-by (screen and sou\
nd completely off) for a minimum period of 5 minutes.
Secondary page
295
Primary page

02
296
308_EN_CHAP10C_SMEGPLUS_ED02-2013
With the engine running, press to mute the sound.
With the ignition off, press to switch the system on.
Volume adjustment (each source is independent, including Traffi c announcements (TA) and navigation instructions).
Selecting the audio source (depending on version):
- "FM" / "AM" / "DAB" * radio wavebands.
- "USB" memory stick.
- CD player (located in the glove box) * .
- Jukebox * , after fi rst copying audio fi les to the internal memory of the touch screen tablet.
- Telephone connected by Bluetooth and Bluetooth audio streaming.
- Media player connected to the auxiliary socket (jack, cable not supplie\
d).
The screen is of the "resistive" type, it is necessary to press fi rmly, particularly for "fl ick" gestures (scrolling through a list, moving the map...). A simple wipe will not be enough. pressing with more than one fi nger is not recognised.
The screen can be used when wearing gloves. This technology allows use at all temperatures.

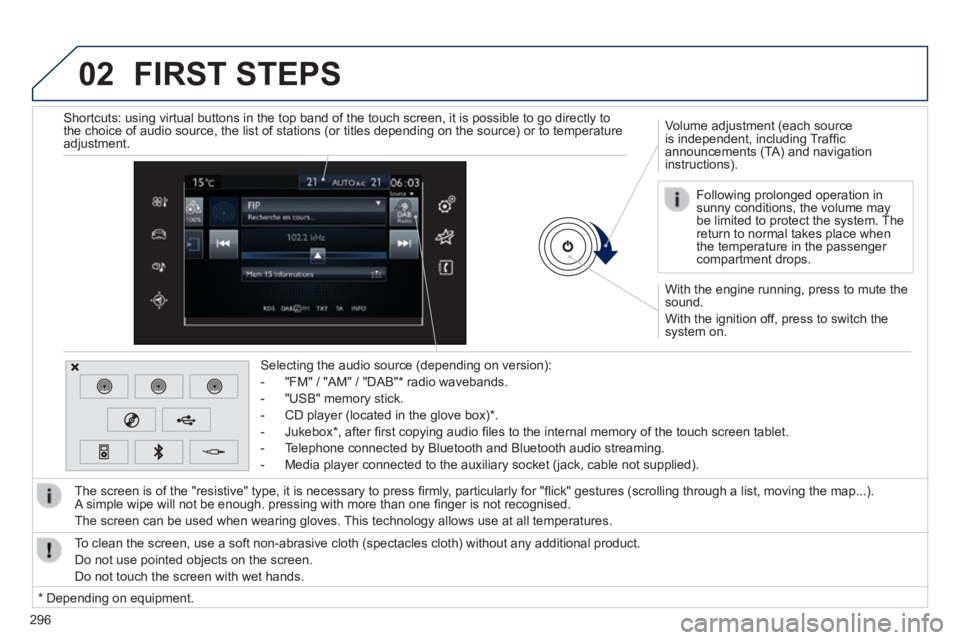

FIRST STEPS
* Depending on equipment.
To clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands.
Following prolonged operation in sunny conditions, the volume may be limited to protect the system. The return to normal takes place when the temperature in the passenger compartment drops.
Shortcuts: using virtual buttons in the top band of the touch screen, it\
is possible to go directly to the choice of audio source, the list of stations (or titles depending o\
n the source) or to temperature adjustment.

04
308
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO
Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.
Display of "Radiotext" for the current station.
Manage the Jukebox.
Display current action.
Select the audio source.
Display the "DAB" band.
Display of the name of the current station.
Short-cut: access to some of the settings for the air conditioning, radio and changing the audio source. Select the radio station.
If the "DAB" radio station being listened to is not available on "FM", the "DAB FM" option is greyed out.
Any thumbnail broadcast by the station.
Preset stations, buttons 1 to 15 .
Short press: select the preset radio station.
Long press: preset a radio station.
Next "Multiplex".
Next radio station.
Secondary page.
Display the name and number of the multiplex service being used.
Previous "Multiplex".
Previous radio station.

04
313
308_EN_CHAP10C_SMEGPLUS_ED02-2013

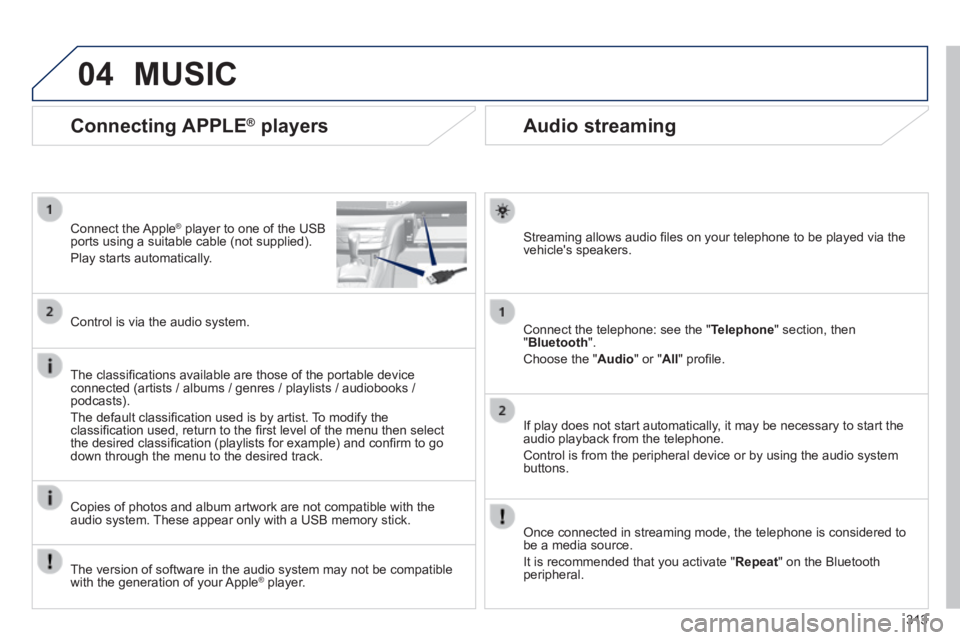

Audio streaming
Streaming allows audio fi les on your telephone to be played via the vehicle's speakers.
Connect the telephone: see the " Telephone " section, then " Bluetooth ".
Choose the " Audio " or " All " profi le.
If play does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device or by using the audio system buttons.
Once connected in streaming mode, the telephone is considered to be a media source.
It is recommended that you activate " Repeat " on the Bluetooth peripheral.
Connecting APPLE ® players
Connect the Apple ® player to one of the USB ® player to one of the USB ®
ports using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifi cations available are those of the portable device connected (artists / albums / genres / playlists / audiobooks / podcasts).
The default classifi cation used is by artist. To modify the classifi cation used, return to the fi rst level of the menu then select the desired classifi cation (playlists for example) and confi rm to go down through the menu to the desired track.
Copies of photos and album artwork are not compatible with the audio system. These appear only with a USB memory stick.
MUSIC
The version of software in the audio system may not be compatible with the generation of your Apple ® player. ® player. ®

01
366
308_EN_CHAP10D_RD45_ED02_2013
FIRST STEPS
TA (Traffi c Announcements) on/off.
On/off, volume setting.
Automatic frequency search down/up.
Select previous/next CD, MP3 or USB track.
Select source:
radio, audio CD / MP3 CD, USB, Jack connection, Streaming, AUX.
Audio settings: front/rear fader, left/right balance, bass/treble, loudness, audio ambiences.
Confi rm.
Display main menu. Display the list of local stations.
Long press: CD tracks or MP3 folders (CD / USB).
Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set a station.
Select next frequency down/up.
Select previous/next MP3 folder.
Select previous/next folder / genre / artist / playlist (USB).
Abandon the current operation.
Select wavebands FM1, FM2, FMast and AM.
Select the screen display mode:
date, audio functions, telephone, Bluetooth, personalisation-confi guration.

02
367
308_EN_CHAP10D_RD45_ED02_2013
STEERING MOUNTED CONTROLS
Radio: select the previous/next pre-set station.
USB: select genre / artist / folder from the classifi cation list.
Select the previous/next item in a menu.
Change audio source.
Confi rm a selection.
Call/end call on the telephone.
Press for more than 2 seconds: telephone main menu.
Radio: automatic search for a lower frequency.
CD / MP3 / USB: selection of the previous track.
CD / USB: continuous press: fast reverse.
Move in the list.
Radio: automatic search for a higher frequency.
CD / MP3 / USB: selection of the next track.
CD / USB: continuous press: fast forwards play.
Move in the list.
Volume increase. Volume increase.
Volume decrease. Volume decrease.
Mute: press the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
