2014 Peugeot 308 buttons

45
1
Monitoring
308_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Screen A (without audio system)
 Once you have selected a setting using t h e "  " or "  " buttons, press the "OK"button to change its value.  Wait for approximately ten seconds without any action to allow the change to be registered or press the "ESC" button to cancel. The screen then returns to the normal display.

54
Access
308_EN_CHAP02_OUVERTURES_ED02-2013
Unlocking the boot Locking
Locking is confirmed by fixed lighting of the direction indicators for a few seconds. Depending on your version, the door mirrors fold, the alarm is activated.
 Press the closed padlock to lock the vehicle completely. Hold the button down until the windows close completely.
 Press this button until the direction indicators flash rapidly. The vehicle is completely unlocked and if your vehicle has an alarm, it is deactivated.
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must be locked.
Locating your vehicle
 Press the closed padlock on the remote control. This will switch on the courtesy lamps and the direction indicators will flash for around ten seconds.
Driving with the doors locked may make access to the passenger compartment by the emergency services difficult in
the event of an emergency. Be aware of children when operating the windows.
As a safety measure (children on board), never leave the vehicle without taking the key for the Keyless Entry and Starting system, even for a short period. Guard against theft when the key for the Keyless Entry and Starting system is in the recognition zone with the vehicle unlocked. In order to preserve the charge of the cell battery in the remote control, the "hands-free" functions go into extended stand-by after 21 days of non-use. To restore these functions, press one of the remote control buttons or start the engine with the electronic key in the reader.
If a door or the boot is not properly closed, with the engine runningor the vehicle moving (speed above 6 mph (10 km/h)), a message appears for a few seconds.

63
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

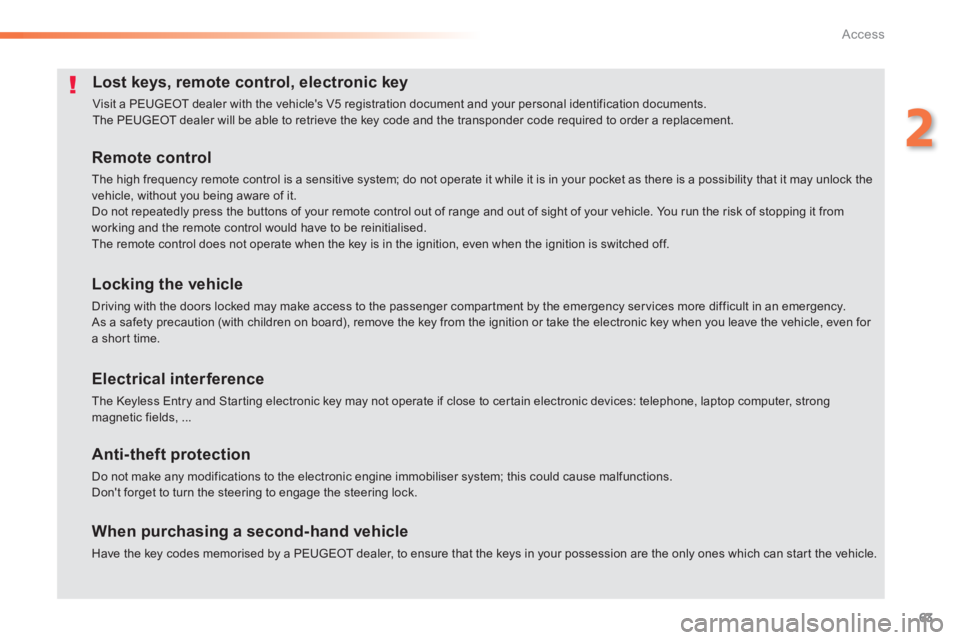

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents. The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised. The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.

78
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
System which registers the electrical settings of the driver's seat and door mirrors. It enables you to store and recall two positions using the buttons on the side of the driver's seat.
Storing driving positions
Storing a position
Using buttons M / 1 / 2
 Switch on the ignition.  Adjust your seat and the door mirrors.  Press button M , then press button 1 or 2within four seconds. An audible signal indicates that the position has been stored. Storing a new position cancels the previous position.
Recalling a stored position
Ignition on or engine running
 Press button 1 or 2 to recall the corresponding position. An audible signal confirms that adjustment is complete. You can interrupt the current movement by pressing button M , 1 or 2 or by using one of the seat controls. A stored position cannot be recalled while driving. Recalling stored positions is deactivated 45 seconds after switching off the ignition.

95
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

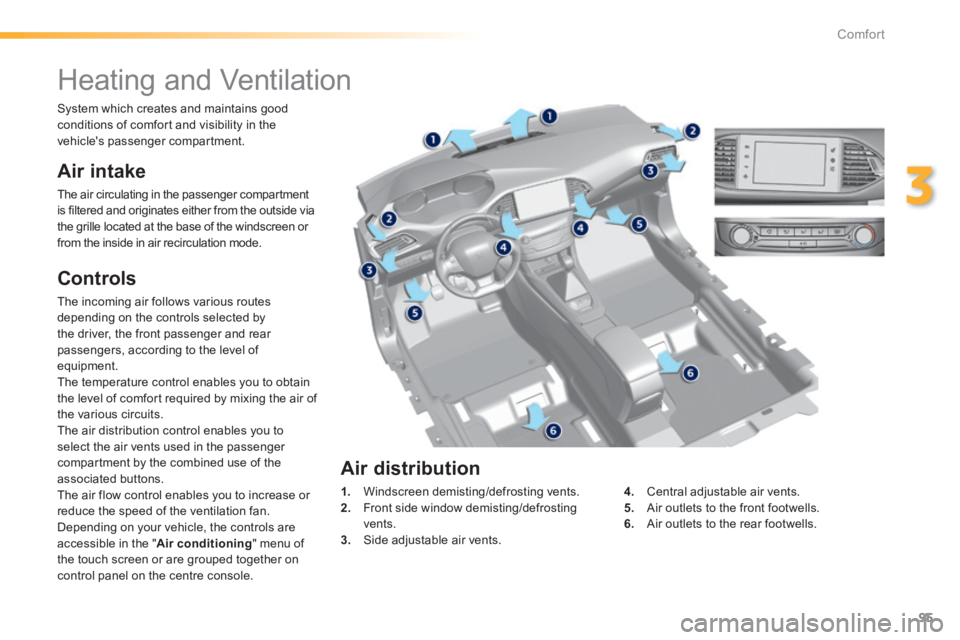

Heating and Ventilation
Air intake
The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Controls
The incoming air follows various routes depending on the controls selected by the driver, the front passenger and rear passengers, according to the level of equipment. The temperature control enables you to obtain the level of comfort required by mixing the air of the various circuits. The air distribution control enables you to select the air vents used in the passenger compartment by the combined use of the associated buttons. The air flow control enables you to increase or reduce the speed of the ventilation fan. Depending on your vehicle, the controls are accessible in the " Air conditioning " menu of the touch screen or are grouped together on control panel on the centre console.
1. Windscreen demisting/defrosting vents. 2. Front side window demisting/defrosting vents. 3. Side adjustable air vents.
4. Central adjustable air vents. 5. Air outlets to the front footwells. 6. Air outlets to the rear footwells.
Air distribution
System which creates and maintains good conditions of comfort and visibility in the vehicle's passenger compartment.

98
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
Air distribution adjustment
Windscreen and side windows.
Footwells.
Central and side vents.
The air distribution can be adapted by adding the corresponding buttons.
Air conditioning On / Off
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3°C.
Switching on
 Press this button, its indicator lamp comes on.
Switching off
 Press this button again, its indicator lamp goes off. Switching off may result in some discomfort (humidity, misting).
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
The air conditioning does not operate when the air flow adjustment is set to off.
To obtain cool air more quickly, you can use interior air recirculation for a few moments. Then return to the intake of exterior air.

99
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
Manual air conditioning (Touch screen)
Temperature adjustment
 Press one of these buttons to reduce or increase the value.
The air conditioning system operates with the engine running. Air flow adjustment
Press one of these buttons to increase or decrease the speed of the air booster fan.
The air flow symbol (a fan) fills progressively according to the quantity of air wanted. By reducing the air flow to minimum, you are stopping ventilation.
Avoid driving too long without ventilation (risk of misting and deterioration of air quality).
Press the button for the " Air conditioning " menu to display the system controls page.

100
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

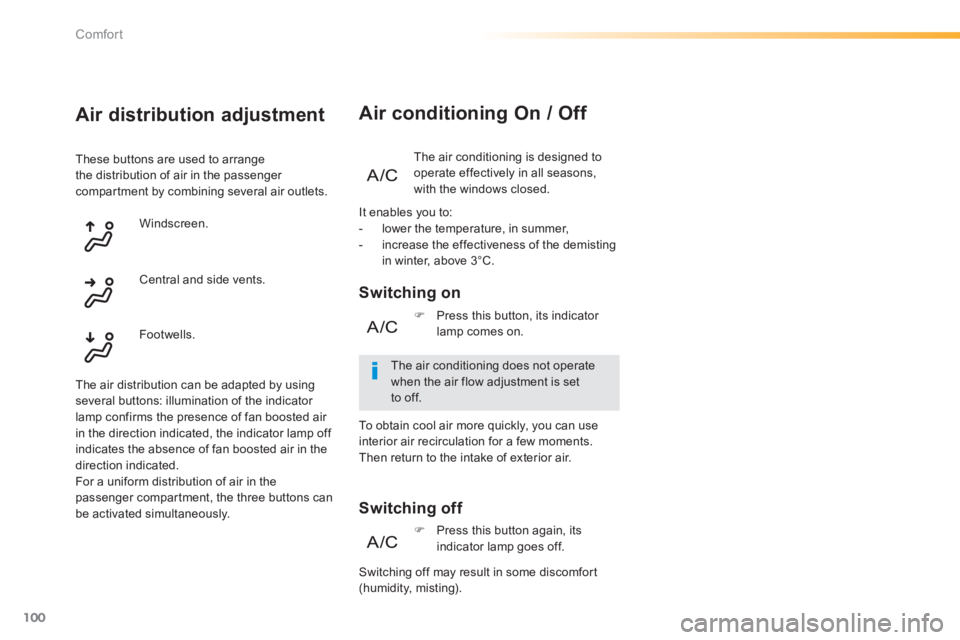

The air conditioning is designed to operate effectively in all seasons, with the windows closed.
Air conditioning On / Off
Switching on
Switching off
The air conditioning does not operate when the air flow adjustment is set to off.
 Press this button, its indicator lamp comes on.
It enables you to:
- lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3°C.
 Press this button again, its indicator lamp goes off.
Air distribution adjustment
These buttons are used to arrange the distribution of air in the passenger compartment by combining several air outlets.
Windscreen.
The air distribution can be adapted by using several buttons: illumination of the indicator lamp confirms the presence of fan boosted air in the direction indicated, the indicator lamp off indicates the absence of fan boosted air in the direction indicated. For a uniform distribution of air in the passenger compartment, the three buttons can be activated simultaneously.
Footwells.
Central and side vents.
Switching off may result in some discomfort (humidity, misting).
To obtain cool air more quickly, you can use
interior air recirculation for a few moments. Then return to the intake of exterior air.
