Page 103 of 400

101
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

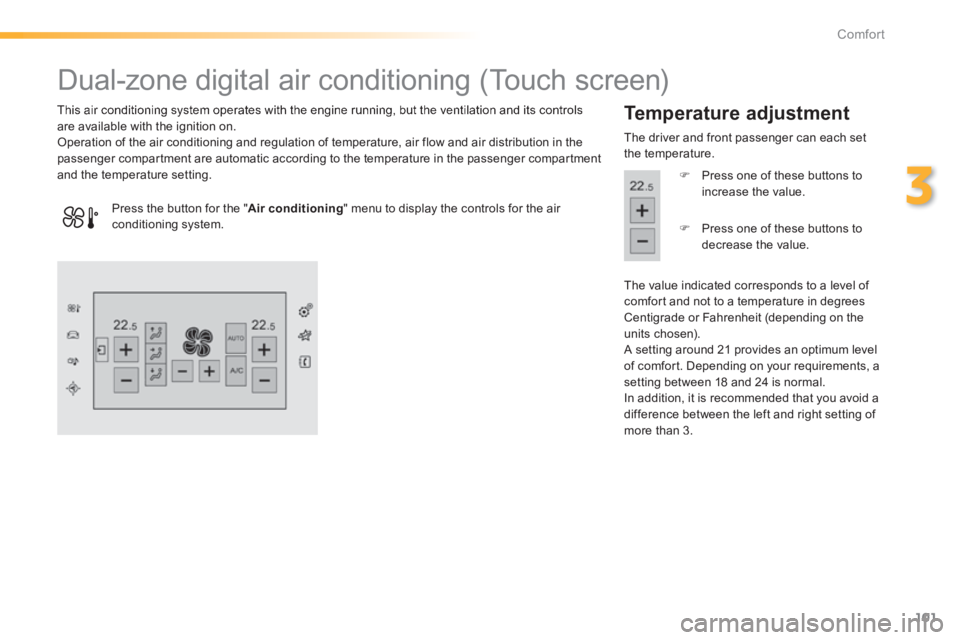

Dual-zone digital air conditioning (Touch screen)
This air conditioning system operates with the engine running, but the ventilation and its controls are available with the ignition on. Operation of the air conditioning and regulation of temperature, air flow and air distribution in the passenger compartment are automatic according to the temperature in the passenger compartment and the temperature setting.
Temperature adjustment
The driver and front passenger can each set the temperature.
Press one of these buttons to increase the value.
The value indicated corresponds to a level of comfort and not to a temperature in degrees Centigrade or Fahrenheit (depending on the units chosen). A setting around 21 provides an optimum level of comfort. Depending on your requirements, a setting between 18 and 24 is normal. In addition, it is recommended that you avoid a difference between the left and right setting of
more than 3.
Press the button for the " Air conditioning " menu to display the controls for the air conditioning system. Press one of these buttons to decrease the value.
Page 105 of 400

103
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
You can modulate the distribution of air in the passenger compartment using these three buttons.
Air fl ow adjustment
Avoid driving for too long with the ventilation off (risk of misting and deterioration of air quality).
Air distribution adjustment
Press one of these buttons to increase or decrease the speed of the booster fan.
The air flow symbol (a fan) is filled in progressively in relation to the quantity of air wanted. By reducing the air flow to minimum, you are stopping ventilation. " OFF " is displayed alongside the fan.
Windscreen.
Centre and side vents.
Footwells.
Each press on a button activates or deactivates the function. The indicator lamp is on when the button is activated. For a uniform distribution in the passenger compartment, all three buttons can be pressed simultaneously.

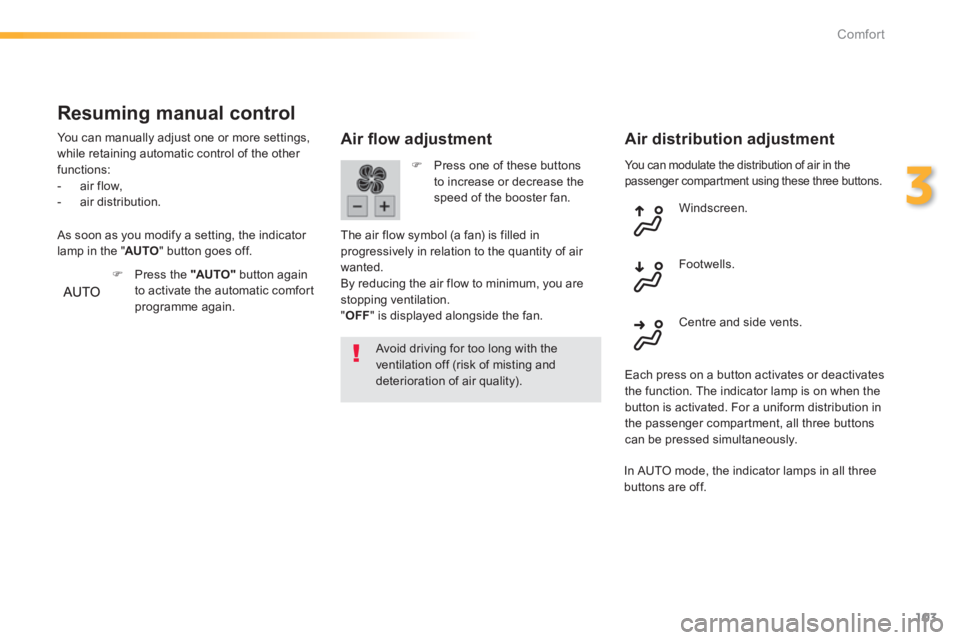

Resuming manual control
You can manually adjust one or more settings, while retaining automatic control of the other functions: - air flow, - air distribution.
Press the "AUTO" button again to activate the automatic comfort programme again.
As soon as you modify a setting, the indicator lamp in the " AUTO " button goes off.
In AUTO mode, the indicator lamps in all three buttons are off.
Page 106 of 400

104
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

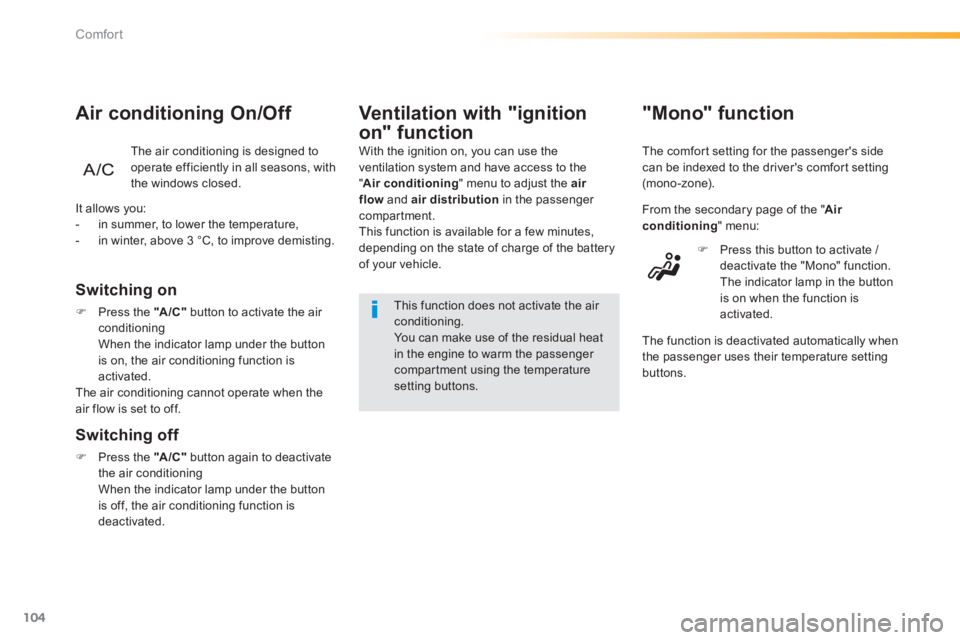

"Mono" function
The comfort setting for the passenger's side can be indexed to the driver's comfort setting (mono-zone).
From the secondary page of the " Air conditioning " menu:
Press this button to activate / deactivate the "Mono" function. The indicator lamp in the button is on when the function is activated.
The function is deactivated automatically when the passenger uses their temperature setting buttons.
It allows you: - in summer, to lower the temperature, - in winter, above 3 °C, to improve demisting.
Switching off
Press the "A /C " button again to deactivate the air conditioning When the indicator lamp under the button is off, the air conditioning function is deactivated.
Switching on
Press the "A/C" button to activate the air conditioning When the indicator lamp under the button is on, the air conditioning function is activated. The air conditioning cannot operate when the air flow is set to off.
Air conditioning On/Off
The air conditioning is designed to operate efficiently in all seasons, with the windows closed.
Ventilation with "ignition
on" function
With the ignition on, you can use the ventilation system and have access to the " Air conditioning " menu to adjust the air flow and air distribution in the passenger compartment. This function is available for a few minutes, depending on the state of charge of the battery of your vehicle.
This function does not activate the air conditioning. You can make use of the residual heat in the engine to warm the passenger compartment using the temperature setting buttons.
Page 136 of 400

134
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

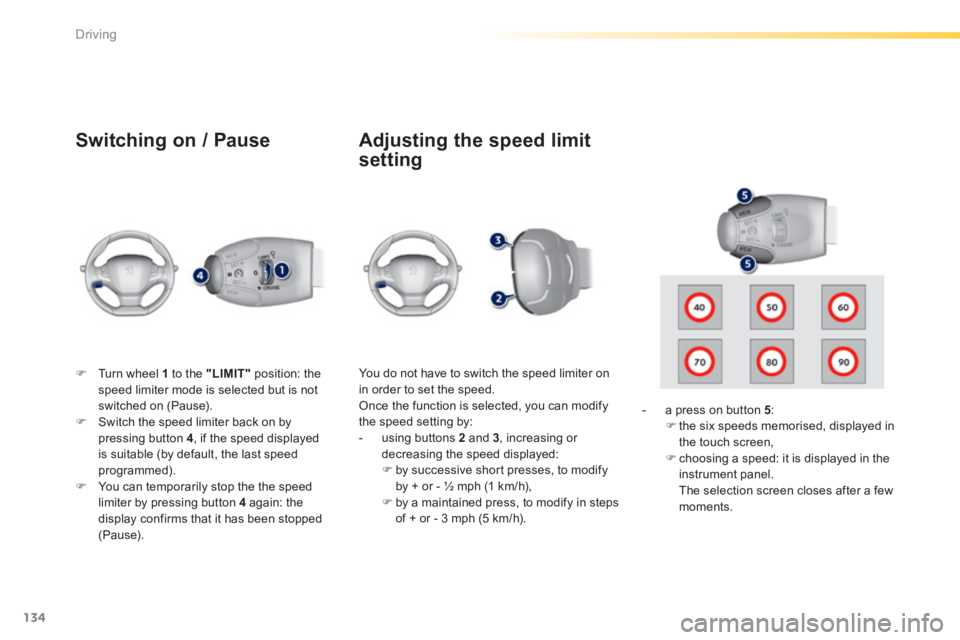

Switching on / Pause
Turn wheel 1 to the "LIMIT" position: the speed limiter mode is selected but is not switched on (Pause). Switch the speed limiter back on by pressing button 4 , if the speed displayed is suitable (by default, the last speed programmed). You can temporarily stop the the speed limiter by pressing button 4 again: the display confirms that it has been stopped (Pause).
You do not have to switch the speed limiter on in order to set the speed. Once the function is selected, you can modify the speed setting by: - using buttons 2 and 3 , increasing or decreasing the speed displayed: by successive short presses, to modify by + or - ½ mph (1 km/h), by a maintained press, to modify in steps of + or - 3 mph (5 km/h).
- a press on button 5 : the six speeds memorised, displayed in the touch screen, choosing a speed: it is displayed in the instrument panel. The selection screen closes after a few moments.
Adjusting the speed limit
setting
Page 139 of 400
137
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
Switching on
If the cruise control is switched on, you can then modify the initial speed in one of the following ways: - using buttons 2 or 3 : by successive short presses, to modify the speed by + or - 1 mph (km/h), by a long press, to modify the speed in steps of + or - 5 mph (km/h),
Pause
Turn wheel 1 to the "CRUISE" position: the cruise control mode is selected but is not switched on (Pause). Press button 2 or 3 : your vehicle's current speed becomes the cruise speed (selected on the fly). The cruise control is activated (ON).
Modification of the initial
speed setting
- pressing button 5 : the six memorised speeds are displayed in the the touch screen,
choose a value: it is displayed in the instrument panel. The selection screen closes after a few moments. The modification is then accepted.
Once switched on, you can pause the cruise control at any time by pressing button 4 : the screen confirms the pause.
Page 140 of 400

138
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

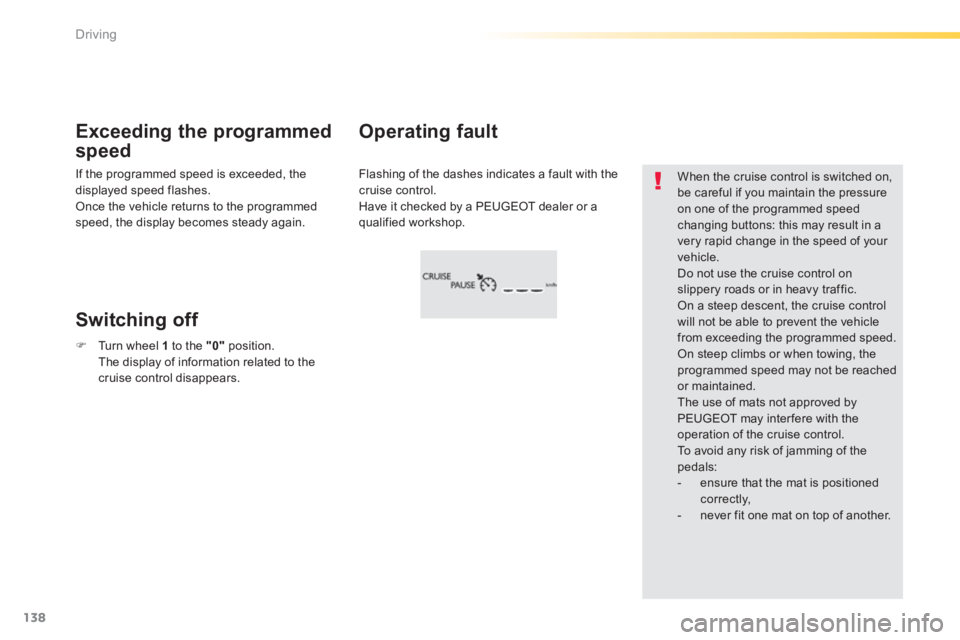

Flashing of the dashes indicates a fault with the cruise control. Have it checked by a PEUGEOT dealer or a qualified workshop.
Operating fault Exceeding the programmed
speed
Switching off
When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed
changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed. On steep climbs or when towing, the programmed speed may not be reached or maintained. The use of mats not approved by PEUGEOT may inter fere with the operation of the cruise control. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned c o r r e c t l y, - never fit one mat on top of another.
If the programmed speed is exceeded, the displayed speed flashes. Once the vehicle returns to the programmed speed, the display becomes steady again.
Turn wheel 1 to the "0" position. The display of information related to the cruise control disappears.
Page 143 of 400

141
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

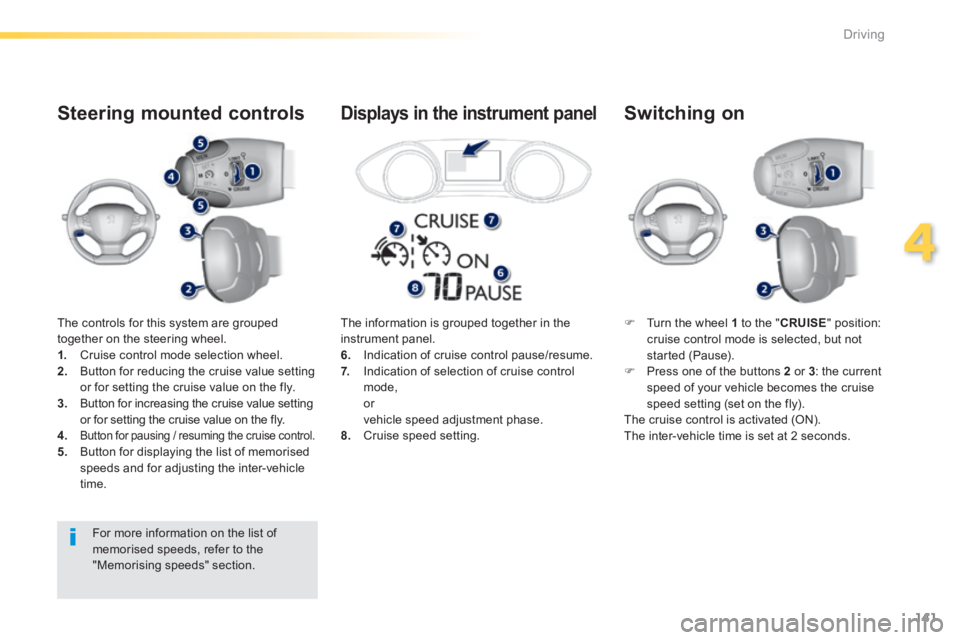

The controls for this system are grouped together on the steering wheel. 1. Cruise control mode selection wheel. 2. Button for reducing the cruise value setting or for setting the cruise value on the fly. 3. Button for increasing the cruise value setting or for setting the cruise value on the fly.
4.Button for pausing / resuming the cruise control. 5. Button for displaying the list of memorised speeds and for adjusting the inter-vehicle time.
Steering mounted controls
Turn the wheel 1 to the " CRUISE " position: cruise control mode is selected, but not started (Pause). Press one of the buttons 2 or 3 : the current speed of your vehicle becomes the cruise speed setting (set on the fly). The cruise control is activated (ON). The inter-vehicle time is set at 2 seconds.
Switching on
The information is grouped together in the instrument panel. 6. Indication of cruise control pause/resume. 7. Indication of selection of cruise control mode, or vehicle speed adjustment phase. 8. Cruise speed setting.
Displays in the instrument panel
For more information on the list of memorised speeds, refer to the "Memorising speeds" section.
Page 144 of 400

142
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

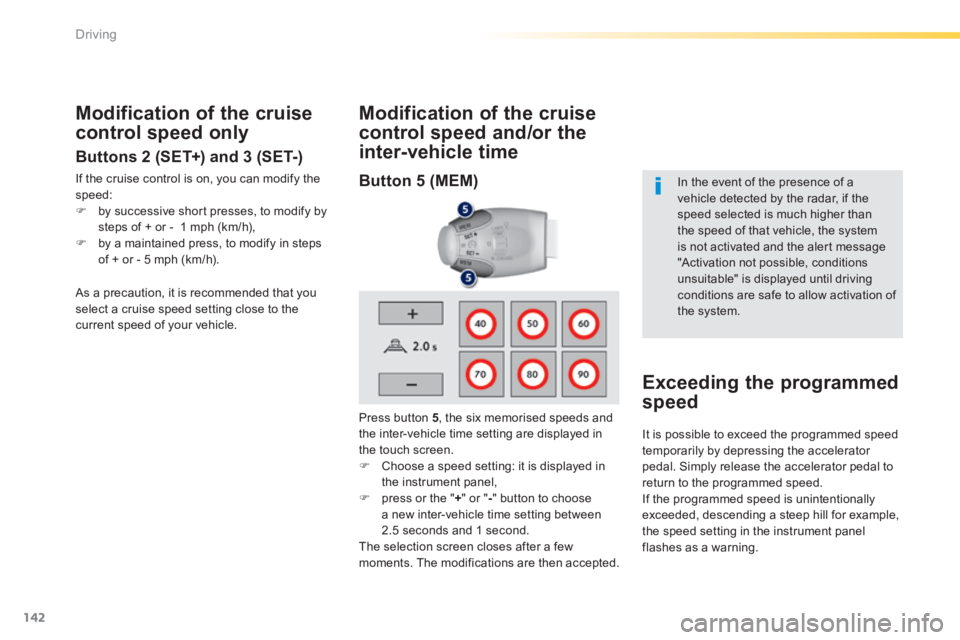

Modification of the cruise
control speed and/or the
inter-vehicle time
Modification of the cruise
control speed only
Buttons 2 (SET+) and 3 (SET-)
If the cruise control is on, you can modify the speed: by successive short presses, to modify by steps of + or - 1 mph (km/h), by a maintained press, to modify in steps of + or - 5 mph (km/h).
Press button 5 , the six memorised speeds and the inter-vehicle time setting are displayed in the touch screen. Choose a speed setting: it is displayed in the instrument panel, press or the " + " or " - " button to choose a new inter-vehicle time setting between 2.5 seconds and 1 second. The selection screen closes after a few moments. The modifications are then accepted.
In the event of the presence of a vehicle detected by the radar, if the speed selected is much higher than
the speed of that vehicle, the system is not activated and the alert message "Activation not possible, conditions unsuitable" is displayed until driving conditions are safe to allow activation of the system.
Exceeding the programmed
speed
As a precaution, it is recommended that you select a cruise speed setting close to the current speed of your vehicle.
It is possible to exceed the programmed speed temporarily by depressing the accelerator pedal. Simply release the accelerator pedal to return to the programmed speed. If the programmed speed is unintentionally exceeded, descending a steep hill for example, the speed setting in the instrument panel flashes as a warning.
Button 5 (MEM)
