2014 Peugeot 308 isofix

Contents
308_EN_CHAP00A _SOMMAIRE_ED02-2013
M i r r o r s 170
Lighting 173
Daytime running lamps 177
Automatic illumination of headlamps 178
Headlamp adjustment 180
Wipers 181
Automatic rain sensitive wipers 183
Courtesy lamps 185
Interior mood lighting 186
Temporary puncture repair kit 221
Changing a wheel 227
Snow chains 234
Changing a bulb 235
Changing a fuse 245
12 V battery 251
Energy economy mode 255
Changing a wiper blade 256
Towing the vehicle 257
Very cold climate screen 259
Towing a trailer 260
Fitting roof bars 262
Accessories 264
Bonnet 267
Petrol engine 268
Diesel engine 269
Running out of fuel (Diesel) 270
Additif AdBlue® additive and SCR system ® additive and SCR system ®
(Blue HDi Diesel) 271
Checking levels 280
Checks 283
Engines 285
Weights 285
Dimensions 286
Identifi cation markings 287
Direction indicators 187
Hazard warning lamps 187
Emergency or assistance call 188
Horn 188
Tyre under-infl ation detection 189
ESC system 193
Seat belts 196
Airbags 199
Child seats 204
Deactivating the passenger's front airbag 207
ISOFIX child seats 213
Child lock 220
Visibility
Safety Practical information
Checks Technical data
.
Emergency or assistance
289
DENON equipment 291
Touch screen 293
PEUGEOT Connect Sound (RD5) 365
Audio equipment and telematics
Alphabetical index

5
.Visual search
308_EN_CHAP00B_ AIDE VISUELLE_ED02-2013

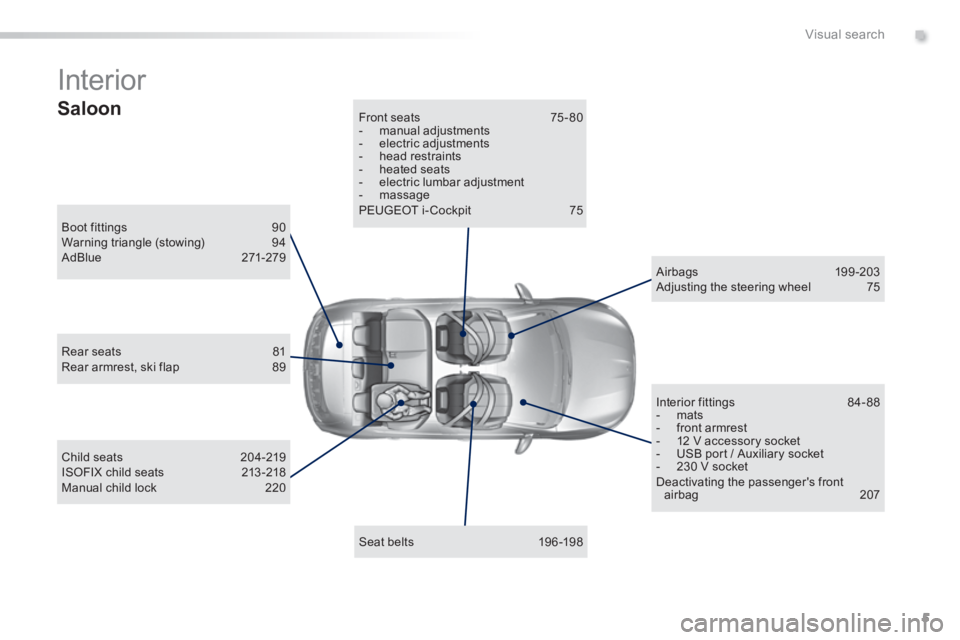

Interior
Boot fittings 90 Warning triangle (stowing) 94 AdBlue 271-279
Seat belts 196 -198
Front seats 75 - 80 - manual adjustments - electric adjustments - head restraints - heated seats - electric lumbar adjustment - massage PEUGEOT i- Cockpit 75
Child seats 204-219 ISOFIX child seats 213 -218 Manual child lock 220
Airbags 199 -203 Adjusting the steering wheel 75
Interior fittings 84- 88 - mats - front armrest - 12 V accessory socket - USB port / Auxiliary socket - 230 V socket Deactivating the passenger's front airbag 207
Rear seats 81 Rear armrest, ski flap 89
Saloon

6

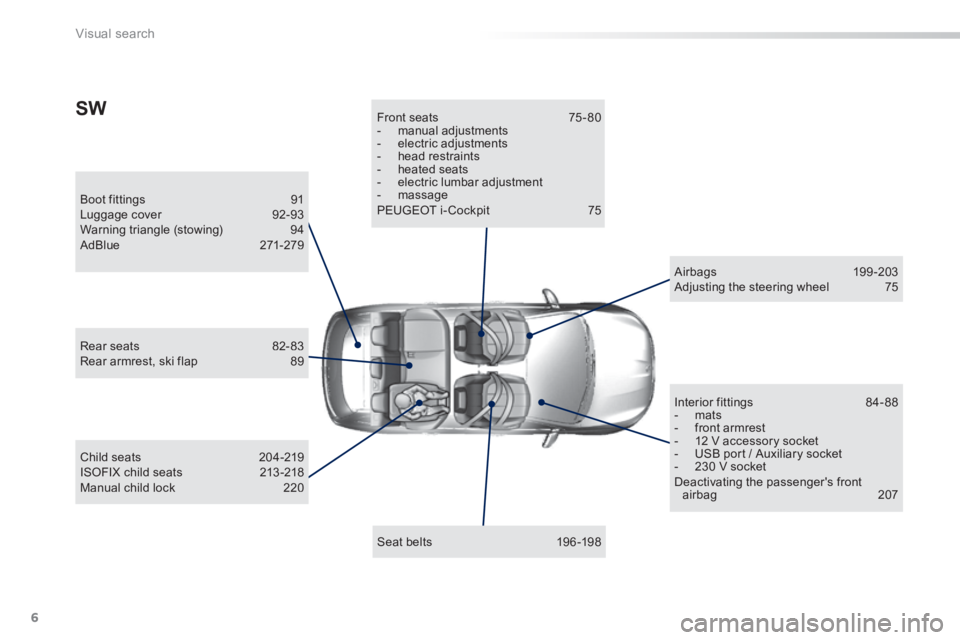

Visual search
308_EN_CHAP00B_ AIDE VISUELLE_ED02-2013
Boot fittings 91 Luggage cover 92-93 Warning triangle (stowing) 94 AdBlue 271-279
Seat belts 196 -198
Front seats 75 - 80 - manual adjustments - electric adjustments - head restraints - heated seats - electric lumbar adjustment - massage PEUGEOT i- Cockpit 75
Child seats 204-219 ISOFIX child seats 213 -218 Manual child lock 220
Airbags 199 -203 Adjusting the steering wheel 75
Interior fittings 84- 88 - mats - front armrest - 12 V accessory socket - USB port / Auxiliary socket - 230 V socket Deactivating the passenger's front airbag 207
Rear seats 82- 83 Rear armrest, ski flap 89
SW

204
Safety
308_EN_CHAP06_SECURITE_ED02-2013

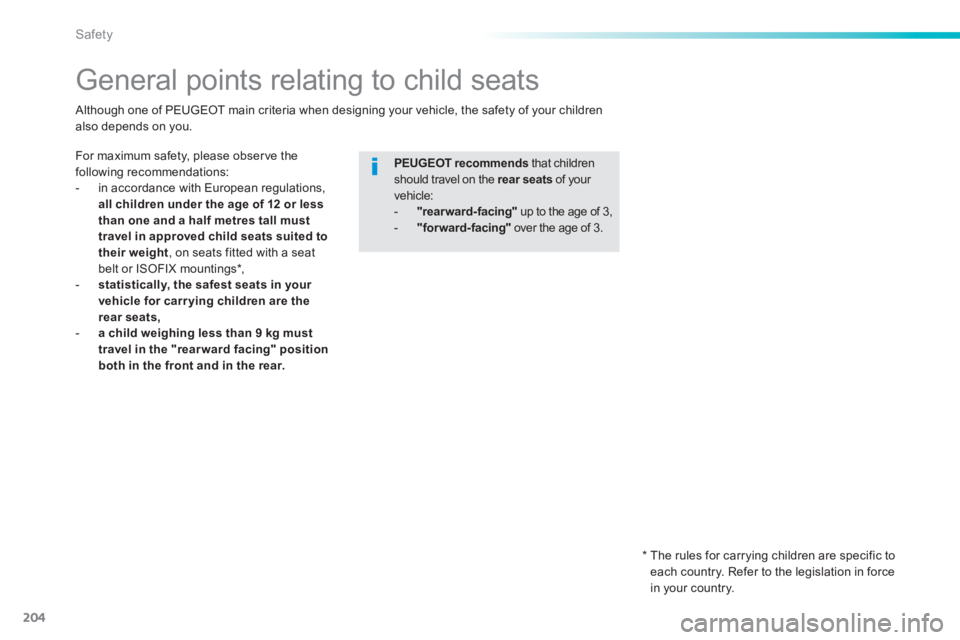

General points relating to child seats
For maximum safety, please observe the following recommendations: - in accordance with European regulations, all children under the age of 12 or less than one and a half metres tall must travel in approved child seats suited to their weight , on seats fitted with a seat belt or ISOFIX mountings * , - statistically, the safest seats in your vehicle for carr ying children are the rear seats, - a child weighing less than 9 kg must travel in the "rearward facing" position both in the front and in the rear.
PEUGEOT recommends that children should travel on the rear seats of your vehicle: - "rearward-facing" up to the age of 3,
- "forward-facing" over the age of 3.
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children also depends on you.
* The rules for carrying children are specific to each country. Refer to the legislation in force in your country.

210
Safety
308_EN_CHAP06_SECURITE_ED02-2013

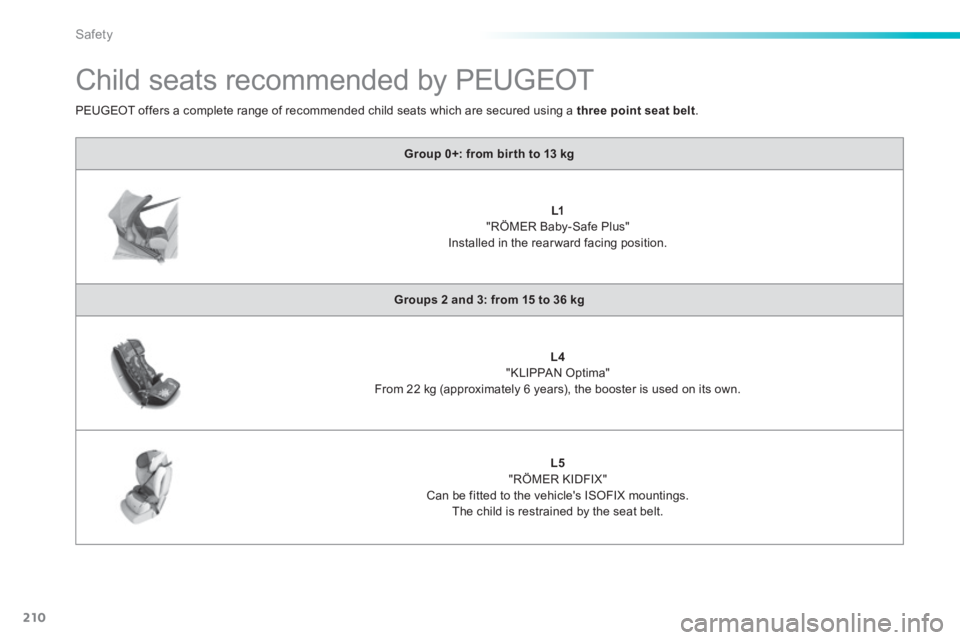

Child seats recommended by PEUGEOT
Group 0+: from bir th to 13 kg
L1
"RÖMER Baby-Safe Plus" Installed in the rear ward facing position.
Groups 2 and 3: from 15 to 36 kg
L4 "KLIPPAN Optima" From 22 kg (approximately 6 years), the booster is used on its own.
L5 "RÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt .

213
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013
Your vehicle has been approved in accordance with the latest ISOFIX regulations . The seats shown below are fitted with regulation ISOFIX mountings.

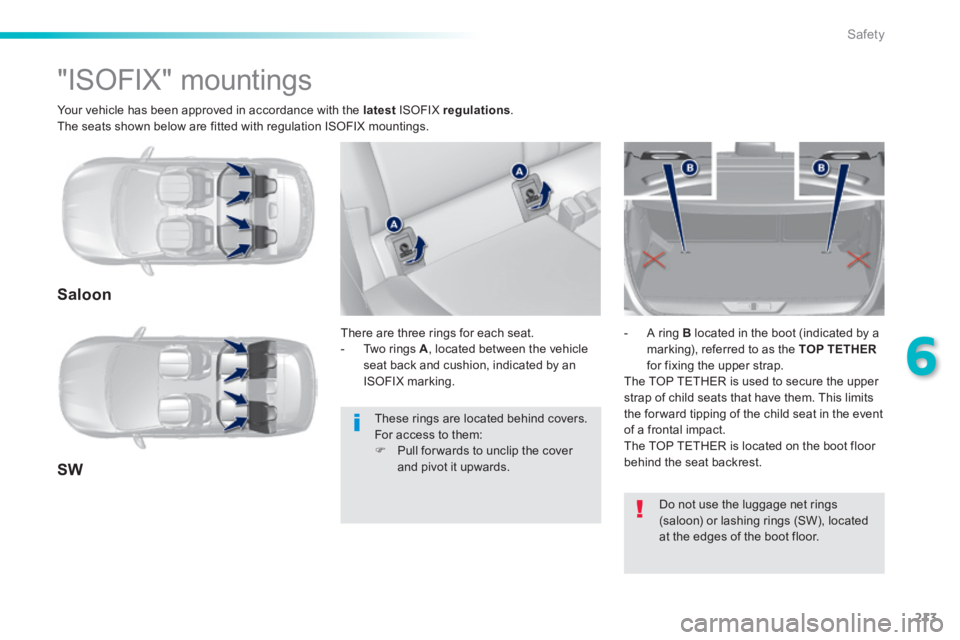

"ISOFIX" mountings
There are three rings for each seat. - Two rings A , located between the vehicle seat back and cushion, indicated by an ISOFIX marking.
- A ring B located in the boot (indicated by a marking), referred to as the TOP TETHERfor fixing the upper strap. The TOP TETHER is used to secure the upper strap of child seats that have them. This limits the for ward tipping of the child seat in the event of a frontal impact. The TOP TETHER is located on the boot floor behind the seat backrest.
Do not use the luggage net rings (saloon) or lashing rings (SW), located at the edges of the boot floor.
These rings are located behind covers. For access to them:  Pull for wards to unclip the cover and pivot it upwards.
Saloon
SW

214
Safety
308_EN_CHAP06_SECURITE_ED02-2013

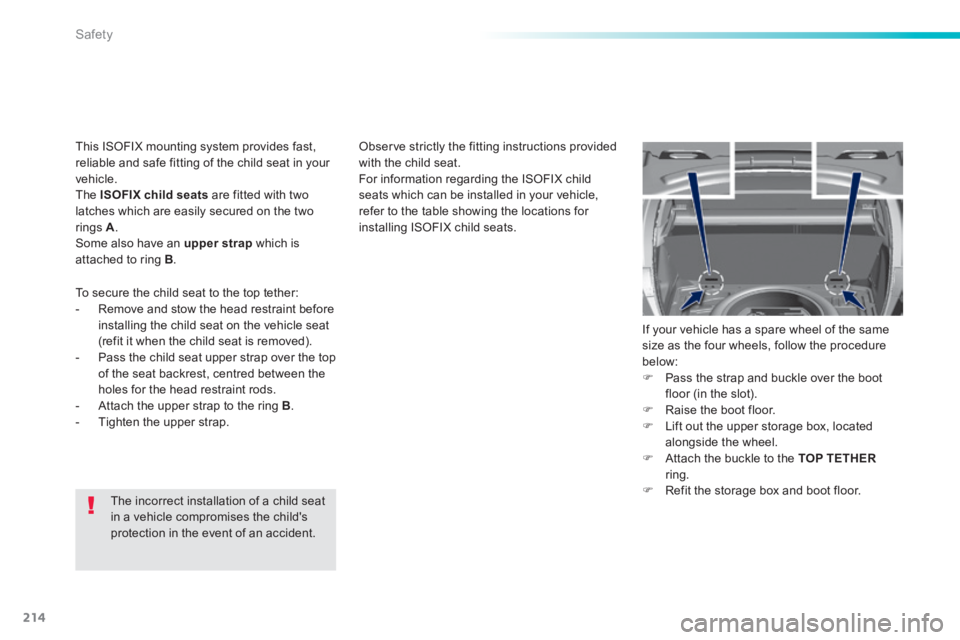

The incorrect installation of a child seat in a vehicle compromises the child's
protection in the event of an accident.
Observe strictly the fitting instructions provided with the child seat. For information regarding the ISOFIX child seats which can be installed in your vehicle, refer to the table showing the locations for
installing ISOFIX child seats.
To secure the child seat to the top tether: - Remove and stow the head restraint before installing the child seat on the vehicle seat (refit it when the child seat is removed). - Pass the child seat upper strap over the top of the seat backrest, centred between the holes for the head restraint rods. - Attach the upper strap to the ring B . - Tighten the upper strap.
If your vehicle has a spare wheel of the same size as the four wheels, follow the procedure below:  Pass the strap and buckle over the boot floor (in the slot).  Raise the boot floor.  Lift out the upper storage box, located alongside the wheel.  Attach the buckle to the TOP TETHERring.  Refit the storage box and boot floor.
This ISOFIX mounting system provides fast, reliable and safe fitting of the child seat in your vehicle. The ISOFIX child seats are fitted with two latches which are easily secured on the two
rings A . Some also have an upper strap which is attached to ring B .

215
6
Safety
308_EN_CHAP06_SECURITE_ED02-2013

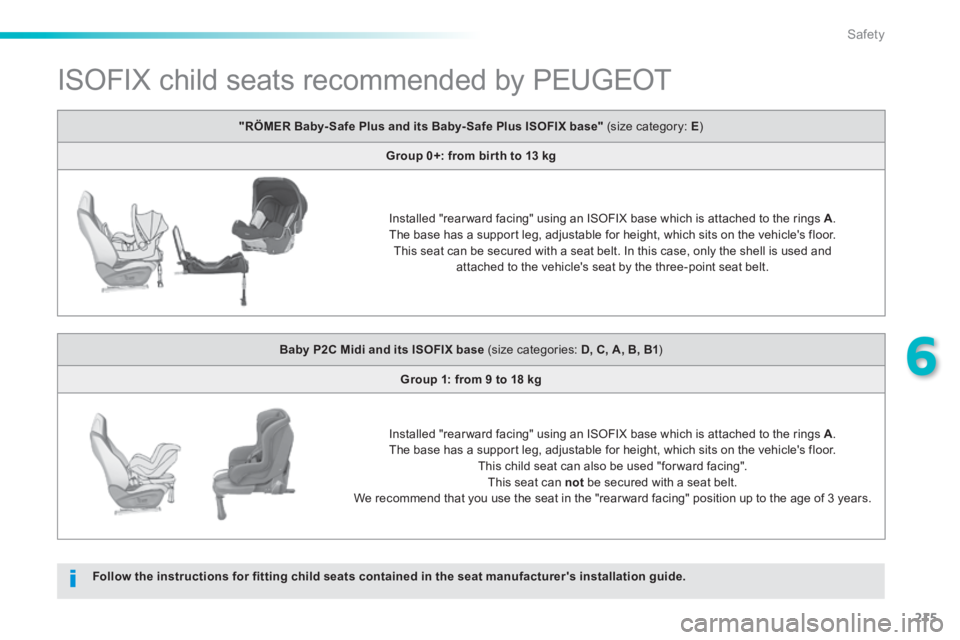

ISOFIX child seats recommended by PEUGEOT
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
"RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E )
Group 0+: from bir th to 13 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor. This seat can be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
Baby P2C Midi and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed "rear ward facing" using an ISOFIX base which is attached to the rings A .The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be used "for ward facing". This seat can not be secured with a seat belt. We recommend that you use the seat in the "rear ward facing" position up to the age of 3 years.
