11. Remove CVT fluid temper ature sensor bracket (1).
12. Disconnect control valve harness connector (A).
13. Remove the oil strainer assembly bolts (A) and (B), and then remove the oil strainer assembly (1).
14. Remove O-ring from oil strainer assembly. CAUTION:
Do not reuse O-ring.
15. Remove the bracket (1).
16. Remove the control valve bolts (A) and (B), and then remove the control valve from the transaxle case.
CAUTION:
Do not drop the control valve, ratio control valve and man-
ual shaft.
17. Remove terminal cord assembly (1) from inside the transaxle case.
: Bolt
: Front
JSDIA3686ZZ
: Front
JPDIA0657ZZ
: Bolt
: Front
JPDIA0658ZZ
: Front
AWDIA1059ZZ
JSDIA2634ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CONTROL VALVETM-391
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
5. Connect the control valve harness connectors (A).
CAUTION:
• Do not pinch the harness be tween the control valve and
the transaxle case.
• Securely insert the harness connector until it clicks and
locks.
6. Install CVT fluid temperature sensor bracket (1).
7. Install the bracket (1).
8. Install O-ring to oil strainer assembly. CAUTION:
• Do not reuse O-ring.
• Apply CVT fluid NS-3 to O-ring.
9. Install the oil strainer assembly (1) using the oil strainer assem- bly bolts (A) and (B).
NOTE:
Remove the bracket and adjust the position again if the bolt hole
positions are not aligned.
10. Install the manual plate (1) while aligning with the groove (A) of the manual valve.
CAUTION:
Assemble the manual plate whil e aligning its end with the
cutout ( ) of the manual valve.
11. Install the spring washer (2) and the lock-nut (3), and then tighten to the specified torque.
: Front
: Bolt
JSDIA3686ZZ
: Bolt
: Front
JPDIA0658ZZ
: Front
Bolt Bolt length (mm) Number of bolts A12 2
B44 1
(A) : Manual shaft : Front
JPDIA0657ZZ
JPDIA0962ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INPUT SPEED SENSORTM-393
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
INPUT SPEED SENSOR

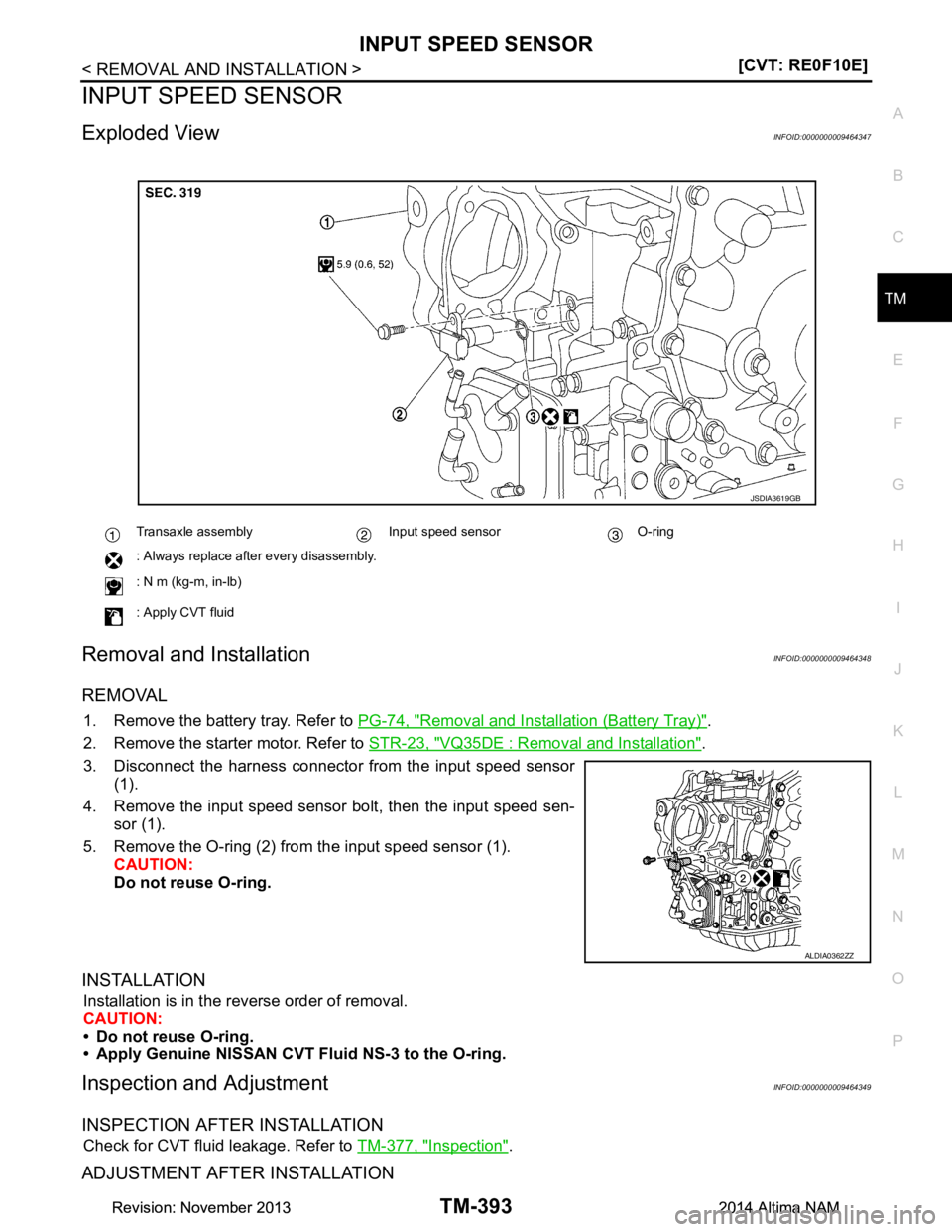

Exploded ViewINFOID:0000000009464347
Removal and InstallationINFOID:0000000009464348
REMOVAL
1. Remove the battery tray. Refer to PG-74, "Removal and Installation (Battery Tray)".
2. Remove the starter motor. Refer to STR-23, "VQ35DE : Removal and Installation"
.
3. Disconnect the harness connector from the input speed sensor
(1).
4. Remove the input speed sensor bolt, then the input speed sen- sor (1).
5. Remove the O-ring (2) from the input speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464349
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Transaxle assembly Input speed sensor O-ring
: Always replace after every disassembly.
: N m (kg-m, in-lb)
: Apply CVT fluid
JSDIA3619GB
ALDIA0362ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-394
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
INPUT SPEED SENSOR
Adjust the CVT fluid level. Refer to
TM-286, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PRIMARY SPEED SENSORTM-395
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRIMARY SPEED SENSOR

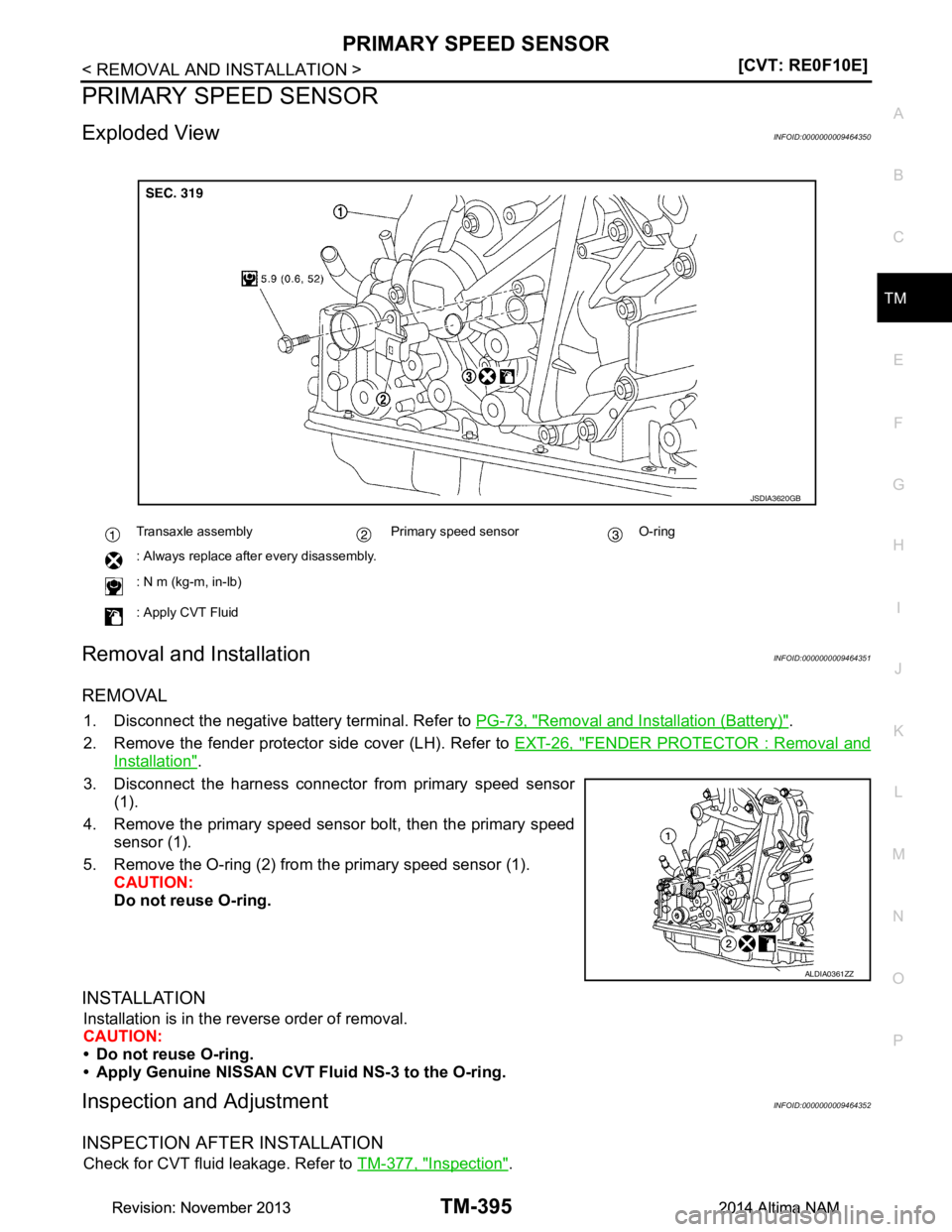

Exploded ViewINFOID:0000000009464350
Removal and InstallationINFOID:0000000009464351
REMOVAL
1. Disconnect the negative battery terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Remove the fender protector side cover (LH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
3. Disconnect the harness connecto r from primary speed sensor
(1).
4. Remove the primary speed sensor bolt, then the primary speed sensor (1).
5. Remove the O-ring (2) from the primary speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464352
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
Transaxle assembly Primary speed sensor O-ring
: Always replace after every disassembly.
: N m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA3620GB
ALDIA0361ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-396
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
PRIMARY SPEED SENSOR
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to
TM-286, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

OUTPUT SPEED SENSORTM-397
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464353
Removal and InstallationINFOID:0000000009464354
REMOVAL
1. Disconnect the battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector fr om output speed sensor (1).
3. Remove the output speed sensor bolt, then the output speed sensor (1).
4. Remove the O-ring (2) from the output speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464355
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
Transaxle assembly Output speed sensor O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA4209GB
ALDIA0363ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

VTL-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951791
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000009461571
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a s hop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAM
