2014 NISSAN LEAF Owners Manual

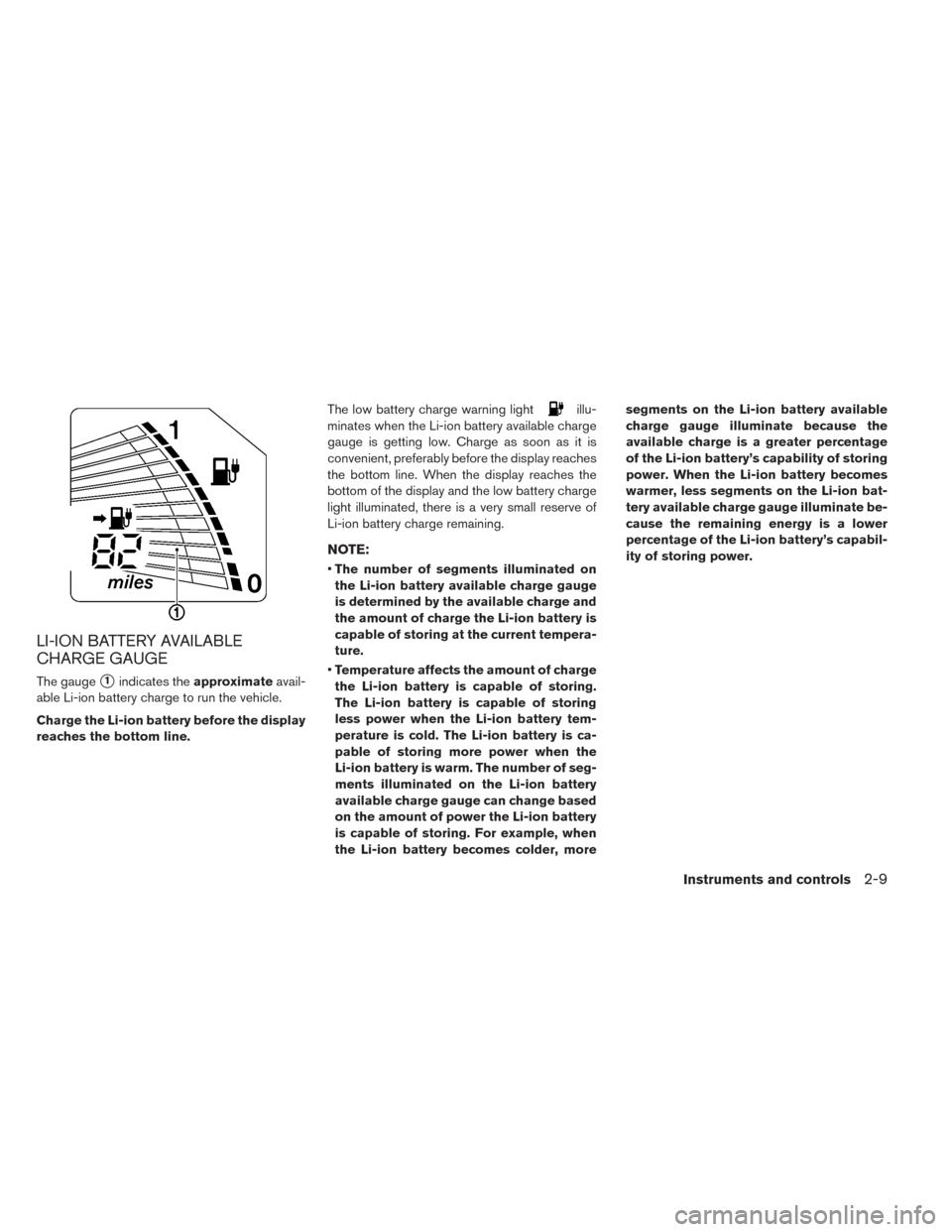

LI-ION BATTERY AVAILABLE
CHARGE GAUGE
The gauge1indicates theapproximateavail-
able Li-ion battery charge to run the vehicle.
Charge the Li-ion battery before the display
reaches the bottom line.The low battery charge warning light
illu-
minates when the Li-ion battery available charge
gauge is getting low. Charge as soon as it is
convenient, preferably before the display reaches
the bottom line. When the display reaches the
bottom of the display and the low battery charge
light illuminated, there is a very small reserve of
Li-ion battery charge remaining.
NOTE:
•The number of segments illuminated on
the Li-ion battery available charge gauge
is determined by the available charge and
the amount of charge the Li-ion battery is
capable of storing at the current tempera-
ture.
•Temperature affects the amount of charge
the Li-ion battery is capable of storing.
The Li-ion battery is capable of storing
less power when the Li-ion battery tem-
perature is cold. The Li-ion battery is ca-
pable of storing more power when the
Li-ion battery is warm. The number of seg-
ments illuminated on the Li-ion battery
available charge gauge can change based
on the amount of power the Li-ion battery
is capable of storing. For example, when
the Li-ion battery becomes colder, moresegments on the Li-ion battery available
charge gauge illuminate because the
available charge is a greater percentage
of the Li-ion battery’s capability of storing
power. When the Li-ion battery becomes
warmer, less segments on the Li-ion bat-
tery available charge gauge illuminate be-
cause the remaining energy is a lower
percentage of the Li-ion battery’s capabil-
ity of storing power.
Instruments and controls2-9

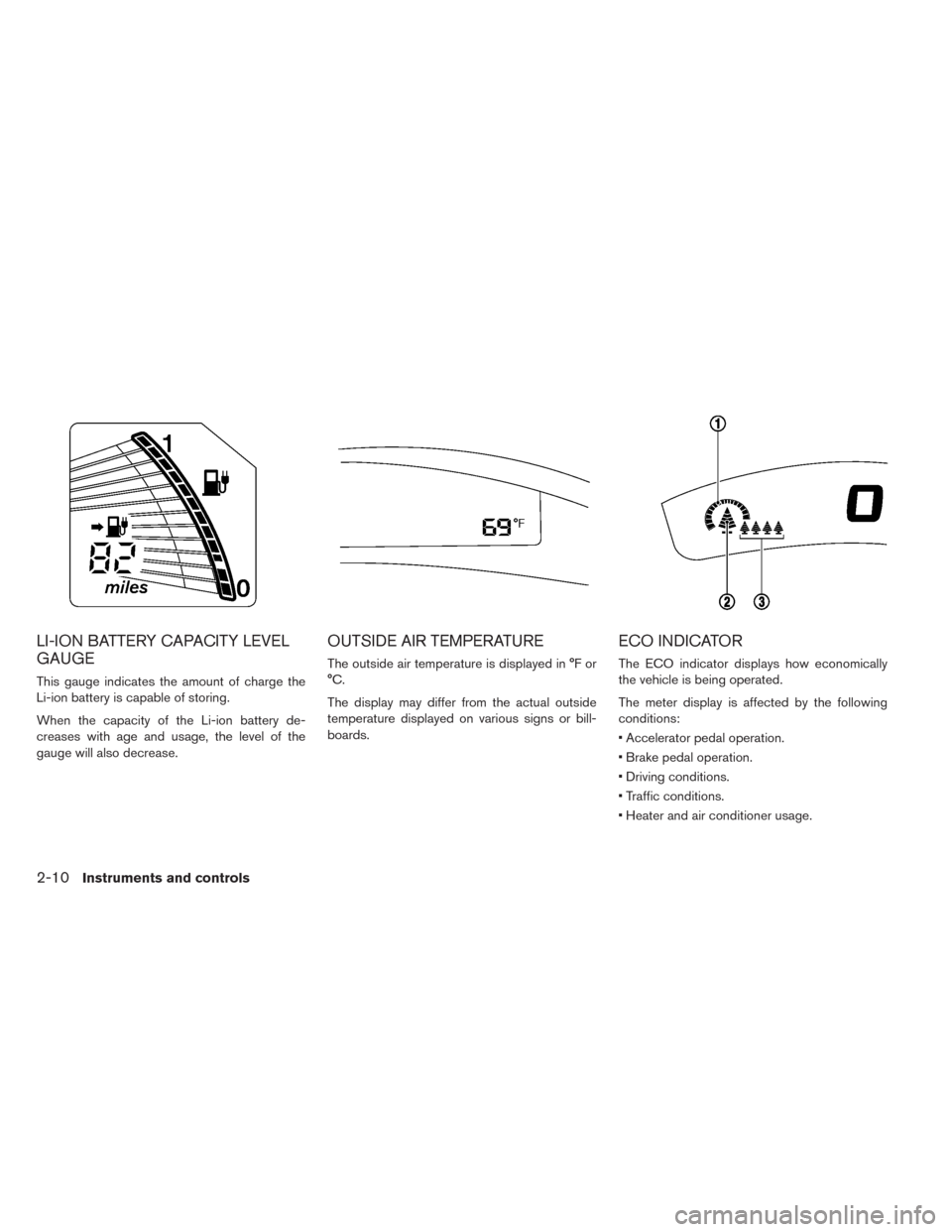

LI-ION BATTERY CAPACITY LEVEL
GAUGE
This gauge indicates the amount of charge the
Li-ion battery is capable of storing.
When the capacity of the Li-ion battery de-
creases with age and usage, the level of the
gauge will also decrease.
OUTSIDE AIR TEMPERATURE
The outside air temperature is displayed in °F or
°C.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.
ECO INDICATOR
The ECO indicator displays how economically
the vehicle is being operated.
The meter display is affected by the following
conditions:
• Accelerator pedal operation.
• Brake pedal operation.
• Driving conditions.
• Traffic conditions.
• Heater and air conditioner usage.
2-10Instruments and controls

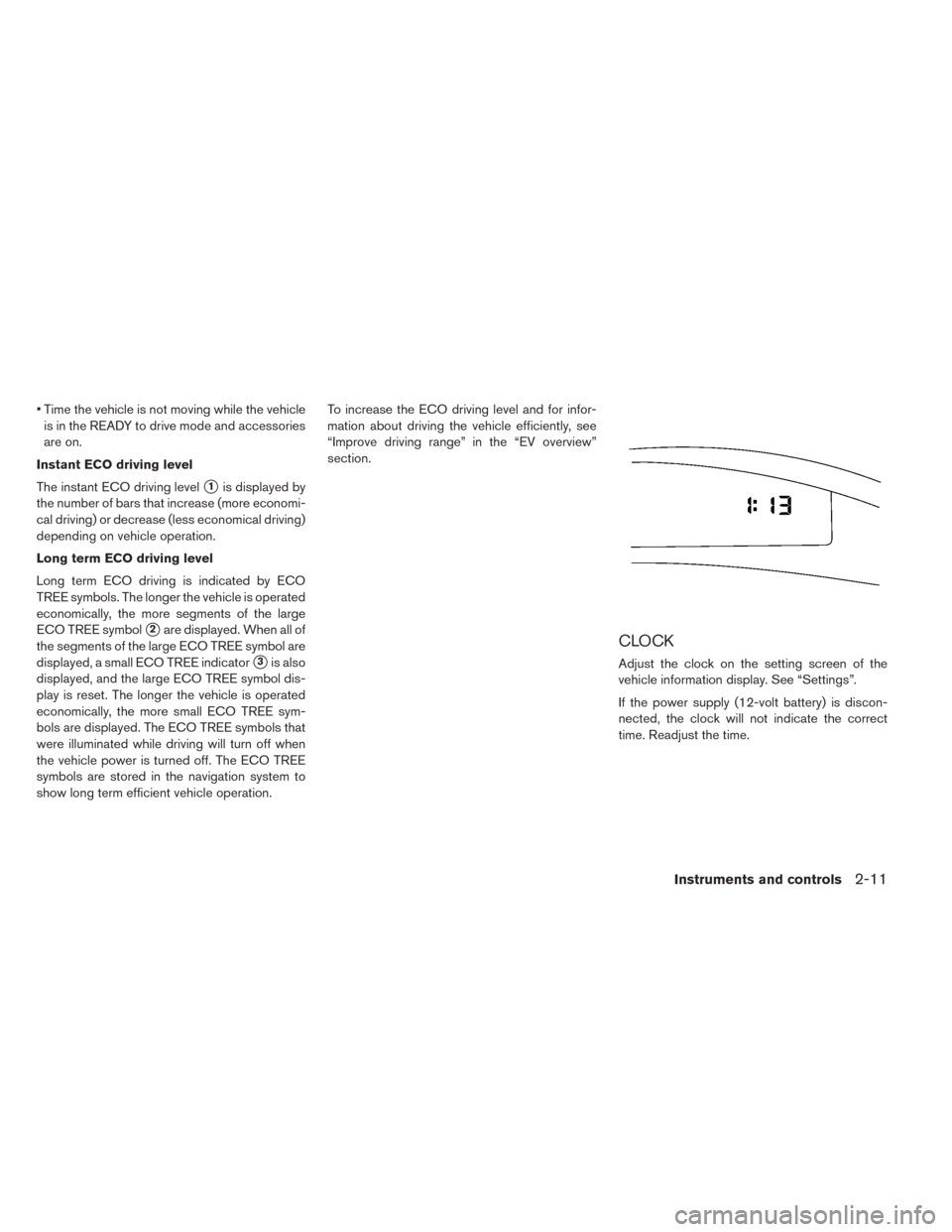

• Time the vehicle is not moving while the vehicle
is in the READY to drive mode and accessories
are on.
Instant ECO driving level
The instant ECO driving level
1is displayed by
the number of bars that increase (more economi-
cal driving) or decrease (less economical driving)
depending on vehicle operation.
Long term ECO driving level
Long term ECO driving is indicated by ECO
TREE symbols. The longer the vehicle is operated
economically, the more segments of the large
ECO TREE symbol
2are displayed. When all of
the segments of the large ECO TREE symbol are
displayed, a small ECO TREE indicator
3is also
displayed, and the large ECO TREE symbol dis-
play is reset. The longer the vehicle is operated
economically, the more small ECO TREE sym-
bols are displayed. The ECO TREE symbols that
were illuminated while driving will turn off when
the vehicle power is turned off. The ECO TREE
symbols are stored in the navigation system to
show long term efficient vehicle operation.To increase the ECO driving level and for infor-
mation about driving the vehicle efficiently, see
“Improve driving range” in the “EV overview”
section.
CLOCK
Adjust the clock on the setting screen of the
vehicle information display. See “Settings”.
If the power supply (12-volt battery) is discon-
nected, the clock will not indicate the correct
time. Readjust the time.
Instruments and controls2-11

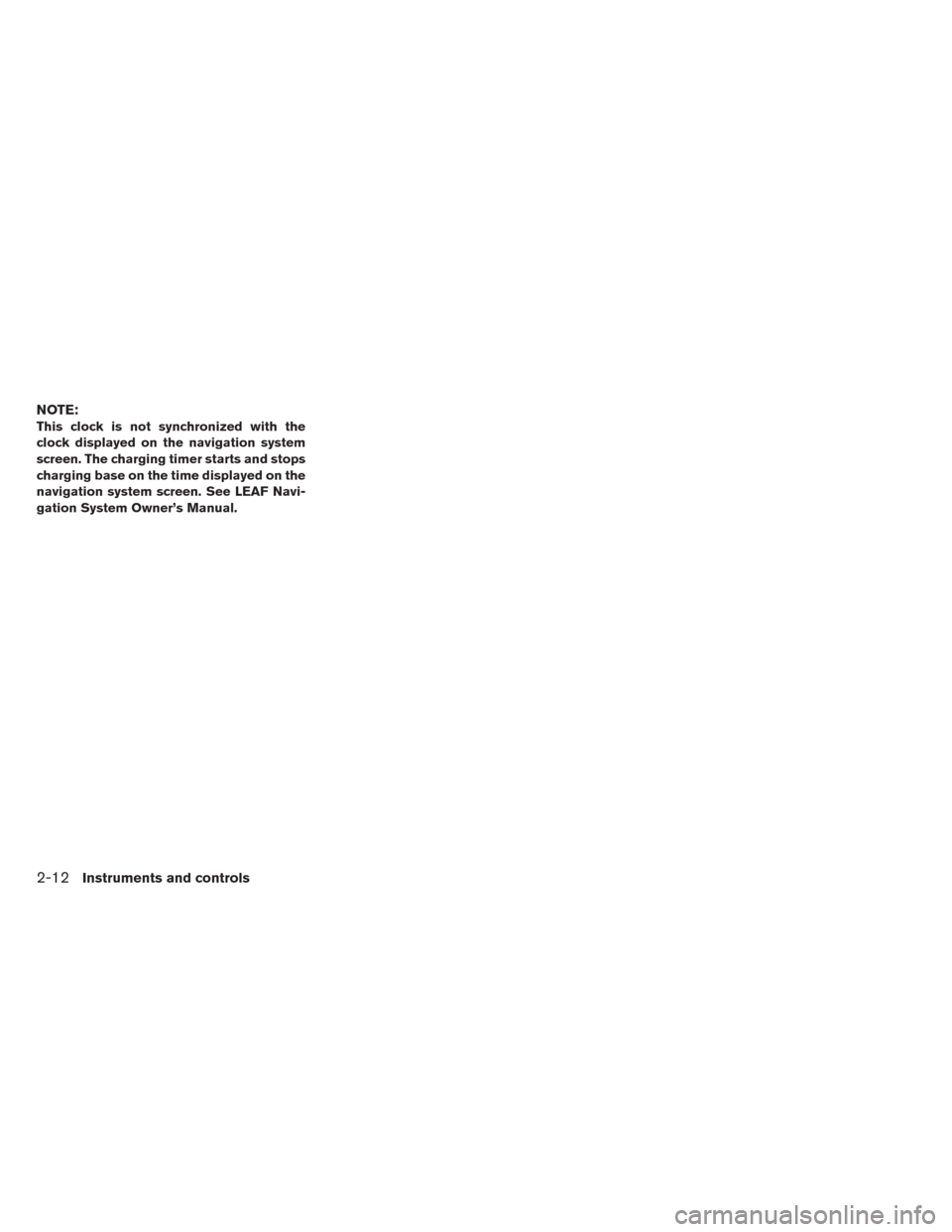

NOTE:
This clock is not synchronized with the
clock displayed on the navigation system
screen. The charging timer starts and stops
charging base on the time displayed on the
navigation system screen. See LEAF Navi-
gation System Owner’s Manual.
2-12Instruments and controls

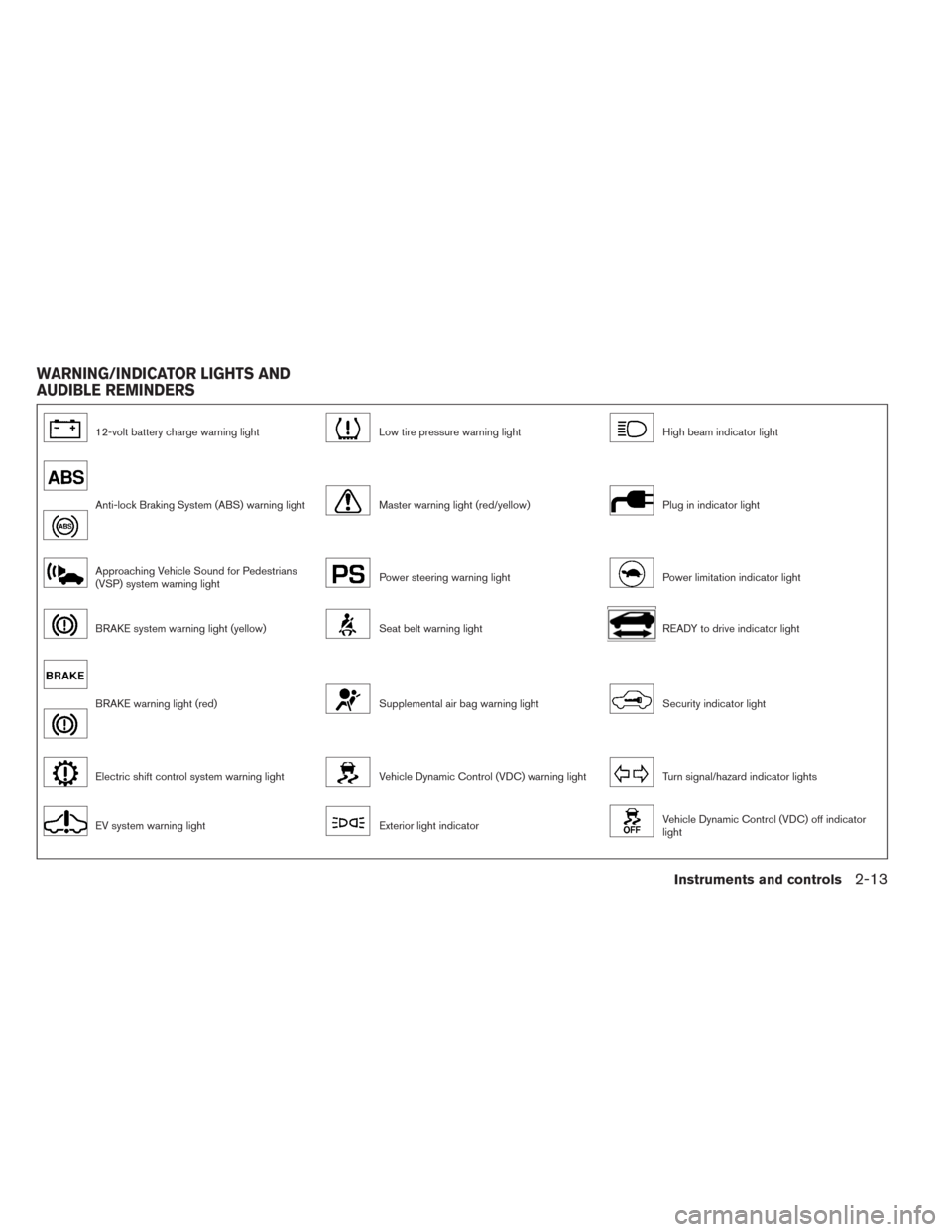

12-volt battery charge warning lightLow tire pressure warning lightHigh beam indicator light
Anti-lock Braking System (ABS) warning lightMaster warning light (red/yellow)Plug in indicator light
Approaching Vehicle Sound for Pedestrians
(VSP) system warning lightPower steering warning lightPower limitation indicator light
BRAKE system warning light (yellow)Seat belt warning lightREADY to drive indicator light
BRAKE warning light (red)Supplemental air bag warning lightSecurity indicator light
Electric shift control system warning lightVehicle Dynamic Control (VDC) warning lightTurn signal/hazard indicator lights
EV system warning lightExterior light indicatorVehicle Dynamic Control (VDC) off indicator
light
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-13

Headlight warning lightFront fog light indicator light (if so equipped)
Low battery charge warning lightFront passenger air bag status light
CHECKING BULBS
With all doors closed, apply the parking brake,
and push the power switch in the ON position.
The following lights will illuminate (if so
equipped):
,or,,
The following lights illuminate briefly and then
turn off:
(yellow) ,,or(red) ,
or,,,,,,
,
If any light does not illuminate, it may indicate a
burned-out bulb or an open circuit in the electri-
cal system. Have the system checked by a
NISSAN certified LEAF dealer.
Some indicators and warnings are also displayed
on the vehicle information display in the lower
display. (See “Vehicle information display”.)
WARNING LIGHTS
12-volt battery charge
warning light
The DC/DC converter converts 400 volt Li-ion
battery voltage to charge the 12-volt battery.
This light illuminates continuously after the bulb is
checked when the power switch is in the ON
position, and turns off when the power switch is
placed in the READY to drive position.
When this warning light illuminates, a chime
sounds and the following warnings are also dis-
played.
• Master warning (red)
• EV system warning light
The following messages also flash on and off on
the vehicle information display.
If the vehicle is being driven: “Stop the vehicle”
and if the vehicle is stopped: “When parked applyparking brake”. When these messages flash, im-
mediately stop the vehicle in a safe location, pull
the parking brake switch and push the P (Park)
position switch on the shift lever to place the
vehicle in the P (Park) position. The warning on
the meter and the chime stop when the parking
brake is operated or the vehicle is in the P (Park)
position. Contact a NISSAN certified LEAF
dealer for support.
CAUTION
• The DC/DC converter system may not
be functioning properly if the 12-volt
battery charge warning light illumi-
nates continuously when the power
switch is in the READY to drive posi-
tion. Immediately stop the vehicle in a
safe location and contact a NISSAN
certified LEAF dealer.
2-14Instruments and controls

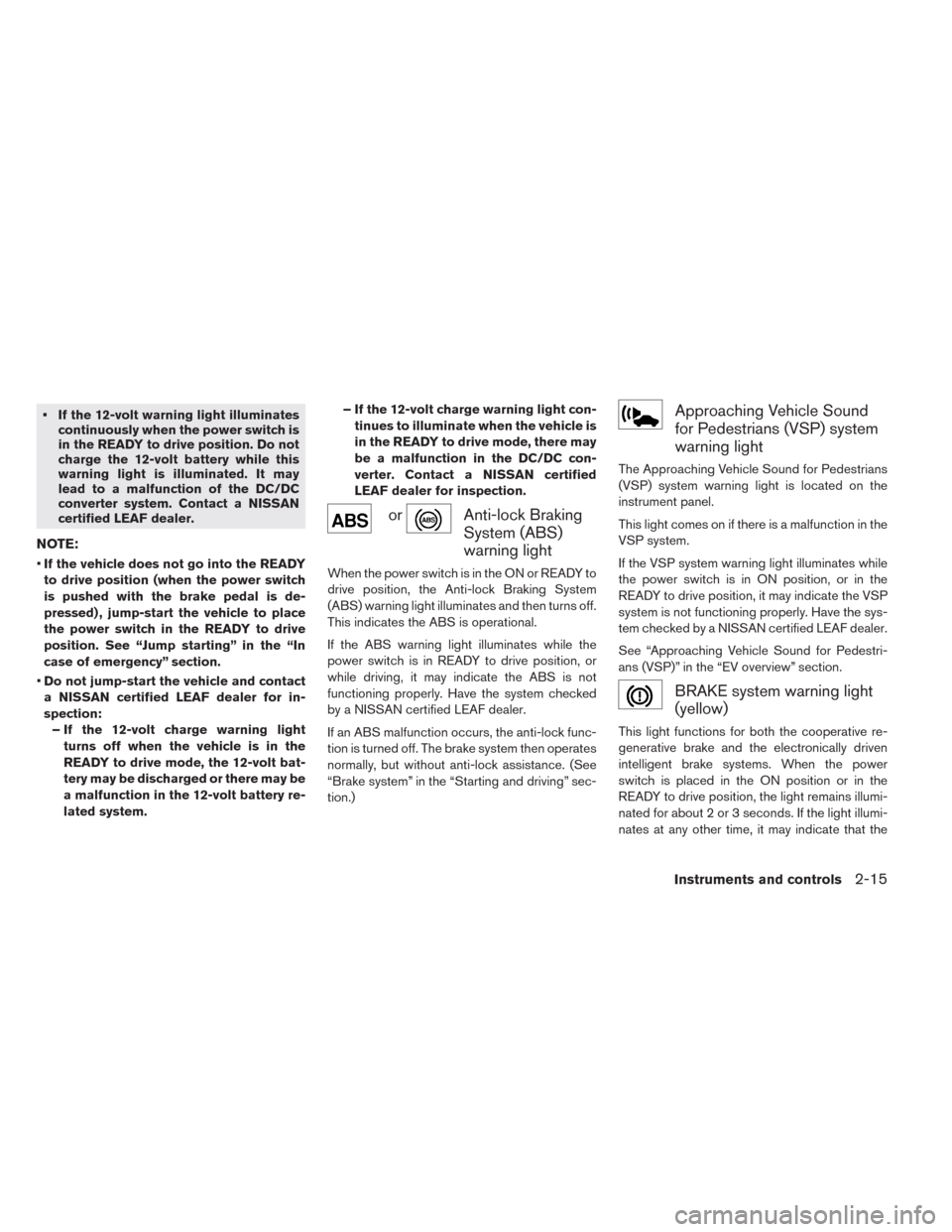

• If the 12-volt warning light illuminates
continuously when the power switch is
in the READY to drive position. Do not
charge the 12-volt battery while this
warning light is illuminated. It may
lead to a malfunction of the DC/DC
converter system. Contact a NISSAN
certified LEAF dealer.
NOTE:
•If the vehicle does not go into the READY
to drive position (when the power switch
is pushed with the brake pedal is de-
pressed) , jump-start the vehicle to place
the power switch in the READY to drive
position. See “Jump starting” in the “In
case of emergency” section.
•Do not jump-start the vehicle and contact
a NISSAN certified LEAF dealer for in-
spection:
– If the 12-volt charge warning light
turns off when the vehicle is in the
READY to drive mode, the 12-volt bat-
tery may be discharged or there may be
a malfunction in the 12-volt battery re-
lated system.– If the 12-volt charge warning light con-
tinues to illuminate when the vehicle is
in the READY to drive mode, there may
be a malfunction in the DC/DC con-
verter. Contact a NISSAN certified
LEAF dealer for inspection.
orAnti-lock Braking
System (ABS)
warning light
When the power switch is in the ON or READY to
drive position, the Anti-lock Braking System
(ABS) warning light illuminates and then turns off.
This indicates the ABS is operational.
If the ABS warning light illuminates while the
power switch is in READY to drive position, or
while driving, it may indicate the ABS is not
functioning properly. Have the system checked
by a NISSAN certified LEAF dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. (See
“Brake system” in the “Starting and driving” sec-
tion.)
Approaching Vehicle Sound
for Pedestrians (VSP) system
warning light
The Approaching Vehicle Sound for Pedestrians
(VSP) system warning light is located on the
instrument panel.
This light comes on if there is a malfunction in the
VSP system.
If the VSP system warning light illuminates while
the power switch is in ON position, or in the
READY to drive position, it may indicate the VSP
system is not functioning properly. Have the sys-
tem checked by a NISSAN certified LEAF dealer.
See “Approaching Vehicle Sound for Pedestri-
ans (VSP)” in the “EV overview” section.
BRAKE system warning light
(yellow)
This light functions for both the cooperative re-
generative brake and the electronically driven
intelligent brake systems. When the power
switch is placed in the ON position or in the
READY to drive position, the light remains illumi-
nated for about 2 or 3 seconds. If the light illumi-
nates at any other time, it may indicate that the
Instruments and controls2-15

cooperative regenerative brake and/or the elec-
tronically driven intelligent brake systems are not
functioning properly. Have the system checked
by a NISSAN certified LEAF dealer. If the BRAKE
warning light (red) also illuminates, stop the ve-
hicle immediately and contact a NISSAN certified
LEAF dealer. For additional information, see
“Brakes” in the “Starting and driving” section.
WARNING
• Pressing the brake pedal when the
power switch position is not in the ON
or READY to drive position and/or low
brake fluid level may increase the
stopping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
• If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN certified LEAF dealer.• The cooperative regenerative brake
system may not be working properly if
the brake system warning light illumi-
nates when the READY to drive indica-
tor light is ON. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have
your vehicle towed because driving
could be dangerous.orBRAKE warning
light (red)
When the power switch is placed in the ON
position or in the READY to drive position, the
light remains illuminated for about a few seconds.
If the light illuminates at any other time, it may
indicate that the hydraulic brake system is not
functioning properly. If the BRAKE warning light
illuminates, stop the vehicle immediately and
contact a NISSAN certified LEAF dealer.
Parking brake indicator:
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light:
When the power switch is in the ON position, the
light warns of a low brake fluid level. If this warn-ing light illuminates, the Vehicle Dynamic Control
(VDC) warning light and the brake system warn-
ing light (yellow) also illuminate.
If the light illuminates while the power switch is in
the READY to drive position with the parking
brake not applied, stop the vehicle and perform
the following items.
1. Check the brake fluid level. If brake fluid is
necessary, add fluid and have the system
checked by a NISSAN certified LEAF dealer.
See “Brake fluid” in the “Maintenance and
do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN certi-
fied LEAF dealer.
WARNING
• Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge
the brake system to be safe, drive care-
fully to the nearest service station for
repairs. Otherwise, have your vehicle
towed because driving it could be dan-
gerous.
2-16Instruments and controls
