2014 NISSAN LEAF Owners Manual

2 Instruments and controls
Cockpit.............................2-3
Instrument panel........................2-4
Meters and gauges......................2-5
Speedometer and odometer...............2-6
Li-ion battery temperature gauge............2-7
Power meter........................2-7
Driving range........................2-8
Li-ion battery available charge gauge.........2-9
Li-ion battery capacity level gauge..........2-10
Outside air temperature................2-10
ECO indicator......................2-10
Clock...........................2-11
Warning/indicator lights and audible reminders.....2-13
Checking bulbs.....................2-14
Warning lights......................2-14
Indicator lights......................2-20
Audible reminders....................2-22
Vehicle information display.................2-23
Indicators for operation.................2-24
Trip computer......................2-28
Warning information displays.............2-33
Indicators for maintenance...............2-35
Indicator for timer....................2-36
Security systems......................2-36Vehicle security system.................2-37
NISSAN Vehicle Immobilizer System.........2-38
Windshield wiper and washer switch...........2-39
Washer operation....................2-40
Rear window wiper and washer switch.........2-41
Rear window and outside mirror defroster switch . . .2-42
Instrument brightness control...............2-42
Headlight and turn signal switch.............2-43
Headlight switch.....................2-43
Turn signal switch....................2-45
Fog light switch (if so equipped)............
.2-45
Heated steering wheel switch...............2-46
Horn..............................2-47
ECO switch.........................2-47
Heated seat switch.....................2-47
Vehicle Dynamic Control (VDC) OFF switch......2-49
Charge port lid switch...................2-49
Charge connector lock switch...............2-50
Charge timer OFF switch.................2-50
Power outlet.........................2-50
Storage............................2-51
Cup holders.......................2-51
Sunglasses holder....................2-52
Glove box.........................2-53
Console box.......................2-53

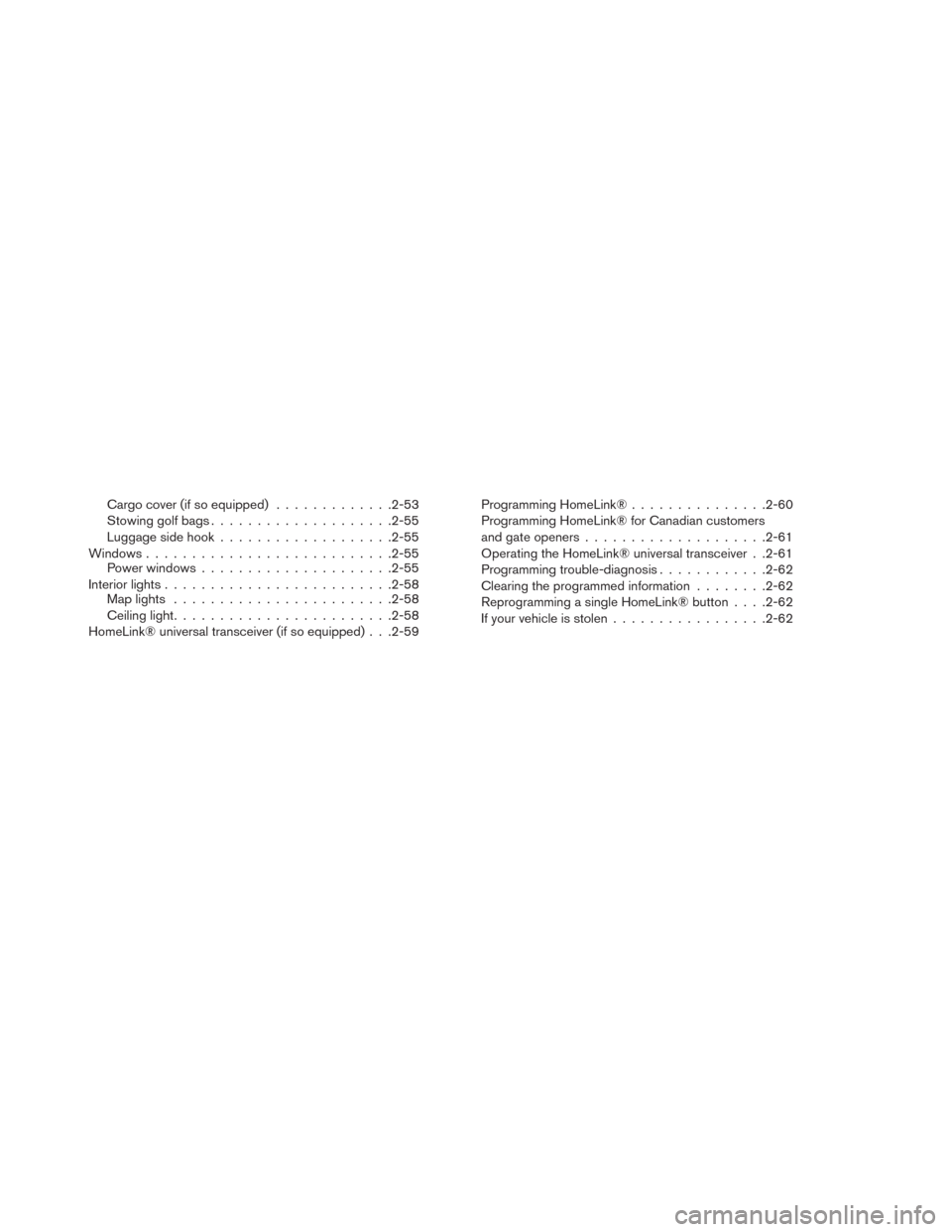

Cargo cover (if so equipped).............2-53
Stowing golf bags....................2-55
Luggage side hook...................2-55
Windows...........................2-55
Power windows.....................2-55
Interior lights.........................2-58
Map lights........................2-58
Ceiling light........................2-58
HomeLink® universal transceiver (if so equipped) . . .2-59Programming HomeLink®...............2-60
Programming HomeLink® for Canadian customers
and gate openers....................2-61
Operating the HomeLink® universal transceiver . .2-61
Programming trouble-diagnosis............2-62
Clearing the programmed information........2-62
Reprogramming a single HomeLink® button. . . .2-62
If your vehicle is stolen.................2-62

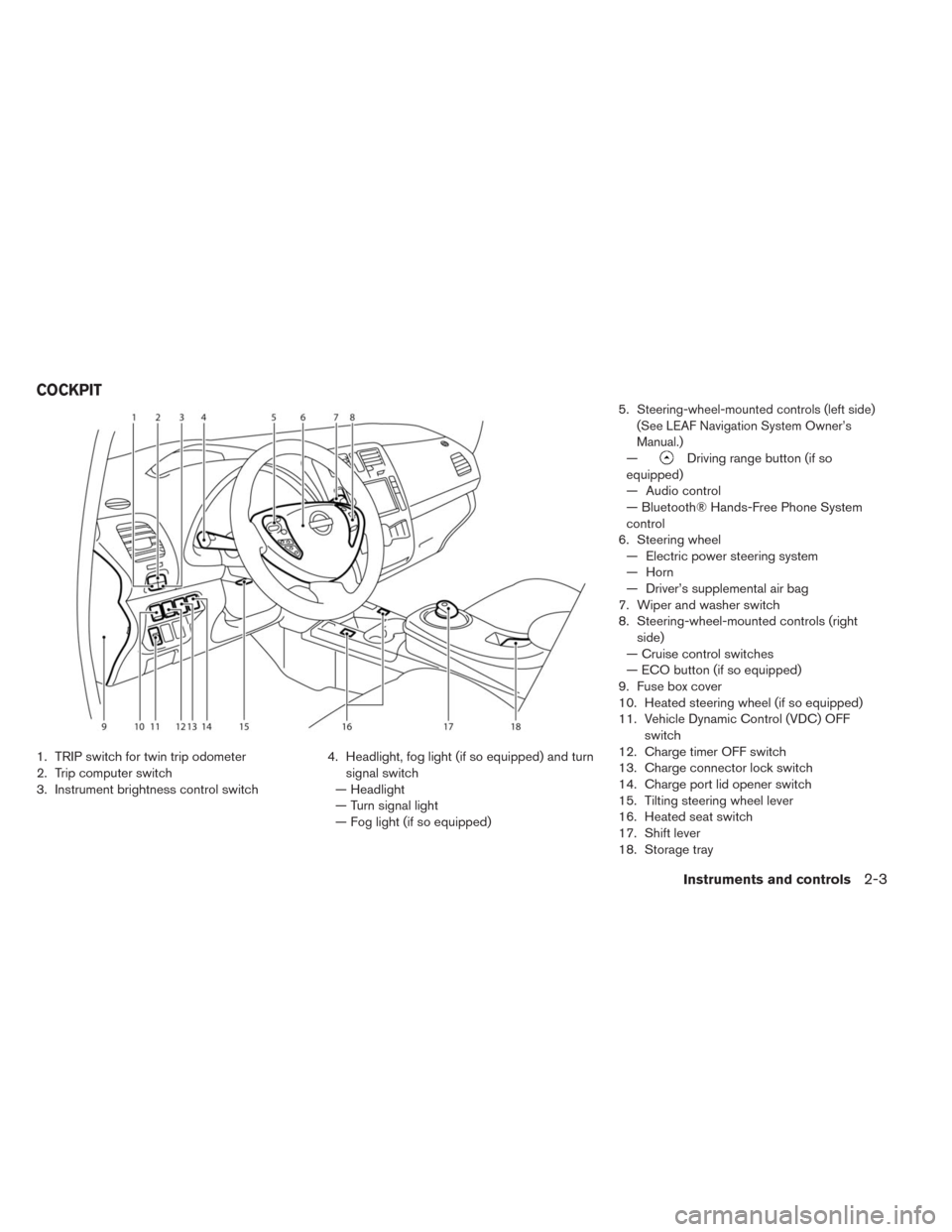

1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch4. Headlight, fog light (if so equipped) and turn
signal switch
— Headlight
— Turn signal light
— Fog light (if so equipped)5.
Steering-wheel-mounted controls (left side)
(See LEAF Navigation System Owner’s
Manual.)
—Driving range button (if so
equipped)
— Audio control
— Bluetooth® Hands-Free Phone System
control
6. Steering wheel
— Electric power steering system
— Horn
— Driver’s supplemental air bag
7. Wiper and washer switch
8. Steering-wheel-mounted controls (right
side)
— Cruise control switches
— ECO button (if so equipped)
9. Fuse box cover
10. Heated steering wheel (if so equipped)
11. Vehicle Dynamic Control (VDC) OFF
switch
12. Charge timer OFF switch
13. Charge connector lock switch
14. Charge port lid opener switch
15. Tilting steering wheel lever
16. Heated seat switch
17. Shift lever
18. Storage tray
COCKPIT
Instruments and controls2-3

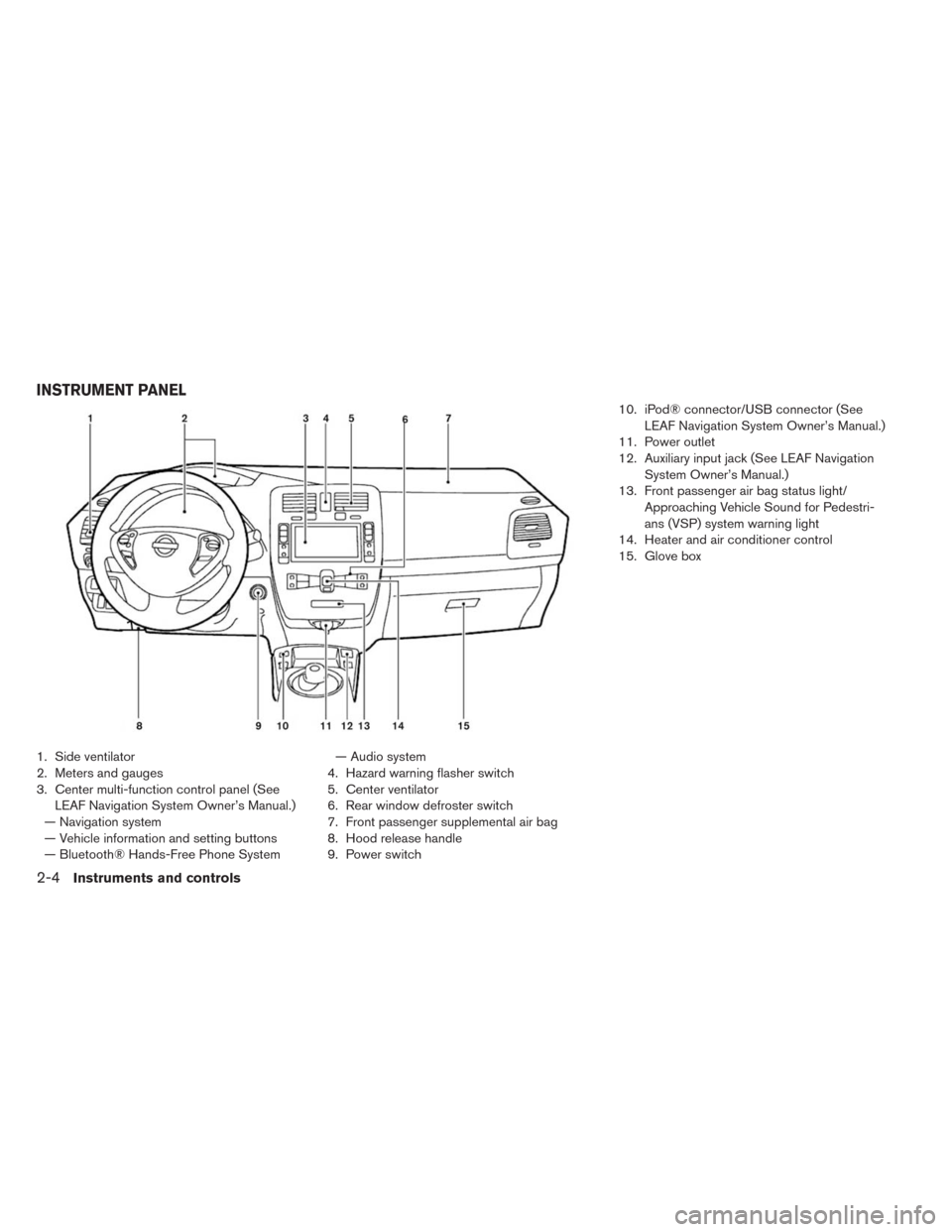

1. Side ventilator
2. Meters and gauges
3. Center multi-function control panel (See
LEAF Navigation System Owner’s Manual.)
— Navigation system
— Vehicle information and setting buttons
— Bluetooth® Hands-Free Phone System— Audio system
4. Hazard warning flasher switch
5. Center ventilator
6. Rear window defroster switch
7. Front passenger supplemental air bag
8. Hood release handle
9. Power switch10. iPod® connector/USB connector (See
LEAF Navigation System Owner’s Manual.)
11. Power outlet
12. Auxiliary input jack (See LEAF Navigation
System Owner’s Manual.)
13. Front passenger air bag status light/
Approaching Vehicle Sound for Pedestri-
ans (VSP) system warning light
14. Heater and air conditioner control
15. Glove box
INSTRUMENT PANEL
2-4Instruments and controls

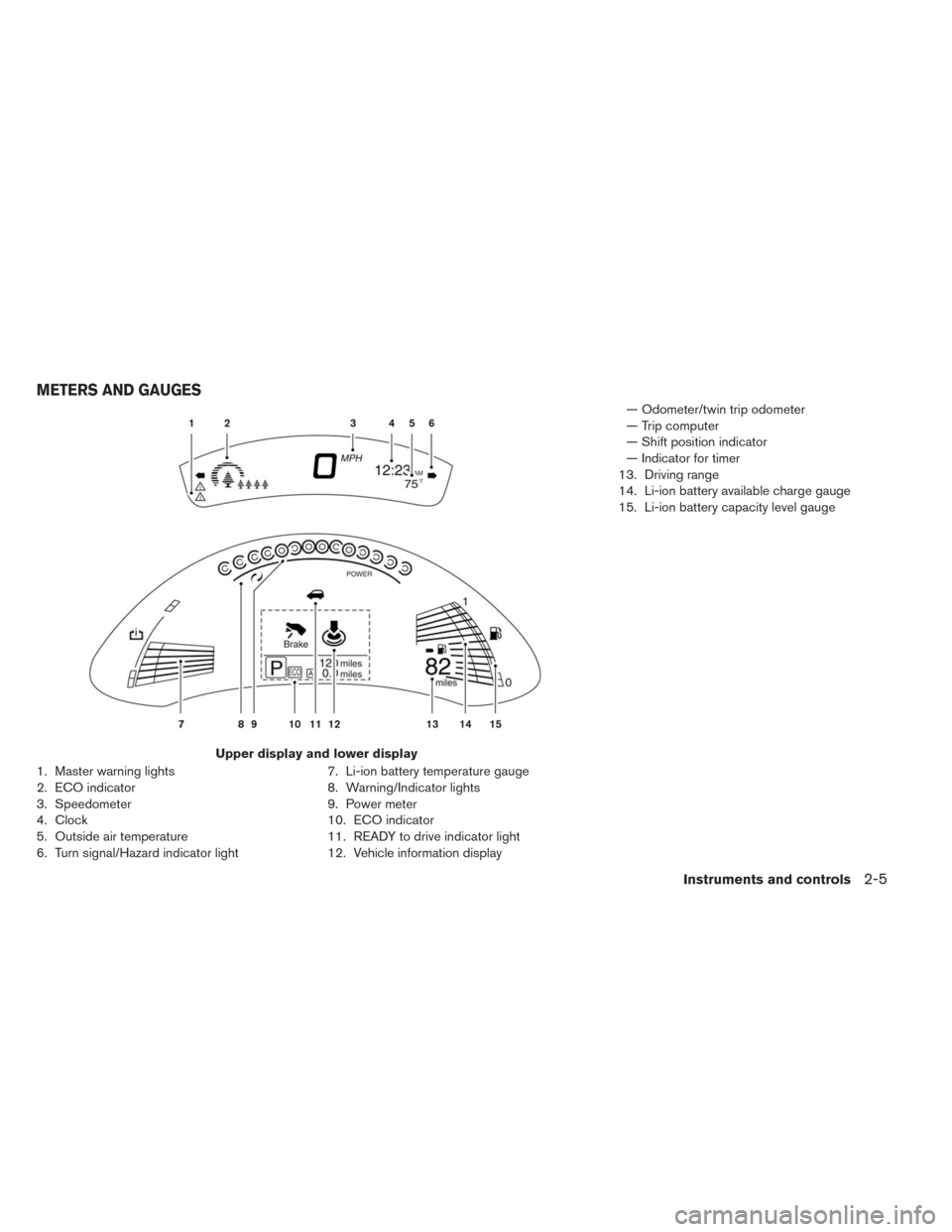

1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light7. Li-ion battery temperature gauge
8. Warning/Indicator lights
9. Power meter
10. ECO indicator
11. READY to drive indicator light
12. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Shift position indicator
— Indicator for timer
13. Driving range
14. Li-ion battery available charge gauge
15. Li-ion battery capacity level gauge
Upper display and lower display
METERS AND GAUGES
Instruments and controls2-5

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the vehicle information display when
the power switch is in the ON or READY to drive
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Pushing the TRIP switch
3located on the left
side of the combination meter panel changes the
display as follows:
TRIP A→TRIP B→TRIP A
For information about the vehicle information dis-
play, see “Vehicle information display”.
Resetting the trip odometer:
Pushing the TRIP switch
3for approximately 1
second resets the trip odometer to zero.
2-6Instruments and controls

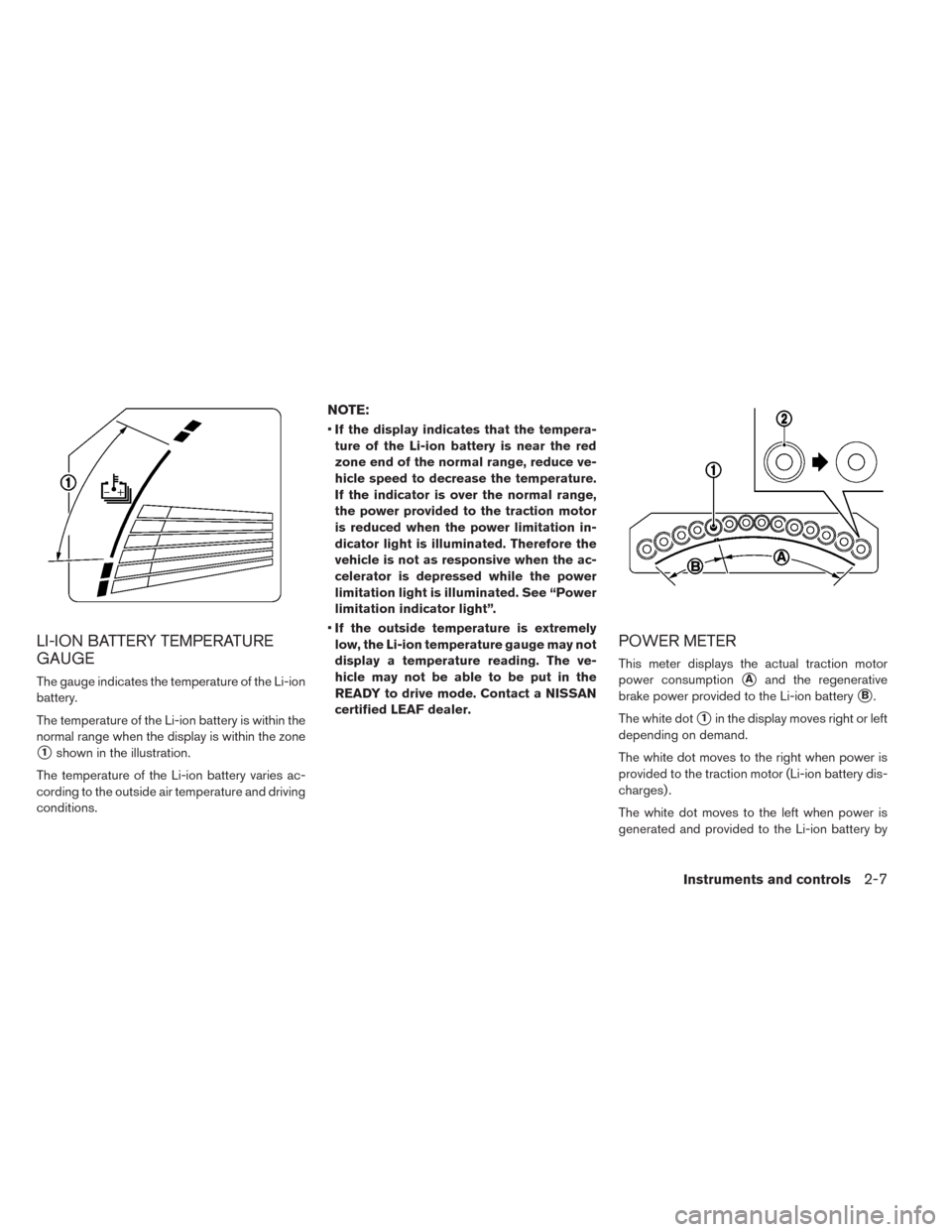

LI-ION BATTERY TEMPERATURE
GAUGE
The gauge indicates the temperature of the Li-ion
battery.
The temperature of the Li-ion battery is within the
normal range when the display is within the zone
1shown in the illustration.
The temperature of the Li-ion battery varies ac-
cording to the outside air temperature and driving
conditions.
NOTE:
•If the display indicates that the tempera-
ture of the Li-ion battery is near the red
zone end of the normal range, reduce ve-
hicle speed to decrease the temperature.
If the indicator is over the normal range,
the power provided to the traction motor
is reduced when the power limitation in-
dicator light is illuminated. Therefore the
vehicle is not as responsive when the ac-
celerator is depressed while the power
limitation light is illuminated. See “Power
limitation indicator light”.
•If the outside temperature is extremely
low, the Li-ion temperature gauge may not
display a temperature reading. The ve-
hicle may not be able to be put in the
READY to drive mode. Contact a NISSAN
certified LEAF dealer.
POWER METER
This meter displays the actual traction motor
power consumption
Aand the regenerative
brake power provided to the Li-ion battery
B.
The white dot
1in the display moves right or left
depending on demand.
The white dot moves to the right when power is
provided to the traction motor (Li-ion battery dis-
charges) .
The white dot moves to the left when power is
generated and provided to the Li-ion battery by
Instruments and controls2-7

the regenerative brake system (Li-ion battery
charging) .
The power meter also indicates if the power
provided to the motor is limited or if regenerative
braking is limited. When power or regenerative
braking is limited, the circles on the display
change from a double circle to a single circle
2.
Regenerative braking is automatically reduced
when the Li-ion battery is fully charged to prevent
the Li-ion battery from becoming overcharged.
Regenerative braking is also automatically re-
duced when the Li-ion battery temperature is
high/low (indicated by the red/blue zones on the
Li-ion battery temperature gauge) to prevent Li-
ion battery damage.
The more regenerative braking is reduced the
more double circles change to single circles
If the Li-ion battery charge is low, power provided
to the traction motor is reduced. Motor output is
also limited if the Li-ion battery temperature is
high/low (indicated by the red/blue zones on the
Li-ion battery temperature gauge) or the Li-ion
battery charge level is low.
The more power provided to the traction motor is
reduced the more double circles change to
single circles.

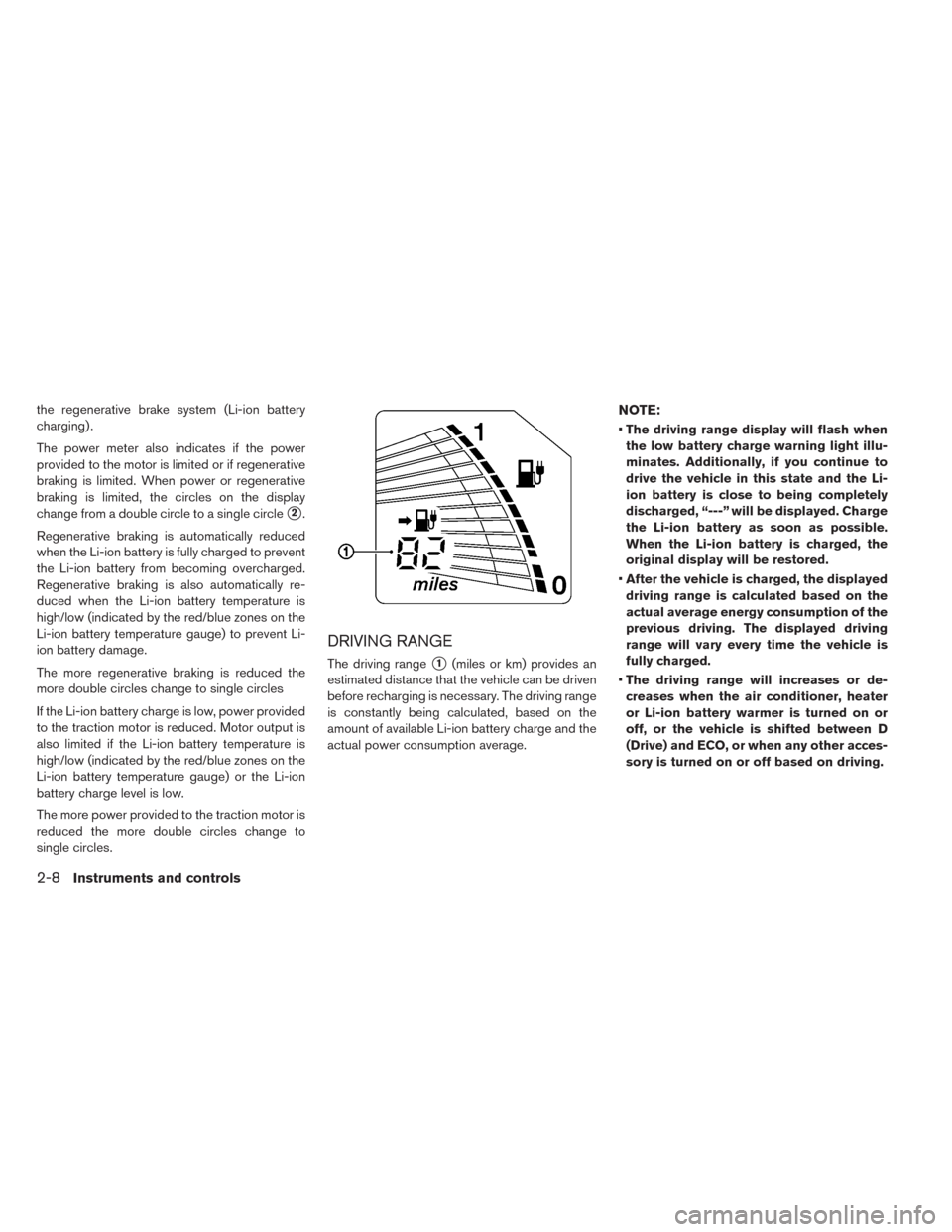

DRIVING RANGE
The driving range1(miles or km) provides an
estimated distance that the vehicle can be driven
before recharging is necessary. The driving range
is constantly being calculated, based on the
amount of available Li-ion battery charge and the
actual power consumption average.
NOTE:
•The driving range display will flash when
the low battery charge warning light illu-
minates. Additionally, if you continue to
drive the vehicle in this state and the Li-
ion battery is close to being completely
discharged, “---” will be displayed. Charge
the Li-ion battery as soon as possible.
When the Li-ion battery is charged, the
original display will be restored.
•After the vehicle is charged, the displayed
driving range is calculated based on the
actual average energy consumption of the
previous driving. The displayed driving
range will vary every time the vehicle is
fully charged.
•The driving range will increases or de-
creases when the air conditioner, heater
or Li-ion battery warmer is turned on or
off, or the vehicle is shifted between D
(Drive) and ECO, or when any other acces-
sory is turned on or off based on driving.
2-8Instruments and controls
