2014 NISSAN LEAF Owners Manual

WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window with the defroster before
you wash the rear window.
CAUTION
• Do not operate the washer continu-
ously for more than 30 seconds.
• Do not operate the washer if the reser-
voir tank is empty.
• Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
• Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reservoir
tank. Do not use the window washer
reservoir tank to mix the washer fluid
concentrate and water.If the rear window wiper operation is inter-
rupted by snow etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow etc. on and around
the wiper arms. After about 1 minute, turn
the switch ON again to operate the wiper.
The rear window wiper and washer operate when
the power switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3to operate the
washer. Then the wiper will also operate several
times.
REAR WINDOW WIPER AND
WASHER SWITCH
Instruments and controls2-41

To defog/defrost the rear window glass and out-
side mirrors (if so equipped) , place the power
switch in the ON position and push the switch
1
on. The indicator light will illuminate. Push the
switch again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.The instrument brightness control switch can be
operated when the power switch is in the ON
position. When the switch is operated, the ve-
hicle information display switches to the bright-
ness adjustment mode.
Push the switch
1to display the setting menu of
the brightness control on the vehicle information
display.
Push the
1button to move the bar to the + side.
If the bar reaches the maximum brightness, a
chime will sound. If the button
1is pushed again
when the brightness is at the maximum setting,
the instrument lights turn off.If the button
1is pushed again, the instrument
lights are turned on to the lowest brightness
setting.
Type AType B
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHINSTRUMENT BRIGHTNESS
CONTROL
2-42Instruments and controls

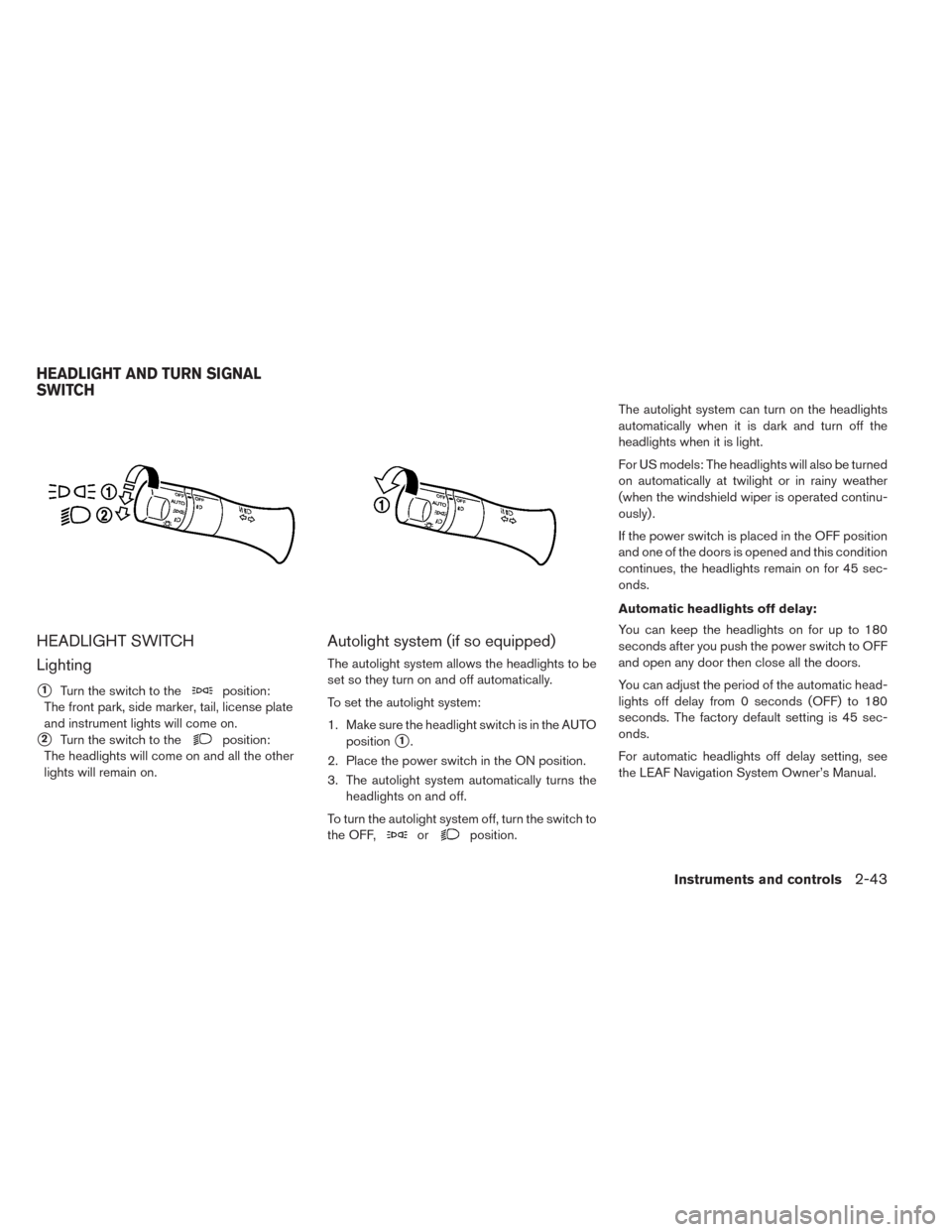

HEADLIGHT SWITCH
Lighting
1Turn the switch to theposition:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to theposition:
The headlights will come on and all the other
lights will remain on.
Autolight system (if so equipped)
The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO
position
1.
2. Place the power switch in the ON position.
3. The autolight system automatically turns the
headlights on and off.
To turn the autolight system off, turn the switch to
the OFF,
orposition.The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
For US models: The headlights will also be turned
on automatically at twilight or in rainy weather
(when the windshield wiper is operated continu-
ously) .
If the power switch is placed in the OFF position
and one of the doors is opened and this condition
continues, the headlights remain on for 45 sec-
onds.
Automatic headlights off delay:
You can keep the headlights on for up to 180
seconds after you push the power switch to OFF
and open any door then close all the doors.
You can adjust the period of the automatic head-
lights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
the LEAF Navigation System Owner’s Manual.
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-43

Be sure not to put anything on top of the
photo sensor
1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the photo
sensor reacts as if it is dark and the head-
lights will illuminate.Headlight beam select
1To select the low beam, put the lever in the
neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low
beam.
3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
Battery saver system
• When the headlight switch is in theor
position while the power switch is in the
ON position, the lights will automatically turn off
45 seconds after the power switch has been
placed in the OFF position.
• When the headlight switch remains in the
orposition after the lights automatically
turn off, the lights will turn on when the power
switch is placed in the ON position.
CAUTION
• When you turn on the headlight switch
again after the lights automatically
turn off, the lights will not turn off
automatically. Be sure to turn the light
switch to the OFF position when you
leave the vehicle for extended periods
of time, otherwise the battery will be
discharged.
• Never leave the light switch on when
the power switch is in the OFF, ACC or
ON position for extended periods of
time even if the headlights turn off
automatically.
2-44Instruments and controls

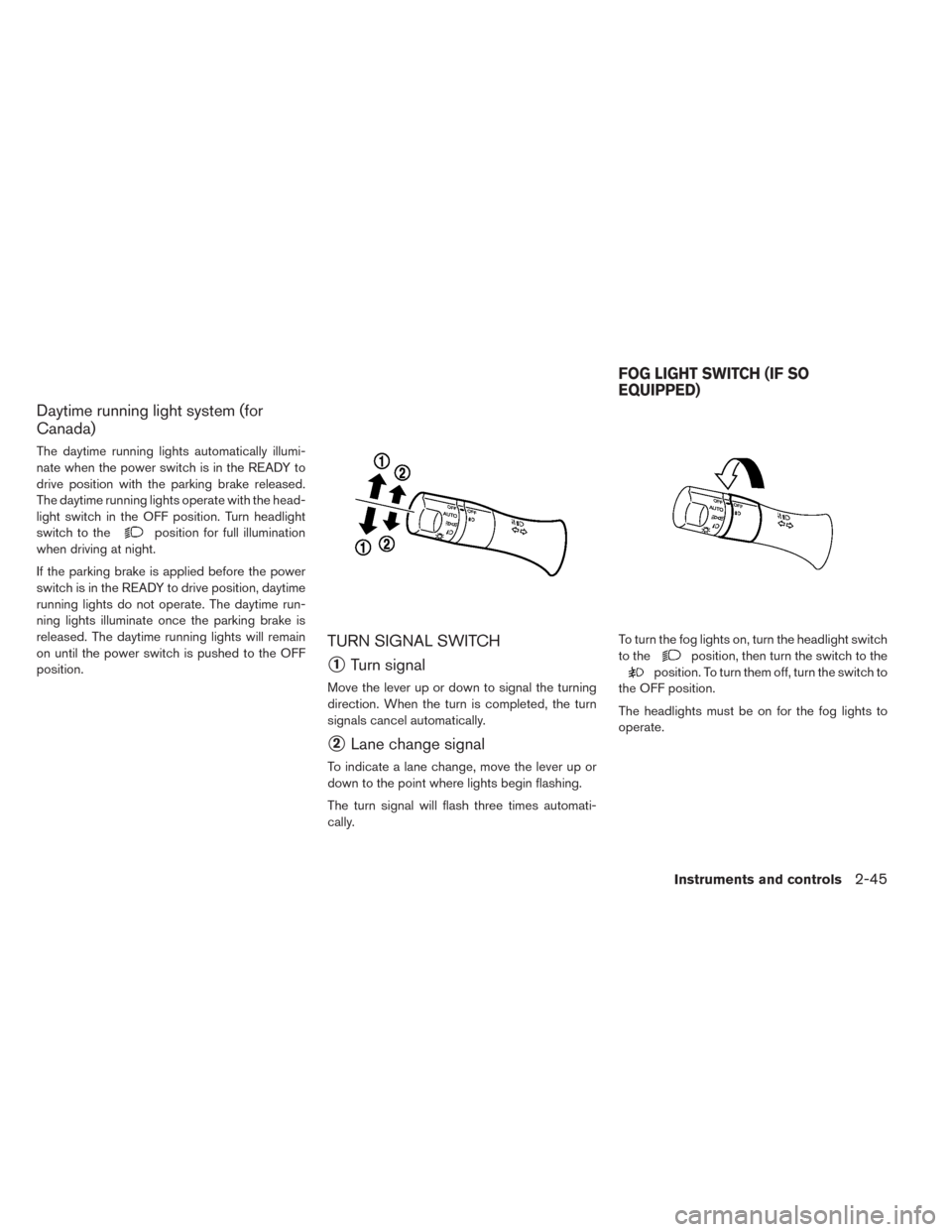

Daytime running light system (for
Canada)
The daytime running lights automatically illumi-
nate when the power switch is in the READY to
drive position with the parking brake released.
The daytime running lights operate with the head-
light switch in the OFF position. Turn headlight
switch to the
position for full illumination
when driving at night.
If the parking brake is applied before the power
switch is in the READY to drive position, daytime
running lights do not operate. The daytime run-
ning lights illuminate once the parking brake is
released. The daytime running lights will remain
on until the power switch is pushed to the OFF
position.
TURN SIGNAL SWITCH
1Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
2Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
The turn signal will flash three times automati-
cally.To turn the fog lights on, turn the headlight switch
to the
position, then turn the switch to the
position. To turn them off, turn the switch to
the OFF position.
The headlights must be on for the fog lights to
operate.
FOG LIGHT SWITCH (IF SO
EQUIPPED)
Instruments and controls2-45

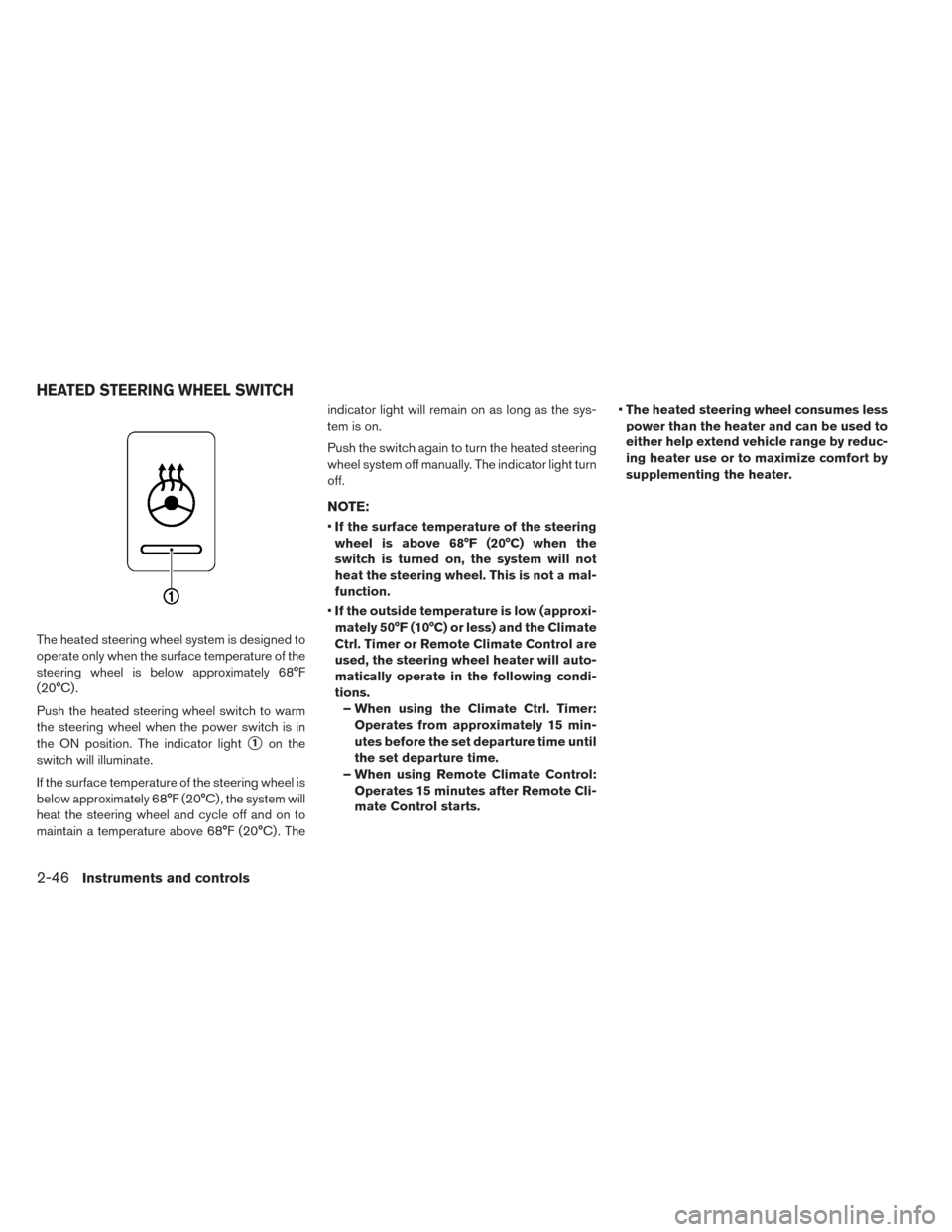

The heated steering wheel system is designed to
operate only when the surface temperature of the
steering wheel is below approximately 68°F
(20°C) .
Push the heated steering wheel switch to warm
the steering wheel when the power switch is in
the ON position. The indicator light
1on the
switch will illuminate.
If the surface temperature of the steering wheel is
below approximately 68°F (20°C) , the system will
heat the steering wheel and cycle off and on to
maintain a temperature above 68°F (20°C) . Theindicator light will remain on as long as the sys-
tem is on.
Push the switch again to turn the heated steering
wheel system off manually. The indicator light turn
off.
NOTE:
•If the surface temperature of the steering
wheel is above 68°F (20°C) when the
switch is turned on, the system will not
heat the steering wheel. This is not a mal-
function.
•If the outside temperature is low (approxi-
mately 50°F (10°C) or less) and the Climate
Ctrl. Timer or Remote Climate Control are
used, the steering wheel heater will auto-
matically operate in the following condi-
tions.
– When using the Climate Ctrl. Timer:
Operates from approximately 15 min-
utes before the set departure time until
the set departure time.
– When using Remote Climate Control:
Operates 15 minutes after Remote Cli-
mate Control starts.•The heated steering wheel consumes less
power than the heater and can be used to
either help extend vehicle range by reduc-
ing heater use or to maximize comfort by
supplementing the heater.
HEATED STEERING WHEEL SWITCH
2-46Instruments and controls

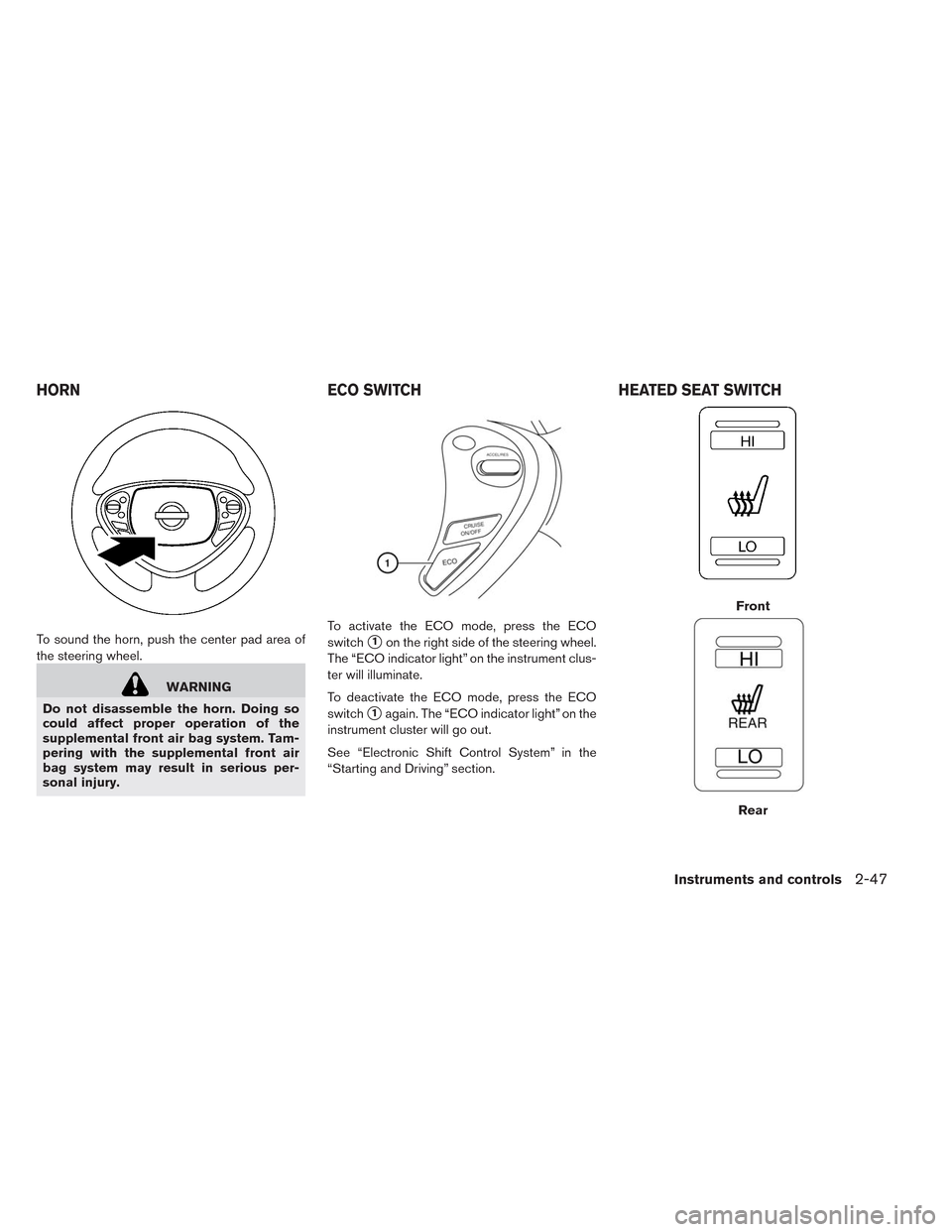

To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air
bag system may result in serious per-
sonal injury.To activate the ECO mode, press the ECO
switch
1on the right side of the steering wheel.
The “ECO indicator light” on the instrument clus-
ter will illuminate.
To deactivate the ECO mode, press the ECO
switch
1again. The “ECO indicator light” on the
instrument cluster will go out.
See “Electronic Shift Control System” in the
“Starting and Driving” section.
Front
Rear
HORN ECO SWITCH HEATED SEAT SWITCH
Instruments and controls2-47

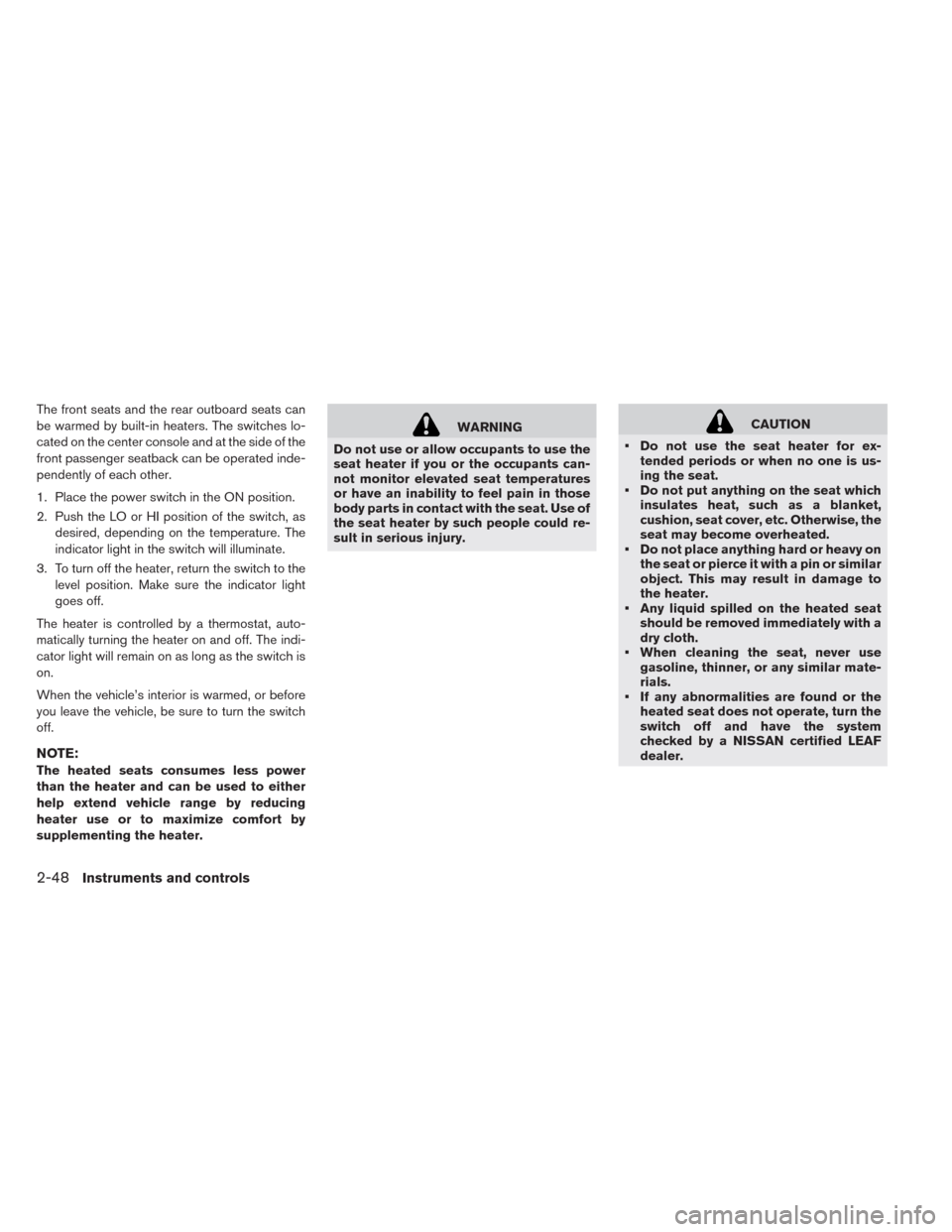

The front seats and the rear outboard seats can
be warmed by built-in heaters. The switches lo-
cated on the center console and at the side of the
front passenger seatback can be operated inde-
pendently of each other.
1. Place the power switch in the ON position.
2. Push the LO or HI position of the switch, as
desired, depending on the temperature. The
indicator light in the switch will illuminate.
3. To turn off the heater, return the switch to the
level position. Make sure the indicator light
goes off.
The heater is controlled by a thermostat, auto-
matically turning the heater on and off. The indi-
cator light will remain on as long as the switch is
on.
When the vehicle’s interior is warmed, or before
you leave the vehicle, be sure to turn the switch
off.
NOTE:
The heated seats consumes less power
than the heater and can be used to either
help extend vehicle range by reducing
heater use or to maximize comfort by
supplementing the heater.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants can-
not monitor elevated seat temperatures
or have an inability to feel pain in those
body parts in contact with the seat. Use of
the seat heater by such people could re-
sult in serious injury.CAUTION
• Do not use the seat heater for ex-
tended periods or when no one is us-
ing the seat.
• Do not put anything on the seat which
insulates heat, such as a blanket,
cushion, seat cover, etc. Otherwise, the
seat may become overheated.
• Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to
the heater.
• Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.
• When cleaning the seat, never use
gasoline, thinner, or any similar mate-
rials.
• If any abnormalities are found or the
heated seat does not operate, turn the
switch off and have the system
checked by a NISSAN certified LEAF
dealer.
2-48Instruments and controls
