2014 MITSUBISHI ASX Fuel

It is important to keep the engine properlytuned to ensure proper catalyst operation andprevent possible catalyst damage.WARNINGl As with any vehicle, do not park or oper-
ate this vehicle in areas where combusti-
ble materials such as dry grass or leaves can come in contact with a hot exhaust
since a fire could occur.
l Paint should not be applied to the catalyt-
ic converter.NOTEl Use fuel of the type recommended in
“Fuel
selection” on page 2-02.Bonnet
E01000302698
To open
1.Pull the release lever towards you to un-
lock the bonnet.
2. Raise the bonnet while pressing the safe-
ty lock.
NOTEl Only open the bonnet when the wipers are in
the parked position. In any other position,
the wipers could damage the paint or bonnet.
3. Support the bonnet by inserting the sup-
port bar in its slot.
Bonnet
10-03
OGAE14E1Maintenance10 LHD RHD

Diesel-powered vehicles
MAX.MIN.
The engine oil used has a significant effecton the engine’s performance, service life and
startability. Be sure to use oil of the recom- mended quality and appropriate viscosity.
All engines consume a certain amount of oil during normal operation. Therefore, it is im-portant to check the oil level at regular inter-
valk thes or before starting a long trip. 1. Park the car on a horizontal surface.
2. Switch off the engine.
3. Wait a few minutes.
4. Remove the dipstick and wipe it with a
clean cloth.
5. Reinsert the dipstick as far as it goes.
6. Remove the dipstick and read the oil lev- el, which should always be within therange indicated.
7. If the oil level is below the specified
limit, remove the cap located on the cyl- inder head cover and add enough oil to
raise the level to within the specified
range. Do not overfill to avoid engine damage. Be sure to use the specified en-
gine oil and do not mix various types of
oil.
8. After adding oil, close the cap securely.
9. Confirm the oil level by repeating step 4
to 6.CAUTIONl In diesel-powered vehicles, when burning
away and removing soot accumulated in the
DPF, fuel can mix with the engine oil and an increase in the engine oil level may occur. This does not indicate an abnormality.
However, if the engine oil level is at or over the “X” mark (B) on the engine oil dipstick
(A), change the engine oil.NOTEl The engine oil will deteriorate rapidly if the
vehicle is subjected to severe conditions, re-
quiring earlier oil replacement.
Please refer to the maintenance schedule.
l For information on how to dispose of used
engine oil, refer to page 2-05.
Recommended engine oil vis-
cosity
Petrol-powered vehicles
l Select engine oil of the proper SAE vis-
cosity number according to the atmos- pheric temperature.
SAE 0W-20, 0W-30, 5W-30 and 5W-40 engine oils can only be used if they meet
ACEA A3/B3, A3/B4 or A5/B5 and API
SM (or higher) specifications.
Engine oil
10-05
OGAE14E1Maintenance10

Refer to the illustration to ensure that the
retainers are correctly aligned as you in- sert them into the groove.NOTEl If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.General maintenance
E01002700520
Fuel, engine coolant, oil and ex- haust gas leakage
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNINGl If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; call
your MITSUBISHI MOTORS Author-
ized Service Point for assistance.
Exterior and interior lamp op-
eration
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuse, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the lamp bulbs, refer to “Fuses” on page 10-19 and “Re-
placement of lamp bulbs” on page 10-25.
If the fuses and bulbs are all OK, we recom-
mend you to have your vehicle checked and
repaired.
Meter, gauge and indicator/warning lamps operation
Start the engine and check the operation of all instruments, gauges and indication andwarning lamps.
If there is anything wrong, we recommend you to have your vehicle inspected.
Hinges and latches lubrication
Check all latches and hinges, and, if necessa- ry, have them lubricated.
For cold and snowy weather
E01002800361
Ventilation slots
The ventilation slots in front of the wind-
screen should be kept clear of leaves or brushed clear after heavy snowfall, so that
the operation of the heating and ventilation
systems will not be impaired.
General maintenance
10-18 OGAE14E1Maintenance10

No.Sym-bolElectrical sys- temCa-
paci- ties14Headlamp high- beam (left)10 A15Headlamp high-beam (right)10 A
16
Head-lamp low
beam (left)
Dis-
charge20 A17
Head- lamp low
beam
(right)
Dis-
charge20 A18
Head- lamp low
beam (left)
Halo- gen10 A19
Head-lamp low
beam
(right)
Halo- gen10 A
*1 : Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties20ENG/POWER10 A21Ignition coil10 A
22
ENG/POWER20 AFuel line heater25 A23Fuel pump15 A24Starter30 A *125———26Anti-lock brake
system40 A *127Anti-lock brake
system30 A *128
Air conditioning
condenser fan motor
30 A *129Radiator fan mo-
tor40 A*130IODIOD30 A31Audio system
amp30 A*1: Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties32Diesel30 A33—Spare fuse10 A34—Spare fuse15 A35—Spare fuse20 A*1 : Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A ,
25 A or 30 A fuses. If one of these fuses burns out, substitute with the following fuse.7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi- ble.
Identification of fuse
CapacityColour7.5 ABrown
Fuses
10-24 OGAE14E1Maintenance10

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-05
Vehicle performance......................................................................... 11-06 Vehicle weight.................................................................................. 11-07
Engine specifications........................................................................ 11-10
Electrical system............................................................................... 11-11
Tyres and wheels...............................................................................11-12
Fuel consumption.............................................................................. 11-13
Refill capacities................................................................................. 11-15Specifications
OGAE14E111

Fuel consumptionE01101101798
Item
CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)
Petrol-powered
vehicles
1600 modelsWithout AS&G137, 141 *16.0, 6.1*17.7, 8.0*14.9, 5.0*1With AS&G1335.87.44.91800 models1817.69.86.42000 models2WD1817.710.16.34WD1928.110.56.8
Diesel-powered
vehicles1800 models
2WDWithout AS&G1345.16.34.5With AS&G141, 125 *25.4, 4.8*26.6, 5.7*24.7, 4.3*24WDWithout AS&G1365.26.44.5With AS&G146, 132 *25.6, 5.1*26.8, 6.1*24.9, 4.5*22200 models1535.87.15.1*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : 85 kW engine (Low CO 2 emissions)

AS&G: Auto Stop & Go (AS&G) system
Fuel consumption
11-13
OGAE14E1Specifications11

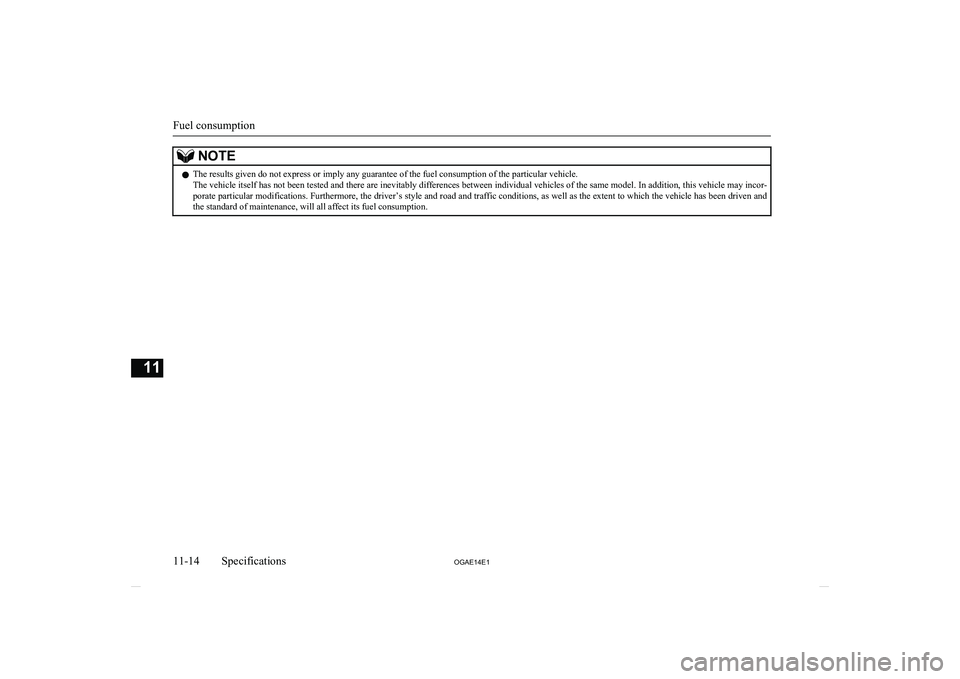

NOTElThe results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.

Fuel consumption
11-14 OGAE14E1Specifications11

E
Economical driving........................................... 6-02
Electric power steering system (EPS)............... 6-49
Electric window control.................................... 3-39
Electrical system............................................. 11-11
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Electronically controlled 4WD system............. 6-37
Emergency starting............................................8-02
Emergency stop signal system.......................... 6-46
Engine specifications.......................................11-10
Engine switch.................................................... 3-13
Engine Coolant..............................................10-06,11-15
Number....................................................... 11-03
Oil............................................................... 10-04
Oil and filter................................................ 11-15
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-05
