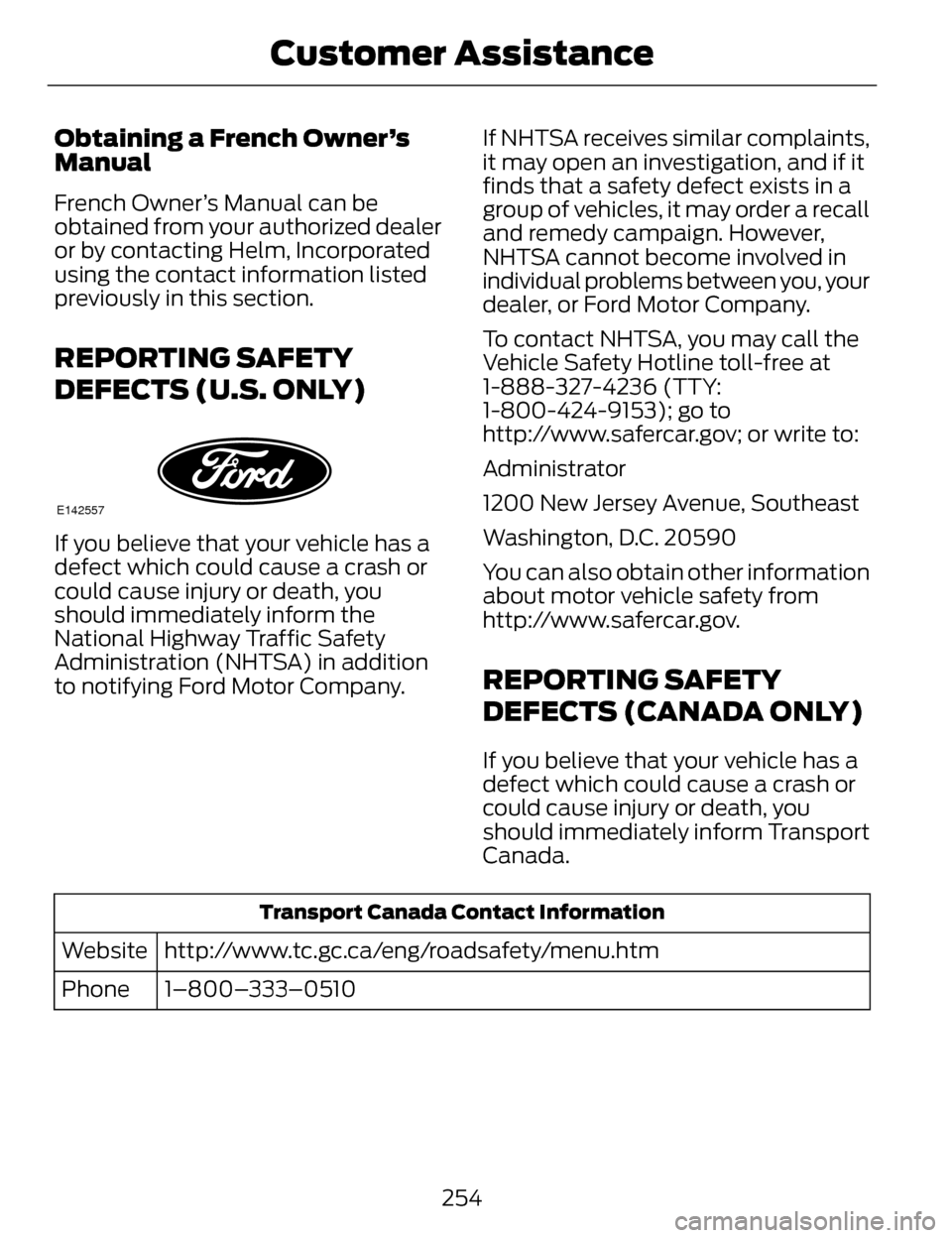

2014 LINCOLN MKZ Owners Manual

Obtaining a French Owner’s
Manual
French Owner’s Manual can be
obtained from your authorized dealer
or by contacting Helm, Incorporated
using the contact information listed
previously in this section.
REPORTING SAFETY
DEFECTS (U.S. ONLY)
E142557
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying Ford Motor Company.If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or Ford Motor Company.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY
DEFECTS (CANADA ONLY)
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
254
Customer Assistance

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one
that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe
wire damage and could start a fire.
E142430
If electrical components in the vehicle
are not working, a fuse may have
blown. Blown fuses are identified by
a broken wire within the fuse. Check
the appropriate fuses before replacing
any electrical components.
Standard Fuse Amperage Rating and Color
Color J-type fuses
M-type fuses
Dual micro
fuses
Micro fuses
Fuse rating
-
-
Ta n
Ta n
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
255
Fuses

FUSE SPECIFICATION
CHART
Power Distribution Box
WARNINGS
Always disconnect the battery
before servicing high-current
fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling
fluid reservoirs.
The power distribution box is in the
engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V
Battery (page 281).
E144783
256
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Not used (spare)
25A31
Starter relay
-
2
Autowipers
15A
13
Blower motor relay
-
4
Power point 3 - Back of console
20A
35
Not used
-
6
Powertrain control module - vehicle
power 1
20A
17
Powertrain control module - vehicle
power 2
20A
18
Powertrain control module relay
-
9
Power point 1 - driver front
20A
310
Powertrain control module - vehicle
power 4
15A
211
Powertrain control module - vehicle
power 3
15A
212
Powertrain control module - vehicle
power 5
10A
213
Powertrain control module - vehicle
power 6
10A
214
Run/start relay
-
15
Power point 2 - console
20A
316
Not used
-
17
Powertrain control module - keep
alive power
10A
118
257
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Run/start electronic power assist
steering
10A119
Run/start lighting
10A
120
Run/start transmission control,
Transmission oil pump start/stop
15A
121
Air conditioner clutch solenoid
10A
122
Run/start: Blind spot information
system, Rear view camera, Adaptive
cruise control, Heads-up display,
Shifter
15A
123
Not used
-
24
Run/start anti-lock brake system
10A
225
Run/start powertrain control module
10A
226
Not used
-
27
Not used
-
28
Not used
-
29
Not used
-
30
Not used
-
31
Electronic fan #1 relay
-
32
Air conditioner clutch relay
-
33
Not used
-
34
Not used
-
35
Not used
-
36
Not used
-
37
Electronic fan #2 relay
-
38
258
Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Electronic fan #3 relay
-
39
Fuel pump relay
-
40
Horn relay
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Not used
-
45
Alternator
10A
246
Brake on/off switch
10A
247
Horn
20A
148
Mass air flow monitor
5A
149
Not used
-
50
Not used
-
51
Not used
-
52
Power seats
10A
153
Not used
-
54
Not used
-
55
1Micro fuse
2 Dual micro fuse
3M-type fuse
259
Fuses

Power Distribution Box - Bottom
There are fuses located on the bottom
of the fuse box. To access the bottom
of the fuse box, do the following:
E145983
1. Release the two latches, locatedon both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
260
Fuses

E144949
Protected components
Fuse amp rating
Fuse or relay
number
Fuel pump feed
30A156
Not used
-
57
Not used
-
58
500W electronic fan 3
30A
159
500W electronic fan 1
30A
160
Not used
-
61
Body control module 1
50A
262
500W electronic fan 2
20A
163
Not used
-
64
261
