2014 LINCOLN MKZ HYBRID remote start

The keyless starting system has three
modes:
•
Off: Turns the ignition off.
• Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode,
or when the engine is running but
the vehicle is not moving.
• On:
All electrical circuits are
operational and the warning lamps and
indicators illuminate.
• Without applying the brake pedal,
press and release the button once.
• Start:
Starts the vehicle. The engine
may not start when the vehicle starts.
• Press the brake pedal, and then
press the button for any length of
time. An indicator light on the
button illuminates when then
ignition is on and when the engine
starts.
STARTING A GASOLINE ENGINE
When the engine starts for the first time
on your drive, the idle speed increases,
this helps to warm up the engine. If the
engine idle speed does not slow down
automatically, have your vehicle checked
by an authorized dealer.
Before starting the vehicle, check the
following:
• Make sure all occupants have fastened
their safety belts.
• Make sure the headlamps and
electrical accessories are off.
• Make sure the parking brake is on.
• Put the transmission in
P . Note:
Do not touch the accelerator pedal.
1. Fully press the brake pedal.
2. Press the button.
Note: The green ready indicator
illuminates letting you know that the
vehicle is ready for driving. Since your
vehicle is equipped with a silent key start,
the engine may not start at the time of the
vehicle start.
See Hybrid Electric Vehicle
(page 152).
The system does not function if:
• The key frequencies are jammed.
• The key battery has no charge.
If you are unable to start the engine, do
the following: 1.
Remove the rubber covering (A) in the
cupholder. Place the remote in the
backup slot (B) at the bottom of the
cupholder.
2. With the key in this position, press the
brake pedal, then the START button to
switch the ignition on and start your
vehicle.
148
MKZ (CC9) Starting and Stopping the EngineE155835

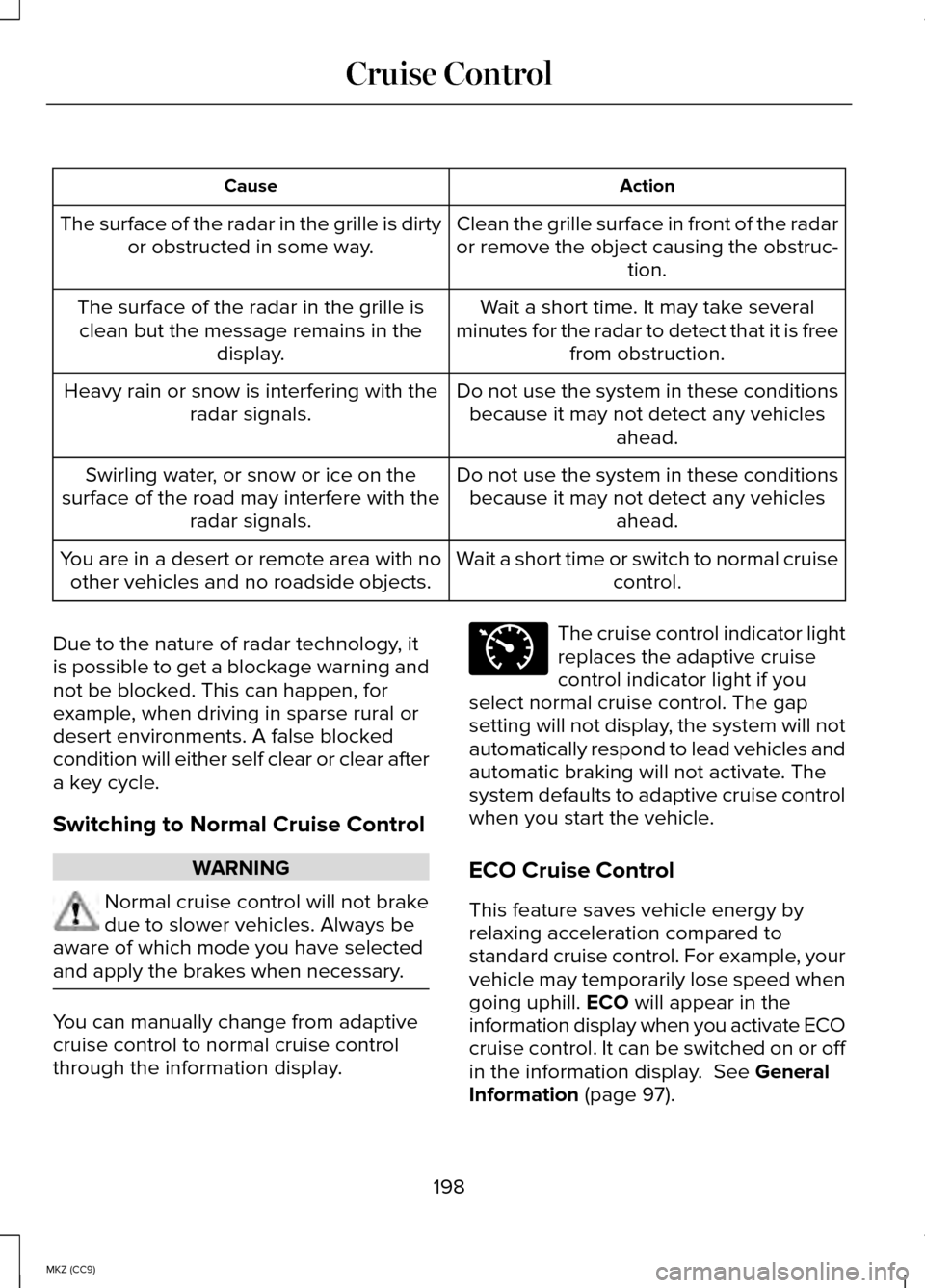

Action
Cause
Clean the grille surface in front of the radar
or remove the object causing the obstruc-tion.
The surface of the radar in the grille is dirty
or obstructed in some way.
Wait a short time. It may take several
minutes for the radar to detect that it is free from obstruction.
The surface of the radar in the grille is
clean but the message remains in the display.
Do not use the system in these conditionsbecause it may not detect any vehicles ahead.
Heavy rain or snow is interfering with the
radar signals.
Do not use the system in these conditionsbecause it may not detect any vehicles ahead.
Swirling water, or snow or ice on the
surface of the road may interfere with the radar signals.
Wait a short time or switch to normal cruisecontrol.
You are in a desert or remote area with no
other vehicles and no roadside objects.
Due to the nature of radar technology, it
is possible to get a blockage warning and
not be blocked. This can happen, for
example, when driving in sparse rural or
desert environments. A false blocked
condition will either self clear or clear after
a key cycle.
Switching to Normal Cruise Control WARNING
Normal cruise control will not brake
due to slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary. You can manually change from adaptive
cruise control to normal cruise control
through the information display. The cruise control indicator light
replaces the adaptive cruise
control indicator light if you
select normal cruise control. The gap
setting will not display, the system will not
automatically respond to lead vehicles and
automatic braking will not activate. The
system defaults to adaptive cruise control
when you start the vehicle.
ECO Cruise Control
This feature saves vehicle energy by
relaxing acceleration compared to
standard cruise control. For example, your
vehicle may temporarily lose speed when
going uphill. ECO will appear in the
information display when you activate ECO
cruise control. It can be switched on or off
in the information display.
See General
Information (page 97).
198
MKZ (CC9) Cruise ControlE71340

HEV
See: Hybrid Electric Vehicle........................152
High Voltage Battery Cut-Off Switch........................................................169
High Voltage Battery................................167
General Information.......................................167
Hill Start Assist...........................................177 Using Hill Start Assist.....................................178
Hints on Controlling the Interior Climate......................................................125
Cooling the Interior Quickly.........................126
General Hints...................................................125
Heating the Interior Quickly........................126
Recommended Settings for Cooling ........126
Recommended Settings for Heating.........126
Side Window Defogging in Cold Weather........................................................126
Hints on Driving With Anti-Lock Brakes.......................................................175
Hood Lock See: Opening and Closing the Hood.......252
Hybrid Electric Vehicle............................152 ........................................................................\
.....152
I
In California (U.S. Only)
...........................233
Information Display Control.....................72 Cluster Display Control Features.................72
Information Displays..................................97 General Information.........................................97
Information................................................365 911 Assist..........................................................373
Alerts.................................................................372
Calendar...........................................................373
Sirius Travel Link............................................369
SYNC Services (If Equipped, United States
Only).............................................................366
Vehicle Health Report...................................375 Information Messages
.............................109
Active Park.......................................................109
Adaptive Cruise Control...............................
109
AdvanceTrac ™...................................................110
Airbag.................................................................110
Alarm..................................................................110
Automatic Engine Shutdown.........................
111
Battery and Charging System (12 volt)........111
Battery and Charging System (High Voltage)...........................................................111
Blind Spot Information and Cross Traffic Alert System.................................................112
Collision Warning System..............................112
Doors and Locks..............................................113
Driver Alert........................................................113
Fuel......................................................................113
Hill Start Assist..................................................114
Keys and Intelligent Access..........................114
Lane Keeping System.....................................115
Maintenance.....................................................116
MyKey.................................................................117
Park Aid..............................................................118
Park Brake.........................................................118
Power Steering.................................................119
Remote Start.....................................................119
Seats...................................................................119
Starting System ..............................................120
Tire Pressure Monitoring System
...............120
Traction Control...............................................121
Transmission.....................................................121
Installing Child Seats
..................................16
Child Seats..........................................................16
Using Lap and Shoulder Belts.......................16
Using Lower Anchors and Tethers for
CHildren (LATCH).........................................21
Using Tether Straps.........................................23
Instrument Cluster......................................89
Instrument Lighting Dimmer....................78
Interior Lamps
..............................................81
Front Interior Lamp..........................................82
Rear Interior Lamp...........................................82
435
MKZ (CC9) Index

Interior Luggage Compartment
Release.......................................................65
Interior Mirror...............................................86
Auto-Dimming Mirror......................................86
Introduction....................................................7
J
Jump-Starting the Vehicle.....................226 Connecting the Jumper Cables.................227
Jump Starting.................................................228
Preparing Your Vehicle.................................227
Removing the Jumper Cables....................228
K
Keyless Entry...............................................63 SECURICODE™ KEYLESS ENTRY
KEYPAD..........................................................63
Keyless Starting
.........................................147
Ignition Modes.................................................147
Keys and Remote Controls......................48
L
Lane Keeping System.............................200 Switching the System On and Off..............201
Lighting Control...........................................77 Headlamp Flasher............................................77
High Beams........................................................77
Lighting
..........................................................77
Lincoln Credit................................................11
Load Carrying............................................214
Load Limit....................................................214
Vehicle Loading - with and without a
Trailer............................................................214 Locking and Unlocking.............................58
Activating Intelligent Access .......................59
Autolock Feature.............................................60
Auto Relock.......................................................60
Battery Saver......................................................61
Illuminated Entry................................................61
Illuminated Exit..................................................61
Luggage Compartment...................................61
Power Decklid (If Equipped)..........................
62
Power Door Locks...........................................58
Remote Control................................................58
Smart Unlocks .................................................59
Locks
.............................................................58
M
Maintenance..............................................251 General Information.......................................251
Media Hub...................................................311
Memory Function......................................133 Easy Entry and Exit Function.......................134
Linking a Pre-Set Position to your Remote
Control or Intelligent Access Key..........134
Saving a Pre-Set Position.............................134
Message Center See: Information Displays..............................97
Mirrors See: Heated Windows and Mirrors............
126
See: Windows and Mirrors.............................83
Mobile Communications Equipment
......13
Moonroof......................................................87 Bounce-Back.....................................................87
Opening and Closing the Moonroof...........87
Retractable Panoramic Roof..........................88
Venting the Moonroof.....................................87
Motorcraft Parts
........................................303
MyKey Troubleshooting............................55
MyKey™..........................................................53 Principle of Operation.....................................53
MyLincoln Touch ™
......................................313
General Information.......................................313
436
MKZ (CC9) Index

Remote Control...........................................48
Car Finder..........................................................50
Intelligent Access Key.....................................48
Remote Start.....................................................50
Replacing the Battery.....................................49
Sounding a Panic Alarm.................................50
Remote Start...............................................127 Automatic Settings.........................................127
Heated and Cooled Devices.......................128
Last Settings.....................................................127
Repairing Minor Paint Damage.............272
Replacement Parts Recommendation.....................................12
Collision Repairs................................................12
Scheduled Maintenance and Mechanical Repairs............................................................12
Warranty on Replacement Parts....................12
Replacing a Lost Key or Remote Control........................................................52
Reporting Safety Defects (Canada Only).........................................................238
Reporting Safety Defects (U.S. Only)..........................................................237
Roadside Assistance...............................225 Vehicles Sold In Canada : Getting Roadside
Assistance..................................................225
Vehicles Sold In Canada : Using Roadside Assistance..................................................226
Vehicles Sold In the United States: Getting Roadside Assistance................................
225
Vehicles Sold In the United States : Using Roadside Assistance................................
225
Roadside Emergencies
..........................225
Running-In See: Breaking-In............................................223
Running Out of Fuel.................................159 Refilling With a Portable Fuel
Container.....................................................160
S
Safety Belt Height Adjustment................34 Safety Belt Minder
......................................35
Belt-Minder®......................................................35
Safety Belts
..................................................29
Principle of Operation.....................................29
Safety Belt Warning Lamp and Indicator Chime
..........................................................35
Conditions of operation.................................35
Safety Precautions
....................................158
Scheduled Maintenance Record.........420
Scheduled Maintenance.........................412
Seats
............................................................129
Security.........................................................67
Settings.......................................................323 Clock.................................................................323
Display..............................................................324
Settings............................................................326
Sound...............................................................325
Vehicle..............................................................325
Side Airbags
.................................................43
Side Curtain Airbags..................................45
Sitting in the Correct Position................129
Snow Chains See: Using Snow Chains.............................296
Special Notices
............................................12
New Vehicle Limited Warranty......................12
Special Instructions..........................................12
Special Operating Conditions Scheduled Maintenance............................................416
Exceptions........................................................417
Speed Control See: Cruise Control.........................................191
Stability Control
.........................................180
Principle of Operation...................................180
Starting a Gasoline Engine
.....................148
Automatic Shutdown.....................................149
Fast Restart......................................................149
Guarding Against Exhaust Fumes.............150
Important Ventilating Information..............150
Switching Off the Vehicle When It Is
Moving..........................................................150
Switching Off the Vehicle When It Is Stationary.....................................................149
438
MKZ (CC9) Index

Using Adaptive Cruise Control.............192
Blocked Sensor...............................................197
Changing the Set Speed..............................195
Detection Issues.............................................196
Disengaging the System..............................195
ECO Cruise Control.......................................198
Following a Vehicle........................................193
Hilly Condition Usage...................................196
Low Speed Automatic Cancellation..........196
Overriding the System..................................195
Resuming the Set Speed..............................196
Setting a Speed..............................................193
Setting the Gap Distance.............................
194
Switching the System Off.............................196
Switching the System On.............................192
Switching to Normal Cruise Control..........
198
System Not Available....................................197
Using Cruise Control.................................191 ECO Cruise Control.......................................192
Switching Cruise Control Off.......................192
Switching Cruise Control On........................
191
Using MyKey With Remote Start Systems......................................................55
Using Snow Chains
.................................296
Using Stability Control..............................181 AdvanceTrac® ..................................................181
Using Traction Control.............................179 Switching the System Off Using a
Switch
............................................................179
Switching the System Off Using the Information Display Controls...................
179
System Indicator Lights and Messages.....................................................179
Utilizing the Mediation/Arbitration Program (Canada Only).......................235
V
Vehicle Care
..............................................268
General Information......................................268
Vehicle Certification Label
....................305
Vehicle Identification Number..............304 Vehicle Storage
........................................273
Battery..............................................................274
Body..................................................................273
Brakes...............................................................274
Cooling system...............................................274
Engine...............................................................274
Fuel system.....................................................274
General.............................................................273
Miscellaneous.................................................274
Removing Vehicle From Storage...............274
Tires...................................................................274
Ventilated Seats
.........................................137
Heated and ventilated seat air filter
replacement (if equipped)........................137
Ventilation See: Climate Control......................................124
VIN See: Vehicle Identification Number..........
304
Voice Control
...............................................72
440
MKZ (CC9) Index
