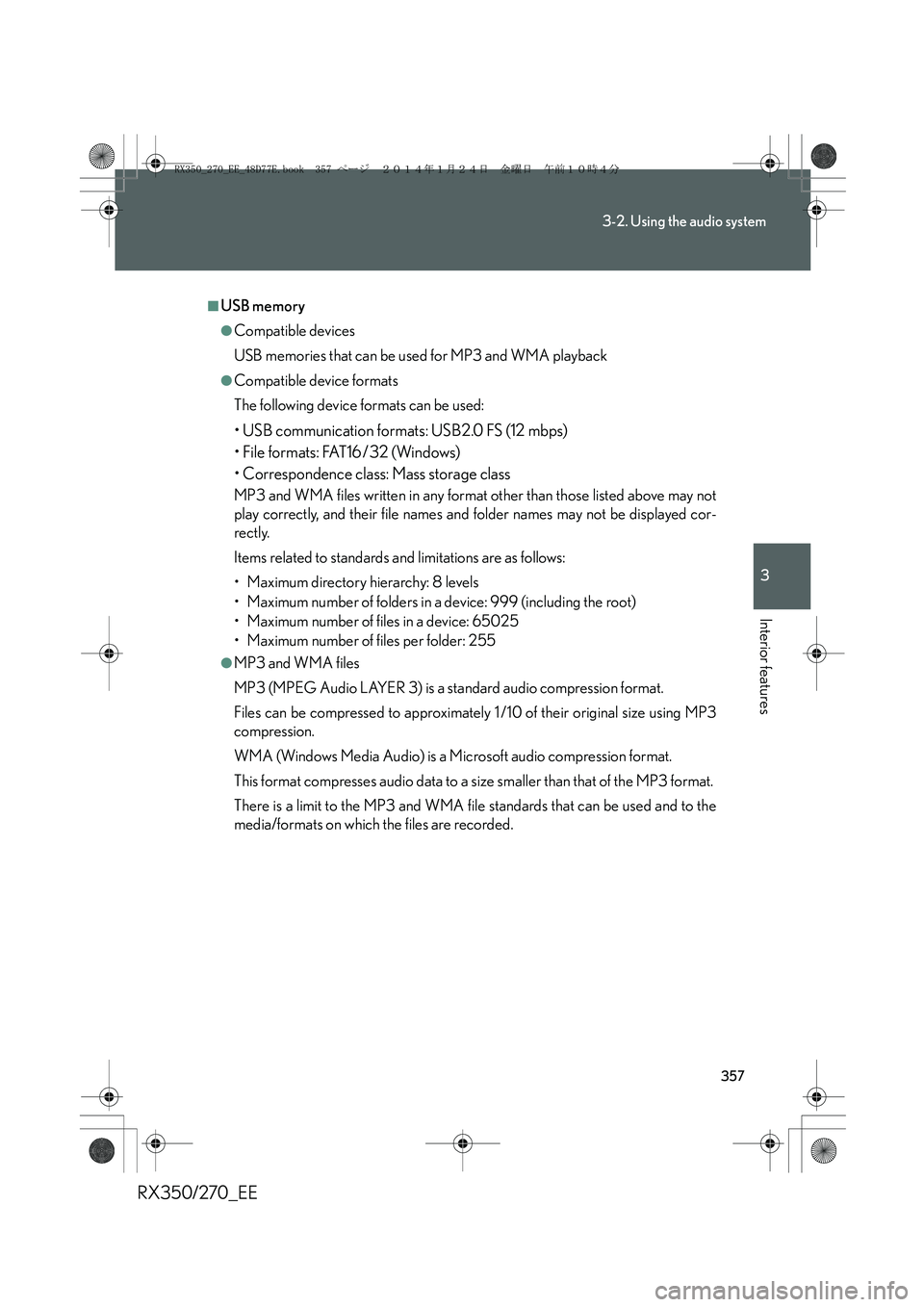

357
3-2. Using the audio system
3
Interior features
RX350/270_EE
■USB memory
●Compatible devices
USB memories that can be used for MP3 and WMA playback
●Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12 mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above may not
play correctly, and their file names and folder names may not be displayed cor-
rectly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 65025
• Maximum number of files per folder: 255
●MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size using MP3
compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards that can be used and to the
media/formats on which the files are recorded.
RX350_270_EE_48D77E.book 357 ページ ２０１４年１月２４日　金曜日　午前１０時４分

366
3-2. Using the audio system
RX350/270_EE
Using the Bluetooth® audio system
■Audio unit
Display
A message, name, number,
etc. is displayed.
Lower-case characters and
special characters cannot be
displayed.
Displays information that is
too long to be displayed at
one time on the display (press
and hold)
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
Bluetooth® audio system
cannot be used.
RX350_270_EE_48D77E.book 366 ページ ２０１４年１月２４日　金曜日　午前１０時４分

367
3-2. Using the audio system
3
Interior features
RX350/270_EE
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
Press and select “BT•A MENU” using .
Select “BT•A Setup” using .
Select “Pair Audio” using .
Select “Record Name” using , and say the name to be reg-
istered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the audio player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.
If the portable player has a Bluetooth® phone, the phone can be regis-
tered at the same time.
When “Pair Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone →P. 387)
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
RX350_270_EE_48D77E.book 367 ページ ２０１４年１月２４日　金曜日　午前１０時４分

368
3-2. Using the audio system
RX350/270_EE
Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Select Audio”Selecting a portable player to
be used
“Change Name”Changing the registered name
of a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
■Operations that cannot be performed while driving
●Operating the system using
●Registering a portable player to the system
■Changing the passkey
→P. 3 7 5
RX350_270_EE_48D77E.book 368 ページ ２０１４年１月２４日　金曜日　午前１０時４分

370
3-2. Using the audio system
RX350/270_EE
Selecting an album
To select the desired album, press or .
Selecting tracks
Press “>” or “<” on to select the desired track.
Playing and pausing tracks
To play or pause a track, press .
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “>” or “<” on
until you hear a beep.
Random playback
Press .
To cancel, press again.
Repeat play
Press .
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → Album title → Track title → Artist name
RX350_270_EE_48D77E.book 370 ページ ２０１４年１月２４日　金曜日　午前１０時４分

371
3-2. Using the audio system
3
Interior features
RX350/270_EE
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→P. 3 3 4
■Error messages
“Memory Error”: This indicates a problem in the system.
RX350_270_EE_48D77E.book 371 ページ ２０１４年１月２４日　金曜日　午前１０時４分

375
3-2. Using the audio system
3
Interior features
RX350/270_EE
Changing the passkey
Select “Set Passkey” using .
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
Deleting a registered portable player
Select “Delete Audio” using .
Select the desired portable player to be deleted using .
If the portable player to be deleted is paired as a Bluetooth
® phone, the
registration of the mobile phone can be deleted at the same time.
When “Del Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone →P. 387)
■The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 375 ページ ２０１４年１月２４日　金曜日　午前１０時４分

376
3-2. Using the audio system
RX350/270_EE
Bluetooth® audio system setup
■System setup items and operation procedures
To enter the menu of each setting, follow the steps below.
Press to select “BT•A MENU” or press the off-hook
switch and select “Setup” using .
Select “System Setup” using .
Select one of the following items using :
●Setting voice guidance volume
“Guidance Vol” (→P. 4 0 8 )
●Displaying the Bluetooth
® device address and name
“Device Name” (→P. 4 0 9 )
●Initializing the system
“Initialize” (→P. 4 0 9 )
STEP1
STEP2
STEP3
