2-4. Using other driving systems
RX350/270_EELuggage compartment
Higher
Pressing this switch while the vehi-
cle is in luggage mode changes the
vehicle height to that of “N” mode.
Lower
Pressing this switch while the vehi-
cle is in “N” mode changes the
vehicle height to that of luggage
mode, not “LO” mode.
■Electronically modulated air suspension indicator
The indicator for the selected
mode will come on.
The indicator will flash while the
vehicle height is being changed to
the height of the selected mode.
Disabling the height control
Press the height control off switch
while the vehicle is stopped. A
message will appear on the multi-
information display, and vehicle
height will be fixed in the current
mode.
When vehicle speed exceeds 30
km/h (19 mph), the electronically
modulated air suspension is re-
enabled automatically.
RX350_270_EE_48D77E.book 258 ページ ２０１４年１月２４日　金曜日　午前１０時４分

263
2-4. Using other driving systems
2
When driving
RX350/270_EE
Rear view monitor system (rear view mirror-attached type)∗
The rear view monitor system assists the driver by displaying an image of
the view behind the vehicle while reversing. The image is displayed in
reverse on the screen. This allows the image to appear in the same manner
as that of the rear view mirror.
The rear view image is displayed
when the shift lever is in the R
position.
The screen turns off in the fol-
lowing situations:
• The shift lever is shifted out
of R.
• The screen remains on for
approximately 5 minutes.
∗: If equipped
RX350_270_EE_48D77E.book 263 ページ ２０１４年１月２４日　金曜日　午前１０時４分

264
2-4. Using other driving systems
RX350/270_EE
■The rear view monitor system can be operated when
The shift lever is in R, the “ENGINE START STOP” switch is in IGNITION ON
mode.

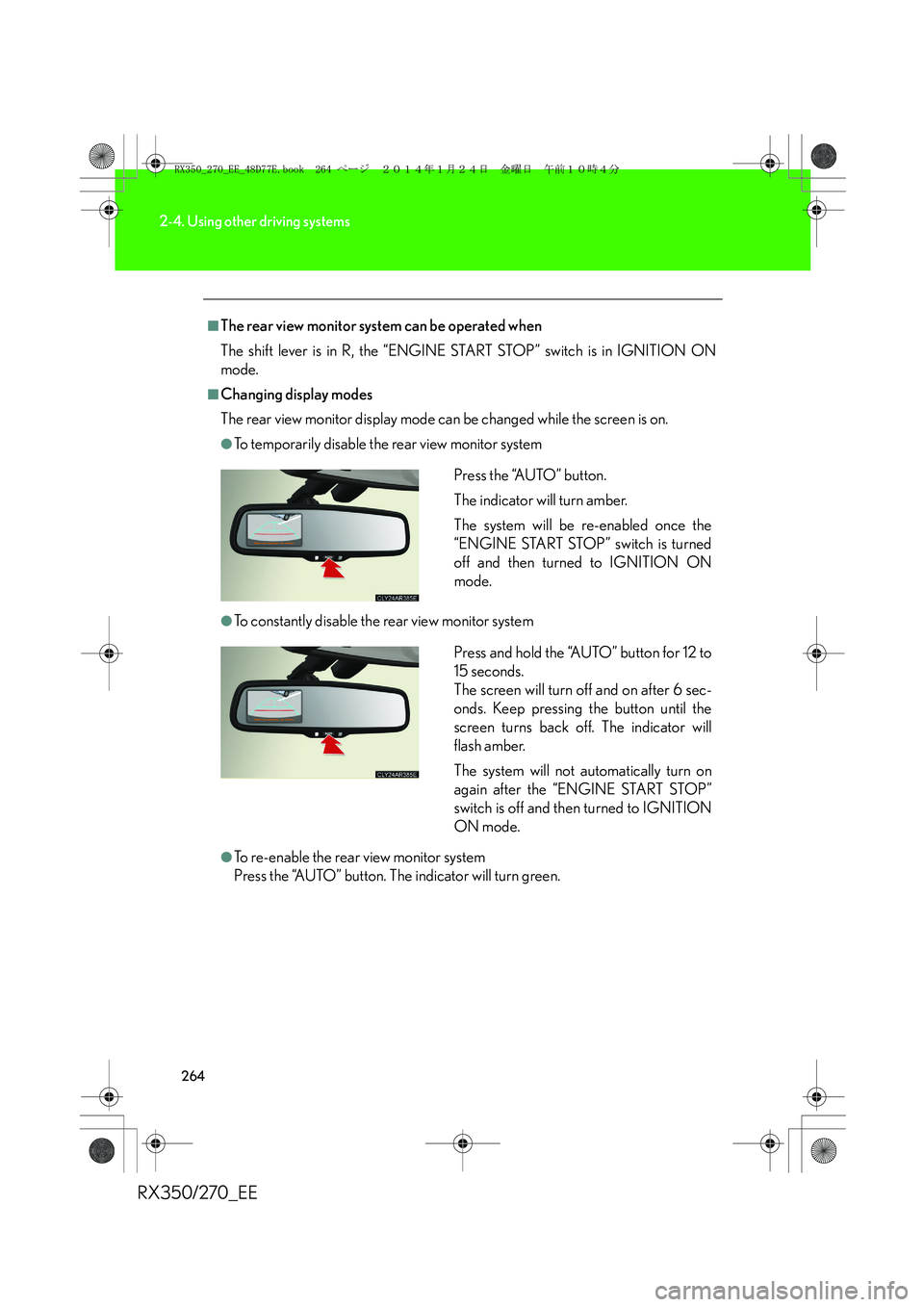

■Changing display modes
The rear view monitor display mode can be changed while the screen is on.
●To temporarily disable the rear view monitor system
●To constantly disable the rear view monitor system
●To re-enable the rear view monitor system
Press the “AUTO” button. The indicator will turn green.Press the “AUTO” button.
The indicator will turn amber.
The system will be re-enabled once the
“ENGINE START STOP” switch is turned
off and then turned to IGNITION ON
mode.
Press and hold the “AUTO” button for 12 to
15 seconds.
The screen will turn off and on after 6 sec-
onds. Keep pressing the button until the
screen turns back off. The indicator will
flash amber.
The system will not automatically turn on
again after the “ENGINE START STOP”
switch is off and then turned to IGNITION
ON mode.
RX350_270_EE_48D77E.book 264 ページ ２０１４年１月２４日　金曜日　午前１０時４分

265
2-4. Using other driving systems
2
When driving
RX350/270_EE
■Rear view monitor guide lines
Guide lines are displayed on the screen.
Guidelines shown differ from those
shown on the actual screen.
Vehicle width extension guide lines
(blue)
These lines indicate the estimated vehi-
cle width extension.
Distance guide line (blue)
This line indicates a position on the
ground about 1 m (3 ft.) behind on the
ground of the rear bumper of your vehi-
cle.
Distance guide line (red)
This line indicates a position on the
ground about 0.5 m (1.5ft.) behind on
the ground of the rear bumper of your
vehicle.
Vehicle center guide lines (blue)
These lines indicate the estimated vehi-
cle center on the ground.
RX350_270_EE_48D77E.book 265 ページ ２０１４年１月２４日　金曜日　午前１０時４分

266
2-4. Using other driving systems
RX350/270_EE
■Displayed area
■Driving precautionsThe area detected by the camera is limited.
Object which are close to either corner of
the bumper or under the bumper cannot
be seen on the screen.
The area displayed on the screen may vary
according to vehicle orientation or road
conditions.
The camera uses a special lens.
The distance of the image that appears on
the screen differs from the actual distance.
Corners of bumper
When the grade behind the vehicle slopes
up sharply, objects appear to be farther
away than they actually are.
RX350_270_EE_48D77E.book 266 ページ ２０１４年１月２４日　金曜日　午前１０時４分

269
2-4. Using other driving systems
2
When driving
RX350/270_EE
■Flicker effect
When the camera is used under fluorescent light, sodium lights, or mercury lights
etc., the lights and the illuminated areas may appear to flicker.
CAUTION
■When using the rear view monitor system, observe the following precautions to
avoid an accident that could result in death or serious injuries:
●Never depend solely on the monitor system when reversing.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Use your own eyes to confirm the vehicle’s surroundings, as the displayed image
may become faint or dark, and moving images will be distorted, or not entirely
visible when the outside temperature is low. When backing up, be sure to check
behind and all around the vehicle visually and with the mirrors before proceeding.
●Always check the vehicle surrounding area, because the guide lines are ancillary
lines.
●The guide lines are ancillary lines and do not change even if the steering wheel is
turned.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the back door is open.
RX350_270_EE_48D77E.book 269 ページ ２０１４年１月２４日　金曜日　午前１０時４分

270
2-4. Using other driving systems
RX350/270_EE
NOTICE
■Conditions which may affect the rear view monitor system
●If the back of the vehicle has been hit, the camera’s position and mounting angle
may have changed. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.
●The displayed image may be darker and moving images may be slightly distorted
when the system is cold.
■Camera precautions
●As the camera has a water proof construction, do not detach, disassemble or
modify it. This may cause incorrect operation.
●Do not subject the camera to a strong impact.
●If the camera lens becomes dirty, it cannot transmit a clear image. If water drop-
lets, snow, or mud adhere to the lens, rinse with water and wipe with a soft cloth. If
the lens is extremely dirty, wash it with a mild cleanser and rinse. Do not rub hard.
●Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
●Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
●When washing the vehicle, do not apply intensive bursts of water to the camera
or camera area. Doing so may result in the camera malfunctioning.
●When replacing tires, please consult any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional. If you replace the tires, the area
displayed on the screen may change.
RX350_270_EE_48D77E.book 270 ページ ２０１４年１月２４日　金曜日　午前１０時４分

273
2-4. Using other driving systems
2
When driving
RX350/270_EE
Disabling the TRC/VSC systems
If the vehicle gets stuck in fresh snow or mud, the TRC/VSC systems may
reduce power from the engine to the wheels. You may need to turn the
system off to enable you to rock the vehicle in order to free it.
■Turning off the TRC system only
To turn the TRC system off, quickly
press and release the switch.
A message will be shown on the
multi-information display.
Press the switch again to turn the
system back on.
■Turning off both TRC and VSC systems
To turn the TRC and VSC systems
off, press and hold the switch for 3
seconds or more while the vehicle
is stopped.
A message will be shown on the
multi- information display and VSC
off indicator light will come on.
Press the switch again to turn the
systems back on.
