2014 LEXUS RX270 check engine

1
2
3
4
5
6
RX350/270_EE
5
3-4. Using the storage features
List of storage features .............. 420
• Glove box ..................................... 421
• Bottle holders/
door pockets ............................... 422
• Cup holders................................. 423
• Console box................................ 426
• Coin holder ................................. 427
• Auxiliary box ............................... 428
• Under tray .................................... 429
3-5. Other interior features
Sun visors........................................ 430
Vanity mirror................................... 431
Clock................................................. 432
Outside temperature
display ............................................ 433
Multi-display light control......... 434
Power outlets ................................. 435
Heated steering wheel............... 437
Seat heaters and
ventilators ..................................... 439
Armrest ............................................. 441
Coat hooks ..................................... 442
Assist grips...................................... 443
Floor mat.......................................... 444
Luggage compartment
features.......................................... 4464-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................... 452
Cleaning and protecting
the vehicle interior .................... 455
4-2. Maintenance
Maintenance
requirements.............................. 458
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................... 461
Hood ................................................. 465
Positioning a floor jack............... 466
Engine compartment.................. 468
Tires ................................................... 483
Tire inflation pressure................. 495
Wheels ............................................. 497
Air conditioning filter.................. 499
Electronic key battery ................. 501
Checking and replacing
fuses ............................................... 504
Light bulbs ........................................ 516
4Maintenance and care
RX350_270_EE_48D77E.book 5 ページ ２０１４年１月２４日　金曜日　午前１０時４分

69
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
CAUTION
■Power back door
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the back
door is about to open or close.
●If the power back door system is turned off with the main switch while the back
door is operating automatically, the automatic operation is stopped. The back
door then has to be operated manually. Take extra care when on an incline, as the
back door may open or close unexpectedly.
●If the operating conditions of the power back door are no longer met, a buzzer
may sound and the back door may stop opening or closing. The back door then
has to be operated manually. Take extra care when on an incline, as the back door
may open or close abruptly.
●On an incline, the back door may suddenly shut after it opens. Make sure the
back door is fully open and secure.
●In the following situations, the power back door may detect an abnormality and
automatic operation may be stopped. In this case, the back door has to be oper-
ated manually. Take extra care when on an incline, as the back door may open or
close abruptly.
• When the back door contacts an obstacle
• When the battery voltage suddenly drops, such as when the “ENGINE
START STOP” switch is turned to IGNITION ON mode or the engine is
started during automatic operation
●If a bicycle carrier or similar heavy object is attached to the back door, the power
back door may not operate, causing itself to malfunction, or the back door may
suddenly shut again after being opened, causing someone’s hands, head or neck
to be caught and injured. When installing an accessory part to the back door,
using a genuine Lexus part is recommended.
RX350_270_EE_48D77E.book 69 ページ ２０１４年１月２４日　金曜日　午前１０時４分

82
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1”, “2” or “3” until
the signal beeps to recall the
desired position.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 82 ページ ２０１４年１月２４日　金曜日　午前１０時４分

103
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The power windows can be opened and closed using the wireless remote con-
trol if customized at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. (→P. 5 3 )
■Window close suggestion mode
If the “ENGINE START STOP” switch is turned off with the windows open, a sug-
gestion to close all the windows is shown on the multi-information display.
(→P. 2 0 8 )
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power win-
dows.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.
RX350_270_EE_48D77E.book 103 ページ ２０１４年１月２４日　金曜日　午前１０時４分

124
1-6. Theft deterrent system
RX350/270_EE
Canceling the intrusion sensor and tilt sensor
Turn the “ENGINE START STOP”
switch off and press the intrusion
sensor and tilt sensor cancel
switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt sensor
will revert to on each time the
“ENGINE START STOP” switch is
turned to IGNITION ON mode.
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
RX350_270_EE_48D77E.book 124 ページ ２０１４年１月２４日　金曜日　午前１０時４分

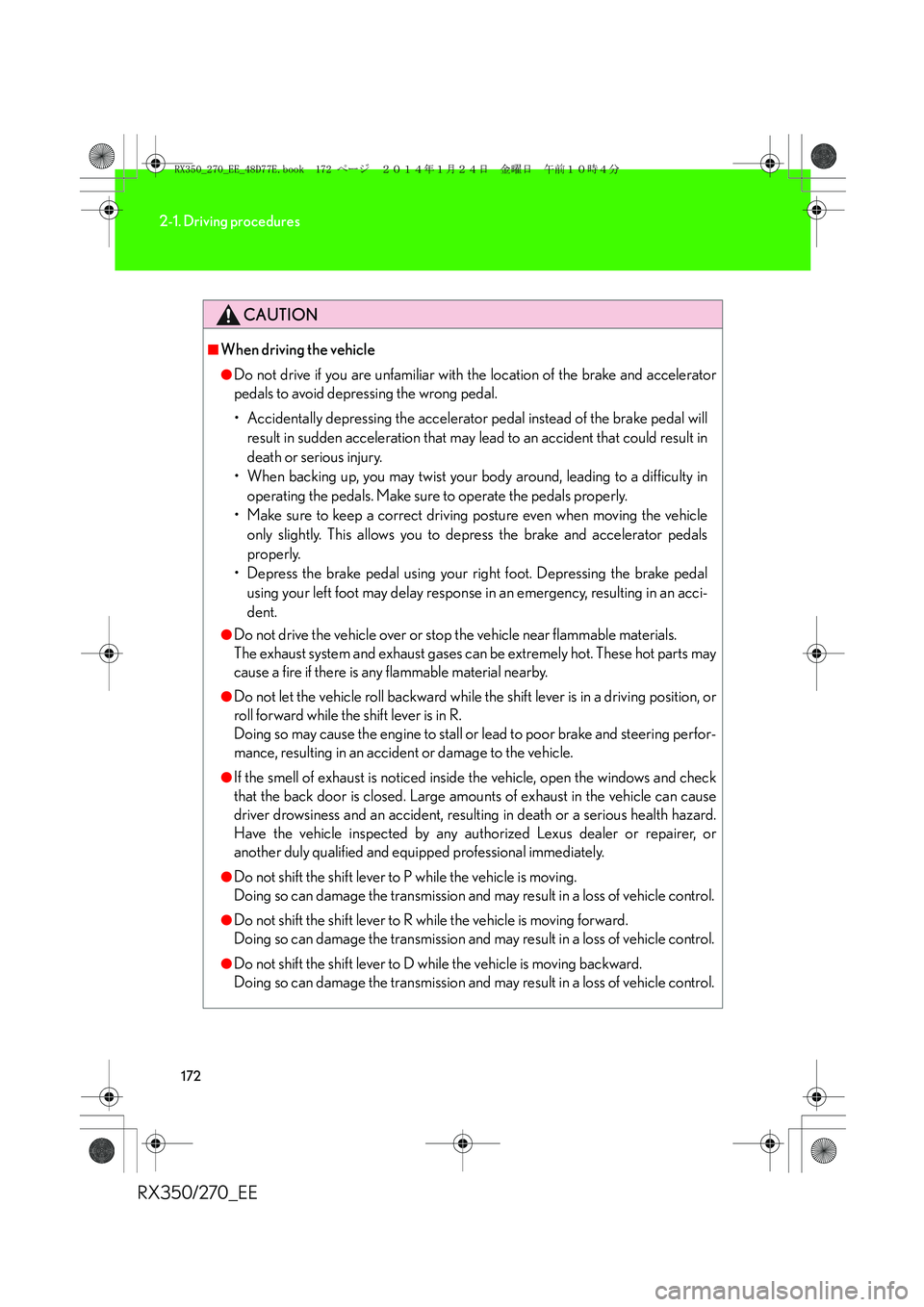

172
2-1. Driving procedures
RX350/270_EE
CAUTION
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident that could result in
death or serious injury.
• When backing up, you may twist your body around, leading to a difficulty in
operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle
only slightly. This allows you to depress the brake and accelerator pedals
properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay response in an emergency, resulting in an acci-
dent.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby.
●Do not let the vehicle roll backward while the shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering perfor-
mance, resulting in an accident or damage to the vehicle.
●If the smell of exhaust is noticed inside the vehicle, open the windows and check
that the back door is closed. Large amounts of exhaust in the vehicle can cause
driver drowsiness and an accident, resulting in death or a serious health hazard.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional immediately.
●Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
RX350_270_EE_48D77E.book 172 ページ ２０１４年１月２４日　金曜日　午前１０時４分

173
2-1. Driving procedures
2
When driving
RX350/270_EE
CAUTION
●Moving the shift lever to N while the vehicle is moving will disengage the engine
from the transmission. Engine braking is not available when N is selected.
●During normal driving, do not turn off the engine. Turning the engine off while
driving will not cause loss of steering or braking control, but the power assist to
these systems will be lost. This will make it more difficult to steer and brake, so you
should pull over and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop
the vehicle in the normal way: →P. 6 0 3
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. (→P. 1 8 7 )
●When stopped on an incline, use the brake pedal and parking brake to prevent
the vehicle from rolling backward or forward, causing an accident.
●Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents, resulting
in death or serious injury.
●Always check that all passengers' arms, heads or other parts of their body are not
outside the vehicle, as this may result in death or serious injury.
●On vehicles with an electronically modulated air suspension, if you drive through
water, such as when crossing shallow streams, first check the depth of the water
and the firmness of the river bed. Put the vehicle in “HI” (high) mode with the
height selector switch and then turn off the electronically modulated air suspen-
sion by pressing the height control off switch. Drive your vehicle at 30 km/h (19
mph) or lower.
RX350_270_EE_48D77E.book 173 ページ ２０１４年１月２４日　金曜日　午前１０時４分

174
2-1. Driving procedures
RX350/270_EE
CAUTION
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden acceleration, engine braking due to shift changing, or changes in engine
speed could cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
Rotor damage can result if the pads are not replaced when needed.
Moderate levels of brake pad and disc wear allow enhanced front braking power.
As a result, the discs may wear more quickly than conventional brake discs. There-
fore, when replacing the brake pads, Lexus recommends that you also have the
thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
those of the brake discs are exceeded.
RX350_270_EE_48D77E.book 174 ページ ２０１４年１月２４日　金曜日　午前１０時４分
