2014 LEXUS RX270 tire type

297
2-5. Driving information
2
When driving
RX350/270_EE
Selecting tire chains
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
3 mm (0.12 in.) in diameter
25 mm (0.98 in.) in length
11 mm (0.43 in.) in width
Cross chain
4 mm (0.16 in.) in diameter
25 mm (0.98 in.) in length
14 mm (0.55 in.) in width
Regulations on the use of tire chains
Regulations regarding the use of tire chains vary depending on location
and type of road. Always check local regulations before installing chains.
■When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road
conditions.
■When parking the vehicle
Park the vehicle and move the shift lever to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If necessary, block the wheels to prevent inadvert-
ent sliding or creeping.
RX350_270_EE_48D77E.book 297 ページ ２０１４年１月２４日　金曜日　午前１０時４分

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
■Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and inset
*.
Replacement wheels are available at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
■Aluminum wheel precautions
●Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
●When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
●Be careful not to damage the aluminum wheels when using tire
chains.
●Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
RX350_270_EE_48D77E.book 497 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
549
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

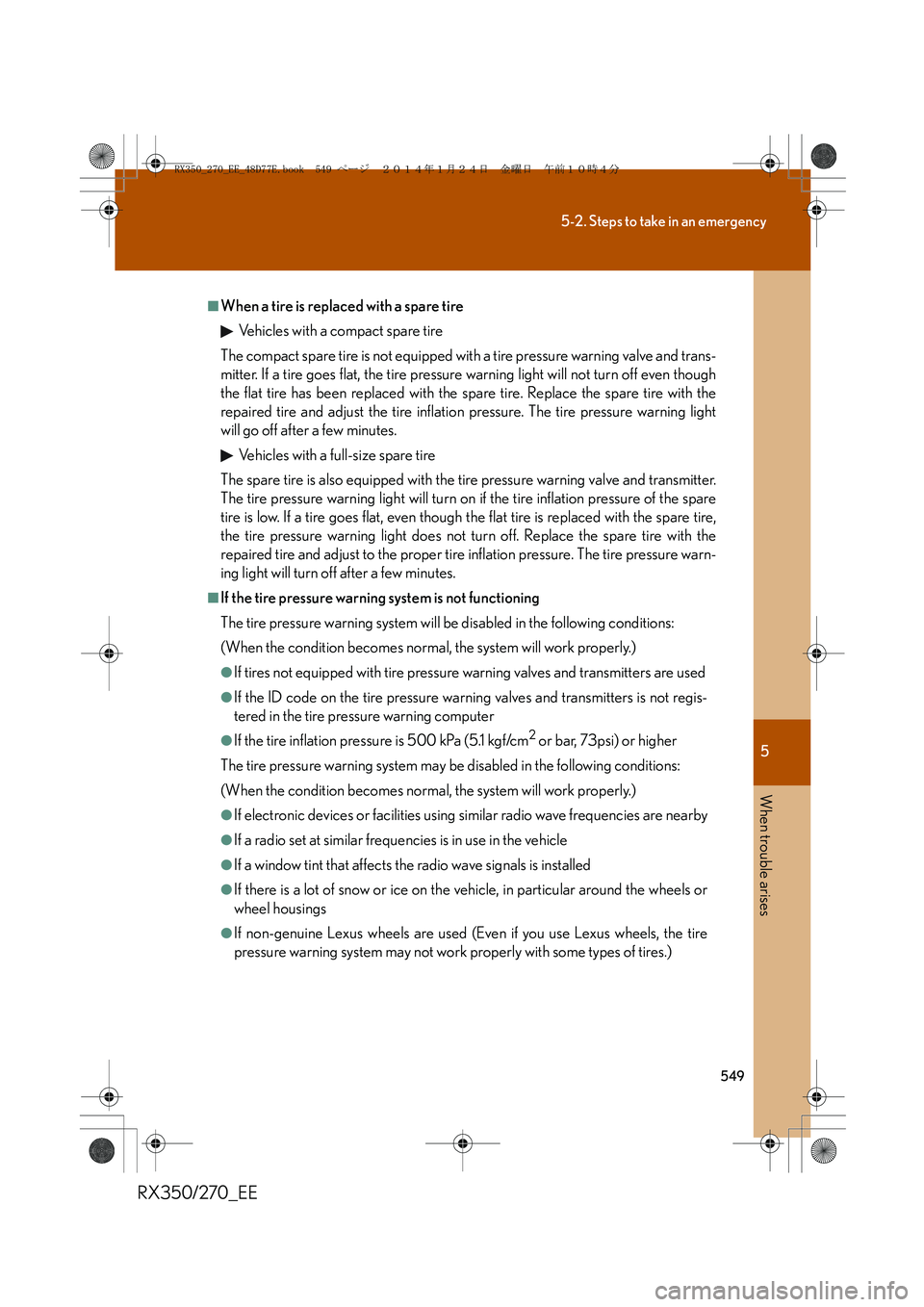

■When a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust to the proper tire inflation pressure. The tire pressure warn-
ing light will turn off after a few minutes.
■If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
●If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73psi) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby
●If a radio set at similar frequencies is in use in the vehicle
●If a window tint that affects the radio wave signals is installed
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
RX350_270_EE_48D77E.book 549 ページ ２０１４年１月２４日　金曜日　午前１０時４分

617
6-1. Specifications
6
Vehicle specifications
RX350/270_EE
Tires and wheels
Type A
Type B
Ti r e s i z e235/60R18 103V, T165/90D18 107M (spare)
Tire inflation pressure
(front and rear)
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)240 (2.4, 35)260 (2.6, 38)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Tire inflation pressure
(spare)
(recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size18 × 7 1 /2J, 18 × 4T (spare)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e235/60R18 103V
Tire inflation pressure
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)240 (2.4, 35)260 (2.6, 38)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Wheel size18 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
RX350_270_EE_48D77E.book 617 ページ ２０１４年１月２４日　金曜日　午前１０時４分

618
6-1. Specifications
RX350/270_EEType C
Type D
Ti r e s i z e235/55R19 101V, T165/90D18 107M (spare)
Tire inflation pressure
(front and rear)
(recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)250 (2.5, 36)280 (2.8, 41)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Tire inflation pressure
(spare)
(recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size19 × 7 1 /2J, 18 × 4T (spare)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z e235/55R19 101V
Tire inflation pressure
(recommended cold tire
inflation pressure)
Ve h i c l e s p e e dFront wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 160
km/h (100 mph)250 (2.5, 36)280 (2.8, 41)
160 km/h (100
mph) or less220 (2.2, 32)220 (2.2, 32)
Wheel size19 × 7 1 /2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
RX350_270_EE_48D77E.book 618 ページ ２０１４年１月２４日　金曜日　午前１０時４分

652
RX350/270_EE
GAS STATION INFORMATION
Auxiliary catch lever
P. 4 6 5Fuel filler door
P. 110Back door opener
P. 6 0
Hood lock release lever
P. 4 6 5Fuel filler door opener
P. 1 1 0Tire inflation pressure
P. 6 1 7
Fuel tank capacity
(Reference)72 L (19.0 gal., 15.8 Imp. gal.)
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only P. 609
Cold tire inflation
pressureP. 6 1 7
Engine oil capacity
(Drain and refill
 reference)P. 6 1 0
Engine oil type“Toyota Genuine Motor Oil” or equivalent P. 610
