2014 LEXUS LX570 display

2042-2. Instrument cluster
LX570_OM_OM60L21U_(U) ■
System check display
After turning the “ENGINE START STOP ” switch to IGNITION ON mode,
“LEXUS” is displayed while system operation is checked. When the system check is
complete, the normal screen will return. ■
Turn-by-turn navigation
The turn-by-turn navigation appears only
while route guidance of the navigation system
is being performed. When a turn
approaches, the distance to the turn and the
turn direction are displayed.
Tu r n d i r e c t i o n
Distance to the next turn
The image shown may differ from the
actual intersection.

2052-2. Instrument cluster
2
When driving
LX570_OM_OM60L21U_(U) ■
Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change: ●
When stopped, or driving at low speeds (less than 12 mph [20 km/h]) ●
When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)■
When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle Lexus dealer.■
When disconnecting and reconnecting battery terminals
The following information data will be reset: ●
Average fuel consumption after refueling ●
Average fuel consumption ●
Average vehicle speed
CAUTION■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the information display. At
extremely low temperatures, the information display monitor may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing
rapid and excessive engine braking and po ssibly an accident resulting in death or
serious injury.

2162-3. Operating the lights and wipers
LX570_OM_OM60L21U_(U) ■
If a warning message of the Automatic High Beam is displayed...
It may indicate a malfunction in the system. Contact your Lexus dealer. ■
Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold on the inside rear view mirror for 15 to
20 seconds, and release. The indicator light on the inside rear view mirror will flash
to indicate that the sens itivity has been lowered.
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level. ■
Customization
The Automatic High Beam can be turned off.
(Customizable features  P. 9 0 6 )

2322-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
Cruise control can be set when ●
The shift lever is in “D” or range “4” or higher of “S” has been selected. ●
Range “4” or higher has been selected by using the paddle shift. (vehicles with
paddle shift switches) ●
Vehicle speed is above appr oximately 25 mph (40 km/h).■
Accelerating after setting the vehicle speed ●
The vehicle can be accelerated normally. After acceleration, the set speed
resumes. ●
Even without canceling the cruise cont rol, the set speed can be increased by
first accelerating the vehicle to the desired speed and then pushing the lever
down to set the new speed. ■
Automatic cruise control cancelation
Cruise control will stop maintaining the ve hicle speed in any of the following situa-
tions. ●
Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the
preset vehicle speed.
At this time, the memorized set speed is not retained. ●
VSC is activated. ●
Actual vehicle speed is below approximately 25 mph (40 km/h). ●
The switching operation continues for 5 seconds or more after the center dif-
ferential lock switch has been operated.■
If the warning message for the cruise control is shown on the multi-information
display
Press the “ON-OFF” button once to deactivate the system, and then press the but-
ton again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfun ction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.

2342-4. Using other driving systems
LX570_OM_OM60L21U_(U) Dynamic radar cruise control 
 : If equippedDynamic radar cruise control supple ments conventional cruise control
with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance
control mode, the vehicle automatically accelerates or decelerates in
order to maintain a set following distance from vehicles ahead.
Display
Set speed
Indicators
Vehicle-to-vehicle distance
button
Cruise control switch

2362-4. Using other driving systems

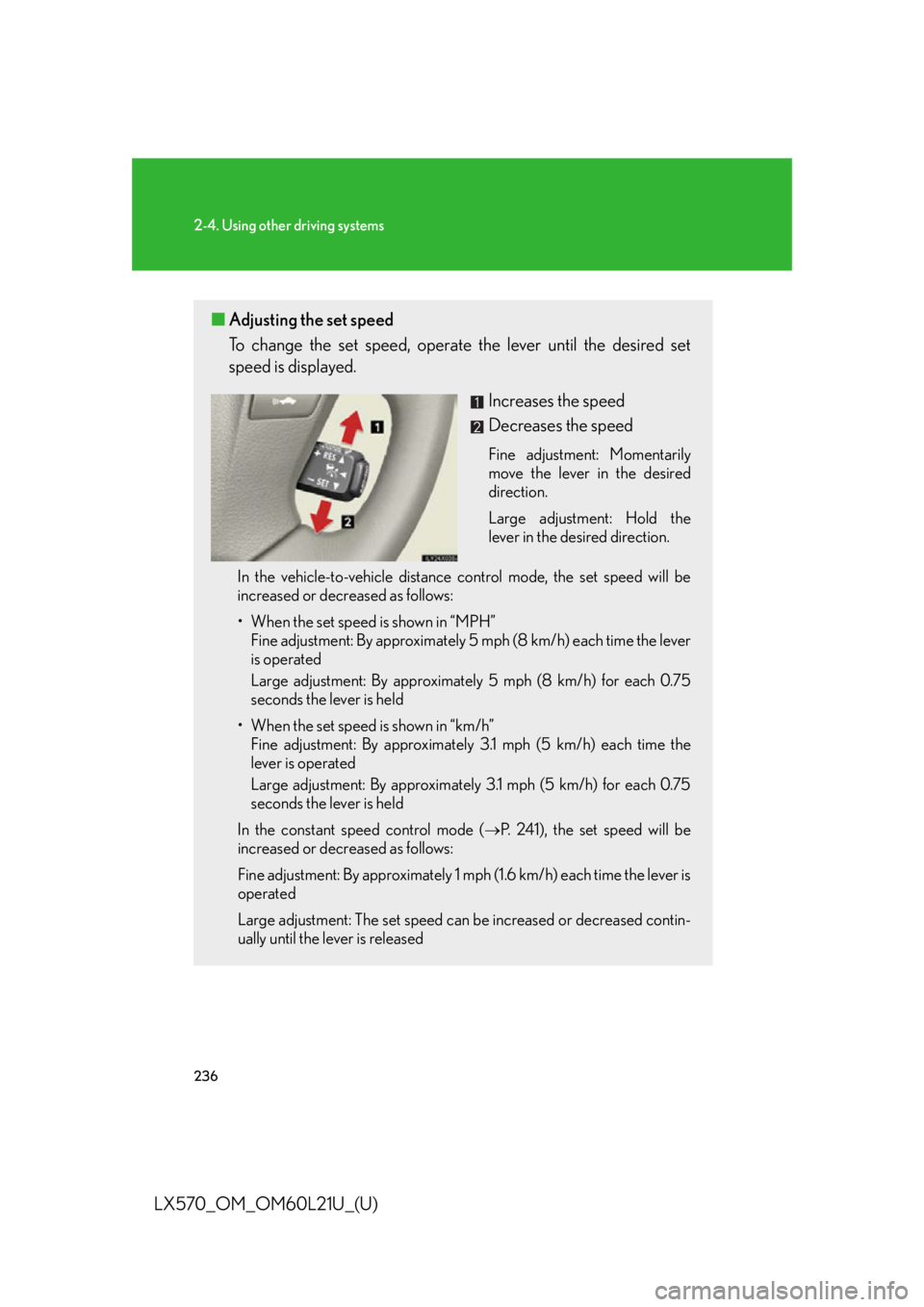

LX570_OM_OM60L21U_(U) ■ Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is displayed.
Increases the speed
Decreases the speed Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decr eased as follows:
• When the set speed is shown in “MPH”
Fine adjustment: By approximately 5 mph (8 km/h) each time the lever
is operated
Large adjustment: By approximately 5 mph (8 km/h) for each 0.75
seconds the lever is held
• When the set speed is shown in “km/h”
Fine adjustment: By approximately 3.1 mph (5 km/h) each time the
lever is operated
Large adjustment: By approximately 3.1 mph (5 km/h) for each 0.75
seconds the lever is held
In the constant speed control mode ( 
P. 241), the set speed will be
increased or decr eased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is
operated
Large adjustment: The set speed can be increased or decreased contin-
ually until the lever is released

2372-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Changing the vehicle-to-vehicle distance
Pressing the button changes the
vehicle-to-vehicle distance as
follows:
Long
Medium
Short The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle mark
will also be displayed.
■ Vehicle-to-vehicle distance settings
Select a distance from the tabl e below. Note that the distances
shown correspond to a vehicle sp eed of 50 mph (80 km/h). Vehi-
cle-to-vehicle distance increases/decreases in accordance with
vehicle speed. Preceding vehicle mark
Distance options Vehicle-to-vehicle distance
Long Approximately 220 ft. (65 m)
Medium Approximately 130 ft. (40 m)
Short Approximately 100 ft. (30 m)

2402-4. Using other driving systems
LX570_OM_OM60L21U_(U) Example of follow-up cruising
When following a vehicle driving slower than the set speed The system continues follow-up cruising while adjusting for changes in the
speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis-
tance set by the driver.
Example of acceleration
When there are no longer any vehicl es ahead driving slower than the
set speed The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Approach warning
When your vehicle is too close to a vehicle ahead, and sufficient auto-
matic deceleration via th e cruise control is not po ssible, the display will
flash and the buzzer will sound to al ert the driver. An example of this
would be if another driver cuts in fron t of you while you are following a
vehicle. Apply the brakes to ensure appropriate vehicle-to-vehicle dis-
tance.
■ Warnings may not occur when
In the following instances, there is a possibility that the warnings will not
occur:
● When the speed of the vehicle ahead matches or exceeds your
vehicle speed
● When the vehicle ahead is traveling at an extremely slow speed
● Immediately after the cruise control speed was set
● At the instant the accelerator is applied
