2014 Lexus GX460 Navigation Manual

256
5. AUDIO/VISUAL REMOTE CONTROLS
GX_EMVN_OM60K84U_(U)13.06.28 16:22
X“MODE” switch
ModeOperationFunction
AM, FM,
SAT, AUX, VTRPressChange audio modes
Press and hold
(0.8 sec. or more)Mute
CD/MP3/
WMA/AAC disc, DVD,
USB, iPod, BT audio, APPSPressChange audio modes
Press and hold
(0.8 sec. or more)Pause
INFORMATION
●
In the APPS mode, some of the operations may be done on the screen, it will depend on the
selected APPS.
GX_EMVN_OM60K84U_(U).book Page 256 Tuesday, July 2, 2013 11:51 AM

257
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
6. SETUP
1. AUDIO SETTINGS
1Press the “SETUP” button.
2Select “A u d i o ” .
3Select the items to be set.
*: Only in DVD video mode
Detailed audio settings can be pro-
grammed.AUDIO SETTINGS SCREEN
No.FunctionPage
Select to set the iPod audio
signal input settings.258
Select to set the video signal
format settings.258
Select to change the number
of preset radio stations dis-
played on the screen.
259
Select to set detailed cover
art settings.259
*Select to set detailed DVD
settings.260
GX_EMVN_OM60K84U_(U).book Page 257 Tuesday, July 2, 2013 11:51 AM

258
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1Display the audio setting screen.
(→ P.257)
2Select “iPod Settings” .
3Select “Video Sound Input” .
4Select a screen button for the desired
setting.
1Display the audio setting screen.
( → P.257)
2Select “External Video Settings” .
3Select “Video Signal Switch” .
4Select a screen button for the desired
setting.
iPod SETTINGSEXTERNAL VIDEO SETTINGS
GX_EMVN_OM60K84U_(U).book Page 258 Tuesday, July 2, 2013 11:51 AM

259
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Display the audio setting screen.
(→ P.257)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
z“Default” : Select to default the settings.
1Display the audio setting screen.
(→ P.257)
2Select “Cover Art Settings” .
3Select the desired button to be set.
SETTING THE NUMBER OF
RADIO PRESETSCOVER ART SETTINGS
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
●
Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
GX_EMVN_OM60K84U_(U).book Page 259 Tuesday, July 2, 2013 11:51 AM

260
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1Display the audio setting screen.
(→ P.257)
2Select “DVD Settings” .
zSelecting “DVD Settings” on the DVD top
screen can also display “DVD Settings”
screen. ( →P.1 9 5 )
3Select the items to be set.
zWhen “Default” is selected, all menus are
initialized.
■ AUDIO LANGUAGE
1Select “Audio Language” .
2Select the desired language to be heard
on the “Audio Language” screen.
zIf the desired language to be heard cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 1 )
■SUBTITLE LANGUAGE
1Select “Subtitle Language”.
2Select the desired language to be read
on the “Subtitle Language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 1 )
■MENU LANGUAGE
1Select “Menu Language” .
2Select the desired language to be read
on the “Menu Language” screen.
zIf the desired language to be read cannot
be found on this screen, select “Other ” and
enter a language code. ( →P. 2 6 1 )
DVD SETTINGS
The audio language can be changed.
The subtitle language can be changed.
The language on the DVD video menu
can be changed.
GX_EMVN_OM60K84U_(U).book Page 260 Tuesday, July 2, 2013 11:51 AM

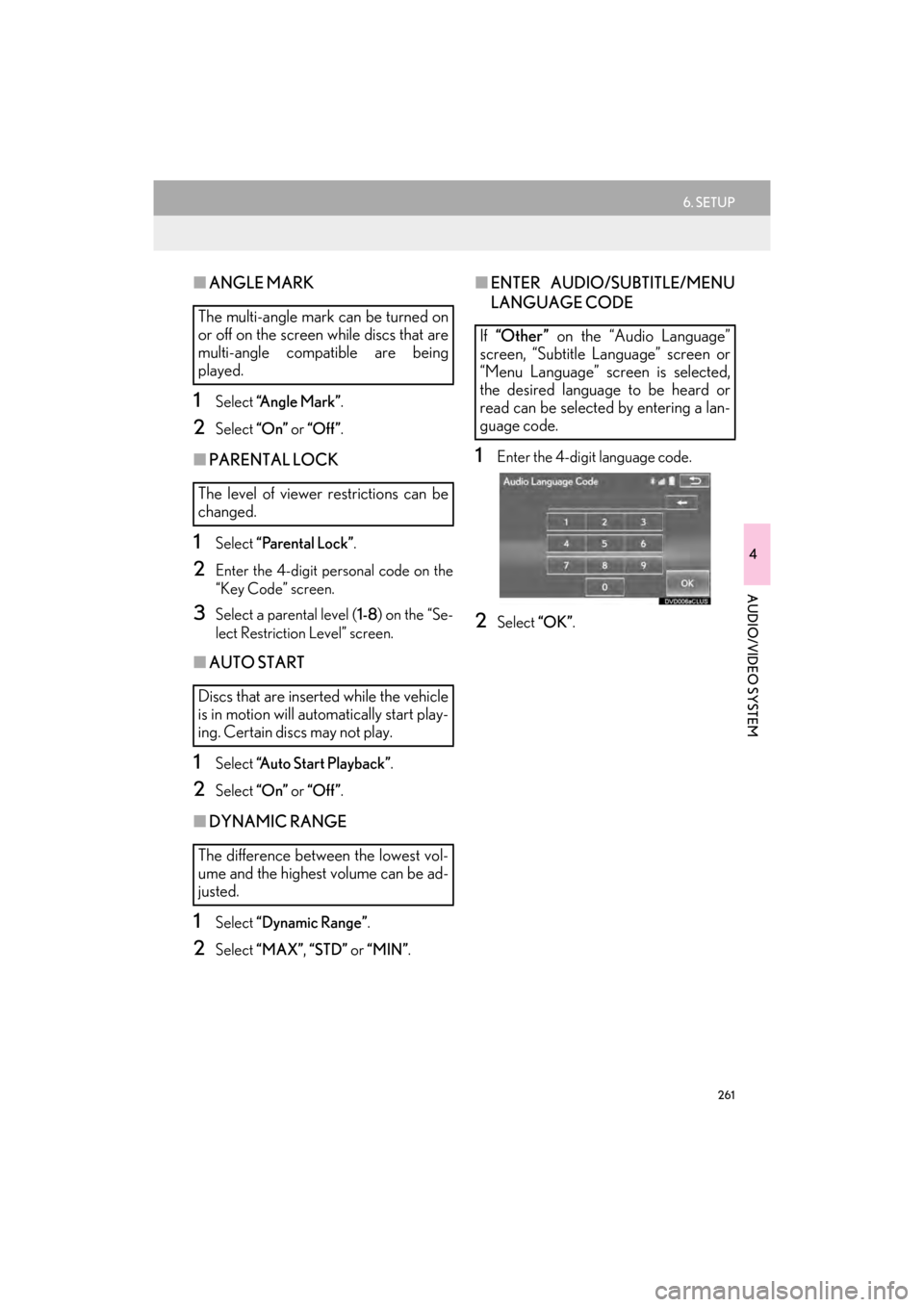

261
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
■ANGLE MARK
1Select “Angle Mark” .
2Select “On” or “Off ” .
■PARENTAL LOCK
1Select “Parental Lock” .
2Enter the 4-digit personal code on the
“Key Code” screen.
3Select a parental level ( 1-8) on the “Se-
lect Restriction Level” screen.
■ AUTO START
1Select “Auto Start Playback” .
2Select “On” or “Off ” .
■DYNAMIC RANGE
1Select “Dynamic Range” .
2Select “MAX” , “STD” or “MIN” .
■ENTER AUDIO/SUBTITLE/MENU
LANGUAGE CODE
1Enter the 4-digit language code.
2Select “OK”.
The multi-angle mark can be turned on
or off on the screen while discs that are
multi-angle compatible are being
played.
The level of viewer restrictions can be
changed.
Discs that are inserted while the vehicle
is in motion will automatically start play-
ing. Certain discs may not play.
The difference between the lowest vol-
ume and the highest volume can be ad-
justed.
If “Other ” on the “Audio Language”
screen, “Subtitle Language” screen or
“Menu Language” screen is selected,
the desired language to be heard or
read can be selected by entering a lan-
guage code.
GX_EMVN_OM60K84U_(U).book Page 261 Tuesday, July 2, 2013 11:51 AM

262
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
CodeLanguage
0514English
1001Japanese
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
1115Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali, Bangla
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scottish-Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
CodeLanguage
GX_EMVN_OM60K84U_(U).book Page 262 Tuesday, July 2, 2013 11:51 AM

263
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian
1111Kazakh
1112Greenlandic
1113Cambodian
1114Kannada
1119Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laotian
1220Lithuanian
1222Latvian, Lettish
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
CodeLanguage
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan) Oromo
1518Oriya
1601Panjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto-Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sango
1908Serbo-Croatian
1909Sinhalese
1911Slovak
CodeLanguage
GX_EMVN_OM60K84U_(U).book Page 263 Tuesday, July 2, 2013 11:51 AM
