2014 Lexus GX460 Navigation Manual

224
3. MEDIA OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
7. VTR
■CONTROL SCREEN
To operate the Video functions such as iPod video or VTR, a 4-pole AUX cable is nec-
essary. However, depending on the cable specifications, the video function may not
work properly. For more informat
ion, contact your Lexus dealer.
While driving, video will not be disp layed. Only sound will be output.
OVERVIEW
The VTR operation screen can be reached by the following methods:
XConnecting a device to the AUX port ( →P.163)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “A / V ”.
GX_EMVN_OM60K84U_(U).book Page 224 Tuesday, July 2, 2013 11:51 AM

225
3. MEDIA OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
■CONTROL PANEL
No.Function
Select to display the audi o source selection screen.
Select to display the sound setting screen.
Select to display the audio setting screen.
Select to display the option screen. ( →P.226)
Select to display full screen video.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
GX_EMVN_OM60K84U_(U).book Page 225 Tuesday, July 2, 2013 11:51 AM

226
3. MEDIA OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50

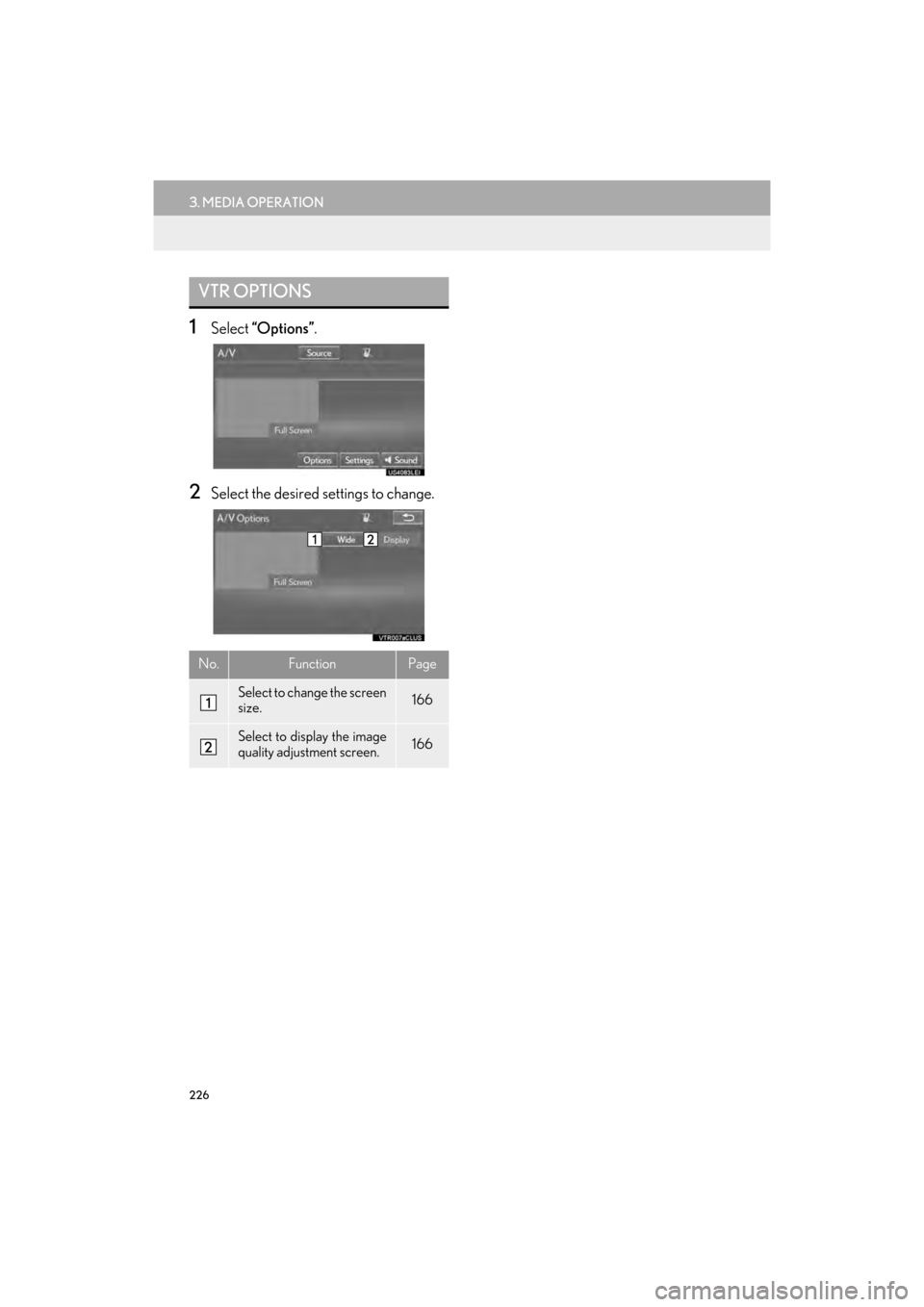

1Select “Options” .
2Select the desired settings to change.
VTR OPTIONS
No.FunctionPage
Select to change the screen
size. 166
Select to display the image
quality adjustment screen.166
GX_EMVN_OM60K84U_(U).book Page 226 Tuesday, July 2, 2013 11:51 AM

227
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
1. REAR SEAT ENTERTAINMENT SYSTEM FEATURES*
The rear seat entertainment sy stem is designed for the rear passengers to enjoy audio
and DVD video separately from the front audi o/visual system. The rear seat entertain-
ment system can be used when the engine switch is in ACCESSORY or IGNITION
ON mode.
No.Name
Front audio/visual system
Displays
Rear seat entertainment system controller
Headphone volume control dials and headphone jacks
HDMI port
A/V input port
*: If equipped
GX_EMVN_OM60K84U_(U).book Page 227 Tuesday, July 2, 2013 11:51 AM

228
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
1Remove the insulating sheet before us-
ing the remote controller.
1Remove the cover.
2Remove the depleted batteries and in-
stall the new ones.
DISPLAY
A display is installed in the back of each
front seat. When audio-video equip-
ment is connected to the A/V input port
or HDMI port, rear passengers can en-
joy different audio sources on each dis-
play. ( →P.249)
REAR SEAT ENTERTAINMENT
SYSTEM CONTROLLER
BEFORE USING THE
CONTROLLER (FOR NEW
VEHICLE OWNERS)
INFORMATION
●
An insulating sheet is set to prevent the
batteries from being discharged.
REPLACING THE
CONTROLLER BATTERIES
GX_EMVN_OM60K84U_(U).book Page 228 Tuesday, July 2, 2013 11:51 AM

229
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Press and release the lid.
2Turn the knob clockwise to increase the
volume. Turn the knob counterclock-
wise to decrease the volume.INFORMATION
●
If the batteries ar e discharged, the
following symptoms may occur:
• The rear seat entertainment system controller will not function properly.
• The operational range is reduced.
●When using AA batteries
• Batteries can be purchased at your Lexus dealer, electric appliance shop,
or camera stores.
• Replace only with the same or equiva- lent type recommended by your Lexus
dealer.
• Dispose of used batteries according to the local laws.
HEADPHONE JACKS
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact on
the human body.
No.Function
To use the headphones, connect
them to the jack.
To adjust the volume.
GX_EMVN_OM60K84U_(U).book Page 229 Tuesday, July 2, 2013 11:51 AM

230
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
zWith some headphones generally avail-
able in the market, it may be difficult to
catch signals properly. Lexus recommends
the use of Lexus genuine wireless head-
phones.
z Contact your Lexus dealer for further
details.
z This screen appears for a few seconds
when the engine switch is in ACCESSORY
or IGNITION ON mode.
1Press the button.
When the switch is moved to “R”, opera-
tions can be performed on the right screen.
When switch is moved to “L”, operations
can be performed on the left screen.
HEADPHONES
To listen to the rear audio, use head-
phones.
CAUTION SCREEN
TURNING THE REAR DISPLAY
ON/OFF
CHANGING THE DISPLAY TO
BE OPERATED
GX_EMVN_OM60K84U_(U).book Page 230 Tuesday, July 2, 2013 11:51 AM

231
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Press the button.
zWhile the display is off, some remote con-
trol buttons can be operated.
1Press the “SOURCE” button to display
the audio source selection screen.
TURNING THE REAR DISPLAY
OFF USING THE REMOTE
CONTROLLERCHANGING THE SOURCE
No.Function
Press to display the audio source se-
lection screen.
Press to select an icon.
Press to input the selected icon.
GX_EMVN_OM60K84U_(U).book Page 231 Tuesday, July 2, 2013 11:51 AM
