2354-5. Using the driving support systems
4
Driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist the driver
when backing up. When backing up, be sure to check visually behind and all around
the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend on the rear view monitor system entirely when backing up. The image
and the position of the guide lines displayed on the screen may differ from the actual
state.
Use caution, just as you would when backing up any vehicle.
●Be sure to back up slowly, depressing the brake pedal to control vehicle speed.
●The instructions given are only guide lines.
When and how much to turn the steering wheel will vary according to traffic condi-
tions, road surface conditions, vehicle condition, etc. when parking. It is necessary to
be fully aware of this before using the rear view monitor system.
●When parking, be sure to check that the parking space will accommodate your vehi-
cle before maneuvering into it.
●Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or emergency tires
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
●In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to see the
image on the screen. Be sure to check direct visually and with the mirrors all around
the vehicle before proceeding.
●If the tire sizes are changed, the position of the fixed guide lines displayed on the
screen may change.
●The camera uses a special lens. The distances between objects and pedestrians that
appear in the image displayed on the screen will differ from the actual distances.
( → P. 2 3 1 )
CT200h_OM_OM76135E_(EE).book Page 235 Friday, May 30, 2014 1 1:14 AM

258
CT200h_OM_OM76135E_(EE)
5-1. Basic OperationsAudio system types ...................260
Using the steering wheel audio switches .......................... 262
AUX port/USB port................. 263
5-2. Using the audio system Optimal use of the audio system .......................................... 265
5-3. Using the radio Radio operation .......................... 267
5-4. Playing audio CDs and MP3/WMA discs
CD player operation ................ 270
5-5. Using an external device Listening to an iPod ................... 277
Listening to a USB memory device...........................................283
Using the AUX port................. 288
5-6. Using Bluetooth
® devices
Bluetooth
® audio/phone........289
Using the steering wheel switches ....................................... 294
Registering a Bluetooth
®
audio system for the
first time ....................................... 295
Registering a Bluetooth
®
phone for the first time .......... 296
5-7. Setup menu Setting up a Bluetooth
®
enabled portable player ....... 297
Bluetooth
® audio system
setup ............................................ 300 Setting a cellular phone............ 301
Security and system setup......303
Using the phone book .............306
5-8. Bluetooth
® Audio
Operating a Bluetooth
®
enabled portable player.......309
5-9. Bluetooth
® Phone
Making a phone call .................... 311
Receiving a phone call .............. 313
Speaking on the phone ............ 314
5-10. Bluetooth
®
Bluetooth®.................................... 315
5-11. Basic Operations (Lexus Display Audio System)
Lexus Display Audio System ...........................................321
Steering wheel audio switches....................................... 327
USB/AUX ports ......................... 328
5-12. Setup (Lexus Display Audio System)
Setup menu ..................................330
General settings.......................... 331
Voice settings .............................. 334
Display settings ........................... 335
5-13. Using the audio system (Lexus Display Audio System)
Selecting the audio source .......................................... 337
Optimal use of the audio system ..........................................338
CT200h_OM_OM76135E_(EE).book Page 258 Friday, May 30, 2014 1 1:14 AM

259
5Audio system
CT200h_OM_OM76135E_(EE)
Audio settings..............................339
Audio menu screen operation .................................... 342
5-14. Using the radio (Lexus Display Audio System)
Radio operation ..........................345
5-15. Playing an audio CD and MP3/WMA/AAC discs
(Lexus Display Audio System)
CD player operation ................ 347
5-16. Using an external device (Lexus Display Audio System)
Listening to an iPod ...................353
Using USB memory device........................................... 357
Using the AUX port.................. 362
5-17. Connecting Bluetooth
®
(Lexus Display Audio System)
Steps for using Bluetooth
®
devices.........................................363
Registering a Bluetooth
®
device...........................................365
Selecting a Bluetooth
®
device...........................................366
Connecting a Bluetooth
®
audio player ............................... 367
Connecting a Bluetooth
®
phone .......................................... 368
Displaying a Bluetooth
®
device details ............................ 369
Detailed Bluetooth
®
settings......................................... 370 5-18. Bluetooth
® Audio (Lexus
Display Audio System)
Listening to Bluetooth
®
Audio ............................................. 371
5-19. Bluetooth
® Phone (Lexus
Display Audio System)
Using a Bluetooth
®
Phone........................................... 373
Making a call................................ 375
Receiving a call ........................... 378
Speaking on the phone ........... 379
Using a Bluetooth
®
phone messages....................... 381
Using the steering wheel switches.......................................383
Bluetooth
® phone settings ....384
5-20.Phonebook (Lexus Display Audio System)
Contact settings .........................386
Messaging setting......................389
5-21. Bluetooth
® (Lexus
Display Audio System)
What to do if... (Troubleshooting)....................390
Bluetooth
®................................... 393
5-22.Other function (Lexus Display Audio System)
“Information” screen ................. 399
MirrorLink™ ................................400
USB photo .................................... 403
Speech command system ......405
Some of the functions cannot be operated while driving.
CT200h_OM_OM76135E_(EE).book Page 259 Friday, May 30, 2014 1 1:14 AM

2605-1. Basic Operations
CT200h_OM_OM76135E_(EE)

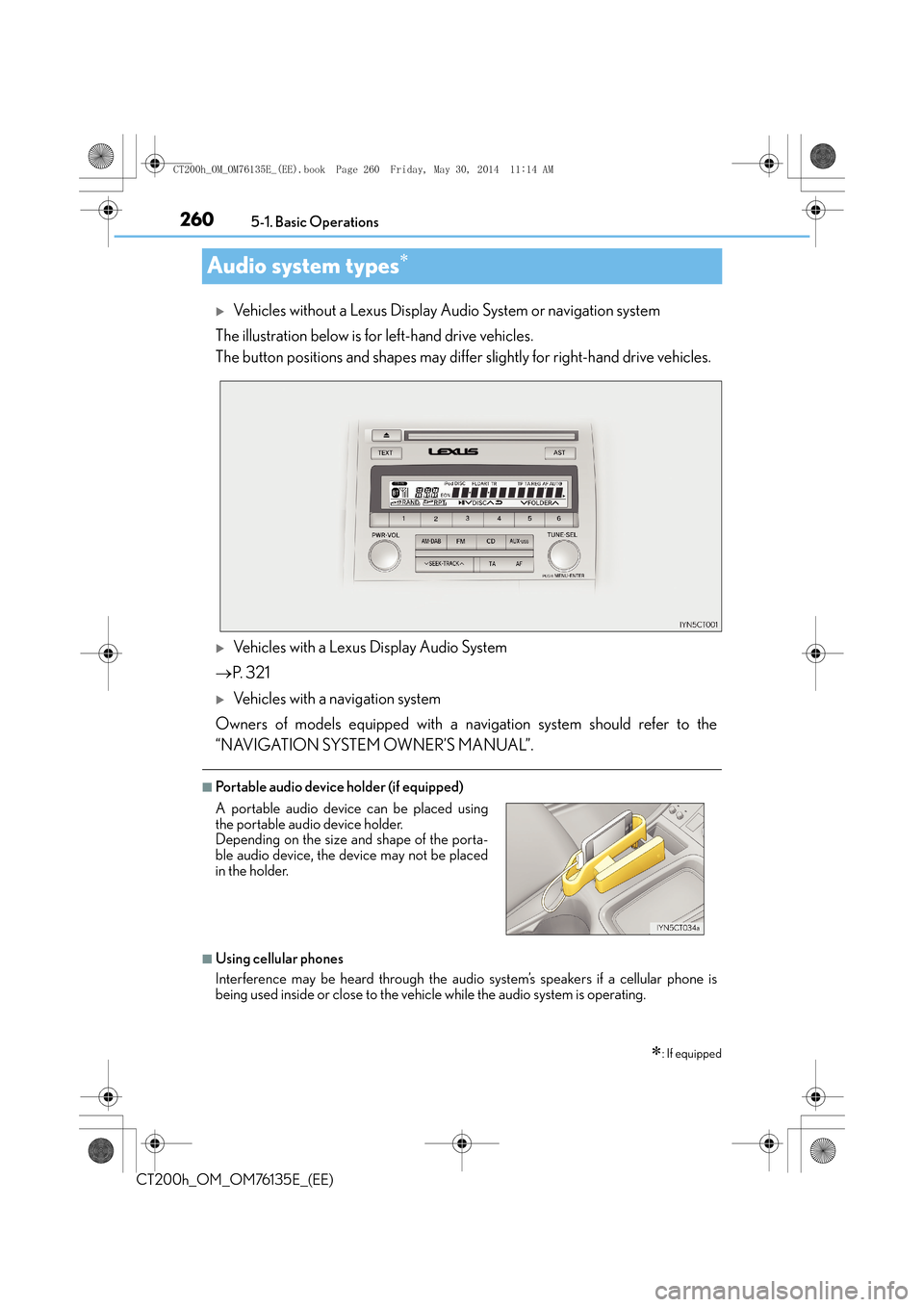

Audio system types∗
XVehicles without a Lexus Display Audio System or navigation system
The illustration below is for left-hand drive vehicles.
The button positions and shapes may differ slightly for right-hand drive vehicles.
XVehicles with a Lexus Display Audio System
→ P. 3 2 1
XVehicles with a navigation system
Owners of models equipped with a navigation system should refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
■Portable audio device holder (if equipped)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
∗: If equipped
A portable audio device can be placed using
the portable audio device holder.
Depending on the size and shape of the porta-
ble audio device, the device may not be placed
in the holder.
CT200h_OM_OM76135E_(EE).book Page 260 Friday, May 30, 2014 1 1:14 AM

265
5
5-2. Using the audio system
Audio system
CT200h_OM_OM76135E_(EE)
Optimal use of the audio system
Displays the current mode
Changes the following settings:
• Sound quality and volume balance → P. 2 6 5
The sound quality and balance setting
can be changed to produce the best
sound.
• Automatic Sound Levelizer on/off
→ P. 2 6 6
■Changing sound quality modes
Press the “TUNE•SEL” knob.
Pressing the knob changes sound modes in the following order:
“BAS” → “MID” → “TRE” → “FAD” → “BAL” → “A S L ”
■Adjusting sound quality
Turning the “TUNE•SEL” knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
The sound quality, volume balance and ASL settings can be adjusted.
1
2
Adjusting sound quality and volume balance
Mode
displayedSound
quality modeLevelTurn counter- clockwiseTu r n
clockwise
“BAS”Bass*-5 to 5
LowHigh“MID”Mid-range*-5 to 5
“TRE”Tr e b l e*-5 to 5
“FAD”Front/rear vol- ume
balanceF7 to R7Shifts to rearShifts to front
“BAL”
Left/right
volume
balance
L7 to R7Shifts to leftShifts to right
CT200h_OM_OM76135E_(EE).book Page 265 Friday, May 30, 2014 1 1:14 AM

267
5
5-3. Using the radio
Audio system
CT200h_OM_OM76135E_(EE)
Radio operation
Press the “AM•DAB” or “FM” button
to begin listening to the radio.
Control panel
Displaying text message
Automatic presetting radio stations
Station selector
“TUNE•SEL” knob
Adjusting the frequency
AF mode button
TA mode button Seeking the frequency
AM•DAB/FM mode buttons
Po w e r/v o l u m e k n o b
Press: Turning the audio system on
or off
Turn: Adjusting the volume1
2
3
4
5
6
7
8
9
CT200h_OM_OM76135E_(EE).book Page 267 Friday, May 30, 2014 1
1:14 AM

2695-3. Using the radio
5
Audio system
CT200h_OM_OM76135E_(EE)
■Traffic information
Press the “TA” button.
TP mode:
The system automatically switches to traffic information when a broadcast
with a traffic information signal is received.
The station returns to the previous one when the traffic information ends.
TA m o d e :
Traffic information can be heard only when a signal is received. The system
switches to the mute mode when a signal is not received. In CD or MP3/WMA
mode, the system automatically switches to traffic information when a signal is
received.
The audio system returns to the mute, CD or MP3/WMA mode when the traffic
information ends.
Audio system mode changes as follows each time the “TA” button is pressed:
FM modes: “TP” → “TA” → off
Modes other than the radio modes: “TA” → off
■Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency broadcast is
received, and the emergency broadcast is aired.
■EON (Enhanced Other Network) system (for traffic announcement function)
If the RDS station (with EON data) you are liste ning to is not broadcasting a traffic infor-
mation program and the audio system is in the TA (traffic announcement) mode, the
radio will be switched automatically to a station broadcasting a traffic information pro-
gram in the EON AF list when traffic information begins.
■When the 12-volt battery is disconnected
All preset stations are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all time s is difficult due to the continually chang-
ing position of the antenna, differences in si gnal strength and surrounding objects, such
as trains, transmitters, etc.
●When the “AST” button is used, automati c station selection may not be possible.
●The radio antenna is mounted inside the rear window. To maintain clear radio reception,
do not attach metallic window tinting or other metallic objects to the antenna wire
mounted inside the rear window.
■Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital Audio Broad-
cast (DAB) radio.
CT200h_OM_OM76135E_(EE).book Page 269 Friday, May 30, 2014 1 1:14 AM

2705-4. Playing audio CDs and MP3/WMA discs
CT200h_OM_OM76135E_(EE)
CD player operation
Insert a disc or press the “CD” button to begin listening to a disc.
Control panel
CD eject
Repeat play
Folder selection
“TUNE•SEL” knob
Track/file selection
Playback
Track/file selection Random play
Po w e r/v o l u m e k n o b
Press: Turning the audio system on
or off
Turn: Adjusting the volume
Displaying text message1
2
3
4
5
6
7
8
9
CT200h_OM_OM76135E_(EE).book Page 270 Friday, May 30, 2014 1
1:14 AM
