2014 Lexus CT200h display

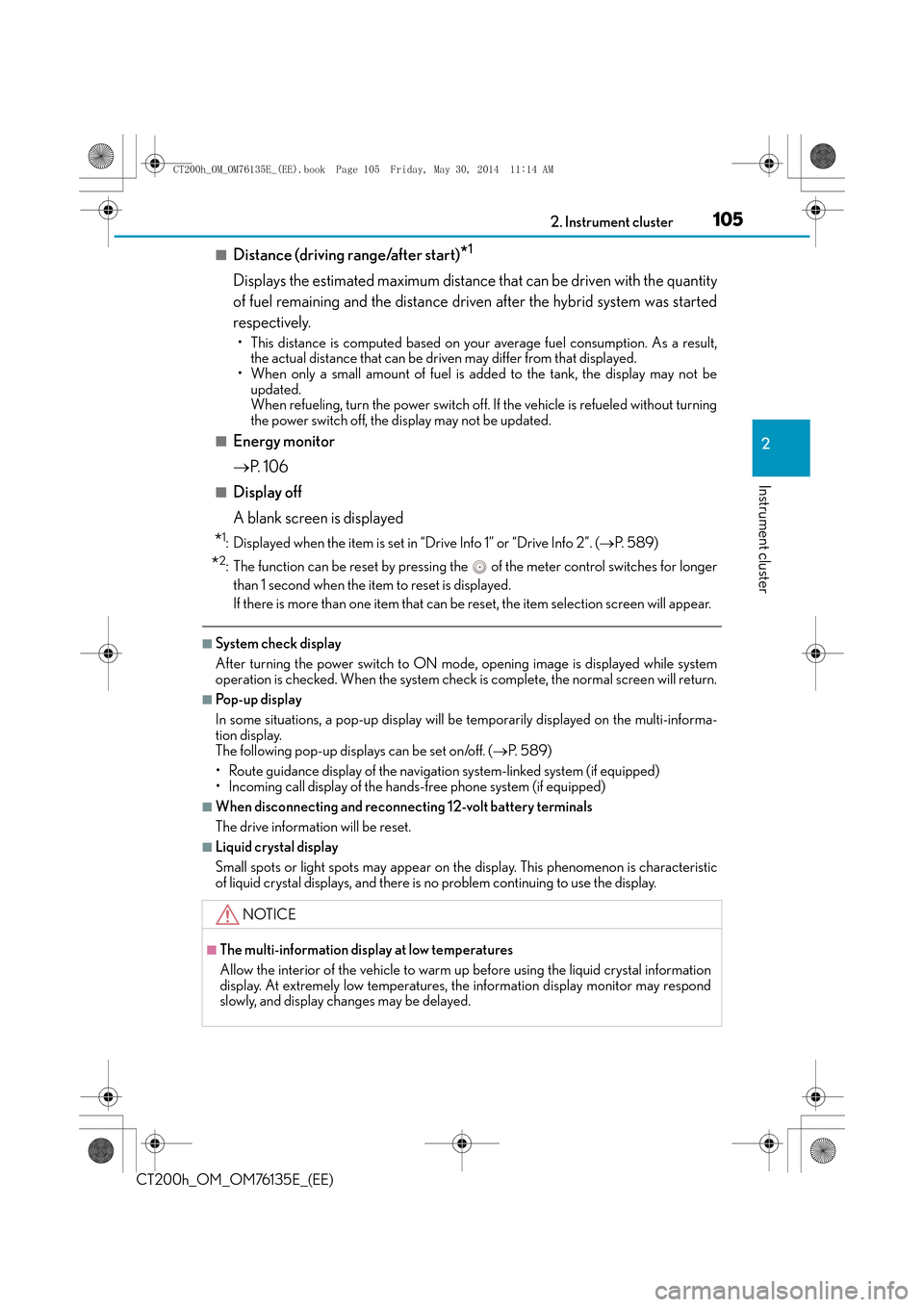

1052. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
■Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driven after the hybrid system was started
respectively.
• This distance is computed based on your average fuel consumption. As a result,the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Energy monitor
→ P. 1 0 6
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “D rive Info 1” or “Drive Info 2”. (→P. 5 8 9 )
*2: The function can be reset by pressing the of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
■System check display
After turning the power switch to ON mode , opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■Po p - u p d i s p l a y
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display.
The following pop-up displays can be set on/off. ( →P. 5 8 9 )
• Route guidance display of the navigati on system-linked system (if equipped)
• Incoming call display of the hands-free phone system (if equipped)
■When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
CT200h_OM_OM76135E_(EE).book Page 105 Friday, May 30, 2014 1 1:14 AM

1062. Instrument cluster
CT200h_OM_OM76135E_(EE)
Energy monitor/consumption screen
Multi-information display
“DISP” switch/Meter control switches
Navigation system screen/Lexus Display Audio screen (if equipped)
XVehicles with a navigation system
“MENU” button
Remote Touch knob
*
XVehicles with a Lexus Display Audio system
“MENU” button
Lexus Display Audio controller ( →P. 323)
*: For use of the Remote Touch, refer to “NAVIGATION SYSTEM OWNER’S
MANUAL”.
You can view the status of your hybrid system on the multi-information display
and the navigation system (if equippe d)/Lexus Display Audio system (if
equipped).
1
2
3
4
5
6
7
CT200h_OM_OM76135E_(EE).book Page 106 Friday, May 30, 2014 1 1:14 AM

1072. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
XNavigation system screen
Press the “MENU” button on the
Remote Touch, and then select “Car”
on the “Menu” screen.
If the “Trip information” or “Past record”
screen is displayed, select “Energy”.
XLexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Energy monitor” screen does not
appear, move the controller to the right
and select “Energy”.
XMulti-information display
Vehicles with monochrome display:
Press the “DISP” switch on the steering wheel several times to select the energy
monitor display.
Vehicles with color display:
Press or of the meter control switches and select , and then press or to select the energy monitor display.
Energy monitor
CT200h_OM_OM76135E_(EE).book Page 107 Friday, May 30, 2014 1 1:14 AM

1082. Instrument cluster
CT200h_OM_OM76135E_(EE)
■Navigation system screen/Lexus Display Audio screen
Navigation system screenLexus Display Audio screen
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gas-
oline engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow
CT200h_OM_OM76135E_(EE).book Page 108 Friday, May 30, 2014 11:14 AM

1092. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
These images are examples only, and may vary slightly from actual conditions.
■Multi-information display screen
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Navigation system screenLexus Display Audio screen
Monochrome displayColor display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gas-
oline engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
CT200h_OM_OM76135E_(EE).book Page 109 Friday, May 30, 2014 11:14 AM

1102. Instrument cluster
CT200h_OM_OM76135E_(EE)
These images are examples only, and may vary slightly from actual conditions.
■Trip information
XNavigation system screen
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Past record” sc reen is displayed, select “Trip informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( →P. 112)
When there is no
energy flow
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Fuel consumption (vehicles with a n avigation system or Lexus Display
Audio system)
Monochrome displayColor display
1
2
3
4
5
6
7
CT200h_OM_OM76135E_(EE).book Page 110 Friday, May 30, 2014 1 1:14 AM

1112. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
XLexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Trip information” screen does not appear, move the controller to the right
and select “Trip information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( →P. 112)
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only.
■Pa s t re c o r d
XNavigation system screen
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Trip information” screen is displayed, select “Past
record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
1
2
3
4
5
6
1
2
3
4
5
CT200h_OM_OM76135E_(EE).book Page 111 Friday, May 30, 2014 1 1:14 AM

1122. Instrument cluster
CT200h_OM_OM76135E_(EE)
XLexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Past record” screen does not appear, move the controller to the right and
select “Past record”.
Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
XVehicles with a navigation system
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
XVehicles with a Lexus Display Audio system
Update the average fuel consumption by moving the controller to the left and select
“Update” to measure the current fuel consumption again.
■Resetting the data
XVehicles with a navigation system
The fuel consumption data can be deleted by selecting “Clear”.
XVehicles with a Lexus Display Audio system
The fuel consumption data can be deleted by moving the controller to the left and select
“Clear ”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
