2014 Lancia Thema Owner handbook (in English)

Keep the front of the radiator clean.If your vehicle is equipped with air
conditioning, keep the front of the
condenser clean.
Do not change the thermostat for Summer or Winter operation. If re-
placement is ever necessary, install
ONLY the correct type thermostat.
Other designs may result in unsat-
isfactory engine coolant (anti-
freeze) performance, poor gas mile-
age, and increased emissions.
BRAKE SYSTEM
In order to assure brake system per-
formance, all brake system compo-
nents should be inspected periodi-
cally. Refer to the “Maintenance
Schedule” for the proper maintenance
intervals.
WARNING!
Riding the brakes can lead to brake
failure and possibly an accident.
Driving with your foot resting or
riding on the brake pedal can result
in abnormally high brake tempera-
tures, excessive lining wear, and
possible brake damage. You would
not have your full braking capacity
in an emergency.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience. Master Cylinder – Brake Fluid
Level Check
Check the fluid level in the master
cylinder immediately if the brake sys-
tem warning light indicates system
failure.
Check the fluid level in the master
cylinder when performing underhood
services.
Clean the top of the master cylinder
area before removing the cap. Add
fluid to bring the level up to the
“MAX” mark on the side of the master
cylinder reservoir.
Add enough fluid to bring the level up
to the requirements described on the
brake fluid reservoir. With disc
brakes, fluid level can be expected to
fall as the brake pads wear. However,
low fluid level may be caused by a
leak and a checkup may be needed.
Use only manufacturer's recom-
mended brake fluid. Refer to “Fluids,
Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for fur-
ther information.
283

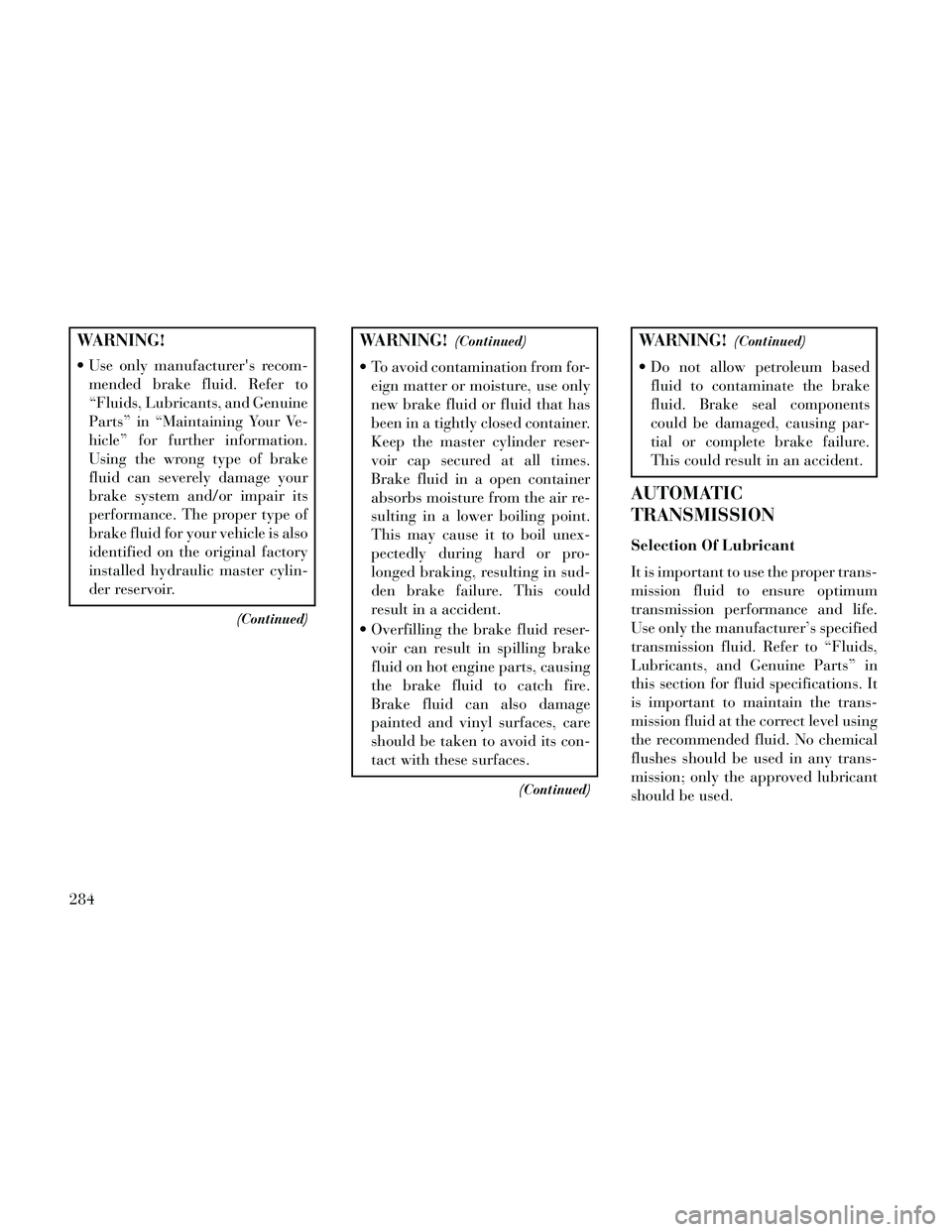

WARNING!
Use only manufacturer's recom-mended brake fluid. Refer to
“Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Ve-
hicle” for further information.
Using the wrong type of brake
fluid can severely damage your
brake system and/or impair its
performance. The proper type of
brake fluid for your vehicle is also
identified on the original factory
installed hydraulic master cylin-
der reservoir.
(Continued)
WARNING!(Continued)
To avoid contamination from for-eign matter or moisture, use only
new brake fluid or fluid that has
been in a tightly closed container.
Keep the master cylinder reser-
voir cap secured at all times.
Brake fluid in a open container
absorbs moisture from the air re-
sulting in a lower boiling point.
This may cause it to boil unex-
pectedly during hard or pro-
longed braking, resulting in sud-
den brake failure. This could
result in a accident.
Overfilling the brake fluid reser- voir can result in spilling brake
fluid on hot engine parts, causing
the brake fluid to catch fire.
Brake fluid can also damage
painted and vinyl surfaces, care
should be taken to avoid its con-
tact with these surfaces.
(Continued)
WARNING!(Continued)
Do not allow petroleum basedfluid to contaminate the brake
fluid. Brake seal components
could be damaged, causing par-
tial or complete brake failure.
This could result in an accident.
AUTOMATIC
TRANSMISSION
Selection Of Lubricant
It is important to use the proper trans-
mission fluid to ensure optimum
transmission performance and life.
Use only the manufacturer’s specified
transmission fluid. Refer to “Fluids,
Lubricants, and Genuine Parts” in
this section for fluid specifications. It
is important to maintain the trans-
mission fluid at the correct level using
the recommended fluid. No chemical
flushes should be used in any trans-
mission; only the approved lubricant
should be used.
284

CAUTION!
Using a transmission fluid other
than the manufacturer’s recom-
mended fluid may cause deteriora-
tion in transmission shift quality
and/or torque converter shudder,
and will require more frequent fluid
and filter changes. Refer to “Fluids,
Lubricants, and Genuine Parts” in
this section for fluid specifications.
Special Additives
The manufacturer strongly recom-
mends against using any special addi-
tives in the transmission.
Automatic Transmission Fluid (ATF)
is an engineered product and its per-
formance may be impaired by supple-
mental additives. Therefore, do not
add any fluid additives to the trans-
mission. The only exception to this
policy is the use of special dyes for
diagnosing fluid leaks. Avoid using
transmission sealers as they may ad-
versely affect seals.
CAUTION!
Do not use chemical flushes in your
transmission as the chemicals can
damage your transmission compo-
nents. Such damage is not covered
by the New Vehicle Limited War-
ranty.
Fluid Level Check
The fluid level is preset at the factory
and does not require adjustment un-
der normal operating conditions.
Routine fluid level checks are not re-
quired, therefore the transmission has
no dipstick. Your authorized dealer
can check your transmission fluid
level using special service tools.
If you notice fluid leakage or trans-
mission malfunction, visit your au-
thorized dealer immediately to have
the transmission fluid level checked.
Operating the vehicle with an im-
proper fluid level can cause severe
transmission damage.
CAUTION!
If a transmission fluid leak occurs,
visit your authorized dealer imme-
diately. Severe transmission dam-
age may occur. Your authorized
dealer has the proper tools to adjust
the fluid level accurately.
Fluid And Filter Changes –
5-Speed Transmission
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
In addition, change the fluid and filter
if the fluid becomes contaminated
(with water, etc.) or if the transmis-
sion is disassembled for any reason.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
285

Fluid And Filter Changes –
8-Speed Transmission
Under normal operating conditions,
the fluid installed at the factory will
provide satisfactory lubrication for
the life of the vehicle. Routine fluid
and filter changes are not required.
However, change the fluid and filter if
the fluid becomes contaminated (with
water, etc.), or if the transmission is
disassembled for any reason.
CAUTION!
Car maintenance should be done at
a LANCIA Dealership. For routine
and minor maintenance operations
you wish to carry out yourself, we
do recommend you have the proper
equipment, genuine LANCIA spare
parts and the necessary fluids; do
not however carry out these opera-
tions if you have no experience.
ALL WHEEL DRIVE (AWD)
(for versions/markets,
where provided)
The all wheel drive system consists of
a transfer case and front differential.The exterior surface of these compo-
nents should be inspected for evi-
dence of fluid leaks. Confirmed leaks
should be repaired as soon as possible.
The transfer case fluid fill/inspection
plug is located in the middle of the
rear housing. To inspect the transfer
case fluid level, remove the fill/
inspection plug. The fluid level should
be even with the bottom of the hole.
Use this plug to add fluid as required.
The front differential fill plug is lo-
cated on the outer cover near the half-
shaft attachment. To inspect the dif-
ferential fluid level, remove the fill
plug. The fluid level should be even
with or slightly below the bottom of
the hole.
REAR AXLE
For normal service, periodic fluid
level checks are not required. When
the vehicle is serviced for other rea-
sons the exterior surfaces of the axle
assembly should be inspected. If gear
oil leakage is suspected inspect the
fluid level. Refer to “Fluids, Lubri-
cants, and Genuine Parts” in “Main-
taining Your Vehicle” for further in-
formation.
Fluid Level Check
Check the fluid level by removing the
fill plug on the axle. The fluid level
should be at the bottom of the fill
hole. Add fluid, if necessary, to main-
tain the proper level. Refer to “Fluids,
Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for fur-
ther information.
Change Axle Fluid
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
APPEARANCE CARE AND
PROTECTION FROM
CORROSION
Protection Of Body And Paint
From Corrosion
Vehicle body care requirements vary
according to geographic locations and
usage. Chemicals that are sprayed on
trees and road surfaces during other
seasons, are highly corrosive to the
286

metal in your vehicle. Outside park-
ing, which exposes your vehicle to air-
borne contaminants, road surfaces on
which the vehicle is operated, extreme
hot or cold weather and other extreme
conditions will have an adverse effect
on paint, metal trim, and underbody
protection.
The following maintenance recom-
mendations will enable you to obtain
maximum benefit from the corrosion
resistance built into your vehicle.
What Causes Corrosion?
Corrosion is the result of deterioration
or removal of paint and protective
coatings from your vehicle.
The most common causes are:
Road salt, dirt and moisture accu-mulation.
Stone and gravel impact.
Insects, tree sap and tar.
Salt in the air near seacoast localities.
Atmospheric fallout/industrial pol- lutants. Washing
Wash your vehicle regularly. Al-
ways wash your vehicle in the shade
using a mild car wash soap, and
rinse the panels completely with
clear water.
Use a high quality cleaner wax to protect your paint finish. Take care
never to scratch the paint.

Avoid using abrasive compounds and
power buffing that may diminish the
gloss or thin out the paint finish.
CAUTION!
Do not use abrasive or strong clean-
ing materials such as steel wool or
scouring powder that will scratch
metal and painted surfaces.
Special Care
If you drive on salted or dusty roads or if you drive near the ocean, hose
off the undercarriage at least once a
month. It is important that the drain holes
in the lower edges of the doors,
rocker panels, and cargo area be
kept clear and open.
If you detect any stone chips or scratches in the paint, touch them
up immediately. The cost of such
repairs is considered the responsi-
bility of the owner.
If your vehicle is damaged due to an accident or similar cause, which de-
stroys the paint and protective
coating, have your vehicle repaired
as soon as possible. The cost of such
repairs is considered the responsi-
bility of the owner.
If you carry special cargo such as chemicals, fertilizers, de-icer salt,
etc., be sure that such materials are
well packaged and sealed.
If a lot of driving is done on gravel roads, consider mud or stone
shields behind each wheel.
Use Touch Up Paint or equivalent on scratches as soon as possible.
287

Your authorized dealer has touch
up paint to match the color of your
vehicle.
Wheel And Wheel Trim Care
All wheels and wheel trim, especially
aluminum and chrome-plated wheels
should be cleaned regularly with a
mild soap and water to prevent corro-
sion. To remove heavy soil and/or ex-
cessive brake dust, use a nonabrasive,
non-acidic cleaner. Do not use scour-
ing pads, steel wool, a bristle brush, or
metal polishes. Do not use oven
cleaner. Avoid automatic car washes
that use acidic solutions or harsh
brushes that may damage the wheels’
protective finish.
Stain Repel Fabric Cleaning
Procedure (for versions/markets,
where provided)
Stain Repel seats may be cleaned in
the following manner:
Remove as much of the stain as possible by blotting with a clean,
dry towel.
Blot any remaining stain with a clean, damp towel. For tough stains, apply a mild soap
solution to a clean, damp cloth and
remove the stain. Use a fresh, damp
towel to remove soap residue.
Do not use any harsh solvents or any other form of protectants on
Stain Repel products.
Interior Care
Interior trim should be cleaned start-
ing with a damp cloth. Do not use
harsh cleaners.
Your leather upholstery can be best
preserved by regular cleaning with a
damp soft cloth. Small particles of
dirt can act as an abrasive and dam-
age the leather upholstery and should
be removed promptly with a damp
cloth. Stubborn soils can be removed
easily with a soft cloth and appropri-
ate products. Care should be taken to
avoid soaking your leather upholstery
with any liquid. Please do not use
polishes, oils, cleaning fluids, sol-
vents, detergents, or ammonia-based
cleaners to clean your leather uphol-
stery. Application of a leather condi-
tioner is not required to maintain the
original condition.WARNING!
Do not use volatile solvents for
cleaning purposes. Many are poten-
tially flammable, and if used in
closed areas they may cause respi-
ratory harm.
Cleaning Headlights
Your vehicle has plastic headlights
that are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as
glass and therefore different lens
cleaning procedures must be fol-
lowed.
To minimize the possibility of scratch-
ing the lenses and reducing light out-
put, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild
soap solution followed by rinsing.
Do not use abrasive cleaning compo-
nents, solvents, steel wool or other
aggressive material to clean the
lenses.
288

Glass Surfaces
All glass surfaces should be cleaned
on a regular basis with any commer-
cial household-type glass cleaner.
Never use an abrasive type cleaner.
Use caution when cleaning the inside
rear window equipped with an elec-
tric defroster. Do not use scrapers or
other sharp instruments that may
scratch the elements.
When cleaning the rear view mirror,
spray cleaner on the towel or rag that
you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument
Cluster Lenses
The lenses in front of the instruments
in this vehicle are molded in clear
plastic. When cleaning the lenses,
care must be taken to avoid scratch-
ing the plastic.
1. Clean with a wet soft rag. A mild
soap solution may be used, but do not
use high alcohol content or abrasive
cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft cloth.Seat Belt Maintenance
Do not bleach, dye, or clean the belts
with chemical solvents or abrasive
cleaners. This will weaken the fabric.
Sun damage can also weaken the fab-
ric.
If the belts need cleaning, use a mild
soap solution, or lukewarm water. Do
not remove the belts from the vehicle
to wash them.
Replace the belts if they appear frayed
or worn or if the buckles do not work
properly.
Cleaning The Center Console
Cupholders
Clean with a damp cloth or towel us-
ing a mild detergent with the cup-
holder in the center console.
NOTE: The cupholder cannot be
removed.FUSES
WARNING!
When replacing a blown fuse, al-
ways use an appropriate replace-
ment fuse with the same amp rat-
ing as the original fuse. Never
replace a fuse with another fuse of
higher amp rating. Never replace
a blown fuse with metal wires or
any other material. Failure to use
proper fuses may result in serious
personal injury, fire and/or prop-
erty damage.
Before replacing a fuse, make sure that the ignition is off and
that all the other services are
switched off and/or disengaged.
If the replaced fuse blows again, contact an authorized dealer.
If a general protection fuse for safety systems (air bag system,
braking system), power unit sys-
tems (engine system, gearbox sys-
tem) or steering system blows,
contact an authorized dealer.
289

POWER DISTRIBUTION
CENTER
The Integrated Power Module is lo-
cated in the engine compartment.
This module contains fuses and re-
lays.
CAUTION!
When installing the integratedpower module cover, it is impor-
tant to ensure the cover is prop-
erly positioned and fully latched.
Failure to do so may allow water
to get into the integrated power
module and possibly result in an
electrical system failure.
(Continued)
CAUTION!(Continued)
When replacing a blown fuse, it isimportant to use only a fuse hav-
ing the correct amperage rating.
The use of a fuse with a rating
other than indicated may result in
a dangerous electrical system
overload. If a properly rated fuse
continues to blow, it indicates a
problem in the circuit that must
be corrected.
Cavity Cartridge Fuse Mini-Fuse Description
1 — — Spare
2 40 Amp Green — Radiator Fan #1
3 50 Amp Red — Power Steering #1
4 30 Amp Pink — Starter
5 40 Amp Green — Anti-Lock Brakes
6 — 25 Amp Natural Anti-Lock Brakes
7 50 Amp Red — Cabin Heater #1 — Diesel Only
8 50 Amp Red — Cabin Heater #2 — Diesel Only
9 — — Spare
10 — 5 Amp Tan Security
Integrated Power Module
290
