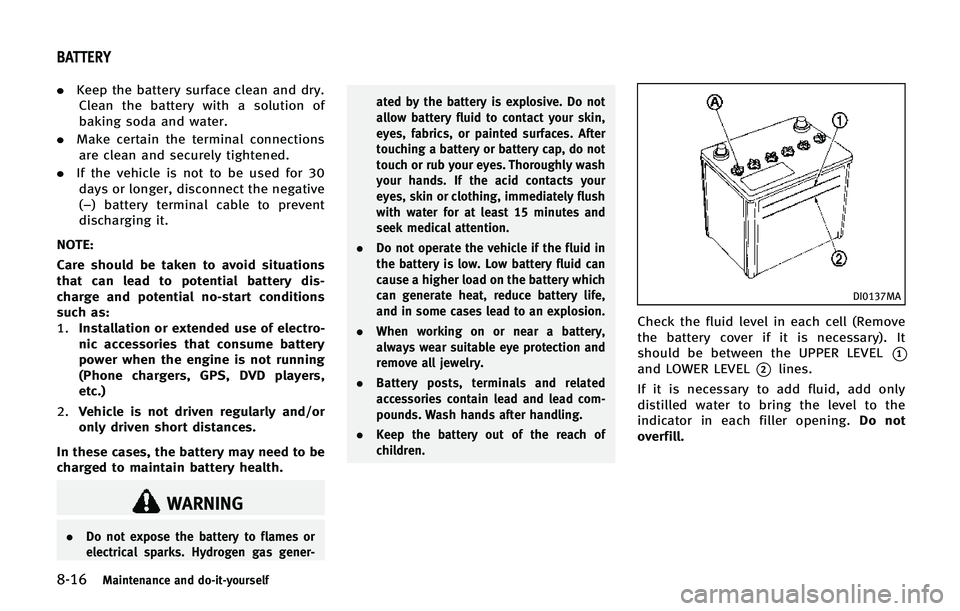

8-16Maintenance and do-it-yourself
.Keep the battery surface clean and dry.
Clean the battery with a solution of
baking soda and water.
. Make certain the terminal connections
are clean and securely tightened.
. If the vehicle is not to be used for 30
days or longer, disconnect the negative
(−) battery terminal cable to prevent
discharging it.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
WARNING
. Do not expose the battery to flames or
electrical sparks. Hydrogen gas gener- ated by the battery is explosive. Do not
allow battery fluid to contact your skin,
eyes, fabrics, or painted surfaces. After
touching a battery or battery cap, do not
touch or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately flush
with water for at least 15 minutes and
seek medical attention.
. Do not operate the vehicle if the fluid in
the battery is low. Low battery fluid can
cause a higher load on the battery which
can generate heat, reduce battery life,
and in some cases lead to an explosion.
. When working on or near a battery,
always wear suitable eye protection and
remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead com-
pounds. Wash hands after handling.
. Keep the battery out of the reach of
children.
DI0137MA
Check the fluid level in each cell (Remove
the battery cover if it is necessary). It
should be between the UPPER LEVEL
*1
and LOWER LEVEL*2lines.
If it is necessary to add fluid, add only
distilled water to bring the level to the
indicator in each filler opening. Do not
overfill.
BATTERY

SDI1480C
1. Remove the cell plugs*A.
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear,
check the distilled water level by
looking directly above the cell; the
condition
*1indicates OK and the
conditions
*2needs more to be added.
3. Tighten cell plugs
*A.
Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.
JUMP STARTING
If jump starting is necessary, see “Jump
starting” in the“6. In case of emergency”
section. If the engine does not start by
jump starting, the battery may have to be
replaced. Contact an INFINITI retailer.CAUTION
. Do not ground accessories directly to the
battery terminal. Doing so will bypass
the variable voltage control system and
the vehicle battery may not charge
completely.
. Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery.
The variable voltage control system mea-
sures the amount of electrical discharge
from the battery and controls voltage
generated by the generator.
Maintenance and do-it-yourself8-17
VARIABLE VOLTAGE CONTROL SYSTEM

8-18Maintenance and do-it-yourself
SDI2533
1. Power steering fluid pump
2. Water pump
3. Alternator
4. Crankshaft pulley
5. Air conditioner compressor
WARNING
Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belts.
The engine could rotate unexpectedly.
1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or loosen- ess. If the belt is in poor condition or
loose, have it replaced or adjusted by
an INFINITI retailer.
2. Have the belts checked regularly for condition and tension in accordance
with the maintenance schedule in your
“INFINITI Service and Maintenance
Guide”.
WARNING
Be sure the engine and the ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
DRIVE BELTS SPARK PLUGS

SDI2020
REPLACING SPARK PLUGS
If replacement is required, see an INFINITI
retailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they
will last much longer. Follow the main-
tenance schedule in“INFINITI Service and
Maintenance Guide” , but do not reuse
them by cleaning or regapping. Always replace spark plugs with recom-
mended or equivalent ones.
SDI2515
To remove the filter, release the lock pins
*1and pull the unit upward*2.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “INFINITI Ser-
vice and Maintenance Guide” for mainte-
nance intervals. When replacing the filter,
wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNING
. Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
Maintenance and do-it-yourself8-19
AIR CLEANER

8-20Maintenance and do-it-yourself
cleans the air, it stops flame if the
engine backfires. If it isn’t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.CLEANING
If your windshield is not clear after using
the windshield washer or if a wiper blade
chatters when running, wax or other
material may be on the blade or wind-
shield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision.
WINDSHIELD WIPER BLADES

SDI2048
REPLACING
Replace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
*A, and then
move the wiper blade down the wiper
arm
*1while pushing the release tab
to remove.
3. Insert the new wiper blade onto the wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in the groove.
CAUTION
. After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
. Make sure the wiper blades contact the
glass; otherwise the arm may be da-
maged from wind pressure.
SDI2516
Be careful not to clog the washer nozzle
*A. This may cause improper windshield
washer operation. If the nozzle is clogged,
remove any objects with a needle or small
pin
*B. Be careful not to damage the
nozzle.
Maintenance and do-it-yourself8-21

8-22Maintenance and do-it-yourself
Contact an INFINITI retailer if checking or
replacement is required.If the brakes do not operate properly, have
the brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjust-
ing brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not
return to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in
motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
wear warning sound is heard.
Under some driving or climate conditions,occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system.
Proper brake inspection intervals should
be followed.
For additional information,
see the maintenance log section of your
“INFINITI Service and Maintenance Guide”
for maintenance intervals.
BRAKE BOOSTER
Check the brake booster function as
follows:
1. With the engine off, depress and release the foot brake pedal more than
20 times. When the foot brake pedal
movement (distance of travel) remains
the same from one pedal application to
the next, continue on to the next step.
2. While depressing the foot brake pedal, start the engine.
3. With the foot brake pedal depressed, stop the engine. Keep the pedal de-
pressed for about 30 seconds.
4. Run the engine for 1 minute without depressing the foot brake pedal, then
turn it off. Depress the foot brake pedal
REAR WINDOW WIPER BLADES BRAKES

several times. The pedal travel distance
will decrease gradually with each de-
pression as the hydraulic pressure
decreases.
If the brakes do not operate properly, have
the brakes checked by an INFINITI retailer.
SDI2518
SDI2532
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the
headlight switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery.
3. Remove the fuse/fusible link holder cover
*1,*2or*3.
4. Remove the fuse with the fuse puller.
Maintenance and do-it-yourself8-23
FUSES
