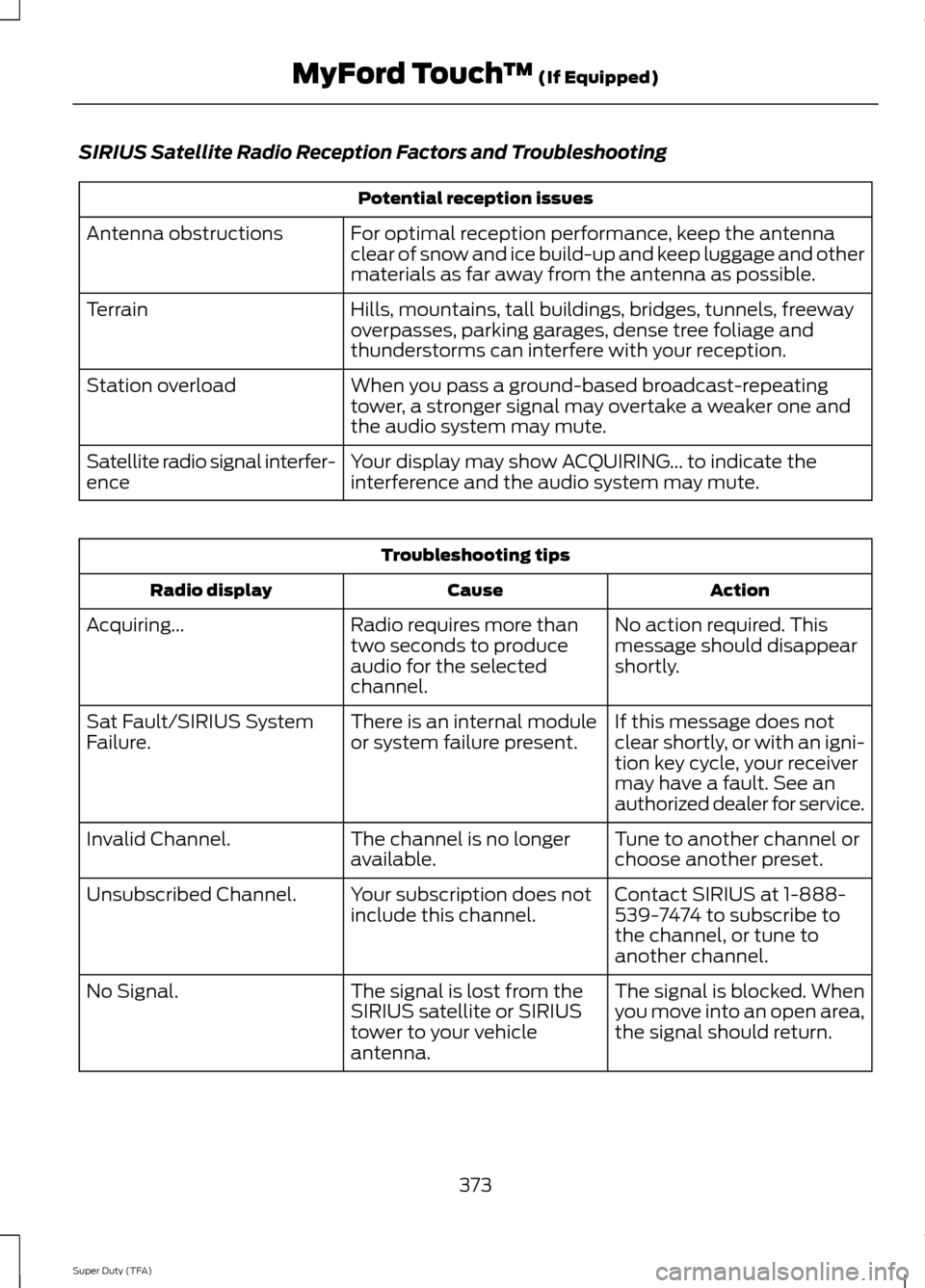

SIRIUS Satellite Radio Reception Factors and Troubleshooting
Potential reception issues
For optimal reception performance, keep the antenna
clear of snow and ice build-up and keep luggage and other
materials as far away from the antenna as possible.
Antenna obstructions
Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with your reception.
Terrain
When you pass a ground-based broadcast-repeating
tower, a stronger signal may overtake a weaker one and
the audio system may mute.
Station overload
Your display may show ACQUIRING... to indicate the
interference and the audio system may mute.
Satellite radio signal interfer-
ence Troubleshooting tips
Action
Cause
Radio display
No action required. This
message should disappear
shortly.
Radio requires more than
two seconds to produce
audio for the selected
channel.
Acquiring...
If this message does not
clear shortly, or with an igni-
tion key cycle, your receiver
may have a fault. See an
authorized dealer for service.
There is an internal module
or system failure present.
Sat Fault/SIRIUS System
Failure.
Tune to another channel or
choose another preset.
The channel is no longer
available.
Invalid Channel.
Contact SIRIUS at 1-888-
539-7474 to subscribe to
the channel, or tune to
another channel.
Your subscription does not
include this channel.
Unsubscribed Channel.
The signal is blocked. When
you move into an open area,
the signal should return.
The signal is lost from the
SIRIUS satellite or SIRIUS
tower to your vehicle
antenna.
No Signal.
373
Super Duty (TFA) MyFord Touch
™ (If Equipped)

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit our
online store at: Accessories.Ford.com
(United States only).
Ford Custom Accessories are available for
your vehicle through your authorized Ford
or Ford of Canada dealer. Ford Motor
Company will repair or replace any properly
authorized dealer-installed Ford Custom
Accessories found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories. The accessories will be
warranted for whichever provides you the
greatest benefit:
•
12 months or 12000 miles (20000 km)
(whichever occurs first), or
• the remainder of your new vehicle
limited warranty.
Contact your authorized dealer for details
and a copy of the warranty.
Exterior style
• Bug shields
• Exhaust tip
• Deflectors
• Running boards
• Splash guards
• Step bars
• Fog lamps
• Custom graphics*
• Stainless-steel wheel covers*
• Wheel well liners
Interior style
• Floor mats
• Cargo organizers
• Custom seat covers* Lifestyle
•
Ash cup / smoker's package
• Bedliners and bedmats
• Rear-seat entertainment*
• Tonneau covers*
• Trailer hitches, wiring harnesses and
accessories
• Racks and carriers*
• Truck bed camping tent*
• Sportliner cargo liner*
• Bed extender
Peace of mind
• Keyless entry keypad
• Back-up alarm*
• Remote start and alarms
• Wheel locks
• Protective seat covers*
• Bumper and hit-mounted parking
sensors*
• Cable lock*
• Bed hooks*
• Tool/Cargo boxes*
• Speed/Cruise control
*Ford Licensed Accessories are warranted
by the accessory manufacturer's warranty.
Ford Licensed Accessories are fully
designed and developed by the accessory
manufacturer and have not been designed
or tested to Ford Motor Company
engineering requirements. Contact your
authorized Ford dealer for details regarding
the manufacturer's limited warranty and
a copy of the Ford Licensed Accessories
product limited warranty offered by the
accessory manufacturer.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
407
Super Duty (TFA) Accessories

•
When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Consult your
authorized dealer for specific weight
information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems —
such as two-way radios, telephones
and theft alarms — that are equipped
with radio transmitters. Any such
equipment installed in your vehicle
should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and installed only
by a qualified service technician.
• Mobile communications systems may
harm the operation of your vehicle,
particularly if they are not properly
designed for automotive use.
• To avoid interference with other vehicle
functions, such as anti-lock braking
systems, amateur radio users who
install radios and antennas onto their
vehicle should not locate the amateur
radio antennas in the area of the
driver's side hood.
• Any non-Ford custom electrical or
electronic accessories or components
that are added to the vehicle by the
authorized dealer or the owner, may
adversely affect battery performance
and durability, and may adversely
affect the performance of other

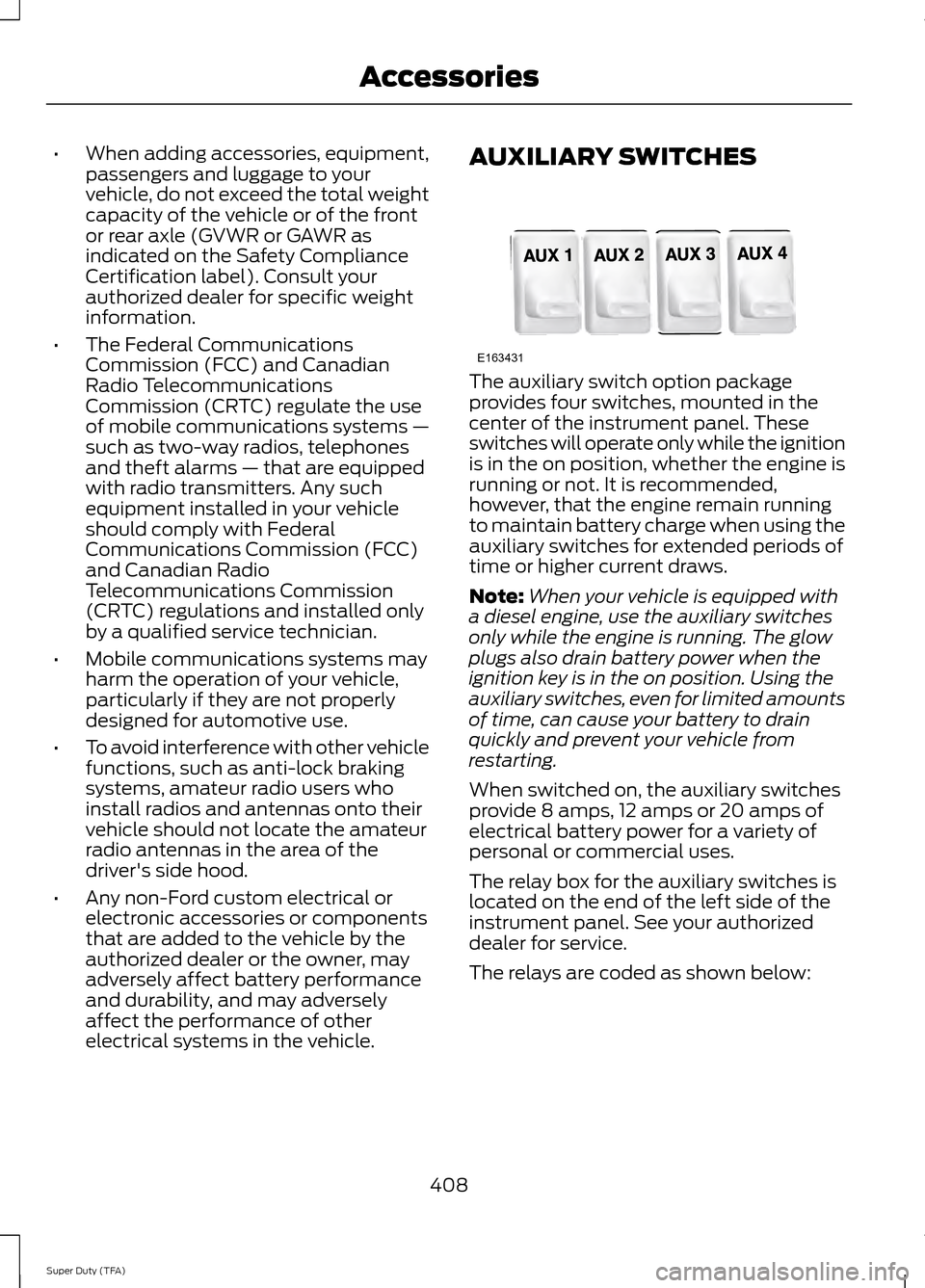

electrical systems in the vehicle. AUXILIARY SWITCHES
The auxiliary switch option package
provides four switches, mounted in the
center of the instrument panel. These
switches will operate only while the ignition
is in the on position, whether the engine is
running or not. It is recommended,
however, that the engine remain running
to maintain battery charge when using the
auxiliary switches for extended periods of
time or higher current draws.
Note:
When your vehicle is equipped with
a diesel engine, use the auxiliary switches
only while the engine is running. The glow
plugs also drain battery power when the
ignition key is in the on position. Using the
auxiliary switches, even for limited amounts
of time, can cause your battery to drain
quickly and prevent your vehicle from
restarting.
When switched on, the auxiliary switches
provide 8 amps, 12 amps or 20 amps of
electrical battery power for a variety of
personal or commercial uses.
The relay box for the auxiliary switches is
located on the end of the left side of the
instrument panel. See your authorized
dealer for service.
The relays are coded as shown below:
408
