Pony Projection Lights (If Equipped)
Note:Moisture, frost and ice build-up (or other types of contamination)
on the surface of the light lens can cause some non-permanent distortion
or reduced brightness of the image. Do not use abrasive materials to
clean the lens.
The lights are located on the bottom of the mirror housings.
This feature will project an image onto the ground a short distance from
the vehicle whenever illuminated entry and exit is activated.
Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
88Windows and Mirrors
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

The image of the approaching
vehicle is small and near the inboard
edge of the main mirror when it is at
a distance. The image becomes
larger and begins to move outboard
across the main mirror as the vehicle
approaches (A). The image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches
(B). The vehicle will transition to
your peripheral field of view as it
leaves the blind spot mirror (C).
INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
A
B
C
Windows and Mirrors89
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

SUN VISORS
Slide-On-Rod
Rotate the visor toward the side
window and extend it rearward for
extra sunlight coverage.
Retract the visor before moving it
back toward the windshield and
storing it.
Illuminated Visor Vanity Mirror
Lift the cover to switch on the lamp.
90Windows and Mirrors
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

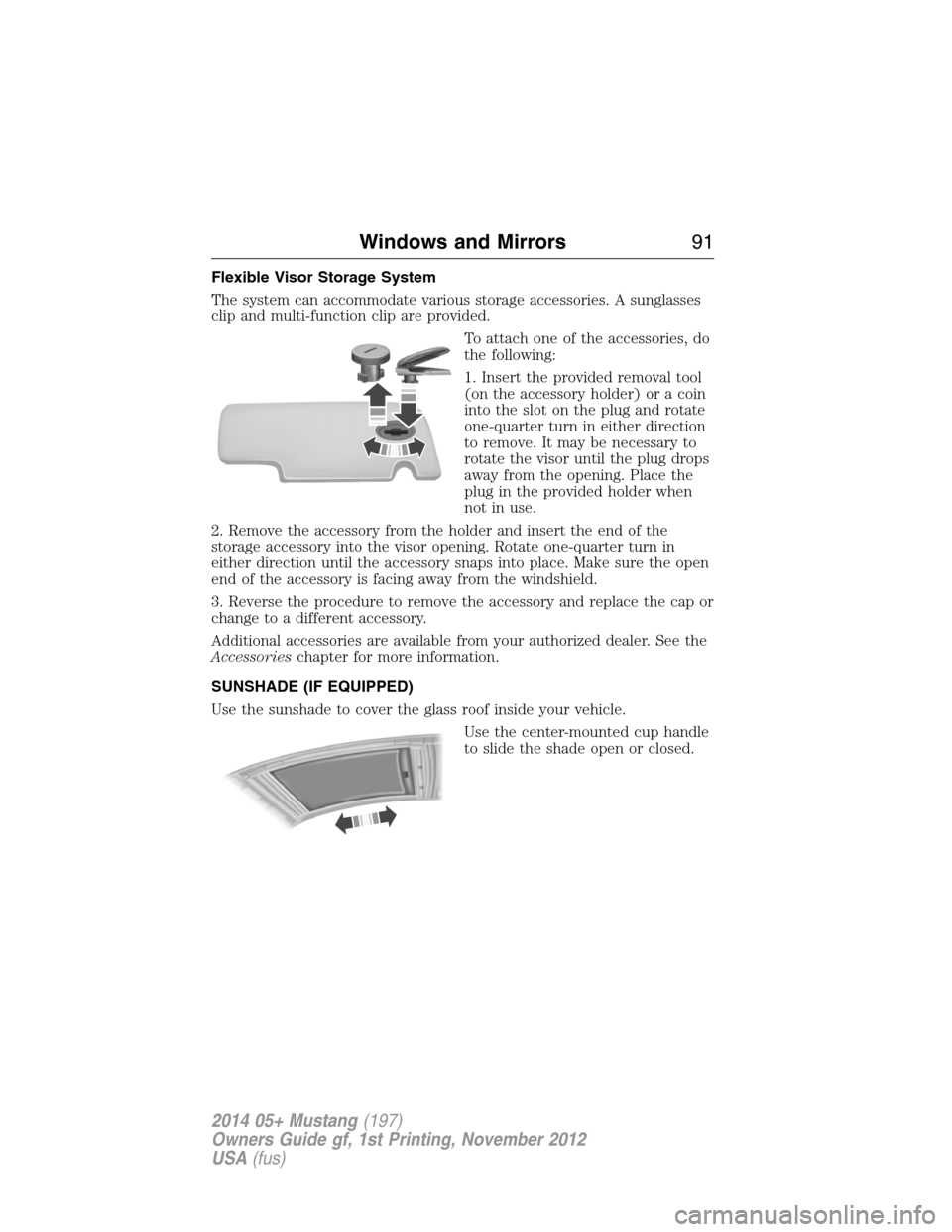

Flexible Visor Storage System
The system can accommodate various storage accessories. A sunglasses
clip and multi-function clip are provided.
To attach one of the accessories, do
the following:
1. Insert the provided removal tool
(on the accessory holder) or a coin
into the slot on the plug and rotate
one-quarter turn in either direction
to remove. It may be necessary to
rotate the visor until the plug drops
away from the opening. Place the
plug in the provided holder when
not in use.
2. Remove the accessory from the holder and insert the end of the
storage accessory into the visor opening. Rotate one-quarter turn in
either direction until the accessory snaps into place. Make sure the open
end of the accessory is facing away from the windshield.
3. Reverse the procedure to remove the accessory and replace the cap or
change to a different accessory.
Additional accessories are available from your authorized dealer. See the
Accessorieschapter for more information.
SUNSHADE (IF EQUIPPED)
Use the sunshade to cover the glass roof inside your vehicle.
Use the center-mounted cup handle
to slide the shade open or closed.
Windows and Mirrors91
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

GAUGES
Type 1
Cluster shown in standard measure. Metric similar.
A. Speedometer
B. Fuel gauge
C. Engine coolant temperature gauge
D. Tachometer
E. Information display. SeeInformation displaysfor more information.
Fuel Gauge
Indicates approximately how much fuel is left in the fuel tank (when the
ignition is on). The fuel gauge may vary slightly when the vehicle is in
motion or on a grade. The fuel icon and arrow indicates which side of
the vehicle the fuel filler door is located.
92Instrument Cluster
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Engine Coolant Temperature Gauge
Indicates engine coolant temperature. At normal operating temperature,
the level indicator will be in the normal range. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Type 2
Cluster shown in standard measure. Metric similar.
A. Speedometer
B. Information display. See theInformation Displayschapter for more
information.
C. Tachometer
D. Fuel gauge
E. Engine coolant temperature gauge
Note:The instrument cluster gauges are backlit with white backlighting
when the headlamps are off. When the headlamps are on, you can select
one of the preset colors for the nighttime gauge backlighting or create
up to three custom colors using the MyColor® feature (if equipped).
Ambient color and halo color are also selectable. See theInformation
Displayschapter for more information. When certain gauges enter a
warning state, they will be backlit in red.
ABC
DE
Instrument Cluster93
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Fuel Gauge
Indicates approximately how much fuel is left in the fuel tank (when the
ignition is on). The fuel gauge may vary slightly when the vehicle is in
motion or on a grade. The fuel icon and arrow indicates which side of
the vehicle the fuel filler door is located.
Engine Coolant Temperature Gauge
Indicates engine coolant temperature. At normal operating temperature,
the level indicator will be in the normal range. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
WARNING LAMPS AND INDICATORS
These indicators can alert you to a vehicle condition that may become
serious enough to cause expensive repairs. Many lights will illuminate
when you start your vehicle to make sure they work. If any light remains
on after starting the vehicle, refer to the respective system warning light
for additional information.
Airbag Readiness
If this light fails to illuminate when the ignition is turned on,
continues to flash or remains on, contact your authorized dealer
as soon as possible. A chime will sound when there is a
malfunction in the indicator light.
Anti-lock Brake System
If the ABS light stays illuminated or continues to flash, a
malfunction has been detected. Contact your authorized dealer
as soon as possible. Normal braking is still functional unless the
brake warning light also is illuminated.
Anti-theft System
Flashes when the SecuriLock® passive anti-theft system has
been activated.
94Instrument Cluster
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Brake System Warning Light
To confirm the brake system warning light is functional, it will
momentarily illuminate when the ignition is turned to the on
position when the engine is not running, or in a position
between on and start, or by applying the parking brake when the ignition
is turned to the on position.
If it illuminates when you are driving, check that the parking brake is not
engaged. If the parking brake is not engaged, this indicates low brake
fluid level or a brake system malfunction. Have the system checked
immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer as soon as possible.
Driving extended distances with the parking brake engaged can cause
brake failure and the risk of personal injury.
Charging System
Illuminates when the battery is not charging properly. If it stays
on while the engine is running, there may be a malfunction with
the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Door Ajar
Illuminates when the ignition is on and any door is not
completely closed.
Engine Oil Pressure
Illuminates when the oil pressure falls below the normal range.
Engine Coolant Temperature
Illuminates when the engine coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let it
cool.
Instrument Cluster95
