2014 FORD MUSTANG Owners Manual

7. After three seconds but within 20 seconds of turning the ignition off
and removing the previously programmed coded key, insert the new
unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmed coded key from the ignition.
The key will start the vehicle’s engine and will operate the remote entry
system (if the new key is an integrated keyhead transmitter) if it has
been successfully programmed. The theft indicator light will illuminate
for three seconds and then go out to indicate successful programming.
If the key was not successfully programmed, the theft indicator light may
flash on and off. Wait 20 seconds and repeat Steps 1 through 8. Take
your vehicle to your authorized dealer to have the new key programmed
if you are still unsuccessful.
Wait 20 seconds and then repeat this procedure from Step 1 to program
an additional key.
ANTI–THEFT ALARM (IF EQUIPPED)
The active anti-theft system is designed to warn you in the event of
unauthorized vehicle entry and is also designed to help prevent
unwanted towing of the vehicle.
You can choose what is monitored by arming the system in different
ways.
Partial Monitor Mode
To monitor the following:
•Doors
•Hood
•Trunk
Lock the vehicle using the key in the driver door key cylinder.
72Security
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Full Monitor Mode
To monitor the following:
•Doors
•Hood
•Trunk
•Movement inside the vehicle (for convertible models, top must be fully
closed)
•Change in vehicle inclination (such as unwanted towing)
Lock the vehicle using the remote control or the power door lock control
with the accompanying door open and then close all doors.
Note:Do not choose full monitor mode if movement within the vehicle is
likely to occur or when the vehicle is in transport.
Note:For proper operation of the interior motion detection system,
ensure all windows are closed prior to arming the system. This will help
prevent accidental alarm activation due to external influences and ensure
proper interior motion detection. Additionally, the interior motion
sensing system will not arm if either door or the trunk is ajar.
If there is any potential perimeter anti-theft problem with your vehicle,
ensure all integrated keyhead transmitters are brought to the authorized
dealer to aid in troubleshooting.
Arming the System
When armed, the active anti-theft system is designed to notify you of an
unauthorized entry. When unauthorized entry or towing occurs, the
system will flash the turn signal lamps and interior lamps and will sound
the horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the lock button on the remote control.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then becomes closed.
•Lock the driver door with the key in the key lock cylinder (this will
not, however, arm the interior motion or vehicle incline sensing
systems).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Security73
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Each door, the hood or the trunk is armed individually, and if any are
open, they must be closed for the system to enter the 20 second
countdown.
The turn signal lamps will flash once when all doors, the hood and the
trunk are closed indicating the vehicle is locked and entering the
20 second countdown. If any closure is not properly closed, the turn
signal lamps will not flash and that closure will not be armed.
Disarming the System
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your integrated keyhead transmitter.
•Turn ignition to the on position with a valid programmed SecuriLock
key or integrated keyhead transmitter.
•Press the panic control on the remote entry transmitter portion of
your integrated keyhead transmitter. This will only shut off the horn
and turn lamps when the alarm is sounding. The alarm system will still
be armed.
•Use a key in the driver door to unlock your vehicle.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Note:Unlocking the trunk inhibits the motion sensing system but the
system continues to monitor the doors, hood and vehicle incline. Once
the trunk becomes closed the motion sensing system will rearm.
Triggering the Anti-Theft System
The armed system will be triggered if:
•Any door, the hood or the trunk is opened without using the remote
entry transmitter portion of your integrated keyhead transmitter or
key in driver door cylinder.
•The ignition is turned to the on position with an invalid
unprogrammed SecuriLock key or integrated keyhead transmitter.
•The vehicle is towed or inclined.
•Motion is detected in the interior passenger compartment.
74Security
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. SeeSitting
in the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
AUDIO CONTROL (IF EQUIPPED)
A. Media
B. Volume down
C. Volume up
D. Seek up or next
E. Seek down or previous
2
1
-+
ABC
ED
Steering Wheel75
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Press the media button repeatedly to scroll through available audio
modes.
Press the seek buttons to select the next or previous stored preset or
track. Press and hold to select the next or previous frequency or seek
through a track.
VOICE CONTROL (IF EQUIPPED)
A. Voice recognition
B. Phone mode
See theSYNCorNavigation Systemchapter.
CRUISE CONTROL
See theCruise Controlchapter.
-+
OK
A
B
-+SET CNCL
RSMON
OFF
76Steering Wheel
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

INFORMATION DISPLAY CONTROL
Type 1
Type 2
See theInformation Displayschapter.
OK
Steering Wheel77
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

WINDSHIELD WIPERS
Note:Fully defrost the windshield before switching on the windshield
wipers.
Note:Make sure the windshield wipers are switched off before entering
a car wash.
Note:Clean the windshield and wiper blades if they begin to leave
streaks or smears. If that does not resolve the issue, install new wiper
blades.
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washers before wiping a dry windshield.
Rotate the end of the control away
from you to increase the speed of
the wipers. Rotate toward you to
decrease the speed of the wipers.
O
F
F
78Wipers and Washers
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

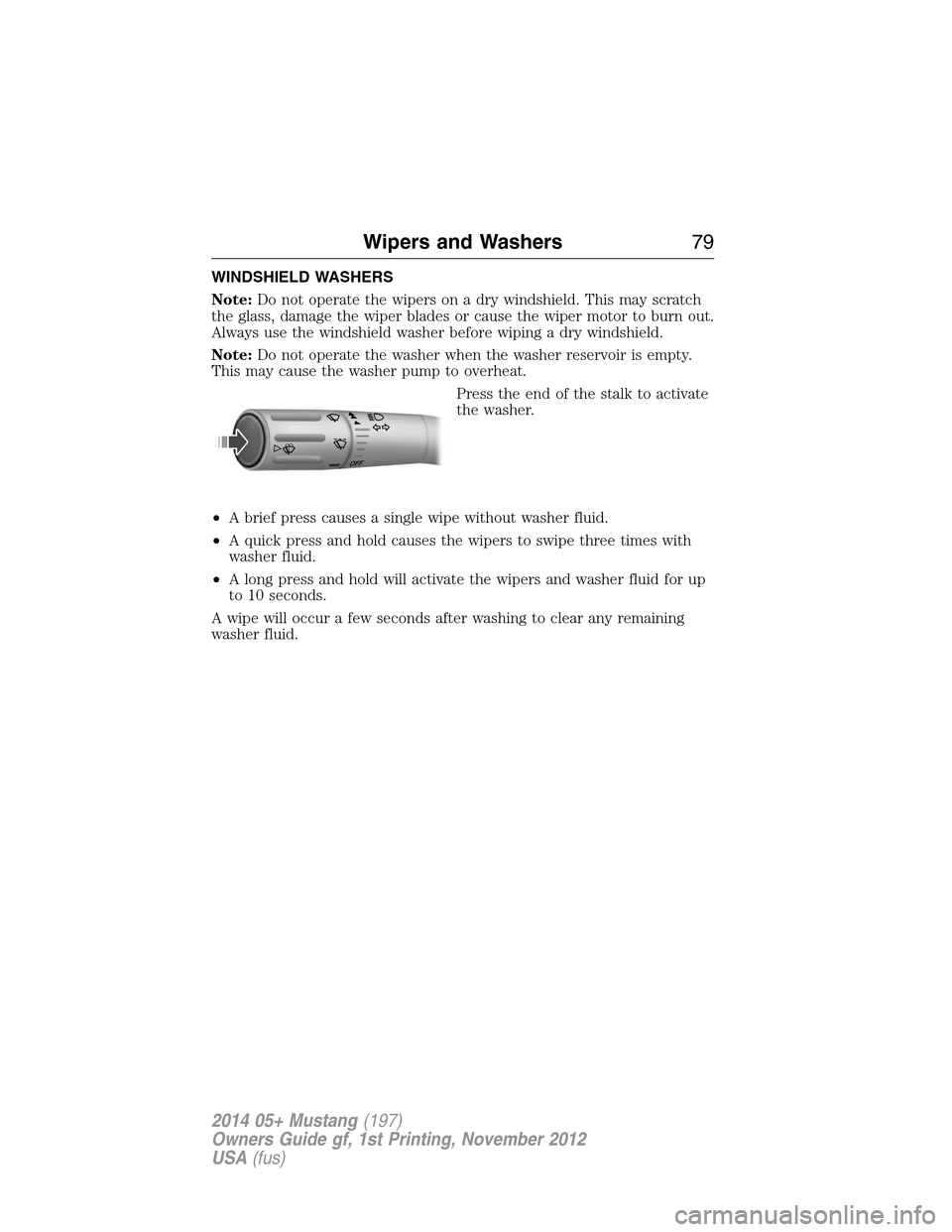

WINDSHIELD WASHERS
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before wiping a dry windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat.
Press the end of the stalk to activate
the washer.
•A brief press causes a single wipe without washer fluid.
•A quick press and hold causes the wipers to swipe three times with
washer fluid.
•A long press and hold will activate the wipers and washer fluid for up
to 10 seconds.
A wipe will occur a few seconds after washing to clear any remaining
washer fluid.
OFF
Wipers and Washers79
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)
