2014 FORD FIESTA ST Supplement Manual

Vehicle Specifications
DescriptionItem
Ford B6 6-speed manual with 228 millimeter clutch and dualmass flywheelTransmission
Final driveRatioGearGear ratios
3.823.7271st
3.822.0982nd
3.821.3573rd
3.821.0304th
3.820.8215th
3.820.6906th
3.823.818Reverse
6Fiesta (CCT)At a GlanceE163960

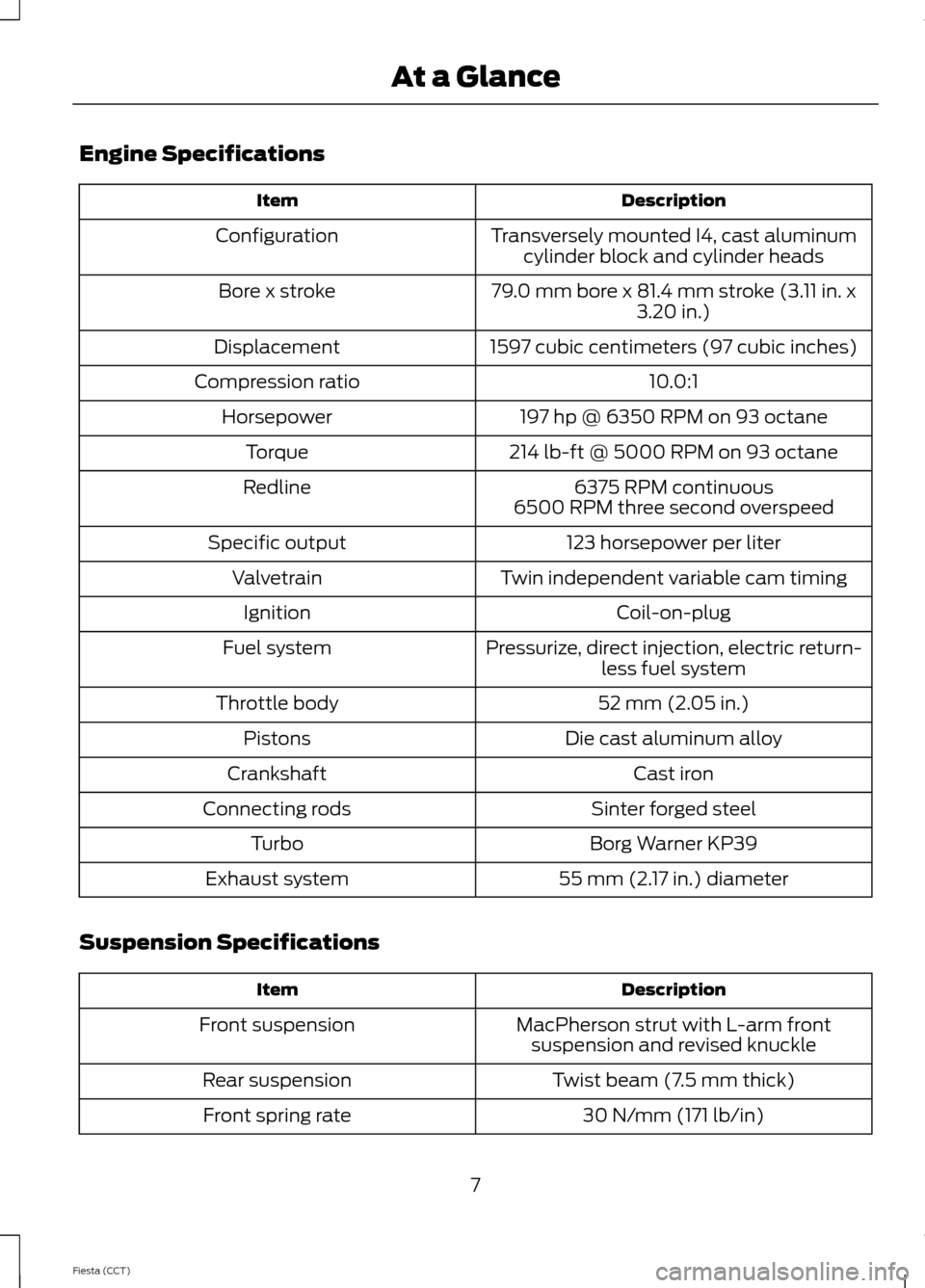

Engine Specifications
DescriptionItem
Transversely mounted I4, cast aluminumcylinder block and cylinder headsConfiguration
79.0 mm bore x 81.4 mm stroke (3.11 in. x3.20 in.)Bore x stroke
1597 cubic centimeters (97 cubic inches)Displacement
10.0:1Compression ratio
197 hp @ 6350 RPM on 93 octaneHorsepower
214 lb-ft @ 5000 RPM on 93 octaneTorque
6375 RPM continuousRedline6500 RPM three second overspeed
123 horsepower per literSpecific output
Twin independent variable cam timingValvetrain
Coil-on-plugIgnition
Pressurize, direct injection, electric return-less fuel systemFuel system
52 mm (2.05 in.)Throttle body
Die cast aluminum alloyPistons
Cast ironCrankshaft
Sinter forged steelConnecting rods
Borg Warner KP39Turbo
55 mm (2.17 in.) diameterExhaust system
Suspension Specifications
DescriptionItem
MacPherson strut with L-arm frontsuspension and revised knuckleFront suspension
Twist beam (7.5 mm thick)Rear suspension
30 N/mm (171 lb/in)Front spring rate
7Fiesta (CCT)At a Glance

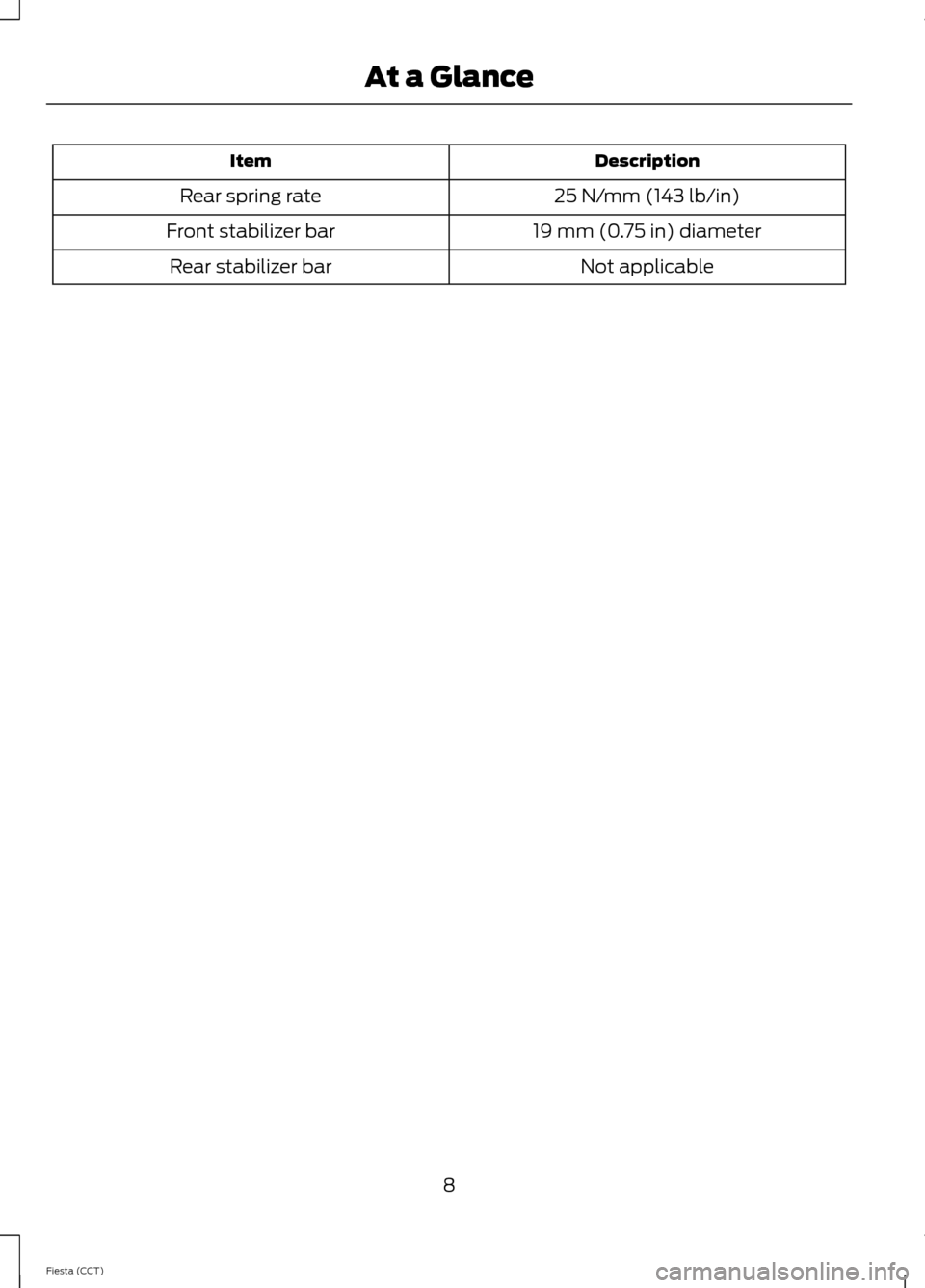

DescriptionItem
25 N/mm (143 lb/in)Rear spring rate
19 mm (0.75 in) diameterFront stabilizer bar
Not applicableRear stabilizer bar
8Fiesta (CCT)At a Glance

WARNING LAMPS AND INDICATORS - 1.6L ECOBOOST™
Gauges
TachometerA
Information displayB
SpeedometerC
Fuel gaugeD
9Fiesta (CCT)Instrument ClusterE162329ABCD

FUEL QUALITY
OCTANE RECOMMENDATIONS
Regular unleaded gasoline with a pump(R+M)/2 octane rating of 87 isrecommended. Some stations offer fuelsposted as Regular with an octane ratingbelow 87, particularly in high altitude areas.Fuels with octane levels below 87 are notrecommended. Premium fuel will provideimproved performance and isrecommended for severe duty usage suchas trailer tow.
10Fiesta (CCT)Fuel and Refueling

MANUAL TRANSMISSION -
1.6L ECOBOOST™
Using the Clutch
Note:Failure to fully depress the clutchpedal to the floor may cause increased shiftefforts, prematurely wear transmissioncomponents or damage the transmission.
Note:Do not drive with your foot resting onthe clutch pedal or use the clutch pedal tohold your vehicle at a standstill whilewaiting on a hill. These actions will reducethe life of the clutch and could nullify aclutch warranty claim.
Manual transmission vehicles have astarter interlock that prevents cranking theengine unless the clutch pedal is fullydepressed.
Starting Your Vehicle
WARNING
Make sure the floor mat is positionedcorrectly so that it does not interferewith the full extension of the clutchpedal.
1.Make sure the parking brake is fully setand move the transmission selectorlever to the neutral position.
2.Fully depress the clutch pedal thenstart the engine.
3.Press the brake pedal and move thetransmission selector lever to first orreverse gear.
4.Release the parking brake and slowlyrelease the clutch pedal while slowlypressing on the accelerator.
During each shift, make sure you fullydepress the clutch pedal.
Recommended Shift Speeds
Note:Do not move the transmissionselector lever to first gear when your vehicleis moving faster than 15 mph (24 km/h).This will damage the clutch.
We recommend you change gearaccording to the following guide to achievethe best fuel economy for your vehicle.
RecommendedspeedShift from
12 mph (19 km/h)1 - 2
23 mph (37 km/h)2 - 3
32 mph (51 km/h)3 - 4
41 mph (66 km/h)4 - 5
42 mph (67 km/h)5 - 6
Reverse
Note:Do not move the transmissionselector lever to reverse gear when yourvehicle is moving. This can cause damageto the transmission.
1.Fully depress the clutch pedal todisengage the clutch.
2.Move the transmission selector leverto the neutral position and wait at leastthree seconds before moving it toreverse.
3.Raise the collar below the transmissionselector lever to select reverse gear.
11Fiesta (CCT)TransmissionE144954

Note:This is a lockout feature whichprotects the transmission from accidentallyengaging reverse gear when intending toselect first gear.
If reverse gear is not fully engaged, pressthe clutch pedal down and move thetransmission selector lever to the neutralposition. Release the clutch pedal for amoment, then raise the collar and movethe transmission selector lever to reverseagain.
Parking Your Vehicle
WARNING
Do not park your vehicle with thetransmission selector lever in theneutral position. Your vehicle maymove unexpectedly and injure someone.Move the transmission selector lever tofirst gear and set the parking brake fully.
To park your vehicle:
1.Press the brake pedal and move thetransmission selector lever to theneutral position.
2.Fully apply the parking brake, hold theclutch pedal down, then move thetransmission selector lever to first gear.
3.Switch the ignition off.
12Fiesta (CCT)TransmissionE99067

USING STABILITY CONTROL -
1.6L ECOBOOST™
The AdvanceTrac system includes tractioncontrol and electronic stability control. Seethe Traction Control and Stability Controlchapters of the Owner's Manual for moreinformation.
AdvanceTrac provides three modes ofoperation specially calibrated for yourvehicle.
Press the AdvanceTrac button on thecenter console to select these modes.
AdvanceTrac Modes
DisplayButton operationDescriptionMode
NoneNoneDaily usage with alldriver aids engagedNormal
-Message centerdisplays Sport ModeSingle pressSpirited driving.Thresholds alteredon traction controland electronicstability control toallow more tire spinand vehicle slip
Sport
-Amber light incluster illuminates
-Message centerdisplays Hold toswitch ESC OFF,then
Press and hold forfive seconds-Track Use Only-Traction controland electronicstability control aredisabled
Off
-Electronic StabilityControl off-Amber light incluster illuminates
13Fiesta (CCT)Stability Control (If Equipped)E156922
