2014 FORD FIESTA ST Supplement Manual

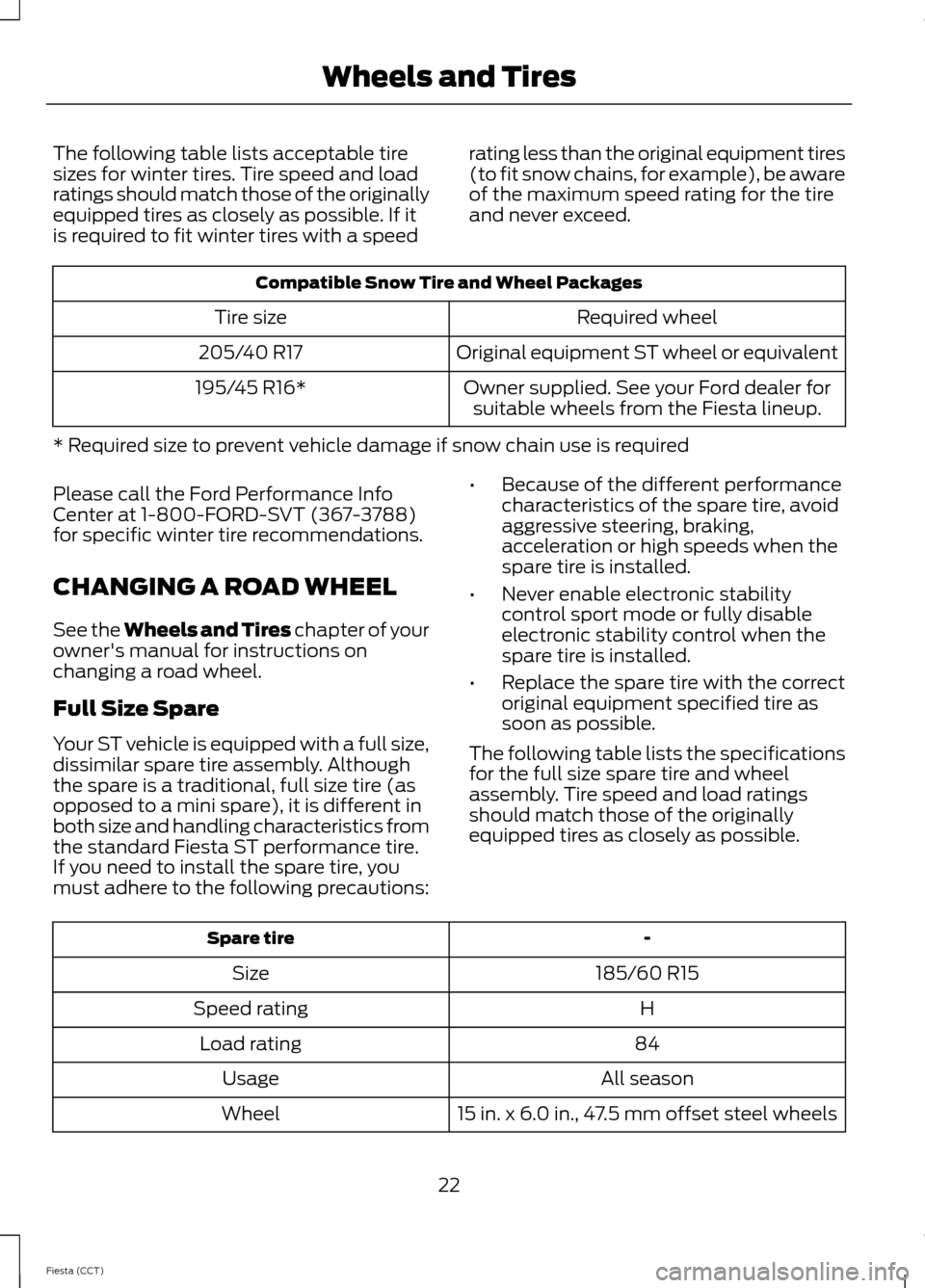

The following table lists acceptable tiresizes for winter tires. Tire speed and loadratings should match those of the originallyequipped tires as closely as possible. If itis required to fit winter tires with a speed
rating less than the original equipment tires(to fit snow chains, for example), be awareof the maximum speed rating for the tireand never exceed.
Compatible Snow Tire and Wheel Packages
Required wheelTire size
Original equipment ST wheel or equivalent205/40 R17
Owner supplied. See your Ford dealer forsuitable wheels from the Fiesta lineup.195/45 R16*
* Required size to prevent vehicle damage if snow chain use is required
Please call the Ford Performance InfoCenter at 1-800-FORD-SVT (367-3788)for specific winter tire recommendations.
CHANGING A ROAD WHEEL
See the Wheels and Tires chapter of yourowner's manual for instructions onchanging a road wheel.
Full Size Spare
Your ST vehicle is equipped with a full size,dissimilar spare tire assembly. Althoughthe spare is a traditional, full size tire (asopposed to a mini spare), it is different inboth size and handling characteristics fromthe standard Fiesta ST performance tire.If you need to install the spare tire, youmust adhere to the following precautions:
•Because of the different performancecharacteristics of the spare tire, avoidaggressive steering, braking,acceleration or high speeds when thespare tire is installed.
•Never enable electronic stabilitycontrol sport mode or fully disableelectronic stability control when thespare tire is installed.
•Replace the spare tire with the correctoriginal equipment specified tire assoon as possible.
The following table lists the specificationsfor the full size spare tire and wheelassembly. Tire speed and load ratingsshould match those of the originallyequipped tires as closely as possible.
-Spare tire
185/60 R15Size
HSpeed rating
84Load rating
All seasonUsage
15 in. x 6.0 in., 47.5 mm offset steel wheelsWheel
22Fiesta (CCT)Wheels and Tires

Wheel Lug Nut TorqueSpecifications
WARNING
When a wheel is installed, alwaysremove any corrosion, dirt or foreignmaterials present on the mountingsurfaces of the wheel or the surface of thewheel hub, brake drum or brake disc thatcontacts the wheel. Make sure that anyfasteners that attach the rotor to the hubare secured so they do not interfere withthe mounting surfaces of the wheel.Installing wheels without correctmetal-to-metal contact at the wheelmounting surfaces can cause the wheelnuts to loosen and the wheel to come offwhile the vehicle is in motion, resulting inloss of control.
Retighten the lug nuts to the specifiedtorque at 500 miles (800 kilometers) afterany wheel disturbance (such as tirerotation, changing a flat tire, wheelremoval).
lb-ft (Nm)*Bolt size
100 (135)M12 x 1.5
Torque specifications are for nut and boltthreads free of dirt and rust. Use only Fordrecommended replacement fasteners.
TECHNICAL SPECIFICATIONS
Wheel specifications
17 in. x 7.0 in.Diameter and width
47.5 mmOffset
5.8 in. (149.5 mm)Backspacing
63.3 mmCenter bore
22.5 lb. (10.2 kg)Weight
23Fiesta (CCT)Wheels and Tires

MOTORCRAFT PARTS
1.6L EcoBoost engineComponent
FL-910-SEngine oil filter*
FA-1908Engine air filter
Service for lifeEngine fuel filter
CYFS12Y2 (100000 mile service)Spark plug
*Only use the specified replacementengine oil filter. The use of a non-specifiedoil filter can result in engine damage.
TECHNICAL SPECIFICATIONS
Ford part number /Ford specificationFord part name orequivalentCapacityItem
PM-20 /Motorcraft DOT 4 LVHigh PerformanceMotor Vehicle BrakeFluid
Between MAX andMIN on reservoirBrake fluid1WSS-M6C65-A2and ISO 4925 Class6
XO-5W20-QSP(US)Motorcraft SAE 5W-20 PremiumSynthetic BlendMotor Oil or equi-valent
4.3 quarts (4.1L)(with filter change)Engine oil2
CXO-5W20-LSP12(Canada)
XO-5W20-QFS (US)Motorcraft SAE 5W-20 Full SyntheticMotor OilCXO-5W20-LFS12(Canada) /WSS-M2C945-A
VC-3DIL-B (US)Motorcraft OrangeAntifreeze/CoolantPrediluted
6.5 quarts (6.2L)Engine coolant3CVC-3DIL-B(Canada) /WSS-M97B44-D2
XT-11-QDCMotorcraft DualClutch TransmissionFluid
1.8 quarts (1.7L)Transmission fluid
24Fiesta (CCT)Capacities and Specifications

Ford part number /Ford specificationFord part name orequivalentCapacityItem
WSS-M2C200-D2

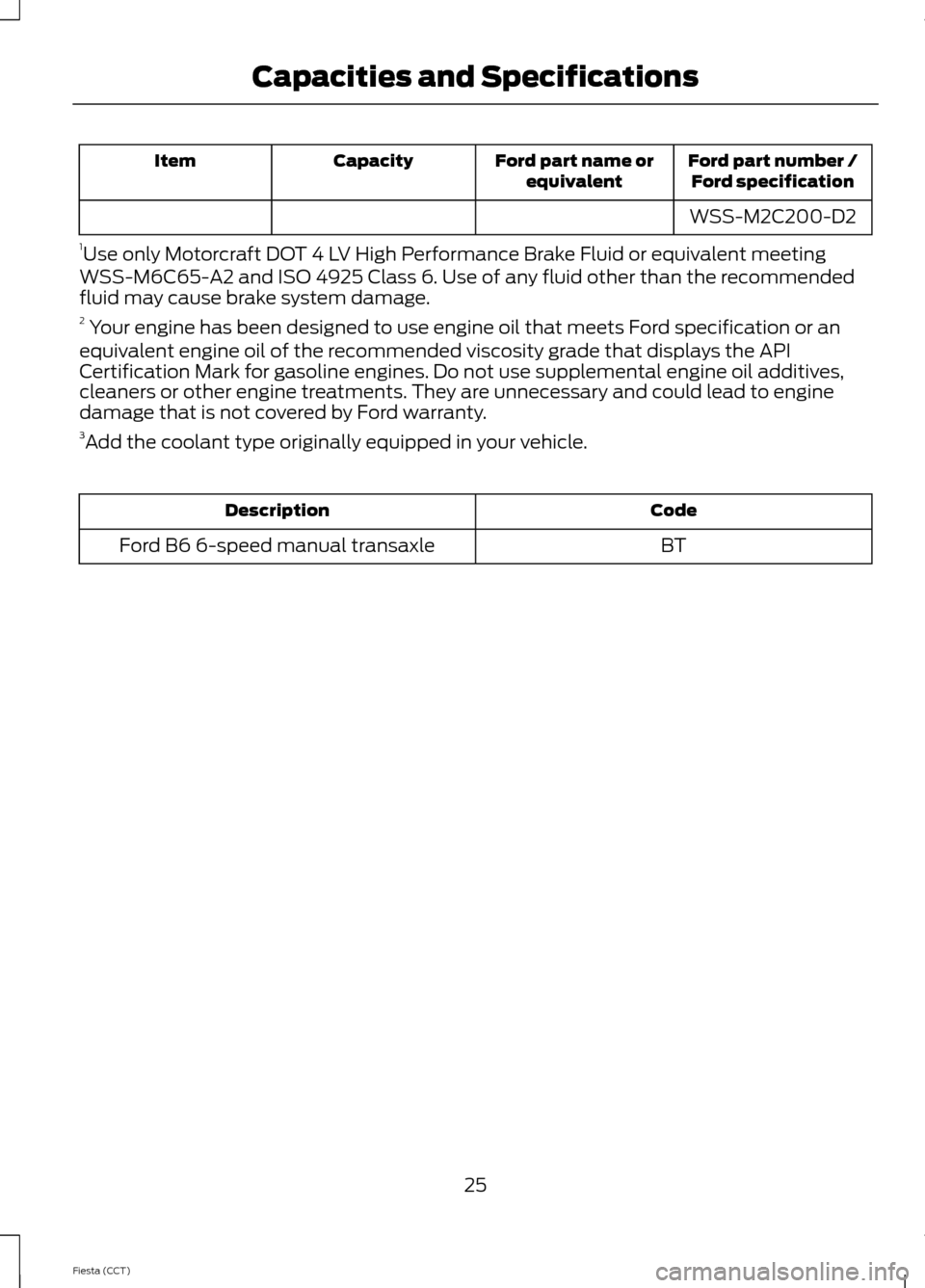

1Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent meetingWSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommendedfluid may cause brake system damage.2 Your engine has been designed to use engine oil that meets Ford specification or anequivalent engine oil of the recommended viscosity grade that displays the APICertification Mark for gasoline engines. Do not use supplemental engine oil additives,cleaners or other engine treatments. They are unnecessary and could lead to enginedamage that is not covered by Ford warranty.3Add the coolant type originally equipped in your vehicle.
CodeDescription
BTFord B6 6-speed manual transaxle
25Fiesta (CCT)Capacities and Specifications

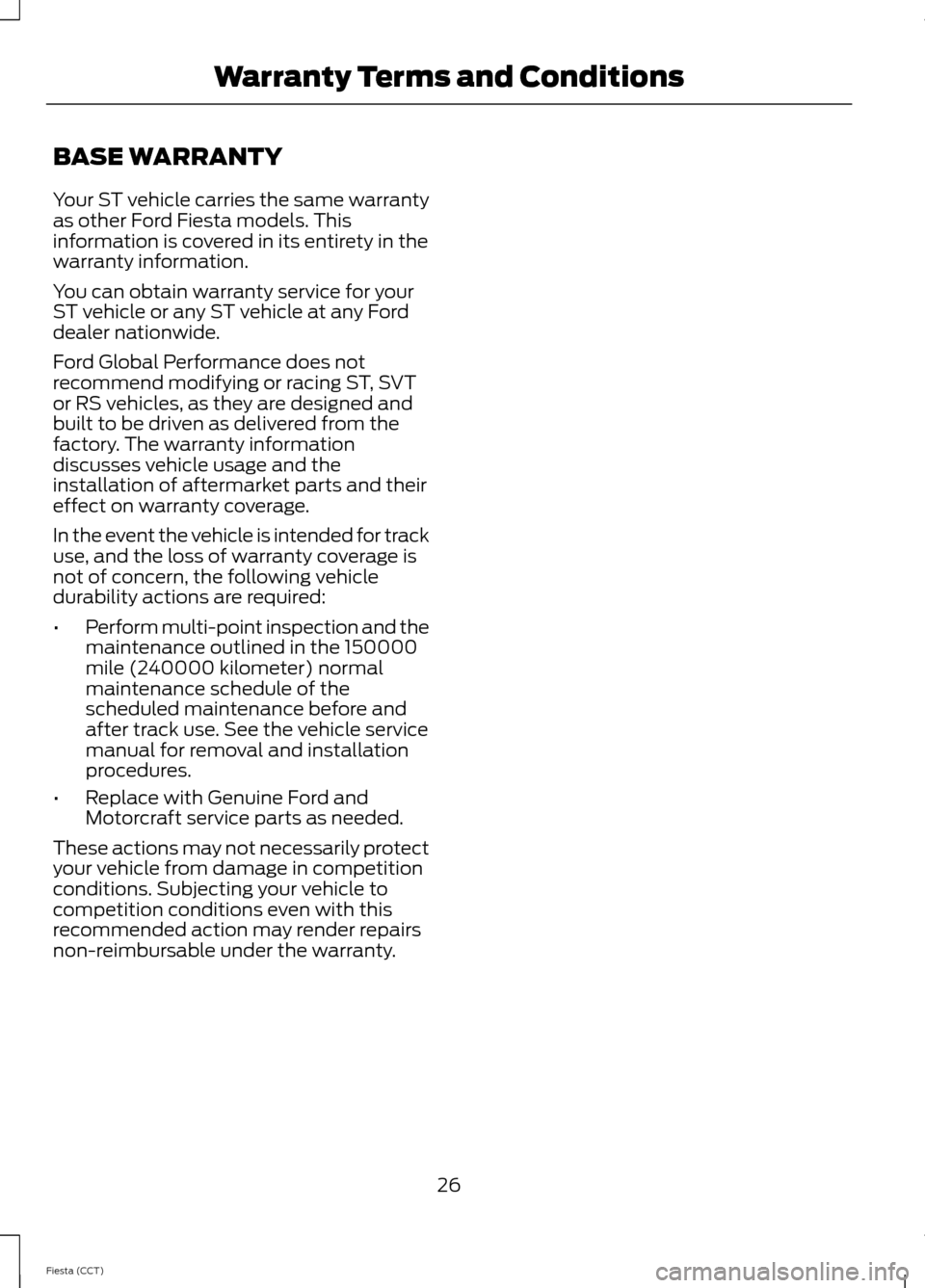

BASE WARRANTY
Your ST vehicle carries the same warrantyas other Ford Fiesta models. Thisinformation is covered in its entirety in thewarranty information.
You can obtain warranty service for yourST vehicle or any ST vehicle at any Forddealer nationwide.
Ford Global Performance does notrecommend modifying or racing ST, SVTor RS vehicles, as they are designed andbuilt to be driven as delivered from thefactory. The warranty informationdiscusses vehicle usage and theinstallation of aftermarket parts and theireffect on warranty coverage.
In the event the vehicle is intended for trackuse, and the loss of warranty coverage isnot of concern, the following vehicledurability actions are required:
•Perform multi-point inspection and themaintenance outlined in the 150000mile (240000 kilometer) normalmaintenance schedule of thescheduled maintenance before andafter track use. See the vehicle servicemanual for removal and installationprocedures.
•Replace with Genuine Ford andMotorcraft service parts as needed.
These actions may not necessarily protectyour vehicle from damage in competitionconditions. Subjecting your vehicle tocompetition conditions even with thisrecommended action may render repairsnon-reimbursable under the warranty.
26Fiesta (CCT)Warranty Terms and Conditions
