2014 FIESTA ST Supplement
Page 2 of 32

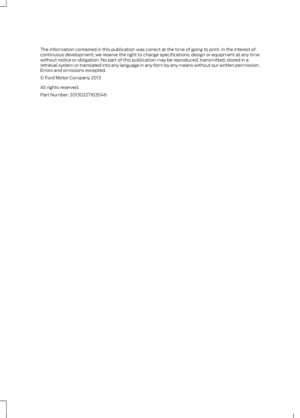

The information contained in this publication was correct at the time of going to print. In the interest ofcontinuous development, we reserve the right to change specifications, design or equipment at any timewithout notice or obligation. No part of this publication may be reproduced, transmitted, stored in aretrieval system or translated into any language in any form by any means without our written permission.Errors and omissions excepted.© Ford Motor Company 2013
All rights reserved.Part Number: 20130227163046
Page 3 of 32
Page 4 of 32

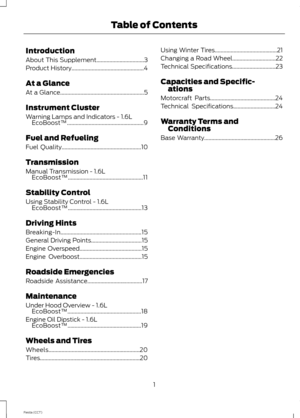

Introduction
About This Supplement.................................3
Product History..................................................4
At a Glance
At a Glance..........................................................5
Instrument Cluster

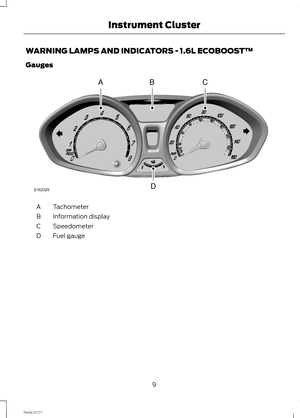

Warning Lamps and Indicators - 1.6LEcoBoost™.....................................................9
Fuel and Refueling

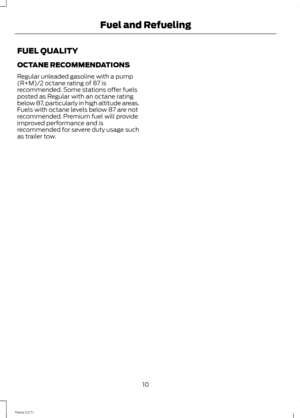

Fuel Quality.......................................................10
Transmission

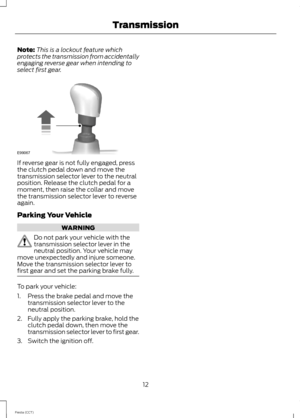

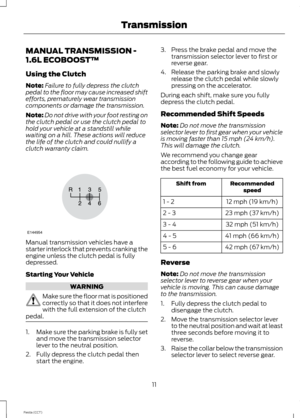

Manual Transmission - 1.6LEcoBoost™....................................................11
Stability Control
Using Stability Control - 1.6LEcoBoost™...................................................13
Driving Hints

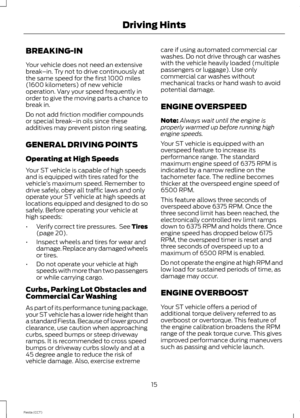

Breaking-In........................................................15
General Driving Points...................................15
Engine Overspeed...........................................15

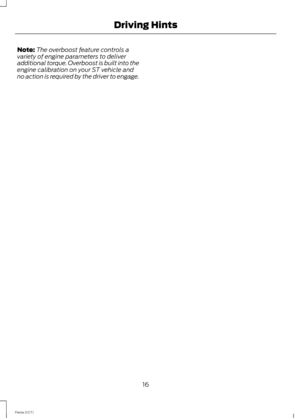

Engine Overboost...........................................15
Roadside Emergencies
Roadside Assistance......................................17
Maintenance
Under Hood Overview - 1.6LEcoBoost™...................................................18

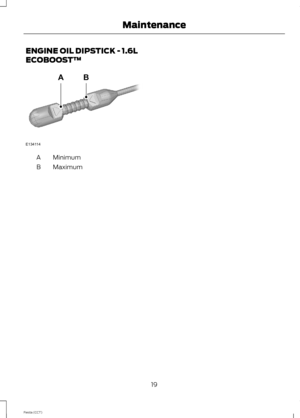

Engine Oil Dipstick - 1.6LEcoBoost™...................................................19
Wheels and Tires

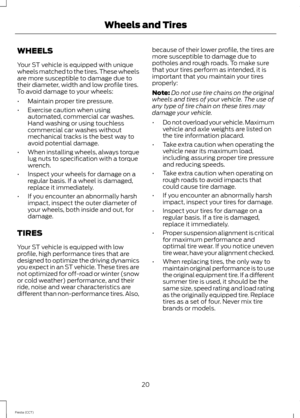

Wheels...............................................................20

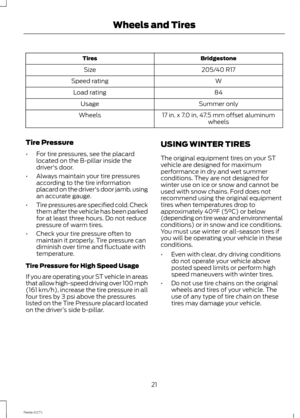

Tires.....................................................................20
Using Winter Tires...........................................21

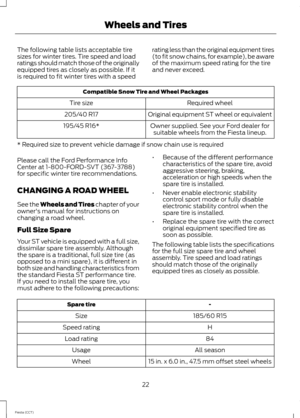

Changing a Road Wheel..............................22

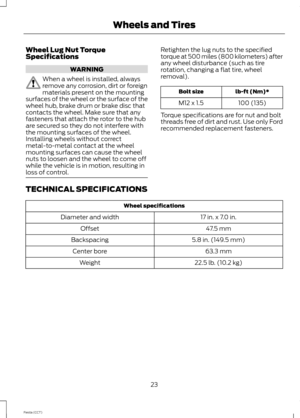

Technical Specifications..............................23
Capacities and Specific-ations

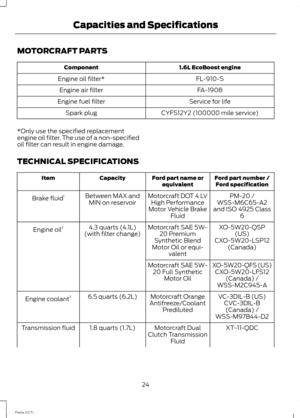

Motorcraft Parts.............................................24

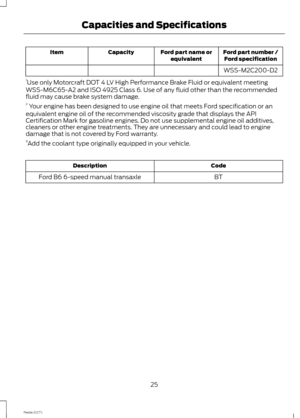

Technical Specifications.............................24
Warranty Terms andConditions

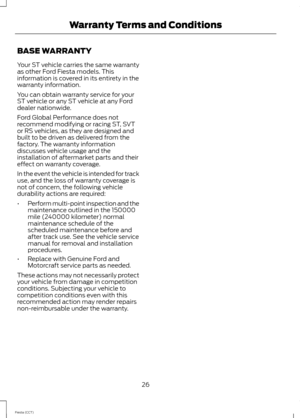

Base Warranty.................................................26
1Fiesta (CCT)Table of Contents
Page 5 of 32
Page 6 of 32

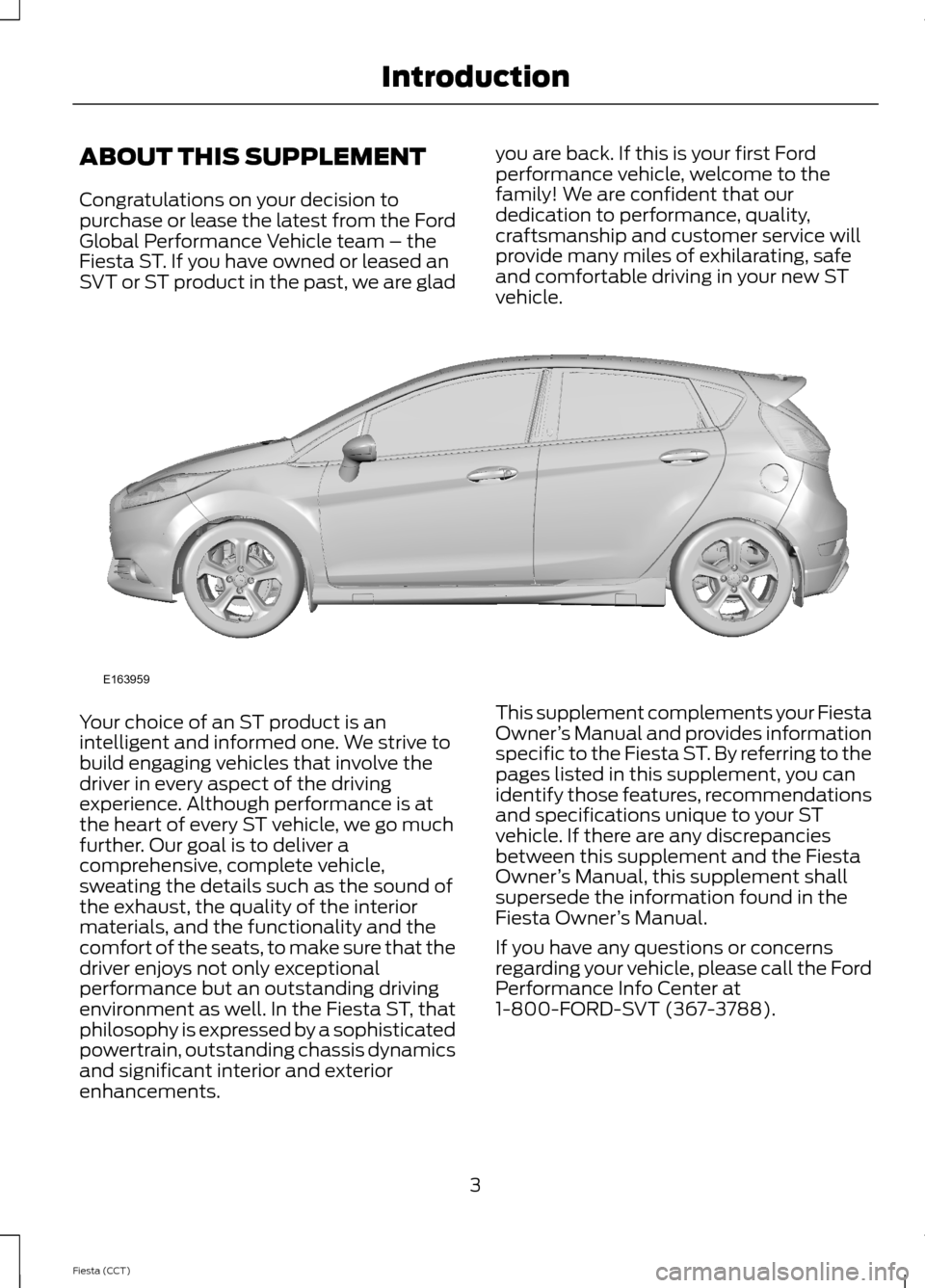

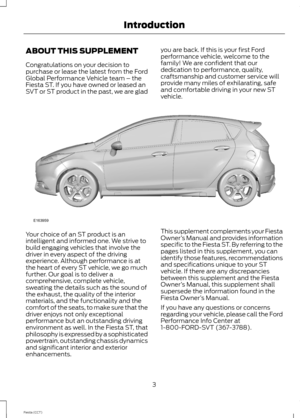

ABOUT THIS SUPPLEMENT
Congratulations on your decision topurchase or lease the latest from the FordGlobal Performance Vehicle team – theFiesta ST. If you have owned or leased anSVT or ST product in the past, we are glad
you are back. If this is your first Fordperformance vehicle, welcome to thefamily! We are confident that ourdedication to performance, quality,craftsmanship and customer service willprovide many miles of exhilarating, safeand comfortable driving in your new STvehicle.
Your choice of an ST product is anintelligent and informed one. We strive tobuild engaging vehicles that involve thedriver in every aspect of the drivingexperience. Although performance is atthe heart of every ST vehicle, we go muchfurther. Our goal is to deliver acomprehensive, complete vehicle,sweating the details such as the sound ofthe exhaust, the quality of the interiormaterials, and the functionality and thecomfort of the seats, to make sure that thedriver enjoys not only exceptionalperformance but an outstanding drivingenvironment as well. In the Fiesta ST, thatphilosophy is expressed by a sophisticatedpowertrain, outstanding chassis dynamicsand significant interior and exteriorenhancements.
This supplement complements your FiestaOwner’s Manual and provides informationspecific to the Fiesta ST. By referring to thepages listed in this supplement, you canidentify those features, recommendationsand specifications unique to your STvehicle. If there are any discrepanciesbetween this supplement and the FiestaOwner’s Manual, this supplement shallsupersede the information found in theFiesta Owner’s Manual.
If you have any questions or concernsregarding your vehicle, please call the FordPerformance Info Center at1-800-FORD-SVT (367-3788).
3Fiesta (CCT)IntroductionE163959
Page 7 of 32

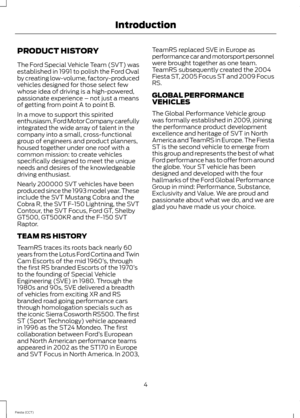

PRODUCT HISTORY
The Ford Special Vehicle Team (SVT) wasestablished in 1991 to polish the Ford Ovalby creating low-volume, factory-producedvehicles designed for those select fewwhose idea of driving is a high-powered,passionate experience – not just a meansof getting from point A to point B.
In a move to support this spiritedenthusiasm, Ford Motor Company carefullyintegrated the wide array of talent in thecompany into a small, cross-functionalgroup of engineers and product planners,housed together under one roof with acommon mission: to create vehiclesspecifically designed to meet the uniqueneeds and desires of the knowledgeabledriving enthusiast.
Nearly 200000 SVT vehicles have beenproduced since the 1993 model year. Theseinclude the SVT Mustang Cobra and theCobra R, the SVT F-150 Lightning, the SVTContour, the SVT Focus, Ford GT, ShelbyGT500, GT500KR and the F-150 SVTRaptor.
TEAM RS HISTORY
TeamRS traces its roots back nearly 60years from the Lotus Ford Cortina and TwinCam Escorts of the mid 1960’s, throughthe first RS branded Escorts of the 1970’sto the founding of Special VehicleEngineering (SVE) in 1980. Through the1980s and 90s, SVE delivered a breadthof vehicles from exciting XR and RSbranded road going performance carsthrough homologation specials such asthe iconic Sierra Cosworth RS500. The firstST (Sport Technology) vehicle appearedin 1996 as the ST24 Mondeo. The firstcollaboration between Ford’s Europeanand North American performance teamsappeared in 2002 as the ST170 in Europeand SVT Focus in North America. In 2003,
TeamRS replaced SVE in Europe asperformance car and motorsport personnelwere brought together as one team.TeamRS subsequently created the 2004Fiesta ST, 2005 Focus ST and 2009 FocusRS.
GLOBAL PERFORMANCEVEHICLES
The Global Performance Vehicle groupwas formally established in 2009, joiningthe performance product developmentexcellence and heritage of SVT in NorthAmerica and TeamRS in Europe. The FiestaST is the second vehicle to emerge fromthis group and represents the best of whatFord performance has to offer from aroundthe globe. Your ST vehicle has beendesigned and developed with the fourhallmarks of the Ford Global PerformanceGroup in mind: Performance, Substance,Exclusivity and Value. We are proud andpassionate about what we do, and we areglad you have made us your choice.
4Fiesta (CCT)Introduction
Page 8 of 32

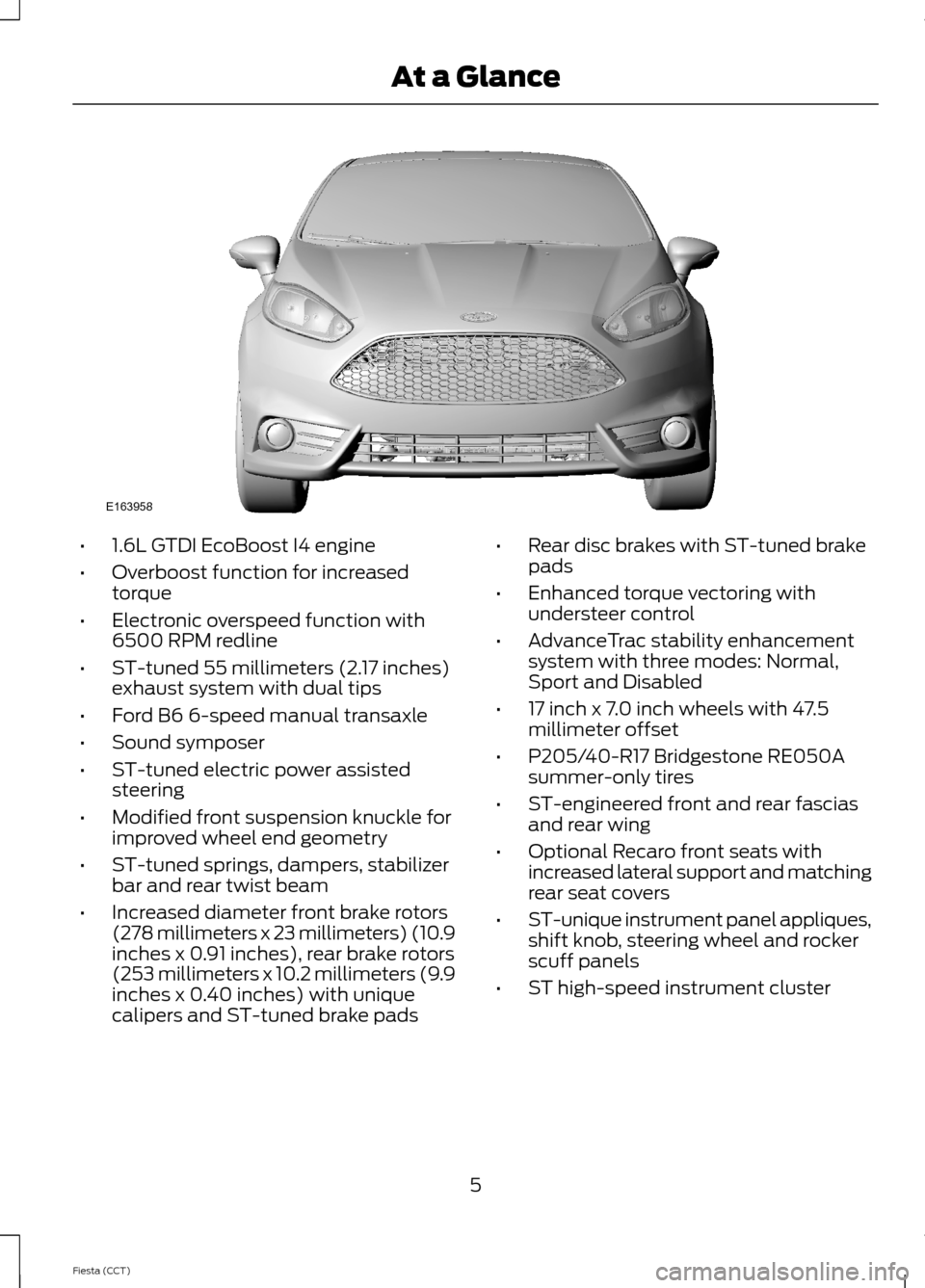

•1.6L GTDI EcoBoost I4 engine
•Overboost function for increasedtorque
•Electronic overspeed function with6500 RPM redline
•ST-tuned 55 millimeters (2.17 inches)exhaust system with dual tips
•Ford B6 6-speed manual transaxle
•Sound symposer
•ST-tuned electric power assistedsteering
•Modified front suspension knuckle forimproved wheel end geometry
•ST-tuned springs, dampers, stabilizerbar and rear twist beam
•Increased diameter front brake rotors(278 millimeters x 23 millimeters) (10.9inches x 0.91 inches), rear brake rotors(253 millimeters x 10.2 millimeters (9.9inches x 0.40 inches) with uniquecalipers and ST-tuned brake pads
•Rear disc brakes with ST-tuned brakepads
•Enhanced torque vectoring withundersteer control
•AdvanceTrac stability enhancementsystem with three modes: Normal,Sport and Disabled
•17 inch x 7.0 inch wheels with 47.5millimeter offset
•P205/40-R17 Bridgestone RE050Asummer-only tires
•ST-engineered front and rear fasciasand rear wing
•Optional Recaro front seats withincreased lateral support and matchingrear seat covers
•ST-unique instrument panel appliques,shift knob, steering wheel and rockerscuff panels
•ST high-speed instrument cluster
5Fiesta (CCT)At a GlanceE163958
