2014 FIAT STRADA Owner handbook (in English)

7
KNOW YOUR VEHICLE
SYMBOLS
Special coloured plates have been
attached near or on some of the
components of your Fiat Strada.
These plates bear symbols that draw
your attention to the precautions
required when handling the
component in question.THE KEYS fig. 1
The vehicle comes with a key A
(with remote control) or two keys B
(without remote control), according
to the version.
The keys can be used for:
– starting
– the doors
– fuel cap
– passenger airbag deactivation
– remote opening/closing
(key with remote control).
AB
fig. 1
F0X001m
THE FIAT CODE SYSTEM
To increase protection against theft,
the vehicle is equipped with an
electronic immobiliser system
(Fiat CODE) which is activated
automatically when the ignition key
is removed. Each key grip contains
an electronic device which
modulates the radio-frequency signal
emitted during ignition by an aerial
built into the ignition switch. The
modulated signal is the “password”,
by means of which the control unit
recognises the key and, only in this
circumstance, enables the engine to
be started.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 7

8
For versions/markets where
provided, the CODE card fig. 2 is
supplied together with the keys and
bears:
A – the electronic code
B – the mechanical key code to be
given to the Fiat Dealership
when ordering duplicate keys.
fig. 2
F0X0002m
fig. 3
F0X0003m
Button D should only
be pressed when the
key is away from the body, in
particular from the eyes and
from objects that can be spoilt
(e.g. clothes). Do not leave the
key unattended to avoid the
button being accidentally
pressed while it is being
handled, e.g. by a child.
WARNING
To put metal insert A back in the
grip, press device D, put back the
metal insert then release device D. Key with remote control fig. 3
A – retractable metal insert
B – door release button
C – door lock button (the roof light
switches off at the same time)
D – metal insert opening device.
The metal insert A operates:
– the ignition switch
– door opening/closing.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 8

9
The main functions that can be activated with the keys provided are the following:
Type of key Door unlocking Door locking
Key without remote control Anticlockwise rotation Clockwise rotation
Key with remote controlAnticlockwise rotation Clockwise rotationPress button B Press button C
Flashing the direction
indicators 2 flashes 1 flash
REQUEST FOR ADDITIONAL REMOTE CONTROLS
The receiver can recognise up to 8 remote controls.
Therefore, should it become necessary to acquire a new remote control for any reason during the life of the vehicle,
contact a Fiat Dealership directly, taking all the keys in your possession and the CODE card with you to the Dealership.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 9

10
DUPLICATING KEYS
Customers who require additional
keys must contact a Fiat Dealership,
taking all available keys and CODE
card with them to the Dealership.
The Fiat Dealership will store (up to
a maximum of 8 keys) all keys, both
new and already owned, in the
system.
The Fiat Dealership may require the
Customer to demonstrate that they
are the owner of the vehicle.Codes
for the keys which are not
presented for the new storing
procedure are deleted from the
memory, to ensure that any keys
which may be mislaid cannot be used
to start the engine.– Take out battery compartment D
and replace battery E;
– Reinsert battery compartment D
into the key and lock it by turning
device C.
fig. 4
F0X0004m
All the keys and the
CODE card must be
handed over to the new
owner when the vehicle is sold.
Ministerial approval
In accordance with the legislation of
each country regarding radio
frequencies, note that:
– for markets where the transmitter
must be marked, the type approval
number is indicated in the key with
remote control.
REMOTE CONTROL
BATTERY REPLACEMENT –
fig. 4
To replace the battery, proceed as
follows:
– Press device A and open metal
insert B;
– Using a fine bit screwdriver, turn
locking device C;
Used batteries are
harmful to the
environment.
They must be disposed of in
special containers as specified
by law. Alternatively, they can
be taken to a Fiat Dealership,
who will dispose of them
correctly.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 10

11
STEERING LOCK
Engagement: with ignition at
STOP, or PARK, remove the key
and turn the steering wheel until it
locks.IGNITION
The key can be turned to 4 different
positions fig. 5:
– STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car
radio, central door locking system,
electronic alarm, etc.) can
operate.
– MAR-ON: driving position. All
electric devices can operate.
– AVV: engine starting.
– PARK: engine off, parking lights
on, key can be removed, steering
column locked.
To turn the key to PARK, press
button A.
PARKSTOPMARAVV
A
fig. 5
F0X0005m
If the ignition is
tampered with
(e.g. attempted theft),
have it checked by a Fiat
Dealership before driving
again.
WARNING
Never remove the key
while the vehicle is in
motion. The steering wheel
would automatically lock as
soon as it is turned. This also
applies to cases in which the
vehicle is towed.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 11

12
INSTRUMENT PANEL
The presence and position of the instruments and indicators may vary according to the version.
fig. 6
Trekking / Working version fig. 6
1. Adjustable side air diffusers – 2. Left external light control stalk – 3. Horn – 4. Instrument panel – 5. Right stalk
(windscreen wiper-washer and trip computer) – 6. Control buttons – 7. Adjustable central air diffusers – 8. Hazard
warning lights switch – 9. Car radio (or car radio set-up) – 10. Passenger airbag or upper compartment (for versions/
markets, where provided) – 11. Glove compartment – 12. Storage compartment – 13. Climate control / ventilation
controls – 14. Ignition switch – 15. Driver front airbag – 16. Bonnet release lever – 17. Fuse cover on dashboard – 18.
Headlight alignment corrector and controls.
F0X0006m
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 12

13

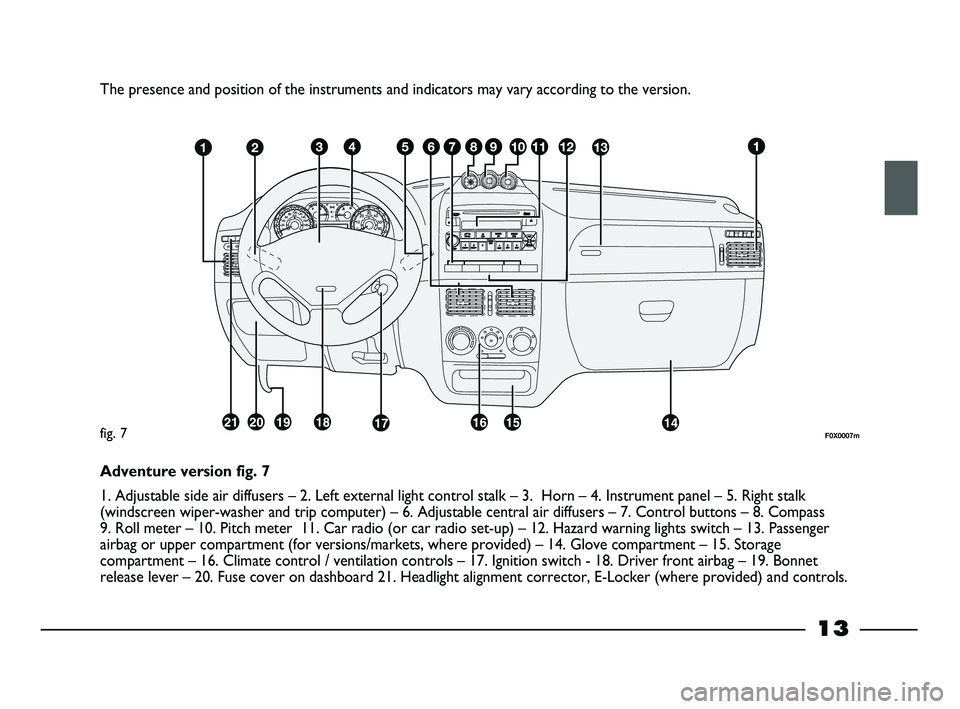

The presence and position of the instruments and indicators may vary according to the version.
F0X0007mfig. 7
Adventure version fig. 7
1. Adjustable side air diffusers – 2. Left external light control stalk – 3. Horn – 4. Instrument panel – 5. Right stalk
(windscreen wiper-washer and trip computer) – 6. Adjustable central air diffusers – 7. Control buttons – 8. Compass
9. Roll meter – 10. Pitch meter 11. Car radio (or car radio set-up) – 12. Hazard warning lights switch – 13. Passenger
airbag or upper compartment (for versions/markets, where provided) – 14. Glove compartment – 15. Storage
compartment – 16. Climate control / ventilation controls – 17. Ignition switch - 18. Driver front airbag – 19. Bonnet
release lever – 20. Fuse cover on dashboard 21. Headlight alignment corrector, E-Locker (where provided) and controls.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 13

14
INSTRUMENT PANEL
Trekking / Working
version fig. 8
A – Speedometer
B – Fuel level gauge with reserve
warning light
C – Engine coolant temperature
gauge
D – Rev counter
E – Display
fig. 8F0X0008m
