PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
– engine coolant level;
– brake fluid level;
– windscreen washer fluid level;
– tyre pressure and conditions;
– operation of lighting system
(headlights, direction indicators,
hazard warning lights, etc.);
– operation of windscreen
washer/wiper system and
position/wear of windscreen/rear
window wiper blades;
Every 3,000 km check and top up if
required: engine oil level.
You are advised to use PETRONAS
LUBRICANTS products, which have
been designed and produced
specifically for Fiat vehicles (see table
“Capacities” in the “Technical
specifications” section).
DEMANDING
VEHICLE USE
If the vehicle is mostly used in one of
the following conditions:
– towing a trailer or caravan;
– dusty roads;
– short, repeated journeys (less
than 7-8 km) at sub-zero
temperatures;
– engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more frequently than indicated
in the Scheduled Servicing Plan:
– check front disc brake pad
conditions and wear;
– check cleanliness of bonnet and
boot locks, and cleanliness and
lubrication of linkages;– visually inspect the conditions of:
engine, gearbox, transmission,
pipes and hoses
(exhaust/fuel/brakes), rubber parts
(boots/sleeves/bushes, etc.);
– check battery charge and fluid
level (electrolyte);
– visually inspect the condition of
the accessory drive belts;
– check and, if necessary, change
engine oil and replace oil filter;
– check pollen filter and replace, if
required;
– check air cleaner and replace, if
required.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 137

138
CHECKING LEVELS
Never smoke while
working in the engine
compartment: inflammable
gases and vapours may be
present, constituting a fire risk.
WARNING
When topping up, take
care not to mix up the
various types of fluids:
they are not compatible with
each other and could seriously
damage the vehicle.

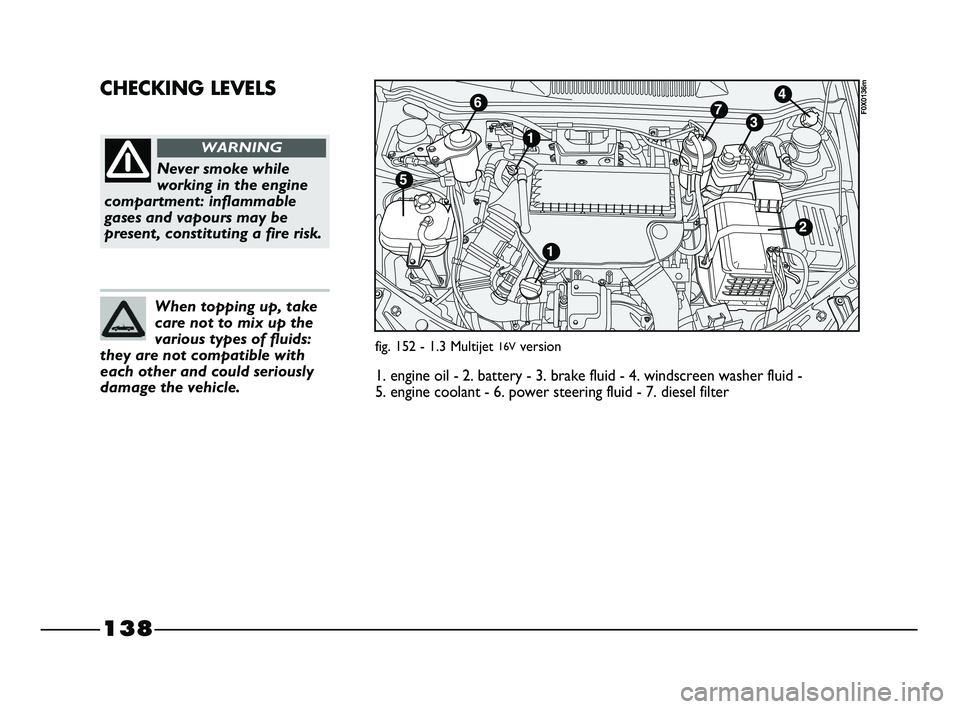

fig. 152 - 1.3 Multijet 16Vversion
F0X0136m
1. engine oil - 2. battery - 3. brake fluid - 4. windscreen washer fluid -
5. engine coolant - 6. power steering fluid - 7. diesel filter
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 138

139
ENGINE OIL fig. 153
Engine oil level checkCheck the oil level a few minutes
(about 5) after the engine has
stopped, with the vehicle parked on
level ground.
Take out the engine oil dipstick
A-fig. 153, clean it and then fully
reinsert it, take it out again and
check that the level is between the
MIN and MAX marks on the
dipstick. The interval between MIN
and MAX corresponds to about
1 litre of oil.
AB
fig. 153
F0X0137m
Always top up using
engine oil of the same
specifications as that
already in the engine.
Be very careful when
working in the engine
compartment when the engine
is hot: you may get burned.
Remember that the fan may
start up if the engine is hot:
this could injure you. Scarves,
ties and other loose clothing
may be pulled by moving parts.
WARNING
Topping up the engine oil
If the oil level is near or under the
MIN mark, add oil through the filler
B-fig. 153 until it reaches the MAX
mark.
The oil level must never exceed the
MAX mark.
IMPORTANT If the engine oil level,
after a routine check, is above the
MAX level, contact a Fiat Dealership
to have the correct level restored.
IMPORTANT After adding or
changing the oil, let the engine turn
over for a few seconds and wait a
few minutes after stopping it before
you check the level.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 139

140
When the vehicle is used in
particularly harsh weather
conditions, we recommend using a
60-40 mixture of PARAFLU
UPand
demineralised water.
fig. 154
F0X0138m
ENGINE OIL CONSUMPTION
The maximum engine oil
consumption is usually 400 grams
every 1000 km.
When the vehicle is new, the engine
needs to be run in, therefore the
engine oil consumption can only be
considered stabilised after the first
5,000–6,000 km.
IMPORTANT The oil consumption
depends on the driving style and the
conditions under which the vehicle is
used.ENGINE COOLANT fig. 154
The coolant level must be checked
when the engine is cold and must be
above the MIN mark on the
reservoir.
If the level is low, slowly pour a
mixture of 50% demineralised water
and 50% PARAFLU
UPby PETRONAS
LUBRICANTS through the filler A
until the level is nearly at MAX.
A 50-50 mixture of PARAFLU
UPand
distilled water gives freeze
protection to –35°C.
Used engine oil and the
oil filter contain harmful
substances for the
environment. It is advisable to
have oil and filters changed by a
Fiat Dealership, where they will
be disposed of properly and in
accordance with the law.
The engine cooling
system uses PARAFLUUP
protective antifreeze
fluid. Use fluid of the same type
contained in the cooling system
for any top-ups. PARAFLU
UP
cannot be mixed with any other
type of fluid. If this happens, do
not under any circumstances
start the engine and contact a
Fiat Dealership.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 140

141
WINDSCREEN WASHER
FLUID fig. 155
To add fluid, remove the cap and
pour in a mixture of water and
TUTELA PROFESSIONAL SC35
fluid in the following proportions:
– 30% TUTELA PROFESSIONAL
SC35 and 70% water in summer.
– 50% TUTELA PROFESSIONAL
SC35 and 50% water in winter.
At temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC35 fluid.
fig. 155
F0X0139m
Do not remove the cap
of the tank when the
engine is hot as there is a risk
of scalding. The cooling system
is pressurised. If the cap needs
replacing, do so with another
original or the effectiveness of
the system may be
compromised.
WARNING
Some commercial
windscreen washer
additives are flammable. The
engine compartment contains
hot parts which could cause a
fire if they come into contact
with these additives.
WARNING
Do not travel if the
windscreen washer
reservoir is empty: using the
windscreen washer is essential
for improving visibility.
WARNING
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 141

142

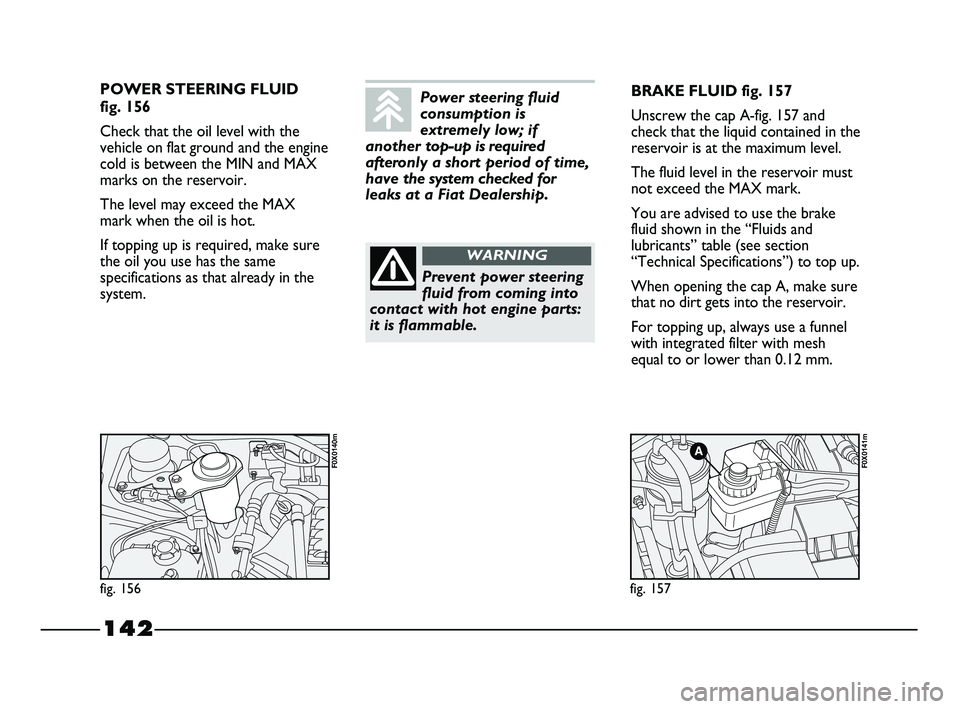

POWER STEERING FLUID
