2014 CITROEN NEMO DAG Handbook (in English)

7
FAMILIARISATION
Familiarisation


Instruments and controls



1.
Steering wheel adjustment control.

2.
Lighting and direction indicator control
stalk.

3.
Instrument panel.

4.
Audio system steering mounted controls.
Bluetooth hands-free system.

5.
Driver's airbag.
Horn.

6.
Cruise control switches.

7.
Gear lever.

8.
Parking brake.

9.
Bonnet release lever.

10.
Door mirror controls.

11 .
Fusebox.

12.
Manual headlamp height adjustment.

13.
Side adjustable air vent.

14.
Front door glass demisting vent.

15.
Electric window controls.

16.
Windscreen demisting vent.

17.
Wiper / screenwash / trip computer control
stalk.

18.
Steering lock and ignition switch.

19.
Central adjustable air vents.

20.
Passenger's airbag.

21.
MENU button.

22.
Glove box.

23.
12V accessory socket.

24.
Cigarette lighter.

25.
Ashtray.

26.
Heating / air conditioning controls.

27.
Audio system.

8

Familiarisation

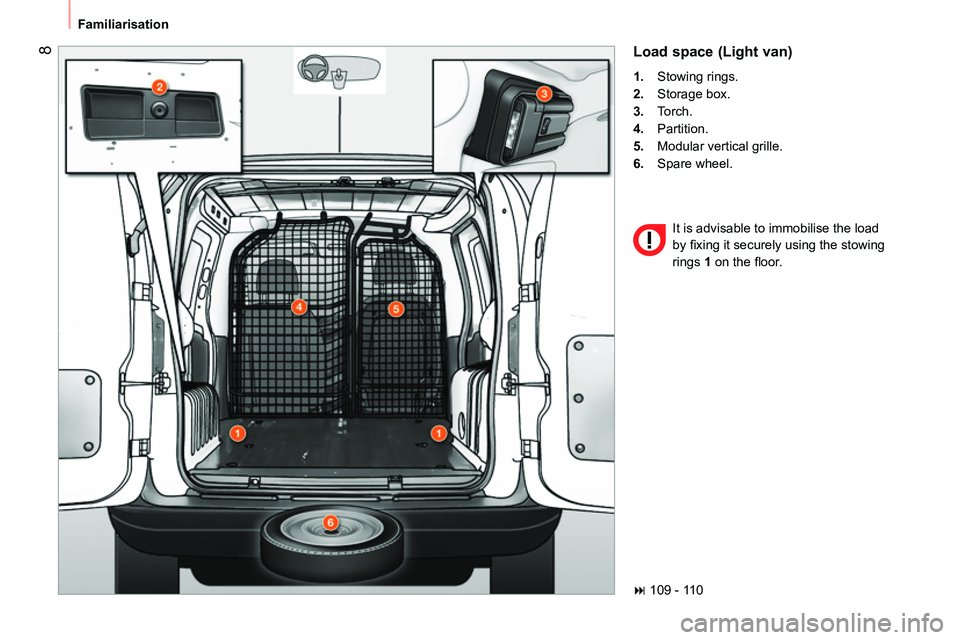

Load space (Light van)



1.
Stowing rings.

2.
Storage box.

3.
Torch.

4.
Partition.

5.
Modular vertical grille.

6.
Spare wheel.
It is advisable to immobilise the load
by fi xing it securely using the stowing
rings 1
on the fl oor.
 109 - 110

9
FAMILIARISATION
Familiarisation


Load space (Light van)



1.
Stowing eyes.

2.
Storage box.

3.
Torch.

4.
Partition.

5.
Spare wheel.
It is advisable to immobilise the load
by fi xing it securely using the stowing
rings 1
on the fl oor.
 109

10

Familiarisation


With tailgate

REAR FITTINGS (COMBI)


With side-hinged rear doors



1.
Stowing rings.

2.
Luggage retaining net.

3.
Tool kit.

4.
Rear parcel shelf.

1.
Stowing rings.

2.
Luggage retaining net.

3.
Rear parcel shelf.

4.
Retaining straps / Tool kit.

5.
Torch / Boot lamp.

 111

11
FAMILIARISATION
Familiarisation

SITTING COMFORTABLY


Driver's seat adjustment


Forwards-backwards
Height


Seat back angle (A)
Lumbar support (B)

 96

12

Familiarisation


Front seat belts



A.
Fastening.


SITTING COMFORTABLY



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Steering wheel adjustment

As a safety precaution, these operations
must only be carried out while
stationary.


Electric door mirror adjustment


A.
Selection of the left hand mirror.

B.
Selection of the right hand mirror.

C.
Adjustment of the position of the mirror.


Rear view mirror adjustment



1.
Selection of the "day / night" position of the
mirror.

2.
Adjustment of the mirror.

 49 47 11 9

13
FAMILIARISATION
Familiarisation

SEEING CLEARLY


Ring
Lighting off.
Sidelamps.
Dipped / main beam headlamps.

Foglamps
Rear foglamp.
or
Front and rear foglamps.

Ring B: rear wiper
Intermittent wipe.
Screenwash.
Park.


Lighting

Raise or lower the lighting stalk passing the
point of resistance; the corresponding direction
indicators will fl ash until the lighting stalk is
moved out of this position.

Direction indicators


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will fl ash
three times.



Wipers


Ring A: windscreen wipers
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Single wipe.
Screenwash.
 42 - 43 42 44  44

14

Familiarisation

VENTILATION


Recommended interior settings



I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation /

Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING

DEFROSTING



 104
