Instruments and controls
23
2
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
1. Distance recorder in miles / kilometres.
2. Screen.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter.
INSTRUMENT PANEL
Display screen
In the lower part:
- Time,
- Ambient temperature,
- Miles / Kilometres travelled,
- Trip computer (range, fuel consumption...),
- Headlamp beam height,
- Programmable overspeed warning,
- Cruise control or speed limiter,
- Gear shift indicator,
- Stop & Start.
In the upper part:
- Date,
- Service indicator,
- Alert messages,
- System status messages,
- Vehicle configuration.

Instruments and controls
24
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
WARNING LAMPS
Every time the engine is started: a series of warning lamps comes on, ap\
plying a self-checking test. They go off almost immediately.
When the engine is running: a warning lamp becomes a warning sign if it \
remains on continuously or flashes. This initial warning
may be accompanied by an audible signal and a message in the screen. "Do\
not ignore these warnings."
Warning lamp is indicates Solution - action
Service on temporarily.
minor faults. Contact a CITROËN dealer or a qualified workshop.
continuously on,
accompanied by
a message on
the screen. major faults.
Make a note of the warning message and contact a
CITROËN dealer or a qualified workshop.
Parking brake -
Brake fluid level on.
that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the warning
lamp.
on. that the fluid level is too low. Top up with a fluid listed by CITROËN.
continuously on,
even though the
level is correct. Stop as soon as it is safe to do so. Park, switch
off the ignition and contact a CITROËN dealer or a
qualified workshop.

+ Electronic brake
force distribution on.
a fault with the system. Stop as soon as it safe to do so. Contact a CITROËN
dealer or a qualified workshop.
Anti-lock braking
system on.
a fault with the system. The vehicle retains conventional braking without
assistance. However, we recommend that you stop and
contact a CITROËN dealer or a qualified workshop.

Instruments and controls
25
2
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition. Allow the system to cool
sufficiently. Visually check the level.
on H in the red
zone. the coolant temperature is too
high. "Checks - Levels and checks" section.
Contact a CITROËN dealer or a qualified workshop.
Engine oil
pressure on while driving.
that the pressure is too low. Park and switch off the ignition. Allow the lubrication
system to cool in order to check its level.
"Checks - Levels and checks" section.
continuously on,
even though the
level is correct. a major fault.
Contact a CITROËN dealer or a qualified workshop.
flashing, for a
few seconds,
with a message
on the screen. a high level of deterioration of
the engine oil. Have the engine oil changes as soon as possible. After
the second level of alert, engine performance will be
limited. Your vehicle's programmed service schedule is
not altered.
Battery charge on.
a fault with the charging
system. Check the battery terminals….
"Quick help - Flat battery" section.
continuously on,
fixed or flashing
in spite of the
checks. an ignition or injection fault.
Have it checked by a CITROËN dealer or a qualified
workshop.
Door or bonnet
open detection on. that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors and
the bonnet are closed.

Instruments and controls
26
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution - action

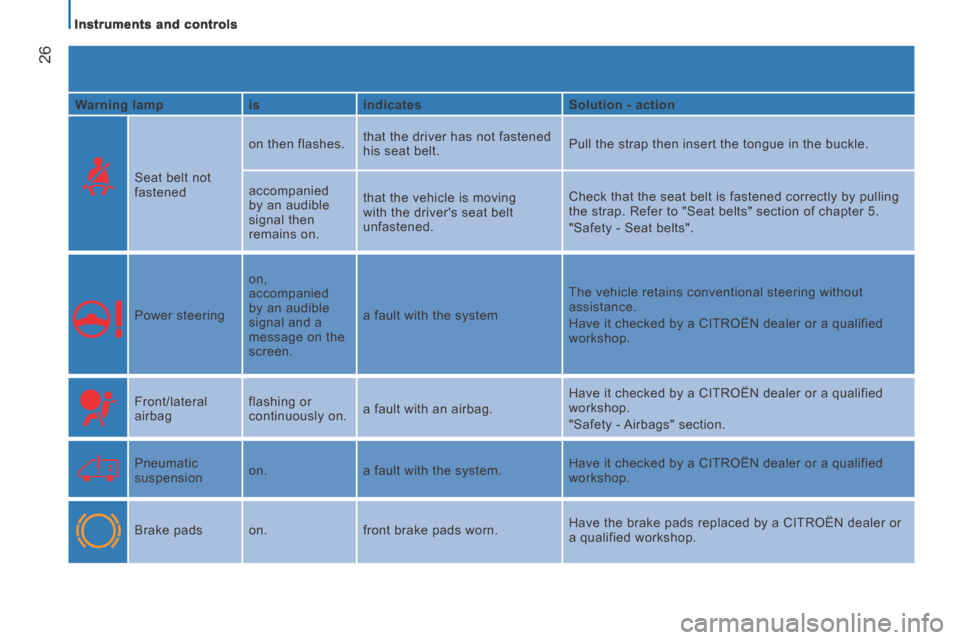

Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by pulling
the strap. Refer to "Seat belts" section of chapter 5.
"Safety - Seat belts".
Power steering on,
accompanied
by an audible
signal and a
message on the
screen. a fault with the system
The vehicle retains conventional steering without
assistance.
Have it checked by a CITROËN dealer or a qualified
workshop.
Front/lateral
airbag flashing or
continuously on.
a fault with an airbag. Have it checked by a CITROËN dealer or a qualified
workshop.
"Safety - Airbags" section.
Pneumatic
suspension on.
a fault with the system. Have it checked by a CITROËN dealer or a qualified
workshop.
Brake pads on. front brake pads worn. Have the brake pads replaced by a CITROËN dealer or
a qualified workshop.

Instruments and controls
27
2
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution - action
DSC/ASR flashing.
that it is in operation. The system optimises traction and allows improved
directional stability of the vehicle.
on,
accompanied
by an audible
signal and a
message in the
screen. a fault with the system or the
hill start assist.
Contact a CITROËN dealer or a qualified workshop.
"Safety - Driving safely" section.
on. a fault with the Intelligent
Traction Control.
Emissions
control on. the regeneration of the particle
emissions filter. It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed.
"Checks - Levels and checks" section.
Emission control
system on.
a fault with the system. Have the system checked by a CITROËN dealer or a
qualified workshop without delay.
Tyre under-
inflation
detection on.
a tyre deflated or punctured. Park and switch off the ignition. Change or repair the
wheel.
on,
accompanied
by the service
warning lamp. a faulty sensor.
Have it checked by a CITROËN dealer or a qualified
workshop.

Instruments and controls
28
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution - action

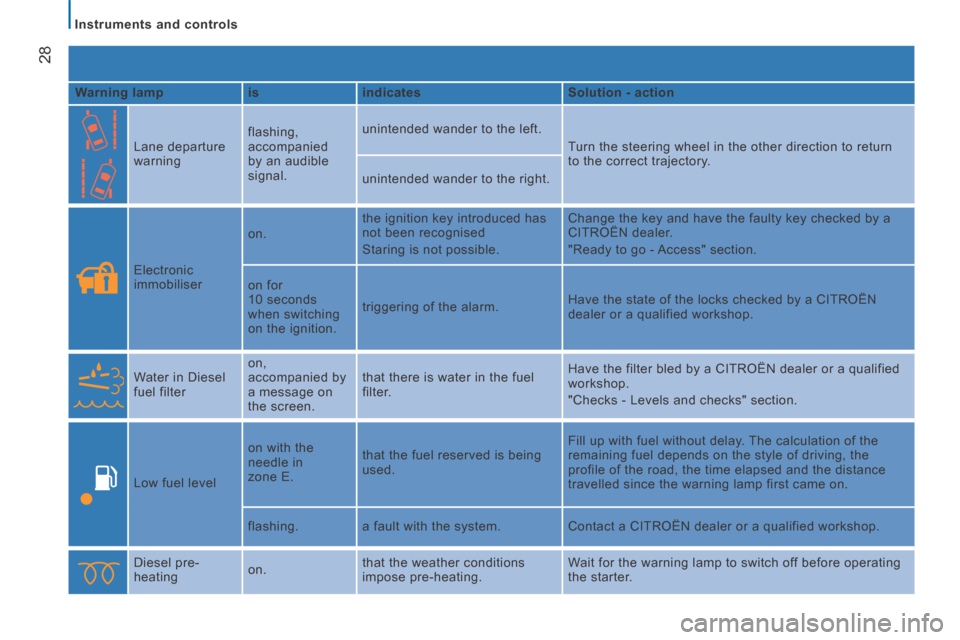

Lane departure
warning flashing,
accompanied
by an audible
signal. unintended wander to the left.
Turn the steering wheel in the other direction to return
to the correct trajectory.
unintended wander to the right.
Electronic
immobiliser on.
the ignition key introduced has
not been recognised
Staring is not possible. Change the key and have the faulty key checked by a
CITROËN dealer.
"Ready to go - Access" section.
on for
10 seconds
when switching
on the ignition. triggering of the alarm.
Have the state of the locks checked by a CITROËN
dealer or a qualified workshop.
Water in Diesel
fuel filter on,
accompanied by
a message on
the screen. that there is water in the fuel
filter.
Have the filter bled by a CITROËN dealer or a qualified
workshop.
"Checks - Levels and checks" section.
Low fuel level on with the
needle in
zone E.
that the fuel reserved is being
used. Fill up with fuel without delay. The calculation of the
remaining fuel depends on the style of driving, the
profile of the road, the time elapsed and the distance
travelled since the warning lamp first came on.
flashing. a fault with the system. Contact a CITROËN dealer or a qualified workshop.
Diesel pre-
heating on. that the weather conditions
impose pre-heating. Wait for the warning lamp to switch off before operating
the starter.

Instruments and controls
29
2
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution - action
Dipped beam
on. a manual selection.
Turn the lighting control stalk ring to the second
position.
Main beam that the control stalk has been
pulled towards you. Pull the lighting control stalk again to return to dipped
beam.
Direction
indicators flashing with
buzzer. a change of direction using the
lighting stalk. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front foglamps on. that the button on the MODE
control panel has been pressed. Manual selection.
The foglamps only operate if the dipped beam
headlamps are on.
Rear foglamps on. that the button on the MODE
control panel has been pressed. Manual selection.
The lamps only operate if the dipped beam headlamps
are on. When visibility is normal, please switch them off.
Cruise control on. that the cruise control has been
selected. Manual selection.
"Ease of use and comfort - Steering mounted controls"
section.

Instruments and controls
30
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Screen displays indicates Solution - action
Temperature /
Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the screen. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
"Safety - Driving safely".
Date / Time a setting: date,
time. a configuration via the "MODE"
menu.
"Technology on board - Vehicle configuration" section.
Headlamp beam
height a headlamp
height setting. a position from 0 to 3
depending on the load carried Adjust using the buttons on the MODE control panel.
"Ease of use and comfort - Steering mounted controls"
section.
Service spanner a service
spanner which
remains on. that a service will soon be due.
Refer to the list of checks in the maintenance and
warranty guide, then have the service carried out.
Stop & Start on.
engine going into STOP mode
after the the vehicle stops. As soon as you want to move off, the warning lamp
goes off and the engine restarts automatically in
START mode.
flashes for a few
seconds, then
goes off. STOP mode temporarily
unavailable or automatic
operation of START mode.
Special cases for STOP mode and START mode.
"Ready to go - Starting and stopping" section.
