2014 Citroen JUMPER Owner's Manual

15
2
Access
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014

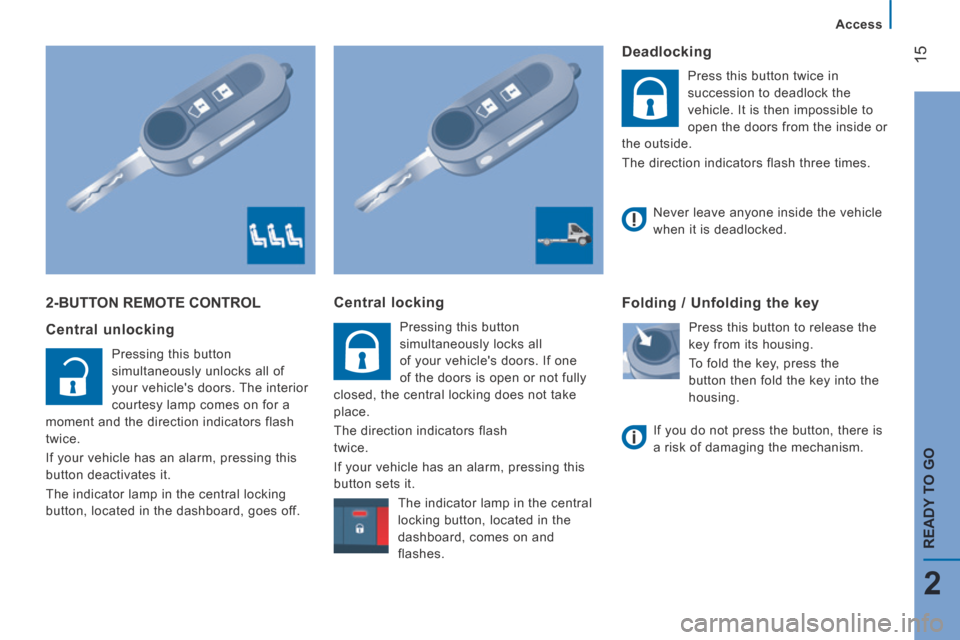

2-BUTTON REMOTE CONTROL
Central unlocking
Pressing this button
simultaneously unlocks all of
your vehicle's doors. The interior
courtesy lamp comes on for a
moment and the direction indicators flash
twice.
If your vehicle has an alarm, pressing this
button deactivates it.
The indicator lamp in the central locking
button, located in the dashboard, goes off.
Central locking
Pressing this button
simultaneously locks all
of your vehicle's doors. If one
of the doors is open or not fully
closed, the central locking does not take
place.
The direction indicators flash
twice.
If your vehicle has an alarm, pressing this
button sets it.
The indicator lamp in the central
locking button, located in the
dashboard, comes on and
flashes.
Deadlocking
Press this button twice in
succession to deadlock the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
The direction indicators flash three times.
Folding / Unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the
button then fold the key into the
housing.
Never leave anyone inside the vehicle
when it is deadlocked.
If you do not press the button, there is
a risk of damaging the mechanism.

16
Access
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
KEY
This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL BATTERY
Reference: CR 2032/3 volts.
Changing the battery
- Press the button to eject the key.
- Turn the screw 1 from the closed
padlock to the open padlock using a
screwdriver with a thin lip.
- Use the screwdriver as a lever to extract the battery holder housing 2 . - Remove the housing and change the
battery 3 observing the polarities.
- Put the battery holder housing 2 back
inside the key and secure it by turning
the screw 1 .
There is a risk of damage if the
replacement battery is not of the
correct type.
Only use batteries which are identical or of
an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an authorised collection point.

17
2
Access
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014

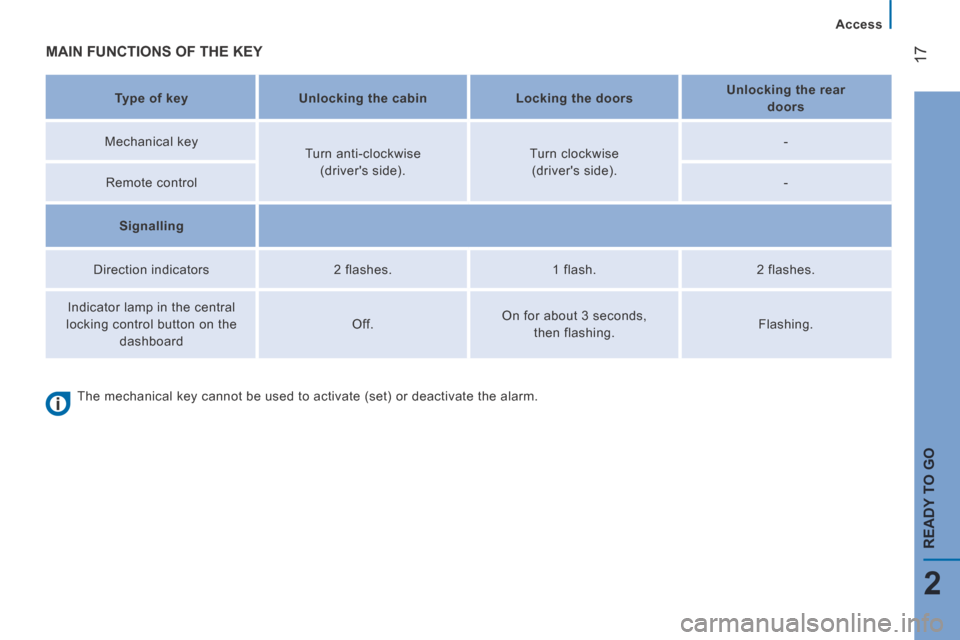

MAIN FUNCTIONS OF THE KEY
Type of key Unlocking the cabin Locking the doors Unlocking the rear
doors
Mechanical key Turn anti-clockwise
(driver's side). Turn clockwise
(driver's side). -
Remote control -
Signalling
Direction indicators 2 flashes. 1 flash. 2 flashes.
Indicator lamp in the central
locking control button on the dashboard Off.
On for about 3 seconds,
then flashing. Flashing.
The mechanical key cannot be used to activate (set) or deactivate the \
alarm.

18
Access
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors is opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the number of the
keys. If they are lost, your CITROËN dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the
electronic immobiliser system. This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more diffi cult in an
emergency.
As a safety precaution (with children on board),
remove the key from the ignition when leaving
the vehicle, even for a short time.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card,
- have the keys memorised by a CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

19
2
Access
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
Remote control fault
Unlock the doors using the key, the alarm is
triggered.
Switch on the ignition, recognition of the
key's code turns off the alarm. Locking the doors with the key does
not set the alarm.
Deactivation using the remote control
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.
Deactivation of the anti-tilt protection *
Press this control to deactivate
the protection (when towing the
vehicle with the alarm on, for
example).
The protection remains active until the doors
are unlocked with the central locking.
ALARM
If your vehicle is fitted with an anti-theft
alarm.
This provides:
- exterior perimeter protection by detectors on the openings (doors,
bonnet) and on the electrical power
supply,
- anti-tilt protection * .
Activation of the alarm
First ensure that all of the doors and bonnet
are closed correctly.
* Depending on engine.
Good practice
To deactivate the siren quickly following
a false alarm:
- switch on the ignition, recognition of the key's code will switch off the alarm,
- press the unlocking button (cab and key) on the remote control.
To avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.
Unlocking the vehicle using the remote
control deactivates the siren automatically.
The alarm is set by pressing this
padlock, the protection is active
after a few seconds.
While the alarm is monitoring,
any intrusion triggers the siren for
approximately 30 seconds, accompanied by
illumination of the direction indicators.
The alarm then returns to
monitoring mode but the triggering
event is stored and is indicated
by illumination of the electronic
immobiliser warning lamp for about
10 seconds when the ignition is switched on.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.

20
Access
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014

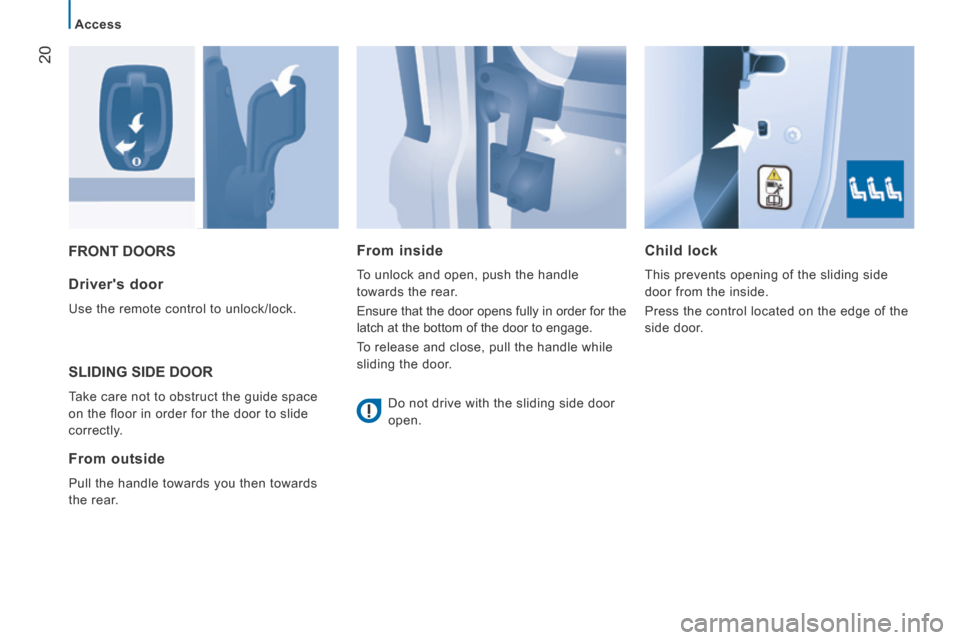

FRONT DOORS Child lock
This prevents opening of the sliding side
door from the inside.
Press the control located on the edge of the
side door. Driver's door
Use the remote control to unlock/lock.
SLIDING SIDE DOOR
Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.
From outside
Pull the handle towards you then towards
the rear.
From inside
To unlock and open, push the handle
towards the rear.
Ensure that the door opens fully in order for the
latch at the bottom of the door to engage.
To release and close, pull the handle while
sliding the door. Do not drive with the sliding side door
open.

21
2
Access
READY TO GO
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014

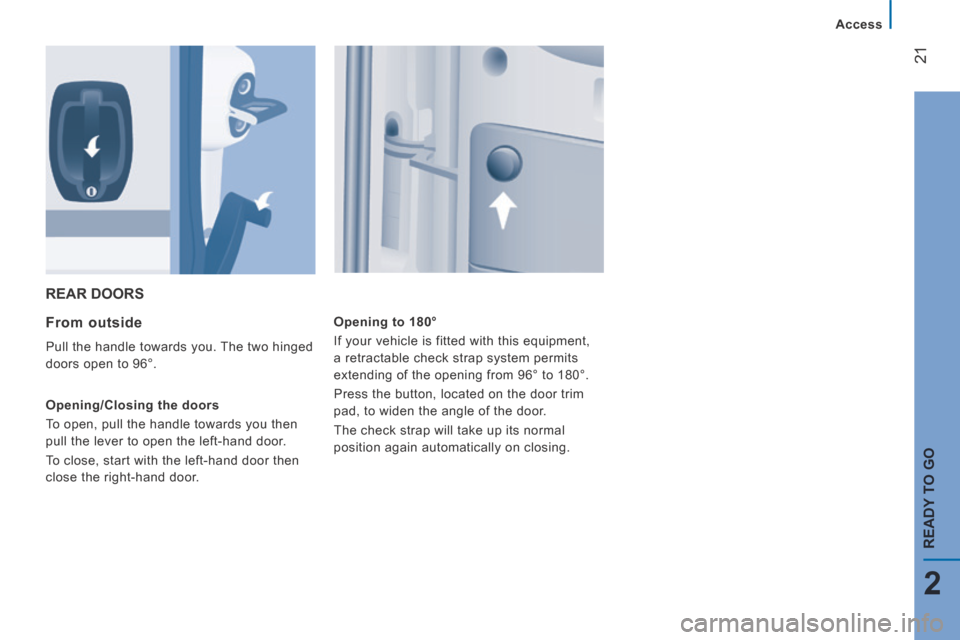

REAR DOORS
From outside
Pull the handle towards you. The two hinged
doors open to 96°.
Opening/Closing the doors
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door. Opening to 180°
If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180°.
Press the button, located on the door trim
pad, to widen the angle of the door.
The check strap will take up its normal
position again automatically on closing.

22
Access
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014
LOCKING / UNLOCKING FROM INSIDE
Door open warning lamp
If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency.
Cab and load space
Pressing permits electric central
locking and unlocking, when the
doors are closed.
The doors can still be opened from the
inside. If one of the doors is open or is not
closed correctly, the central locking
does not work. The indicator lamp on the control:
Load space
Press to lock or unlock the side
door and rear doors from the cab.
The warning lamp remains on on
locking.
Anti-intrusion security
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the system
The system setting is made with the
MODE
button: in the "Autoclose" menu, select "ON"
or "OFF".
Refer to the "Technology on board -
Vehicle configuration" section.
- comes on when the doors
are locked and the ignition is
switched on,
- then flashes when the doors are locked when stationary
with the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside.
