2014 Citroen JUMPER Owner's Manual

1
AT A GLANCE
7
Location
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
INSTRUMENTS AND CONTROLS
Instrument panels, screens,
speedometer 23
Warning lamps, indicator lamps 24-31
Gauges, indicators 32, 35
Gear shift indicator 36-37
Lighting controls 44-46
Automatic illumination of headlamps 45
Guide-me-home lighting 45
Parking lamps 46
Opening the bonnet 122
Dashboard fuses 134-136
Vehicle confi guration 84-86
Setting the time 85
Headlamp beam height adjustment 46
Front/rear fog lamps 44
Pneumatic suspension 93-94
Stop & Start 40-42
Additional heating, rear air
conditioning 64-65
Programmable additional heating 66-68 Front/rear wipers
47
Screenwash/headlamp wash 47
Trip computer 89
Starter, ignition switch 38
Hill start 39
Cruise control 48-50, 51-53
Speed limiter 54-56
Fixed speed limiter 57
Steering wheel, reach adjustment 37
Horn
96
Instruments and controls 4-5
Steering mounted radio
controls 10.5, 10.53
Electric windows, mirrors 82-83
Locking the load space 22

8
Location
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
Lane departure warning system 101
Hill descent control 100
ASR, DSC 98-99
Intelligent Traction Control 99-100
Vehicle confi guration
87-88
Setting the time 88
Reversing camera 92
Touch screen audio system 10.1-10.50
Audio system 10.51-10.68
Tachograph
90
Cab fi ttings 75-80
● cigarette lighter,
● glove box - cooled,
● overhead storage,
● portable ashtray,
● courtesy lamps,
● 12 volt socket,
● writing table,
● storage compartments.
Gearbox
36-37
Parking sensors 91-92
Demisting-defrosting 58
Central locking 22
Locking indicator lamp 22
Hazard warning lamps 95 Ventilation, heating, A/C 59-61, 62-63
● manual air conditioning,
● mono-zone digital air
conditioning,
● air recirculation.

1
AT A GLANCE
9
Location
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
Seat belts 102-103
Airbags 105-107
Deactivating the passenger's
front airbag 106, 109
Parking brake, handbrake 95
Front seats, adjustments 69-70
Seat with variable damping 70
2-seat bench 71
Tools, jack 75, 145 Child seats
108-111, 114-115
Rear view mirror
82
Lane departure warning
system 101 Cab courtesy lamp 78-79, 141
Changing a courtesy lamp bulb 141
Courtesy lamps 78-79, 141
12 volt socket 77 Battery (+), charging, starting 131-133
Earth point (-)
123, 131
Fuses in the right hand door pillar 134, 136
INTERIOR
Load space 80-81
● stowing rings,
● load retainer,
● roof box,
● trims,
● 12 volt socket,
● courtesy lamp,
● inspection lamp.
Seats / rear bench seats 72-73
Rear heating /
air conditioning
64-65
Reversing camera 92
Sliding side door
20
Sliding side windows 81 ISOFIX mountings 112-113
Crew cab 74
Accessories 119

10
Location
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
Screenwash/headlamp wash, level 125
Bulbs, lighting, changing
bulbs 138-143
Opening the bonnet, stay 122
Under the bonnet 123
Engines 159
Identifi cation markings, serial
number, paint, tyres 163 Changing a wiper blade
144
Levels 124-125
● dipstick,
● power steering fl uid,
● brake fl uid,
● coolant.
Water bleed, Diesel fi lter 126
Particle fi lter 128
Emission control 33
Checks 126-128
● battery,
● air/passenger compartment fi lter,
● oil fi lter,
● manual gearbox,
● parking brake,
● brake discs and pads.
Engine fuses 134, 137
TECHNICAL DATA - MAINTENANCE
Dimensions 152-158
Weights 160-162

1
AT A GLANCE
11
Motoring & Environment
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
ENVIRONMENT
With you, CITROËN acts to protect the
environment.
We invite you to visit the
www.citroen.co.uk website. As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and harsh acceleration,
- observe the service intervals; we recommend that services are carried
out by a CITROËN dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control systems, do
not use engine oil additives. Refer to information on eco-driving at
the end of this section.

12
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
ECO-DRIVING
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. While accelerating changing up early. If your vehicle has
the system, the gear shift indicator invites you to engage the most
suitable gear; follow its instructions as soon as it is displayed in
the instrument panel.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accelerator
progressively. These practices contribute towards a reduction in
fuel consumption and CO
2 emissions and also helps reduce the
background traffic noise.
If your vehicle has cruise control, make use of the system at
speeds above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm,
ventilate it by opening the windows and air vents before using the
air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air
vents open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (window
blinds...).
Switch off the air conditioning, unless it has automatic digital
regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of
light does not require their use.
Eco-driving is a range of everyday practices that allow the motorist to \
optimise their fuel consumption and CO
2 emissions.
Avoid running the engine before moving off, particularly in winter;
your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the\

consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

13
1
AT A GLANCE
JUMPER-PAPIER_EN_CHAP01_COUP D OEIL_ED01-2014
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in
the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer
tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the
label in the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air
filter, cabin filter...) and observe the schedule of operations in the
maintenance and warranty guide.
When refuelling, do not continue after the 3
rd cut-off of the nozzle
to avoid any overflow.
At the wheel of your new vehicle, it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle
down to a consistent average.

14
Access
JUMPER-PAPIER_EN_CHAP02_PRET A PARTIR_ED01-2014

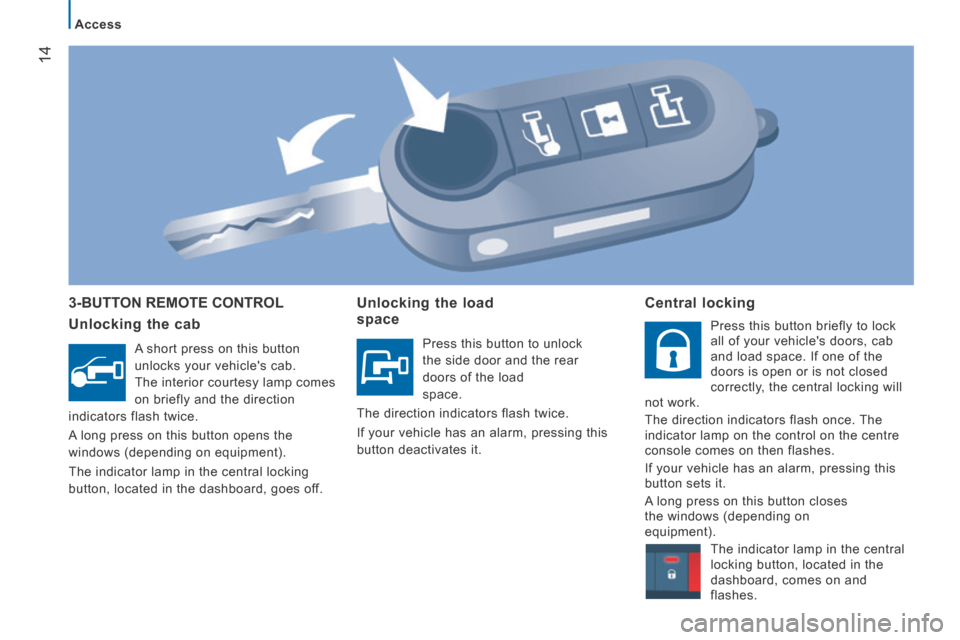

3-BUTTON REMOTE CONTROL
Unlocking the cab
A short press on this button
unlocks your vehicle's cab.
The interior courtesy lamp comes
on briefly and the direction
indicators flash twice.
A long press on this button opens the
windows (depending on equipment).
The indicator lamp in the central locking
button, located in the dashboard, goes off.
Unlocking the load space
Press this button to unlock
the side door and the rear
doors of the load
space.
The direction indicators flash twice.
If your vehicle has an alarm, pressing this
button deactivates it.
Central locking
Press this button briefly to lock
all of your vehicle's doors, cab
and load space. If one of the
doors is open or is not closed
correctly, the central locking will
not work.
The direction indicators flash once. The
indicator lamp on the control on the centre
console comes on then flashes.
If your vehicle has an alarm, pressing this
button sets it.
A long press on this button closes
the windows (depending on
equipment).
The indicator lamp in the central
locking button, located in the
dashboard, comes on and
flashes.
