2014 Citroen DS5 HYBRID4 Owner's Manual

15Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Sitting comfortably
Front seats
Manual
1. Head restraint height and angle adjustment.
2. Backrest angle adjustment.
3. Seat cushion height adjustment. 4. Seat forwards-backwards adjustment. 5. Driver's lumbar support adjustment.
Electric
1. Angle, seat height and seat forwards-backwards adjustment. 2. Backrest angle adjustment. 3. Driver's lumbar support adjustment. 4. Manual cushion adjustment.
106
107

DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
14 . Controls for electric windows / electric child lock / central locking. 15. eMyWay controls. 16. Gear selector. 17. Hybrid4 mode selector.
18. Heating / air conditioning controls. 19. Audio system. 20. Hazard warning lamps. 21. Multifunction screen. 22. Central adjustable air vents. 23. Clock. 24. Starting with the START/STOP button. 25. Electronic key reader. 26. Wiper / screenwash / trip computer stalk.

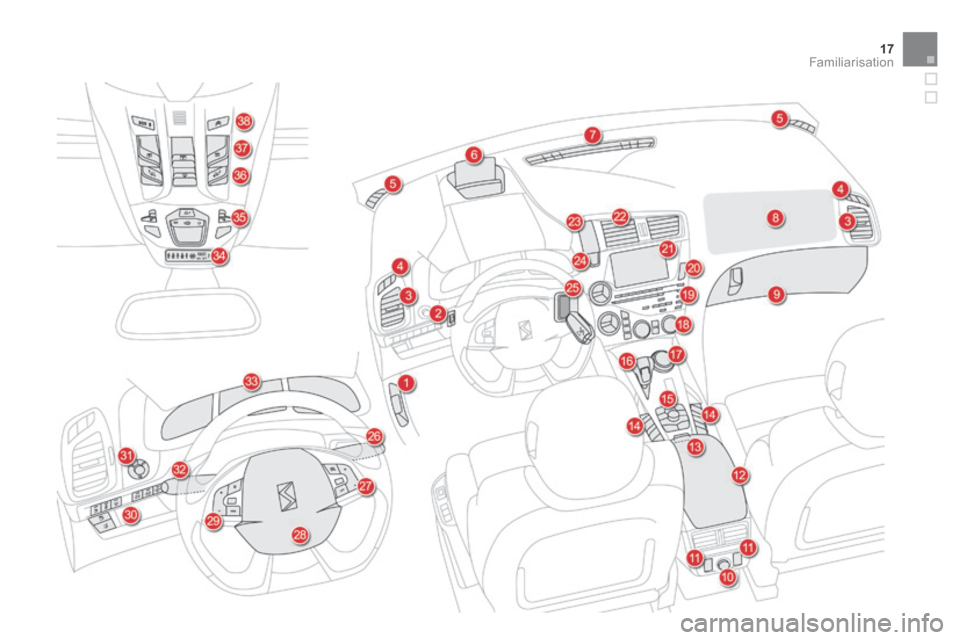

Instruments and controls
1. Bonnet release lever. 2. Headlamp height adjustment. 3. Side adjustable air vents. 4. Front door window demisting/defrosting vents.
5. Quarter light demisting windows. 6. Head-up display. 7. Windscreen demisting/defrosting vent. 8. Passenger's airbag. 9. Glove box / Passenger's airbag deactivation inside. 10. 12 V accessory socket. 11. Rear electric window controls. 12 . Central armrest with storage. USB port / auxiliary socket. 13. Electric parking brake.
2 7. Audio equipment steering mounted controls. 28. Driver's airbag. Horn. 29. Cruise control / speed limiter controls.
30. Switch panel (see previous page). 31. Door mirror adjustment. 32. Lighting and direction indicator stalk 33. Instrument panel. 34. Seat belt and airbag warning lamps. 35. Courtesy lamp. 36. Head-up display controls. 3 7. Controls for cockpit glass roof blind. 38. CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

17Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013

DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Sitting comfortably
Head restraint adjustment
1. Release the adjustment mechanism. 2. Adjust for height and reach. 3. Lock the adjustment mechanism.
Steering wheel adjustment
For reasons of safety, these operations must only be carried out with the vehicle stationary.
To lower it, simultaneously press button A and push down on the head restraint. To raise it, guide the head restraint upwards to the desired position. To incline it, swivel the lower part backwards or forwards.
109
115

19Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Sitting comfortably
Door mirrors
Adjustment
1. Selection of the left or right mirror. 2. Adjusting the position of the mirror glass. 3. Deselection of the mirror. 4. Folding the mirror.
Rear view mirror
1. Automatic detection of day/night mode. 2. Rear view mirror adjustment.
Front seat belts
1. Fastening. 2. Adjusting for height.
114
115
202

DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Seeing clearly
Lighting
Ring A
Ring B
Wipers
Control stalk A: windscreen wipers
2. Fast wipe. 1. Normal wipe. Int. Intermittent wipe.
0. Park. AUTO Automatic wiping.
 Single wipe: Brief pull on the stalk towards. Screenwash: Long pull on stalk towards you.
Switching on "AUTO" mode
 Briefly push the stalk downwards.
Switching off "AUTO" mode
 Briefly push the stalk downwards or place the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Park. Intermittent wipe. Screenwash.
160
171
173
172

21Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the bars indicate the fuel remaining.
Instrument panel
1. With the ignition on, the orange and red warning lamps come on. 2. With the hybrid system active, these warning lamps should go off. If a warning lamp remains on, refer to the corresponding section.
Warning lamps
B. With the ignition on, the instrument panel screen should indicate the oil level. If the levels are not correct, top up the level which is low.
59
58

DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Passenger safety
1. Open the glove box. 2. Insert the key (integral with the electronic key). 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag Front seat belts and
passenger's front airbag
A. Left hand front seat belt not fastened or unfastened warning lamp. B. Right hand front seat belt not fastened or unfastened warning lamp. C. Right hand rear seat belt not fastened or unfastened warning lamp. D. Centre rear seat belt not fastened or unfastened warning lamp.
E. Left hand rear seat belt not fastened or unfastened warning lamp. F. Front passenger's airbag deactivated warning lamp. G. Front passenger's airbag activated warning lamp.
206
203
