2014 CITROEN C-ELYSÉE Handbook (in English)

135
9
Practical information

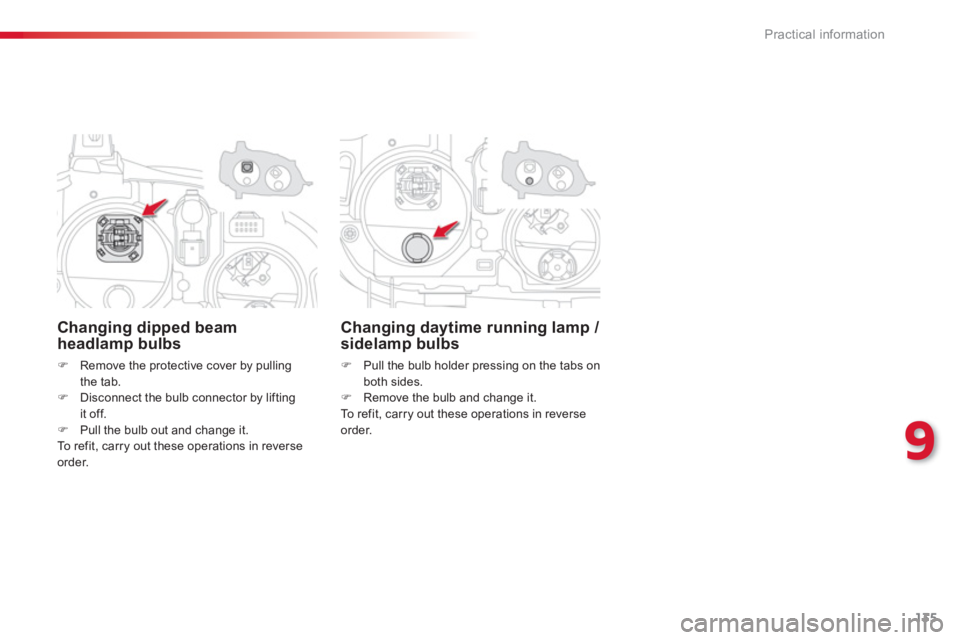

Changing dipped beamheadlamp bulbs
)Remove the protective cover by pullingthe tab. )Disconnect the bulb connector by lifting
it off.)Pull the bulb out and change it.
To r e f i t , c a r ry out these operations in reverse order.

Changing daytime running lamp /
sidelamp bulbs
) Pull the bulb holder pressing on the tabs on both sides. )
Remove the bulb and change it.
To r efit, carry out these operations in reverse order.

136
Practical information
Changing front foglamp bulbs
)Access to the front foglamp is through the aper ture below the bumper.
If necessary, unscrew and completely remove the cover.)Turn the bulb holder a quar ter turn anti-clockwise and pull it out. )Disconnect the bulb connector. )Remove the bulb and change it.
To r e f i t , c a r ry out these operations in reverse order.
If you experience any difficulty in replacing bulbs, contact your CITROËNdealer or a qualified workshop.
Changing direction indicator side
repeaters
)Insert a screwdriver towards the centre of
the repeater between the repeater and the
base on the body.
)Tilt the screwdriver to extract the repeater and remove it.)Disconnect the repeater connector.)Replace the module.
To r e f i t , c a r ry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain areplacement side repeater module.

137
9
Practical information
Changing bulbs
These bulbs are changed from inside the boot:
) open the boot,)
remove the access grille from thecorresponding side trim panel, )
slacken and remove the nut,
)
disconnect the lamp unit connector,)
unclip the lamp unit by lowering the tongue
and carefully extract it pulling in line
towards the outside,
)remove the four screws and lift off the bulb
holder,
)turn the failed bulb a quar ter of a turn and change it.
To r e f i t , c a r r
y out these operations in reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp. 1
.Direction indicators (PY21W amber).2.Reversing lamps (R10W).3.Foglamp (P21W).4.Sidelamps (P21/5W).5.Brake lamps / sidelamps (P21/5W).



















Rear lamps

138
Practical information
Third brake lamp (5 W5W bulbs)Number plate lamps (W5W)
)Insert a thin screwdriver into one of the
transparent lens.
)Push it outwards to unclip it and remove it. )Remove the failed bulb and change it. To reassemble, carry out these operations inreverse order.
Ensure that the housing cover is correctly positioned on its support before clipping it into place.
To c h a n
ge these bulbs, it is necessary toremove the housing from the rear shelf, working from the rear seats:)pull the housing cover towards you and up
to disengage it,
) disconnect the lamp connector,)
unclip the bulb holder by lifting the two lugs
and remove it,) replace the failed bulb.
To reassemble, carry out these operations in reverse order.

139
9
Practical information




















Changing a fuse

The extraction tweezer is fitted to the back of
the dashboard fusebox cover. )unclip the cover by pulling at the top right,
then left, )disengage the cover completely and turn it over,

Access to the tools
)
remove the tweezer.

140
Practical information
Changing a fuse
GoodFailed CITROËN will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not
recommended by CITROËN andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.



Installing electricalaccessories

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop. Be
fore changing a fuse:
)the cause of the failure must be identifiedand rectified, )all electrical consumers must be switched
off,
)the vehicle must be immobilised with theignition off,)identify the failed fuse using the tables andlayout drawings in the following pages.
To replace a fuse,
you must: )use the special tweezer to extract the fuse
from its housing and check the condition of its filament.)always replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of fire).
Tweezer
The replacement of a fuse not shown in the tables below may cause a serious malfunction of your vehicle. Contacta CITROËN dealer or a qualified workshop.

If the fuse fails again soon after replacement, have the vehicle's electricalsystem checked by a CITROËN dealer or a qualified workshop.

141
9
Practical information

Dashboard fuses

The fusebox is placed in the lower dashboard(left-hand side).


Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse N°RatingFunctions
F02
5 A Headlamp adjusters, diagnostic socket, air conditioning panel.
F09
5 A Alarm, alarm (accessory).
F1
15 A Additional heating.
F1
35 A Parking sensors, parking sensors (accessory).
F1410 A Air conditioning panel.
F1
615 A
Cigarette lighter, 12 V socket.
F17 15 A
Audio s
ystem, audio system (accessory).
F1
820 A Audio system / Bluetooth, audio system (accessory).
F1
95 A Monochrome screen C.
F2
35 A Courtesy lamps, map reading lamps.
F2
615 A
Horn.
F27 15 A
Screenwash pump.
F2
85 A Anti-theft.
Fuse tables

142
Practical information
Fuse N°RatingFunctions
F2
925 A Heated rear window.
F3
010 A Heated door mirrors.
F3
1- Not used.
F32
- Not used.
F33
30 A
Front electric windows.
F3
430 A Rear electric windows.
F3
530 A
Heated front seats.
F3
6- Not used.
F37 20
A Trailer interface.
