2014 CITROEN C-ELYSÉE Handbook (in English)

95
6
Visibility
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Manual guide-me-home
lighting
Switching on
) With the ignition off, "flash" the headlamps using the lighting stalk.)
A fur ther "headlamp flash" switches thefunction off.



Switching off

The manual guide-me-home lighting switchesoff automatically after a set time.

Daytime running lamps *
On star ting the vehicle, the daytime running
lamps come on automaticall
y, if the lighting control stalk is in the "0" position.

*

According to country. The da
ytime running laps go off if
the sidelamps and dipped beam
headlamps are switched on.
This function cannot be deactivated.

96
Visibility





Headlamp adjustment
To avoid causing a nuisance to other road users, the headlamp beams should be adjustedaccording to the load in the vehicle.
This adjstment can be carried out using the control located:
- under the bonnet
,- below and to the left of the steering wheel (depending on version).


The initial setting is position "0".
01 or 2 people in the front seats.- 5 people. 15 people + maximum authorised load in the boot.-Driver + maximum authorised load in the boot.2Not used. -Not used. 3Not used.
Under the bonnet
)Raise the bonnet for access to the control (one per headlamp). Adjustment is always done clockwise.



Tr a v e l l i ng abroad

If using your vehicle in a country thatdrives on the other side of the road, theheadlamps must be adjusted to avoid dazzling on-coming drivers. Contact a CITROËN dealer or a qualified workshop.


To the left of the steering wheel

97
6
Visibility

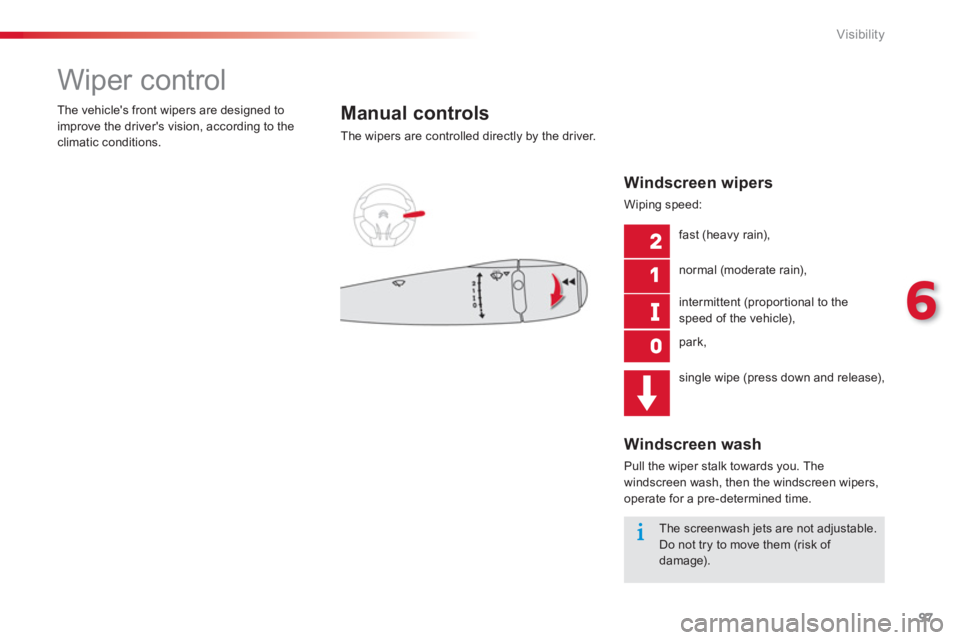

Wiper control
Manual controls
The wipers are controlled directly by the driver. The vehicle's front wipers are desi
gned to
improve the driver's vision, according to the climatic conditions.

Windscreen wipers

Wiping speed:
fast
(heavy rain),
normal
(moderate rain),
intermittent
(proportional to the
speed of the vehicle),
park,
sin
gle wipe (press down and release),
Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen wipers, operate for a pre-determined time.

The screenwash jets are not adjustable.Do not try to move them (risk of damage).

98
Visibility
Special position of the
w
indscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to detach the blades from the windscreen.
To maintain the effectiveness of the"flat-blade" type of wiper blades, it isadvisable to:- handle them with care, - clean them regularly using soapy water, - avoid using them to retain cardboard on the windscreen, - replace them at the first signs of wear.
)Any action on the wiper stalk in the minute after switching off the ignition places theblades vertically on the screen. )To park the blades again, switch on the ignition and operate the wiper stalk.

99
6
Visibility











Courtesy lamps
In this position, the cour tesy lamp comes on gradually:
- when the vehicle is unlocked,
- when the ke
y is removed from the ignition,
- when a door is opened,
- w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches o
ff gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanentl
y off.
Permanent lighting.
)With the ignition on, press the
corresponding switch.

A.Courtesy lampsB.Map reading lamps

With the "permanent lighting" mode, the duration of lighting varies, depending on the circumstances:


- with the ignition off, approximately ten minutes,

- in energy economy mode,approximately thirty seconds,

- with the engine running, unlimited.


Front map reading lamps Front and rear courtesy lamps

100
Safety











Direction indicators
Selection of the left or right direction indicators
to signal a change of direction of the vehicle. )Left: lower the lighting stalk beyond thepoint of resistance.)Right: raise the lighting stalk beyond thepoint of resistance.
"Motorway" function
)Press briefly upwards or downwards,
without going beyond the point of resistance; the direction indicators will flash 3 times.








Hazard warning lamps
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lampscome on automatically.
The
y switch off automatically the first time youaccelerate. )
You can also switch them off by pressing
the button.
) Press this button, the direction indicatorsflash.
They can operate with the ignition off.









Horn
)Vehicle with driver's airbag: press the central part of the steering wheel.
or )Vehicle without driver's airbag: press theend of the lighting control stalk.
Audible warning system to alert other road
users to an imminent danger.

Use the horn moderately and only in the following circumstances:


- immediate danger,

- over taking a cyclist or pedestrian,

- approaching a location lackingvisibility.
A visual warnin
g by means of the directionindicators to alert other road users to a vehiclebreakdown, towing or accident.

101
7
Safety
Group of supplementary systems which helpyou to obtain optimum braking in completesafety in emergency situations:


- anti-lock brakin
g system (ABS),

- electronic brake force distribution (EBFD),

- emergency braking assistance (EBA).

















Braking assistance systems


Anti-lock braking system
and electronic brake force
distribution

Linked systems which improve the stability andmanoeuvrability of your vehicle when braking,
in par ticular on poor or slippery surfaces.

Activation

The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself felt by slight vibration of the brake pedal.
Operating fault
Emergency braking assistance
System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.
When braking in an emergency, press firmly without releasing the pressure.


When braking in an emergency, press very firmly without releasing thepressure.
When replacing wheels (tyres andrims), ensure that they conform to the manufacturer's recommendations. I
f this warning lamp comes on,
accompanied by an audible signaland a message in the screen, it indicates a malfunction of the anti-lock braking
system which could result in loss of control of
the vehicle when braking.
I
f this warning lamp comes on,
together with the STOP
and ABSwarning lamps, accompanied by anaudible signal and a message in the screen, it indicates a malfunction of the electronic brake
force distribution which could result in loss of control of the vehicle when braking.
You must stop as soon as it is safe to do so.In either case, contact a CITROËN dealer or aqualified workshop.
Activation
It is triggered by the speed at which the brake pedal is pressed.
The effect of this is a reduction in theresistance of the pedal and an increase in
braking efficiency.
Coasting with the engine off results in aloss of power assistance for braking.

102
Safety
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)
The anti-slip regulation (also known as Traction Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of thedriving wheels and on the engine.
The electronic stability programme acts on the
brake o
f one or more wheels and on the engine to
keep the vehicle on the trajectory required by the
driver, within the limits of the laws of physics.
This is indicated b
y flashing of this
warning lamp in the instrument panel.



The ASR /ESP systems offer exceptional safety in normal driving, butthis should not encourage the driver to take extra risks or drive at high speed.
The correct functioning of these systems depends on obser vation of the manufacturer's recommendations regarding the wheels (tyres and rims),the braking components, the electronic components and the assembly and repair procedures used by theCITROËN dealer network.
After an impact, have these systems checked by a CITROËN dealer or a qualified workshop.



Operating fault

Illumination of the warning lamp,
accompanid b
y a message in the screen indicates a malfunction of
these systems.
Reactivation
These systems are reactivated automatically every time the ignition is switched of, or from
30 mph (50 km/h).) Press this button again to reactivate them
manually.
The lamp in the button goes off.
The symbol going off in the instrument panel
indicates the reactivation of the ASR and ESP
s
ystems.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheelscan move freely and regain grip.














Trajectory control systems
Activation
These systems are activated automatically each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.The displa
y of this symbol indicates
that the ASR and ESP systems are deactivated.
) Press this button button, located on
the dashboard (driver's side), until the corresponding symbol appears in the
instrument panel screen.
The lamp in the button comes on. Contact a CITROËN dealer or a qualified
workshop to have the ASR /ESP s
ystems checked.


Coasting with the engine off results in a loss of power assistance for the steering.
