2014 CITROEN C-ELYSÉE Handbook (in English)

127
9
Practical information

Wheel with trim
When refitting the wheel
, refit the trim starting by placing its notch facing the valve and press around its edge withthe palm of your hand.

The spare wheel is installed in the boot under
the floor
(depending on version).
To gain access to it, refer to the paragraph"Access to the tools" on the previous page.
Access to the spare wheel

Ta k i ng out the wheel
)
Unscrew the yellow central bolt. )
Raise the spare wheel towards you from
the rear. ) Take the wheel out of the boot.

128
Practical information
) Put the box back in the centre of the wheel
and clip it in place.

)Put the wheel back in its housing. )Unscrew the yellow central bolt by a few
turns then put it in place in the centre of the
wh
eel. )Tighten fully until the central bolt clicks to
retain the wheel correctly.

129
9
Practical information
Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does notblock traffic: the ground must be level, stable and not slippery. Apply the parking brake, switch off the
ignition and engage first gear *
to blockthe wheels. Check that the parking brake warninglamps in the instrument panel come on.
The occupants must get out of the vehicle and wait where they are safe.
Ensure that the jack is correctly positioned at one of the vehicle's jacking points.
Incorrect use of the jack could cause the vehicle to drop.
Never go underneath a vehicle raised using a jack; use an axle stand.


List of operations
)
Remove the bolt cover from each of
the bolts using the tool 3 (according to equipment).)
Slacken the bolts using the wheelbrace 1only.

Do not use:
- the jack for any other purpose thanlifting the vehicle,- a jack other than the one suppliedby the manufacturer.




*
position R
for an electronic
gearbox; Pfor an automatic gearbox.

130
Practical information
)Place the jack 2 in contact with one of the
two front A or rear Blocations provided on
the underbody, whichever is closest to the
wheel to be changed.

)Remove the bolts and store them in a clean place. )Remove the wheel.
)
Extend the jack 2
until its base plate is incontact with the ground. Ensure that the centreline of the jack base plate is directlybelow the location Aor B
used.)
Raise the vehicle until there is sufficient space between the wheel and the ground
to admit the spare (not punctured) wheeleasily.

131
9
Practical information

Fitting a wheel
Fitting the spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it isnormal to notice that the washers do not come into contact with the spare wheel.
The wheel is secured by the conical surface of each bolt.
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. Have the tightening of the bolts and thepressure of the spare wheel checkedby a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repaired and refitted to the vehicle as soon as possible.


List of operations
)
Put the wheel in place on the hub. )
Screw in the bolts fully by hand.)
Pre-tighten the bolts using the
wheelbrace 1only.

132
Practical information

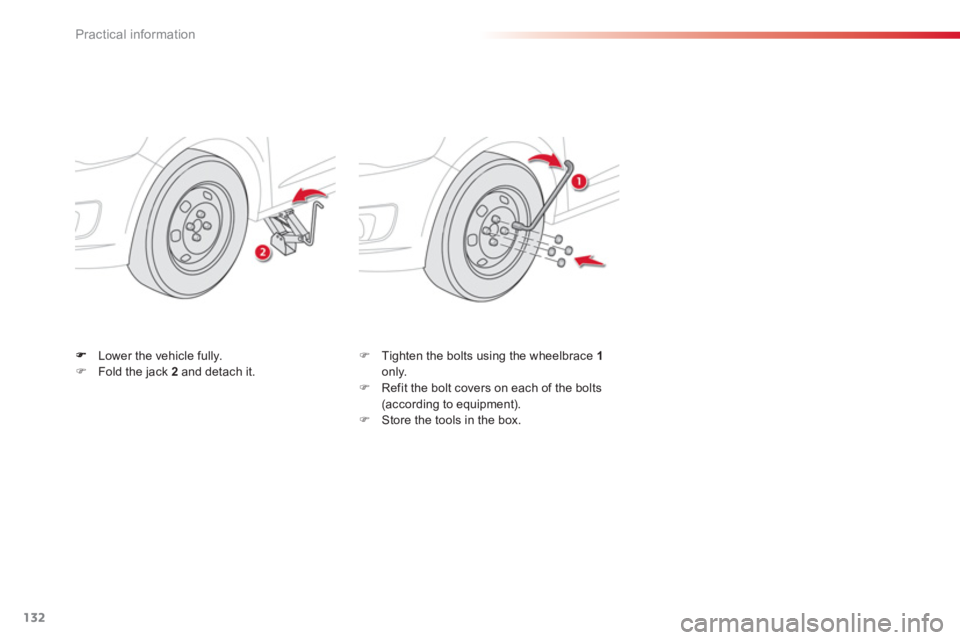

Lower the vehicle fully. )Fold the jack 2 and detach it.
)
Tighten the bolts using the wheelbrace 1only. )
Refit the bolt covers on each of the bolts(according to equipment).)
Store the tools in the box.

133
9
Practical information











Changing a bulb


Front lamps

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

The headlamps are fitted with polycarbonate glass with a protectivecoating:)do not clean them using a dry or abrasive cloth, nor with a detergent or solvent product,)
use a sponge and soapy water or apH neutral product,)
when using a high pressure washer on persistent marks, do not keep the lance directed towards thelamps or their edges for too long, so as not to damage their protectivecoating and seals,)
do not touch the bulb directly withyour fingers, use lint-free cloths.
Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order notto damage the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.1
.Direction indicators (PY21W amber).2. Main beam headlamps (H1- 55W).3.Dipped beam headlamps (H7-55W).4.Daytime running lamps / sidelamps(W21/5W).or
Sidelamps (W5W).5.Front foglamps (H11- 55W).

134
Practical information

Amber coloured bulbs, such as thedirection indicators, must be replacedwith bulbs of identical specificationsand colour.
When refitting, close the protective cover carefully to preser ve the sealing of the headlamp.


Rapid flashing of the direction indicator warning lamp (right or left) indicates thefailure of a bulb on that side.
Changing direction indicator bulbs
)Turn the bulb holder an eighth of a turn anti-clockwise and extract it.)Remove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlampbulbs
)Remove the protective cover by pulling on
the tab. )Disconnect the bulb connector. )Push the spring to one side to release the bulb.)Remove the bulb and change it.
To r e f i t , c a r ry out these operations in reverse order.
