2014 CHRYSLER 300 SRT Owners Manual

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................371
▫ Automatic Transmission ................371
▫ Keyless Enter-N-Go™ ..................372
▫ Normal Starting ...................... .372
▫ Extreme Cold Weather (Below –20°F Or
29°C) ............................ .374
▫ If Engine Fails To Start .................374
▫ After Starting ....................... .376
 ENGINE BLOCK HEATER — IF EQUIPPED . . .376
 AUTOMATIC TRANSMISSION ............377▫
Key Ignition Park Interlock ...............378
▫ Brake/Transmission Shift Interlock System . . .379
▫ Five-Speed Automatic Transmission ........379
 AUTOSTICK® ........................ .386
▫ Steering Wheel Mounted Paddle Shifters Or
Console Mounted Shifter ................386
 SPORT MODE ........................ .389
 LAUNCH MODE — IF EQUIPPED ..........390
 DRIVING ON SLIPPERY SURFACES .........392
▫ Acceleration ........................ .392
5

▫Traction ........................... .393
 DRIVING THROUGH WATER .............394
▫ Flowing/Rising Water ..................394
▫ Shallow Standing Water .................394
 POWER STEERING .....................396
▫ Power Steering Fluid Check ..............396

FUEL SAVER TECHNOLOGY — IF EQUIPPED. . .397
 PARKING BRAKE ..................... .397
 ANTI-LOCK BRAKE SYSTEM .............400
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .402
▫ Anti-Lock Brake System (ABS) ............402
▫ Traction Control System (TCS) ............402
▫ Brake Assist System (BAS) ...............403 ▫
Electronic Stability Control (ESC) ..........404
▫ Hill Start Assist (HSA) .................407
▫ Ready Alert Braking ...................409
▫ Rain Brake Support ....................409
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................410
▫ Synchronizing ESC .....................411
 TIRE SAFETY INFORMATION .............412
▫ Tire Markings ....................... .412
▫ Tire Identification Number (TIN) ...........415
▫ Tire Terminology And Definitions ..........417
▫ Tire Loading And Tire Pressure ...........418
 TIRES — GENERAL INFORMATION ........423
368 STARTING AND OPERATING

▫Tire Pressure ....................... .423
▫ Tire Inflation Pressures .................424
▫ Tire Pressures For High Speed Operation . . . .426
▫ Radial Ply Tires ..................... .426
▫ Tire Types .......................... .427
▫ Run Flat Tires — If Equipped .............428
▫ Spare Tires — If Equipped ...............429
▫ Tire Spinning ....................... .431
▫ Tread Wear Indicators ..................431
▫ Life Of Tire ........................ .432
▫ Replacement Tires .....................433
 TIRE CHAINS (TRACTION DEVICES) .......434
 TIRE ROTATION RECOMMENDATIONS .....436▫
Tire Rotation ........................ .436
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .437
▫ Premium System ..................... .440
▫ General Information ...................444
 FUEL REQUIREMENTS ..................445
▫ 6.4L Engine ......................... .445
▫ Reformulated Gasoline .................445
▫ Gasoline/Oxygenate Blends ..............446
▫ E-85 Usage In Non-Flex Fuel Vehicles .......446
▫ MMT In Gasoline .....................447
▫ Materials Added To Fuel ................447
▫ Fuel System Cautions ...................448
▫ Carbon Monoxide Warnings .............449
5
STARTING AND OPERATING 369

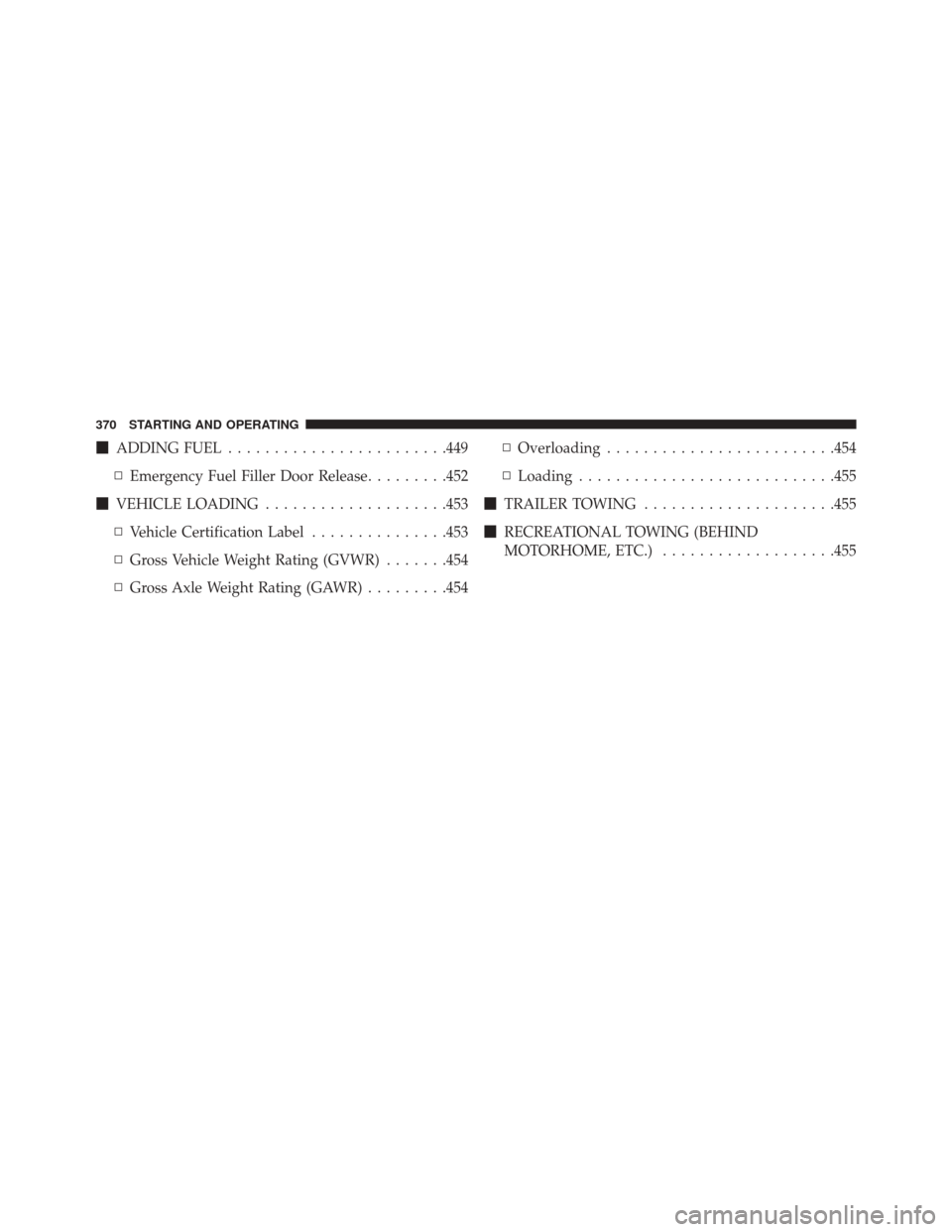

ADDING FUEL ....................... .449
▫ Emergency Fuel Filler Door Release .........452
 VEHICLE LOADING ....................453
▫ Vehicle Certification Label ...............453
▫ Gross Vehicle Weight Rating (GVWR) .......454
▫ Gross Axle Weight Rating (GAWR) .........454▫
Overloading ........................ .454
▫ Loading ........................... .455
 TRAILER TOWING .....................455
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................455
370 STARTING AND OPERATING

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the Key
Fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.5
STARTING AND OPERATING 371

CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
• Shift into PARK only after the vehicle has come to
a complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at
idle speed.
• Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Keyless Enter-N-Go™
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the Remote
Start/Keyless Enter-N-Go™ Key Fob
is in the passenger compartment.
Normal Starting
Using The ENGINE START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pressing the ENGINE START/STOP button once.
372 STARTING AND OPERATING

3. The system takes over and attempts to start thevehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, press the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the shift lever/gear selector in PARK, then press and release the ENGINE START/STOP button.
2. The ignition switch will return to the OFF position.
3. If the shift lever/gear selector is not in PARK, the ENGINE START/STOP button must be held for two
seconds or three short presses in a row with the vehicle speed above 5 mph (8 km/h) before the engine
will shut off. The ignition switch position will remain
in the ACC position until the shift lever/gear selector
is in PARK and the button is pressed twice to the OFF
position. If the shift lever/gear selector is not in PARK
and the ENGINE START/STOP button is pressed
once, the EVIC (if equipped) will display a “Vehicle
Not In Park” message and the engine will remain
running. Never leave a vehicle out of the PARK
position, or it could roll.
NOTE: If the ignition switch is left in the ACC or RUN
(engine not running) position and the transmission is in
PARK, the system will automatically time out after 30
minutes of inactivity and the ignition will switch to the
OFF position.
5
STARTING AND OPERATING 373

ENGINE START/STOP Button Functions — With
Driver ’s Foot OFF The Brake Pedal (In PARK Or
NEUTRAL Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has three positions, OFF, ACC, RUN.
To change the ignition switch positions without starting
the vehicle and use the accessories follow these steps:
1. Starting with the ignition in the OFF position:
2. Press the ENGINE START/STOP button once tochange the ignition to the ACC position.
3. Press the ENGINE START/STOP button a second time to change the ignition to the RUN position.
4. Press the ENGINE START/STOP button a third time to return the ignition to the OFF position.
Extreme Cold Weather (Below –20°F Or 29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
(Continued)
374 STARTING AND OPERATING
