2014 CHRYSLER 300 Owners Manual

Page 265 of 615

CHRYSLER 300 2014 2.G Owners Manual NOTE:HomeLink® is disabled when the Vehicle Secu-
rity Alarm is active.
HomeLink® Buttons/Overhead ConsolesHomeLink® Buttons/Sunvisor/Headliner
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

Page 266 of 615

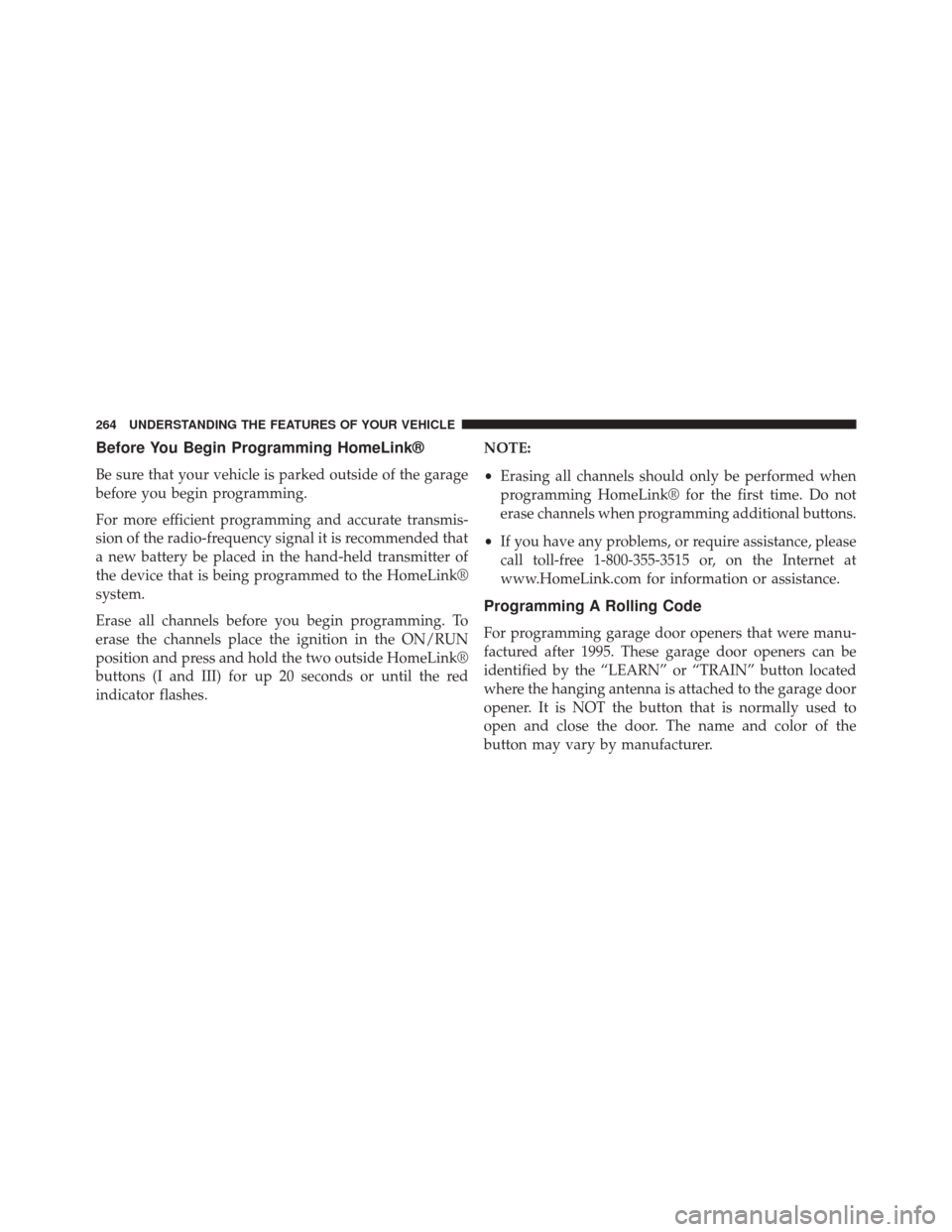

CHRYSLER 300 2014 2.G Owners Manual Before You Begin Programming HomeLink®
Be sure that your vehicle is parked outside of the garage
before you begin programming.
For more efficient programming and accurate transmis-
sion of the radio-

Page 267 of 615

CHRYSLER 300 2014 2.G Owners Manual 1. Cycle the ignition to the ON/RUN position.2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
away from the HomeLink® button you wish to pro-
gram while keeping the HomeLink® indicator light

Page 268 of 615

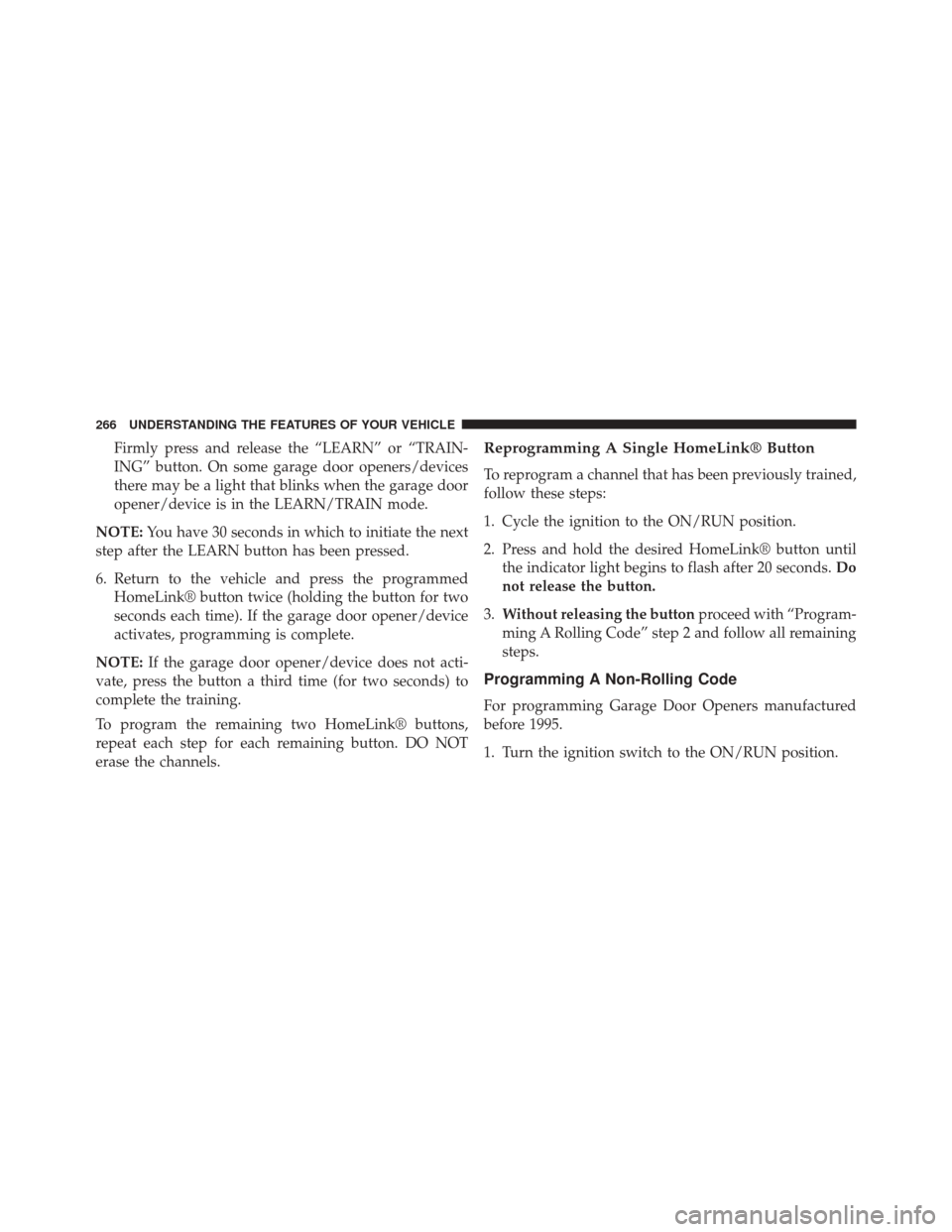

CHRYSLER 300 2014 2.G Owners Manual Firmly press and release the “LEARN” or “TRAIN-
ING” button. On some garage door openers/devices
there may be a light that blinks when the garage door
opener/device is in the LEARN/TRAIN mode.

Page 269 of 615

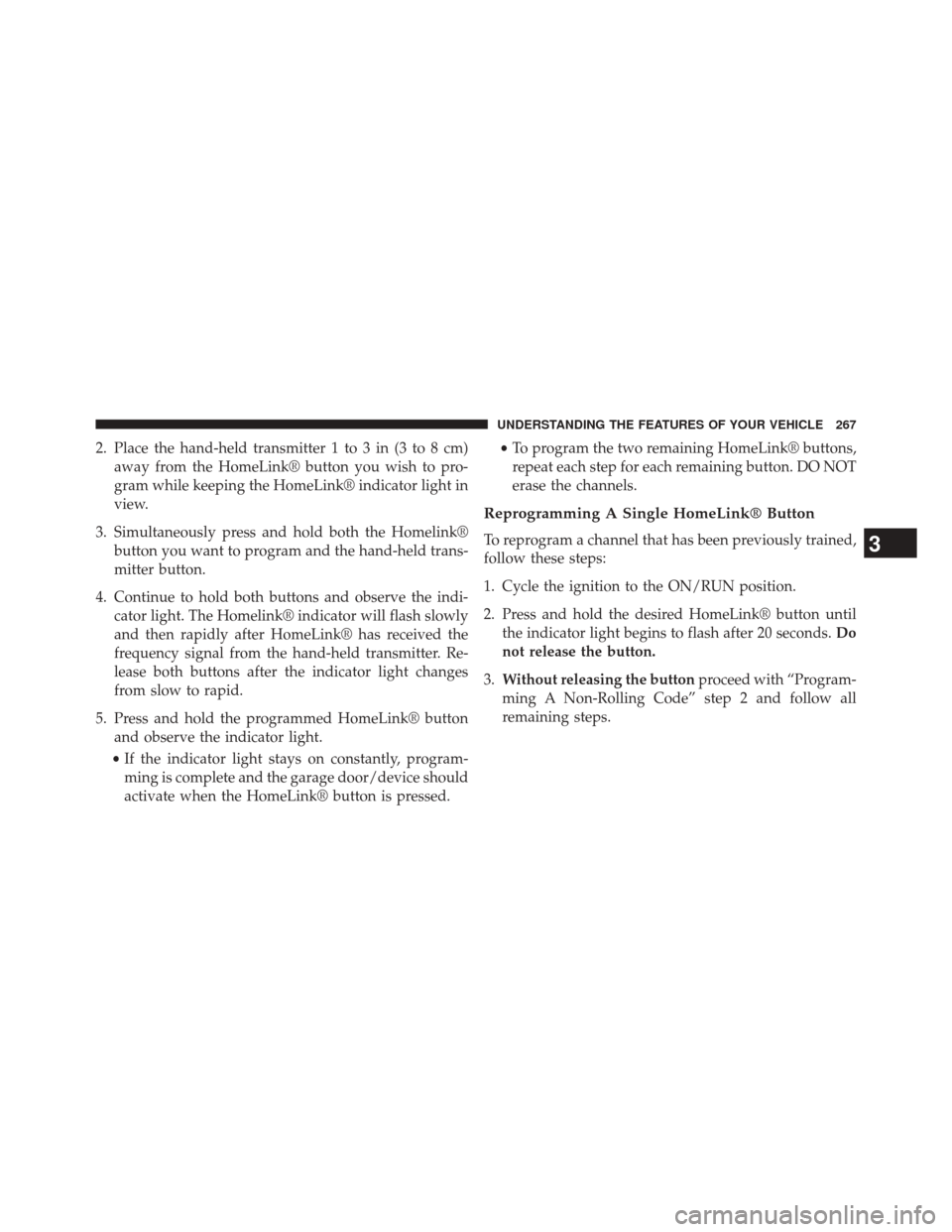

CHRYSLER 300 2014 2.G Owners Manual 2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)away from the HomeLink® button you wish to pro-
gram while keeping the HomeLink® indicator light in
view.
3. Simultaneously press and hold bot

Page 270 of 615

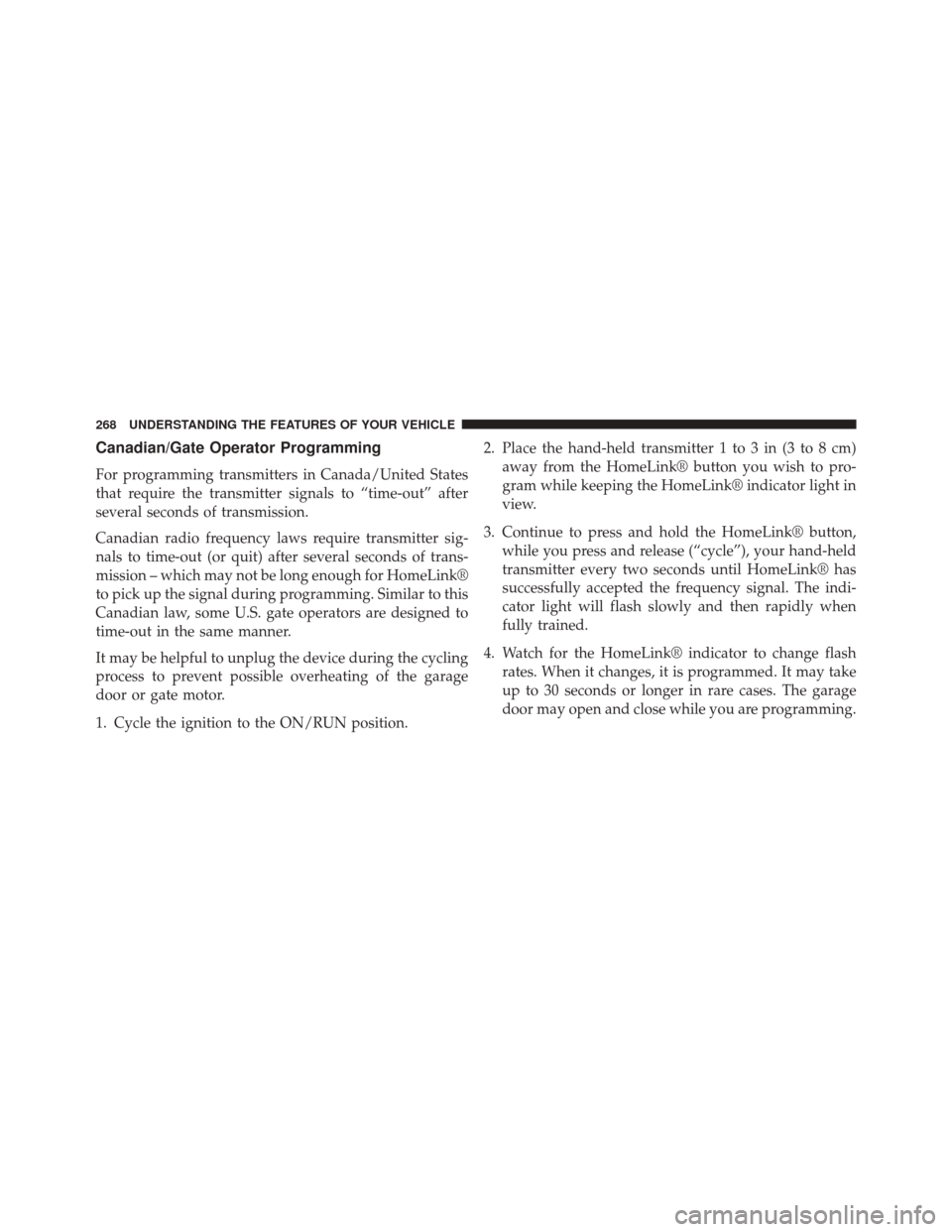

CHRYSLER 300 2014 2.G Owners Manual Canadian/Gate Operator Programming
For programming transmitters in Canada/United States
that require the transmitter signals to “time-out” after
several seconds of transmission.
Canadian radio fre

Page 271 of 615

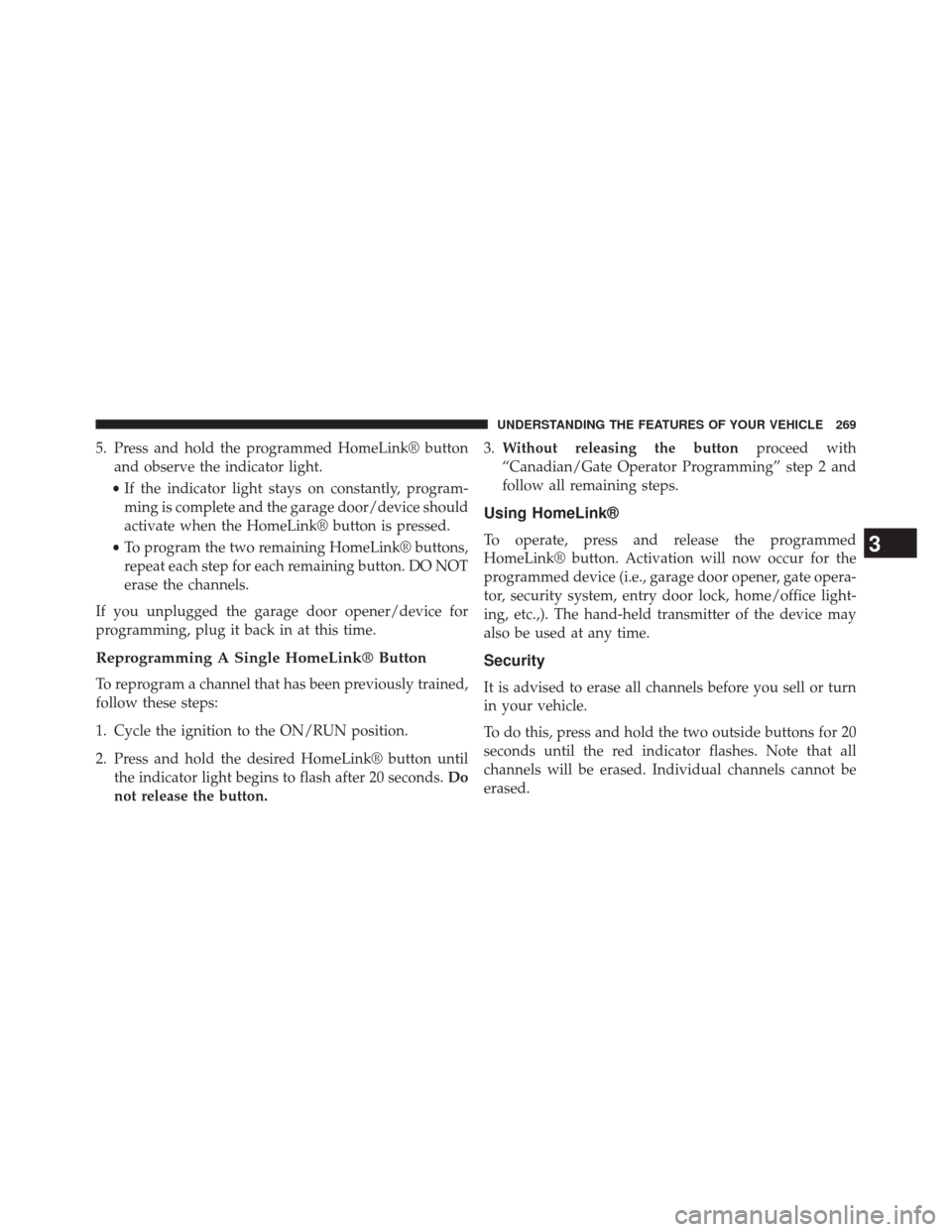

CHRYSLER 300 2014 2.G Owners Manual 5. Press and hold the programmed HomeLink® buttonand observe the indicator light.
• If the indicator light stays on constantly, program-
ming is complete and the garage door/device should
activate

Page 272 of 615

CHRYSLER 300 2014 2.G Owners Manual The HomeLink® Universal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink®,
here are some of the most common solu
