2014 CHRYSLER 300 Owners Manual

Page 121 of 615

CHRYSLER 300 2014 2.G Owners Manual The BSM detection zone covers approximately one lane,
12 ft (3.8 m) on both sides of the vehicle. The zone starts
at the outside rear view mirror and extends approxi-
mately 23 ft (7 m) to the rear of

Page 122 of 615

CHRYSLER 300 2014 2.G Owners Manual contamination so that the BSM system can function
properly. Do not block the area of the rear fascia where
the radar sensors are located with foreign objects (bum-
per stickers, bicycle racks, etc.).T

Page 123 of 615

CHRYSLER 300 2014 2.G Owners Manual Entering From The Side
Vehicles that move into your adjacent lanes from either
side of the vehicle.Entering From The Rear
Vehicles that come up from behind your vehicle on either
side and enter the re

Page 124 of 615

CHRYSLER 300 2014 2.G Owners Manual Overtaking Traffic
If you pass another vehicle slowly with a relative speed
of less than 15 m.p.h. (24 km/h) and the vehicle remains
in the blind spot for approximately 1.5 seconds, the
warning light

Page 125 of 615

CHRYSLER 300 2014 2.G Owners Manual The BSM system will not alert you of objects that are
traveling in the opposite direction of the vehicle in
adjacent lanes.
Overtaking/PassingStationary Objects
3
UNDERSTANDING THE FEATURES OF YOUR VE

Page 126 of 615

CHRYSLER 300 2014 2.G Owners Manual WARNING!
The Blind Spot Monitoring system is only an aid to
help detect objects in the blind spot zones. The BSM
(Continued)
WARNING!(Continued)
system is not designed to detect pedestrians, bicy-
cli

Page 127 of 615

CHRYSLER 300 2014 2.G Owners Manual RCP monitors the rear detection zones on both sides of
the vehicle, for objects that are moving toward the side of
the vehicle with a minimum speed of approximately
3 mph (5 km/h), to objects moving a

Page 128 of 615

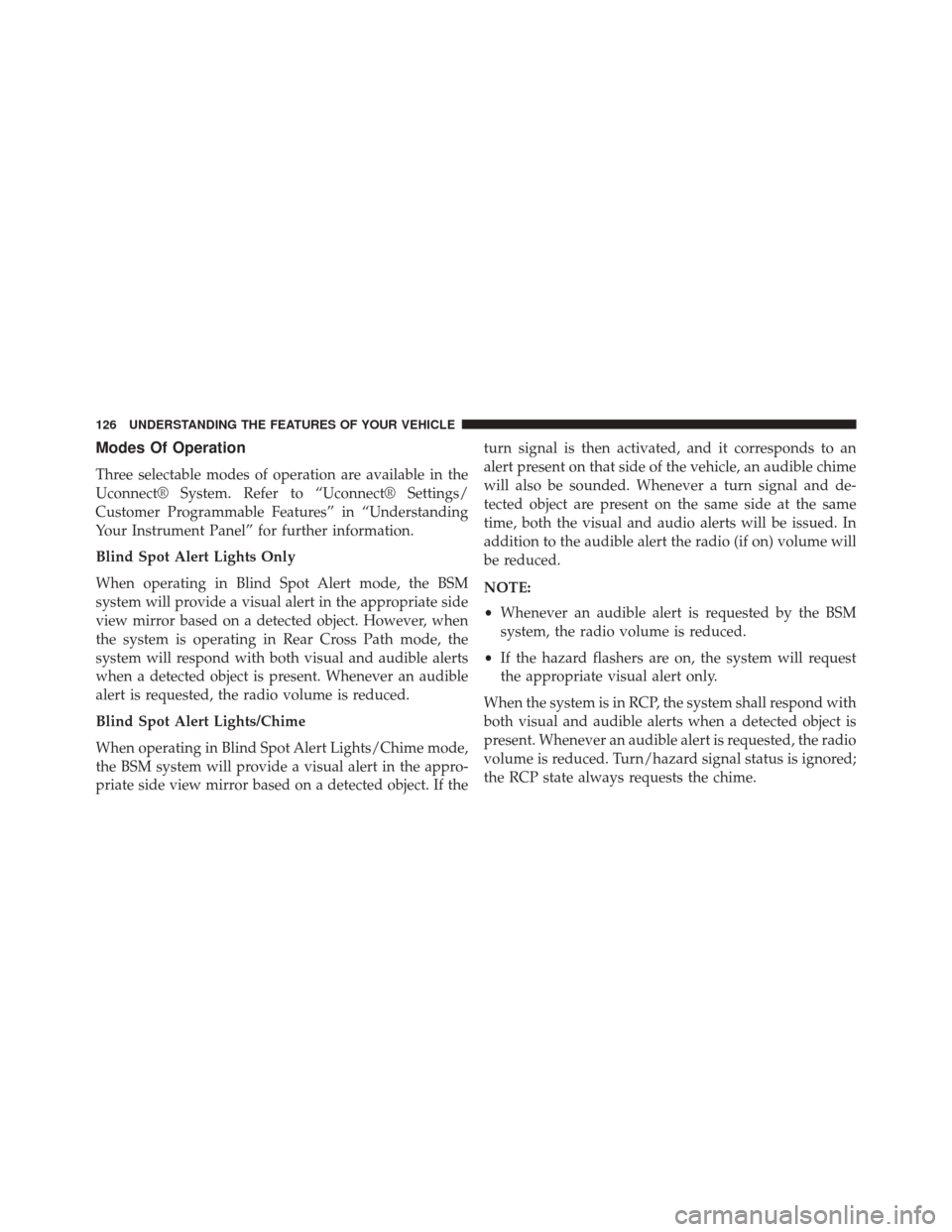

CHRYSLER 300 2014 2.G Owners Manual Modes Of Operation
Three selectable modes of operation are available in the
Uconnect® System. Refer to “Uconnect® Settings/
Customer Programmable Features” in “Understanding
Your Instrument Pa
