2014 CHRYSLER 200 CONVERTIBLE Owners Manual

Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
FLOOR, MIX, or DEFROST mode. The air is directed at
the area of the windows through which you view the
outside mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service inter-
vals.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

Control Setting Suggestions for Various Weather Conditions
296 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................301
▫ Normal Starting ...................... .301
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................302
▫ After Starting ....................... .302
 ENGINE BLOCK HEATER — IF EQUIPPED . . .302
 AUTOMATIC TRANSMISSION ............303
▫ Key Ignition Park Interlock ...............304
▫ Brake/Transmission Shift Interlock System . . .305 ▫
Four-Speed Automatic Transmission — If
Equipped .......................... .305
▫ Six-Speed Automatic Transmission – If
Equipped .......................... .312
 AUTOSTICK® – IF EQUIPPED .............320
▫ Operation .......................... .320
 DRIVING ON SLIPPERY SURFACES .........321
▫ Acceleration ........................ .321
▫ Traction ........................... .322
5

DRIVING THROUGH WATER .............322
▫ Flowing/Rising Water ..................323
▫ Shallow Standing Water .................323
 POWER STEERING .....................324
▫ Power Steering Fluid Check ..............326
 PARKING BRAKE ..................... .327
 ANTI-LOCK BRAKE SYSTEM (ABS) .........329
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .331
▫ Anti-Lock Brake System (ABS) ............332
▫ Traction Control System (TCS) ............332
▫ Brake Assist System (BAS) ...............333
▫ Electronic Stability Control (ESC) ..........333▫
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................336
 TIRE SAFETY INFORMATION .............338
▫ Tire Markings ....................... .338
▫ Tire Identification Number (TIN) ...........341
▫ Tire Terminology And Definitions ..........343
▫ Tire Loading And Tire Pressure ...........344
 TIRES — GENERAL INFORMATION ........349
▫ Tire Pressure ....................... .349
▫ Tire Inflation Pressures .................350
▫ Tire Pressures For High Speed Operation . . . .352
▫ Radial Ply Tires ..................... .352
▫ Tire Types .......................... .353
298 STARTING AND OPERATING

▫Run Flat Tires – If Equipped ..............354
▫ Spare Tires – If Equipped ................354
▫ Tire Spinning ....................... .357
▫ Tread Wear Indicators ..................358
▫ Life Of Tire ........................ .358
▫ Replacement Tires .....................359
 TIRE CHAINS (TRACTION DEVICES) .......360
 TIRE ROTATION RECOMMENDATIONS .....361
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .362
▫ Base System ........................ .364
▫ Premium System – If Equipped ............366
▫ General Information ...................370
FUEL REQUIREMENTS ..................370
▫ Reformulated Gasoline .................371
▫ Gasoline/Oxygenate Blends ..............371
▫ E-85 Usage In Non-Flex Fuel Vehicles .......372
▫ MMT In Gasoline .....................373
▫ Materials Added To Fuel ................373
▫ Fuel System Cautions ...................373
▫ Carbon Monoxide Warnings .............374
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED .......................... .375
▫ E-85 General Information ...............375
▫ Ethanol Fuel (E-85) ....................376
5
STARTING AND OPERATING 299

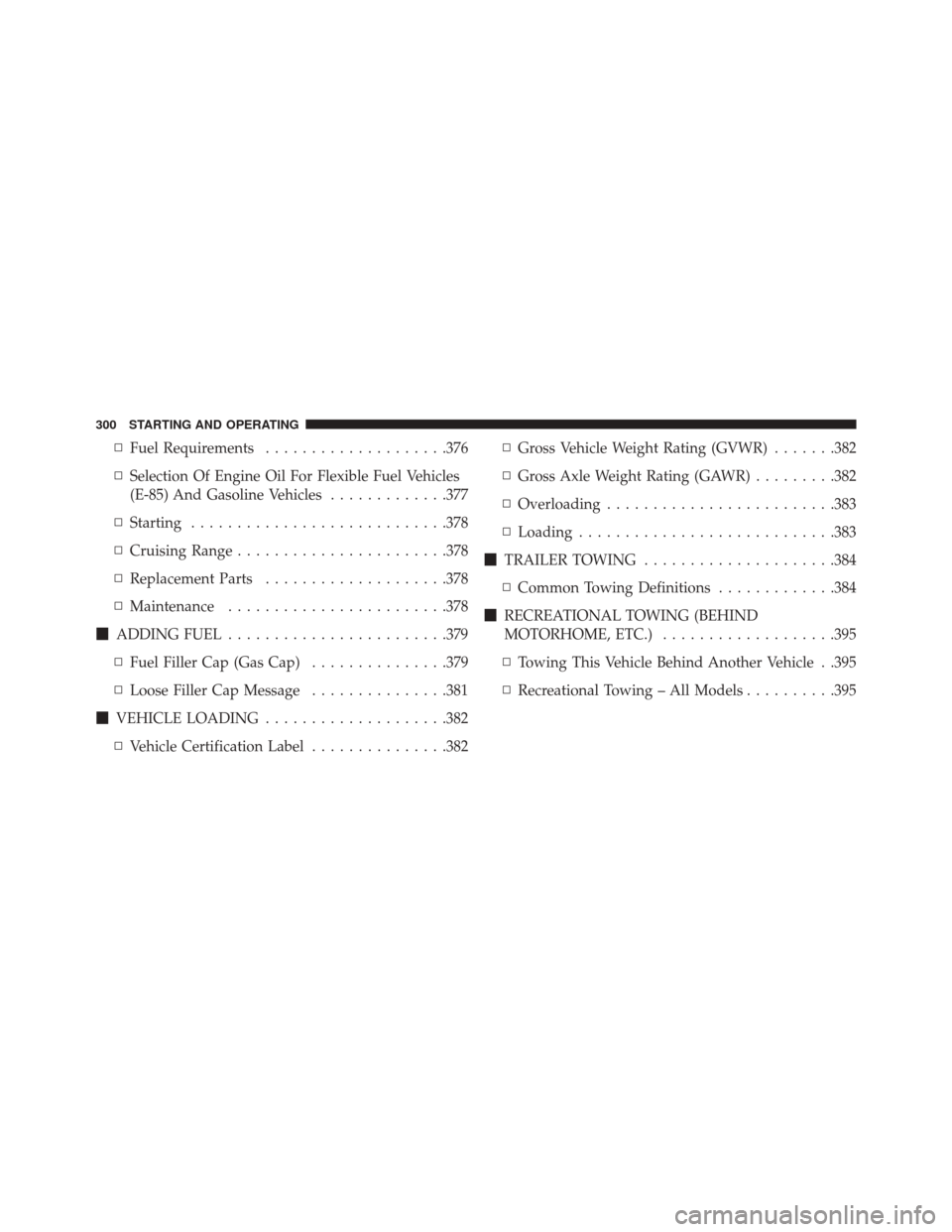

▫Fuel Requirements ....................376
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles .............377
▫ Starting ........................... .378
▫ Cruising Range ...................... .378
▫ Replacement Parts ....................378
▫ Maintenance ....................... .378
 ADDING FUEL ....................... .379
▫ Fuel Filler Cap (Gas Cap) ...............379
▫ Loose Filler Cap Message ...............381
 VEHICLE LOADING ....................382
▫ Vehicle Certification Label ...............382 ▫
Gross Vehicle Weight Rating (GVWR) .......382
▫ Gross Axle Weight Rating (GAWR) .........382
▫ Overloading ........................ .383
▫ Loading ........................... .383
 TRAILER TOWING .....................384
▫ Common Towing Definitions .............384
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ...................395
▫ Towing This Vehicle Behind Another Vehicle . .395
▫ Recreational Towing – All Models ..........395
300 STARTING AND OPERATING

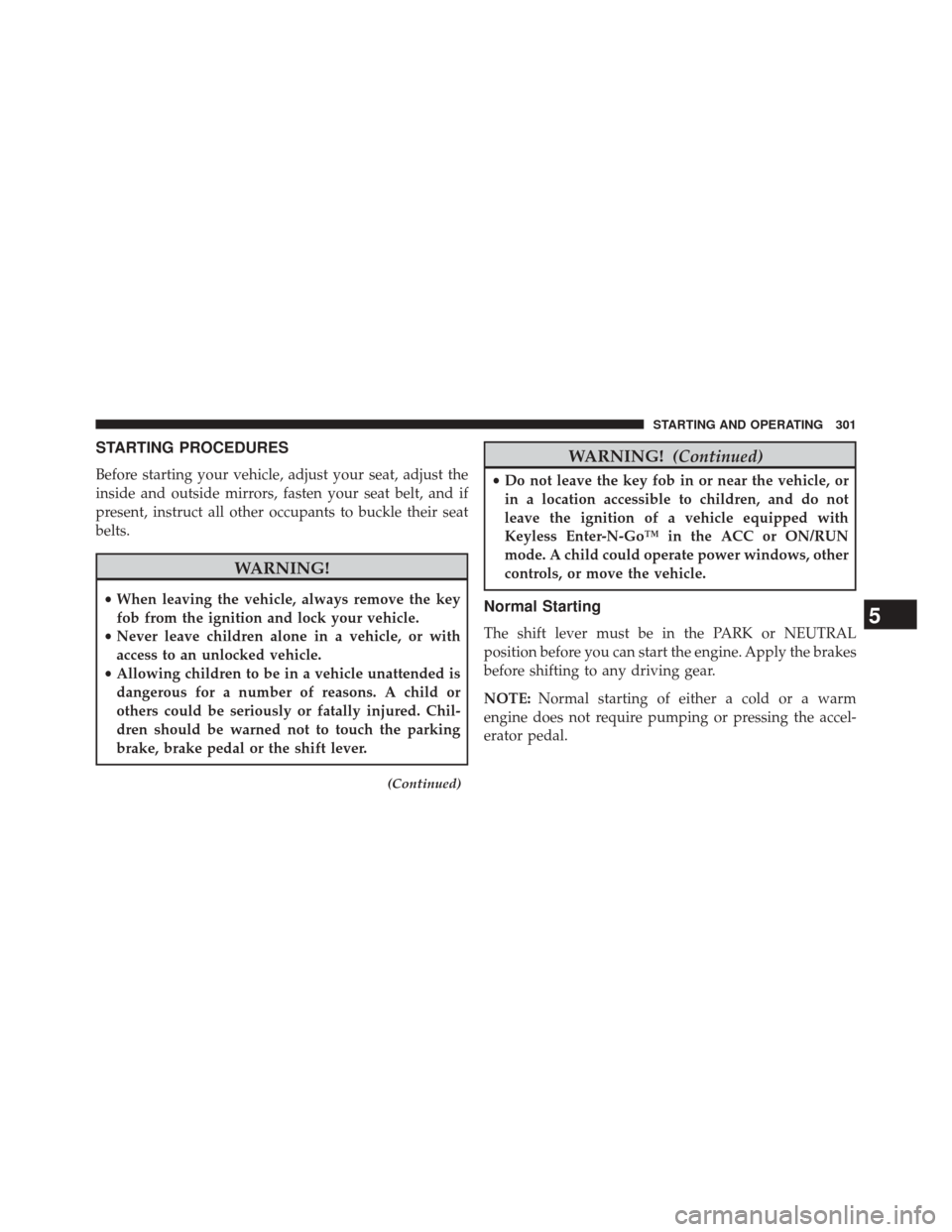

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
Normal Starting
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
NOTE: Normal starting of either a cold or a warm
engine does not require pumping or pressing the accel-
erator pedal.5
STARTING AND OPERATING 301

Tip Start
Do notpress the accelerator. Turn the ignition key briefly
to START position, and release it. The starter motor will
continue to run, and it will disengage automatically
when the engine is running. If the engine fails to start, the
starter will disengage automatically in 10 seconds. If this
occurs, turn the ignition switch to the LOCK position,
wait 10 to 15 seconds, then repeat the “Normal Starting”
procedure.
Extreme Cold Weather (Below –20°F Or 29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.
The engine block heater must be plugged in at least one
hour to have an adequate warning effect on the engine.
The engine block heater cord is bundled under the hood
between the headlight assembly and the Totally Inte-
grated Power Module (Fuse Box) on the driver ’s side of
the vehicle.
WARNING!
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt
electrical cord could cause electrocution.
302 STARTING AND OPERATING
