Page 97 of 522

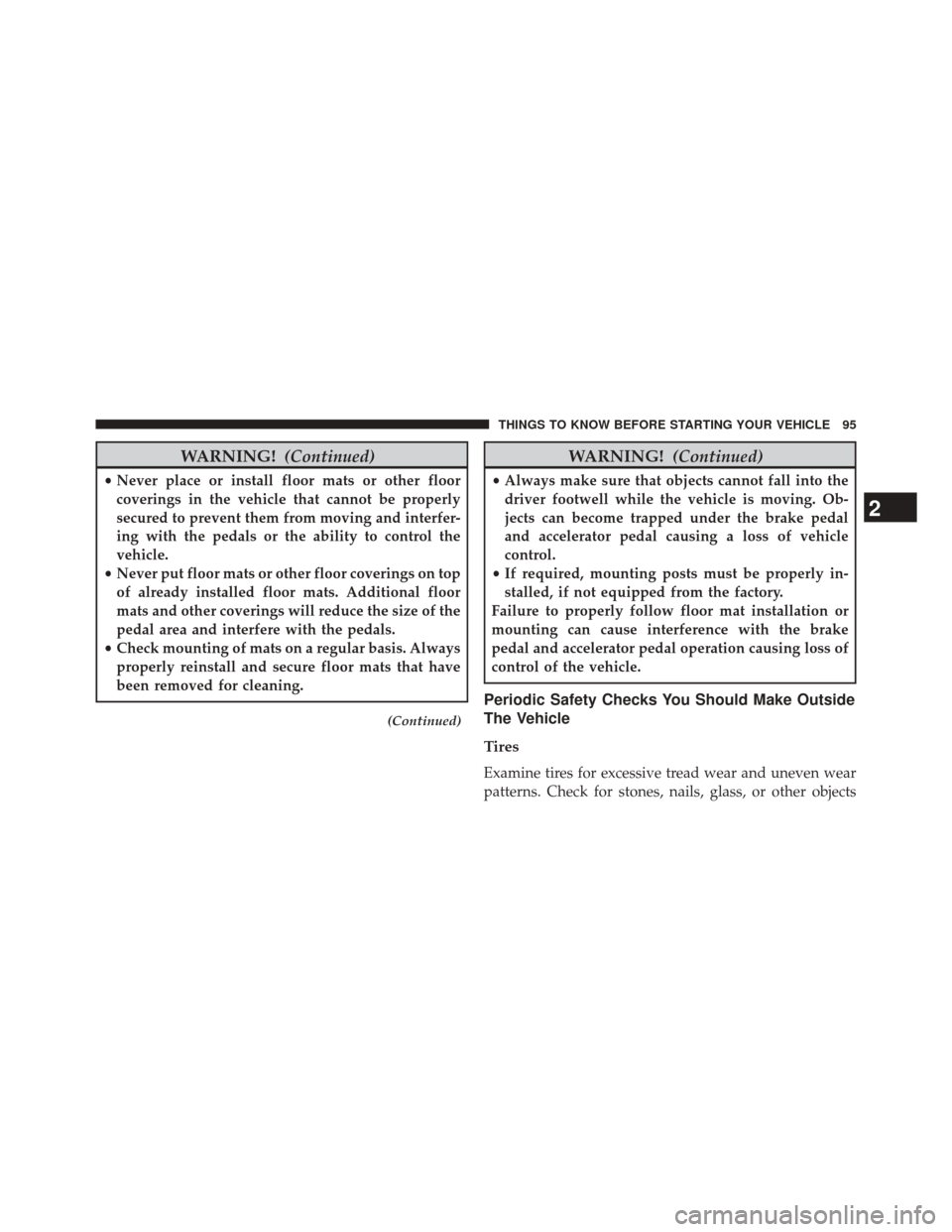

WARNING!(Continued)
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
(Continued)
WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 95
Page 98 of 522
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected, the cause
should be located and corrected immediately.
96 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 99 of 522

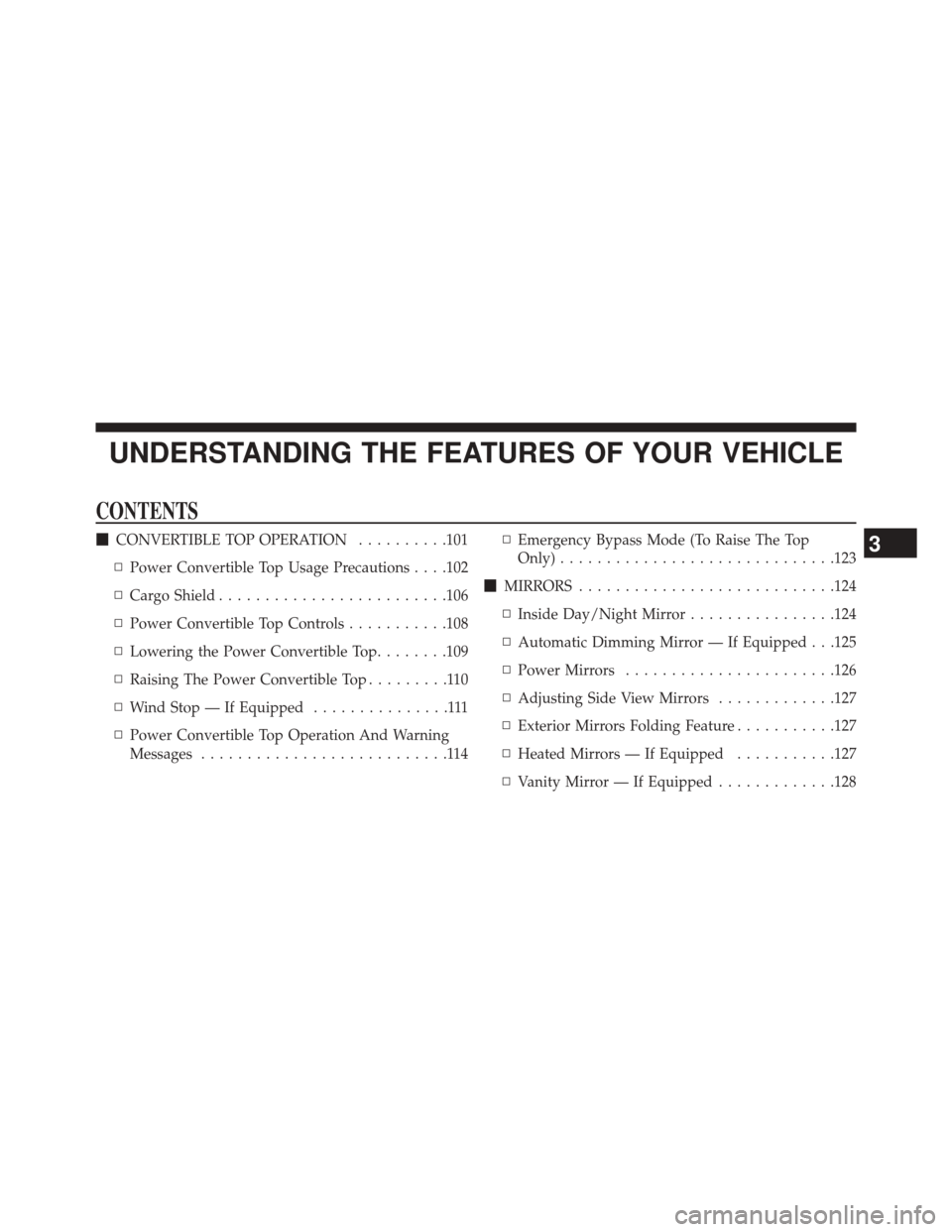

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
CONVERTIBLE TOP OPERATION ..........101
▫ Power Convertible Top Usage Precautions . . . .102
▫ Cargo Shield ........................ .106
▫ Power Convertible Top Controls ...........108
▫ Lowering the Power Convertible Top ........109
▫ Raising The Power Convertible Top .........110
▫ Wind Stop — If Equipped ...............111
▫ Power Convertible Top Operation And Warning
Messages ...........................114 ▫
Emergency Bypass Mode (To Raise The Top
Only) ............................. .123
MIRRORS ........................... .124
▫ Inside Day/Night Mirror ................124
▫ Automatic Dimming Mirror — If Equipped . . .125
▫ Power Mirrors ...................... .126
▫ Adjusting Side View Mirrors .............127
▫ Exterior Mirrors Folding Feature ...........127
▫ Heated Mirrors — If Equipped ...........127
▫ Vanity Mirror — If Equipped .............1283
Page 100 of 522

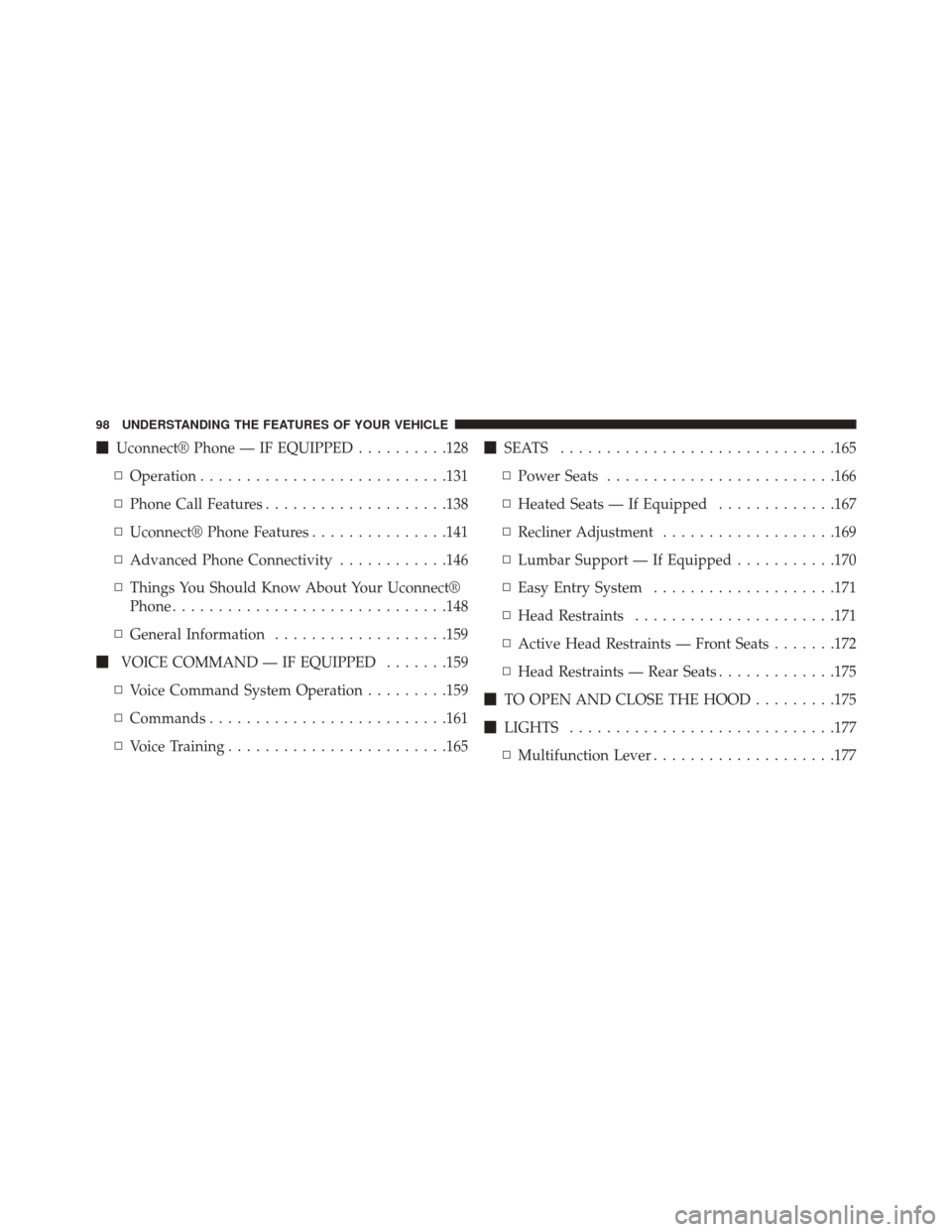

Uconnect® Phone — IF EQUIPPED ..........128
▫ Operation .......................... .131
▫ Phone Call Features ....................138
▫ Uconnect® Phone Features ...............141
▫ Advanced Phone Connectivity ............146
▫ Things You Should Know About Your Uconnect®
Phone ............................. .148
▫ General Information ...................159
VOICE COMMAND — IF EQUIPPED .......159
▫ Voice Command System Operation .........159
▫ Commands ......................... .161
▫ Voice Training ....................... .165
SEATS ............................. .165
▫ Power Seats ........................ .166
▫ Heated Seats — If Equipped .............167
▫ Recliner Adjustment ...................169
▫ Lumbar Support — If Equipped ...........170
▫ Easy Entry System ....................171
▫ Head Restraints ..................... .171
▫ Active Head Restraints — Front Seats .......172
▫ Head Restraints — Rear Seats .............175
TO OPEN AND CLOSE THE HOOD .........175
LIGHTS ............................ .177
▫ Multifunction Lever ....................177
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 101 of 522

▫Headlights And Parking Lights ............178
▫ Automatic Headlights — If Equipped .......178
▫ Headlights With Wipers (Available With
Automatic Headlights Only) .............179
▫ Headlight Time Delay ..................179
▫ Lights On Reminder ...................179
▫ Turn Signals ........................ .180
▫ Lane Change Assist ...................180
▫ High/Low Beam Switch ................180
▫ Flash-To-Pass ....................... .181
▫ Fog Lights — If Equipped ...............181
▫ Daytime Running Lights (DRL) —
If Equipped ........................ .182
▫ Instrument Panel Dimmer ...............182 ▫
Interior Lights ...................... .183
▫ Battery Saver Feature ..................184
WINDSHIELD WIPERS AND WASHERS ......184
▫ Intermittent Wiper System ...............185
▫ Windshield Washers ...................186
▫ Mist Feature ........................ .187
▫ Headlights With Wipers Feature (Available With
Automatic Headlights Only) .............187
TILT/TELESCOPING STEERING COLUMN . . .188
ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .189
▫ To Activate ......................... .190
▫ To Set A Desired Speed .................190
▫ To Deactivate ....................... .190
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
Page 102 of 522

▫To Resume Speed .....................191
▫ To Vary The Speed Setting ...............191
▫ To Accelerate For Passing ................191
GARAGE DOOR OPENER — IF EQUIPPED . . .192
▫ Before You Begin Programming HomeLink® . .193
▫ Programming A Rolling Code .............194
▫ Programming A Non-Rolling Code .........196
▫ Canadian/Gate Operator Programming ......197
▫ Using HomeLink® .....................199
▫ Security ........................... .199
▫ Troubleshooting Tips ...................199
▫ General Information ....................200
ELECTRICAL POWER OUTLETS ...........201
CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED .......................... .204
CUPHOLDERS ....................... .204
▫ Front Seat Cupholder ...................204
▫ Rear Seat Cupholders ..................205
STORAGE ........................... .206
▫ Glovebox Storage Compartment ...........206
CONSOLE FEATURES ...................206
▫ Storage ............................ .206
CARGO AREA FEATURES ................208
▫ Ski Pass-Through ..................... .210
REAR WINDOW FEATURES ..............210
▫ Rear Window Defroster .................210
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 103 of 522

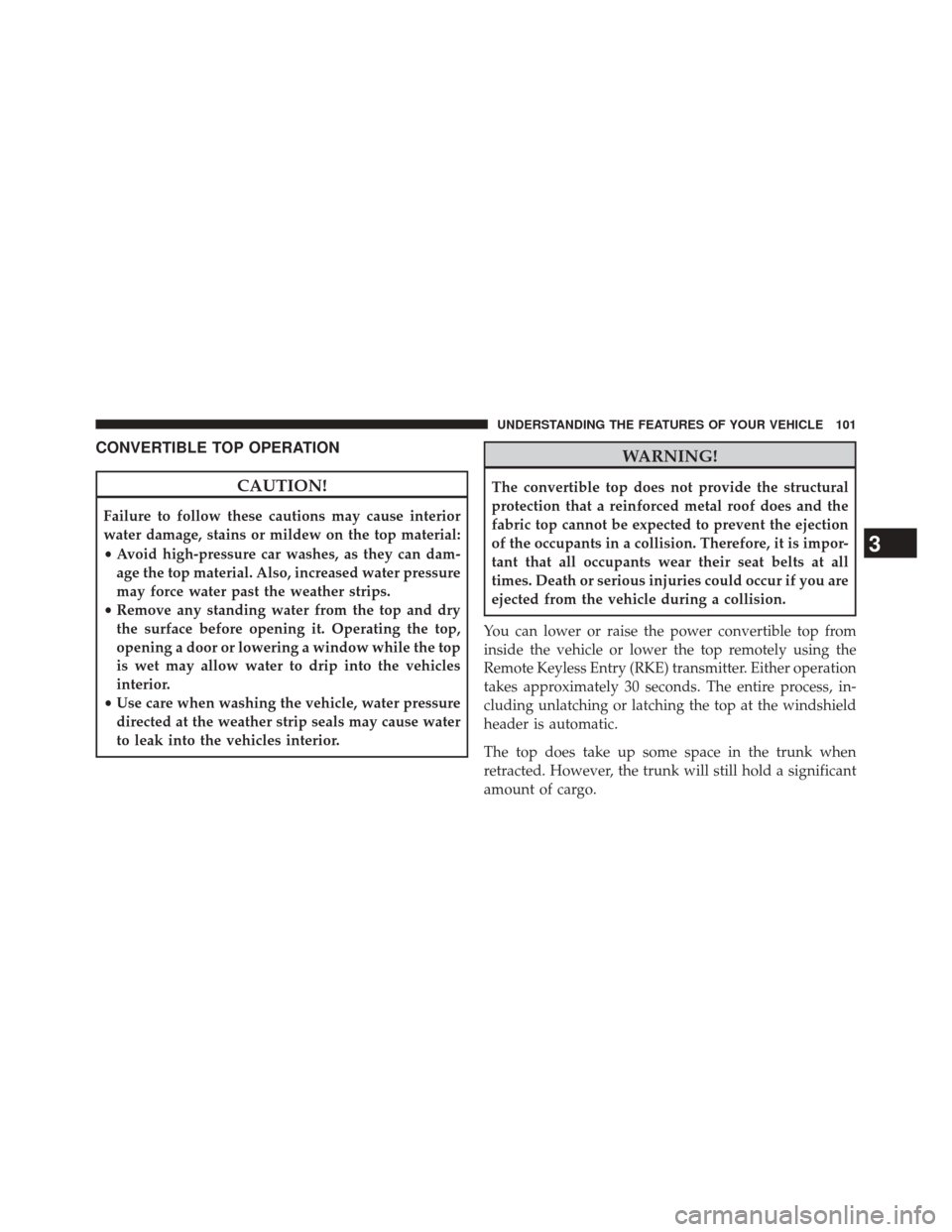

CONVERTIBLE TOP OPERATION
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pressure
may force water past the weather strips.
• Remove any standing water from the top and dry
the surface before opening it. Operating the top,
opening a door or lowering a window while the top
is wet may allow water to drip into the vehicles
interior.
• Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicles interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
You can lower or raise the power convertible top from
inside the vehicle or lower the top remotely using the
Remote Keyless Entry (RKE) transmitter. Either operation
takes approximately 30 seconds. The entire process, in-
cluding unlatching or latching the top at the windshield
header is automatic.
The top does take up some space in the trunk when
retracted. However, the trunk will still hold a significant
amount of cargo.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101
Page 104 of 522

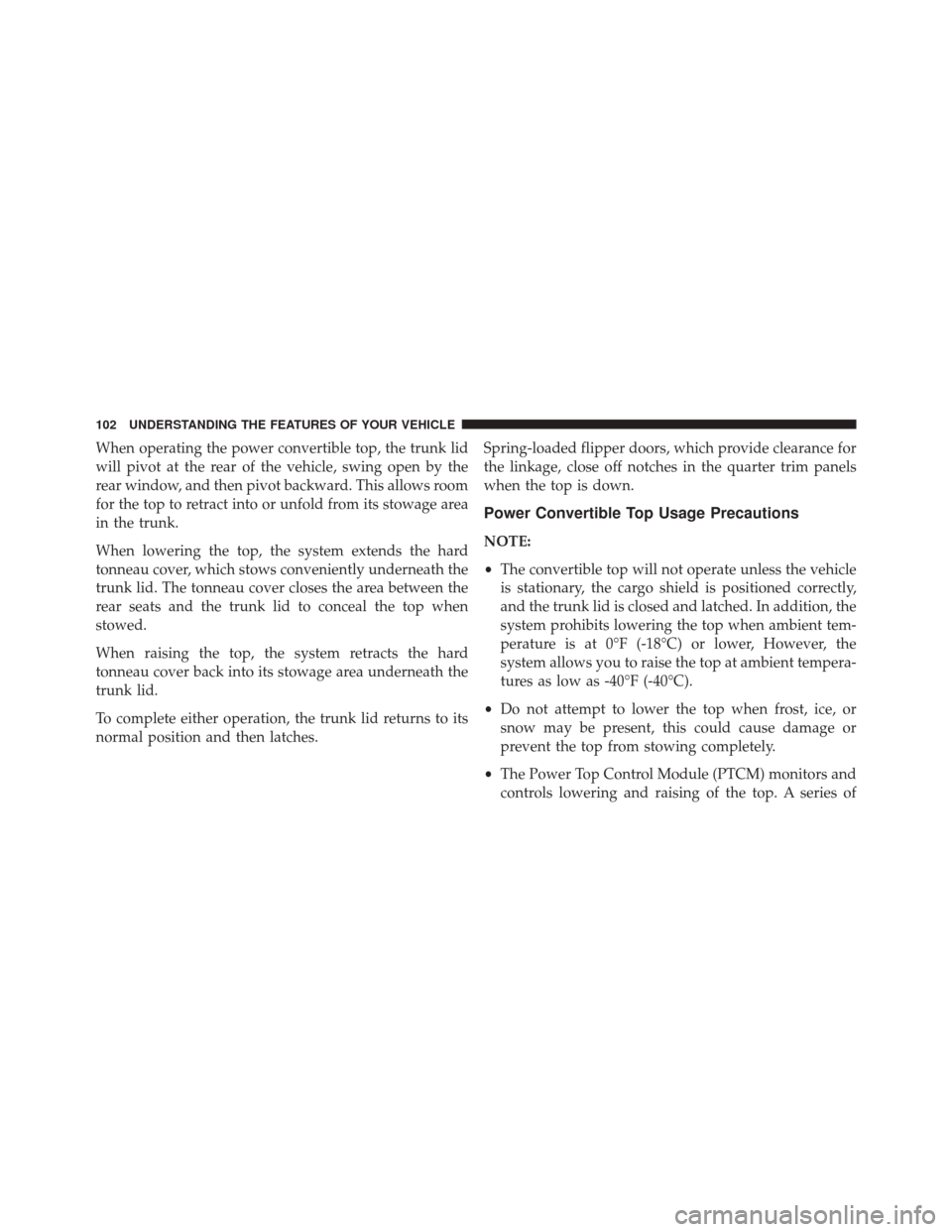

When operating the power convertible top, the trunk lid
will pivot at the rear of the vehicle, swing open by the
rear window, and then pivot backward. This allows room
for the top to retract into or unfold from its stowage area
in the trunk.
When lowering the top, the system extends the hard
tonneau cover, which stows conveniently underneath the
trunk lid. The tonneau cover closes the area between the
rear seats and the trunk lid to conceal the top when
stowed.
When raising the top, the system retracts the hard
tonneau cover back into its stowage area underneath the
trunk lid.
To complete either operation, the trunk lid returns to its
normal position and then latches.Spring-loaded flipper doors, which provide clearance for
the linkage, close off notches in the quarter trim panels
when the top is down.
Power Convertible Top Usage Precautions
NOTE:
•
The convertible top will not operate unless the vehicle
is stationary, the cargo shield is positioned correctly,
and the trunk lid is closed and latched. In addition, the
system prohibits lowering the top when ambient tem-
perature is at 0°F (-18°C) or lower, However, the
system allows you to raise the top at ambient tempera-
tures as low as -40°F (-40°C).
• Do not attempt to lower the top when frost, ice, or
snow may be present, this could cause damage or
prevent the top from stowing completely.
• The Power Top Control Module (PTCM) monitors and
controls lowering and raising of the top. A series of
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
