2014 Acura TL Owner's Manual

In any of these situations, we
strongly recommend that you install
the child seat directly behind the
f ront passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-f acing child seat.Many states, Canadian provinces and
territories allow a child one year of
age or older who also meets the
minimum size and weight
requirements to transition f rom a
rear-facing child seat to a forward
f acing seat. Know the requirements
where you are driving and follow the
child seat instructions. Many experts
recommend use of a rear-f acing seat
up to age two, if the child’s heightand weight are appropriate f or a
rear-facing seat.
Of the different seats available, we
recommend those that have a f ive-
point harness system as shown.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
CONT INUED
Protecting Small Children
Child Seat T ype
Protecting Inf ants and Small Children
Driver and Passenger Saf ety
43
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
crash.
Always place a rear-facing child
seat in the back seat, not the
front.
12/07/20 10:35:23 31TK4640_048

Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the saf est
place f or a small child.
If it is necessary to put a f orward-
f acing child seat in the f ront, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
f irmly secured to the vehicle and the
child is properly strapped in the seat.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the f ront.
If the vehicle seat is too
f ar f orward, or the child’s head is
thrown f orward during a collision, an
inf lating airbag can strike the child
with enough force to cause very
serious or fatal injuries. 34
Protecting Inf ants and Small Children
Child Seat Placement
Placing a f orward-f acing child seat inthe f ront seat of a vehicle equippedwith a passenger’s airbag can behazardous.
44
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
12/07/20 10:35:28 31TK4640_049

Most child seats are LATCH-
compatible (Lower Anchors and
Tethers f or CHildren). Some have a
rigid-type connector, while others
have a f lexible-type connector. Both
are equally easy to use. Some
existing and previously owned child
seats can only be installed using the
seat belt. Whichever type you
choose, f ollow the child seat
manufacturer’s use and care
instructions as well as the
instructions in this manual. Proper
installation is key to maximizing your
child’s saf ety.In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using the seat belt and a top tether
f or added security. This is because
all child seats are required to be
designed so that they can be secured
with a lap belt or the lap part of a
lap/shoulder belt.
In addition, the child seat
manufacturer may advise that a seat
belt be used to attach a LATCH-
compatible seat once a child reaches
a specif ied weight. Please read the
child seat owner’s manual f or proper
installation instructions.
The child seat is the correct type
and size f or the child.
The child seat is the correct type
f or the seating position.
The child seat is compliant with
Federal Motor Vehicle Saf ety
Standard 213 or Canadian Motor
Vehicle Saf ety Standard 213.
Make sure the child seat meets the
f ollowing three requirements:
Selecting a Child Seat
Important considerations when
selecting a child seat
Driver and Passenger Saf ety
45
12/07/20 10:35:34 31TK4640_050

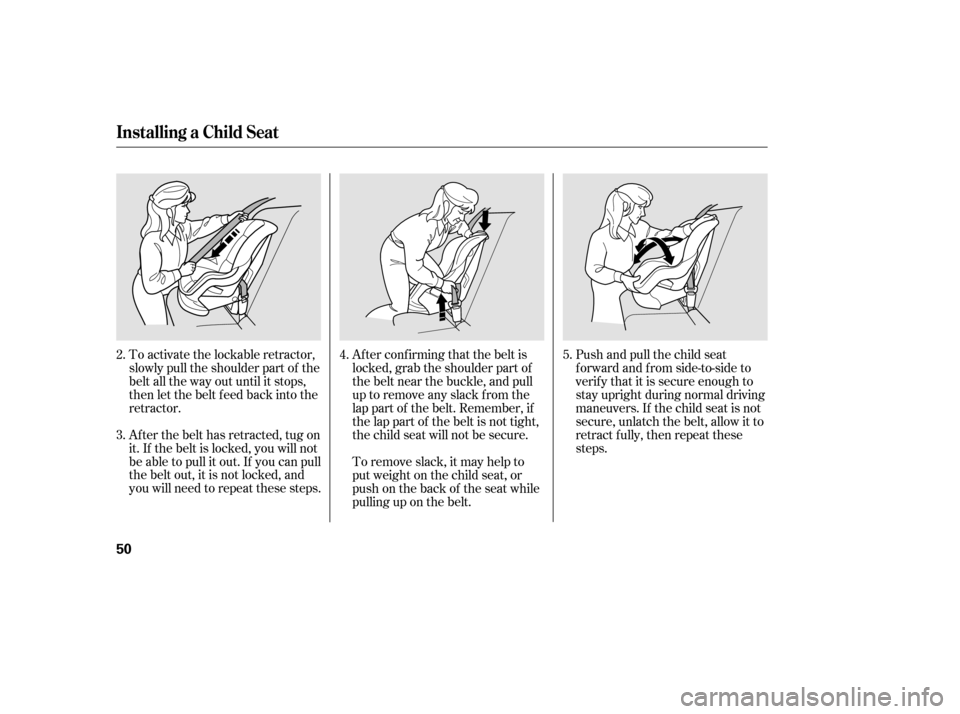

Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers f or CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure. A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash. The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.
Properly secure t he child seat t o
the vehicle.
Make sure t he child seat is f irmlysecured. Secure the child in the child seat.
1.
2. 3.
Installing a Child Seat
46
12/07/20 10:35:40 31TK4640_051

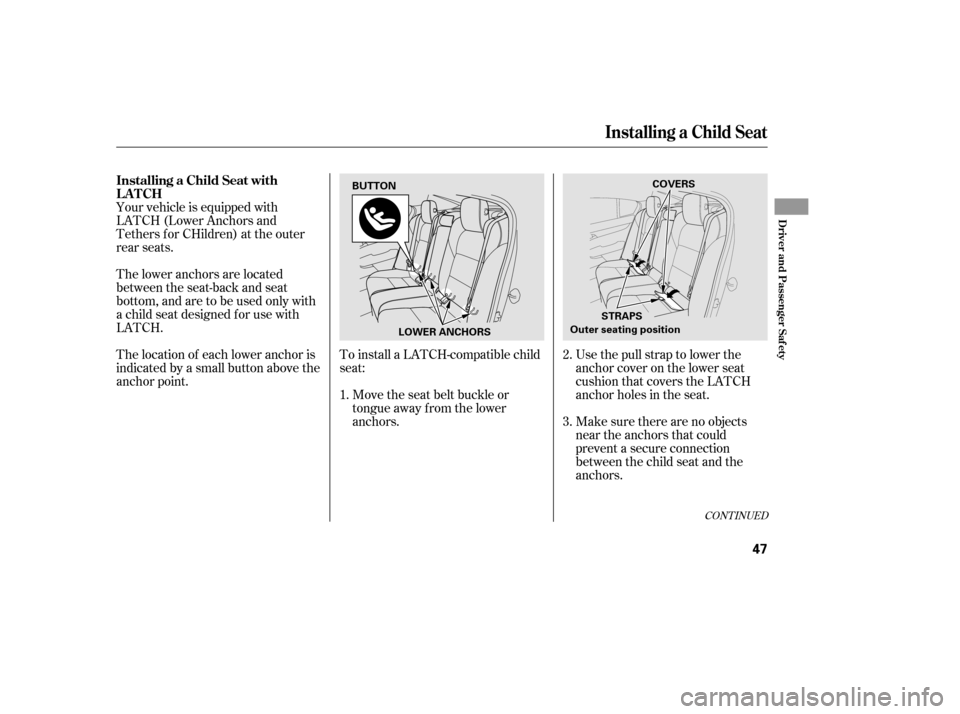

Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for CHildren) at the outer
rear seats.To install a LATCH-compatible child
seat:Move the seat belt buckle or
tongue away f rom the lower
anchors. Make sure there are no objects near the anchors that could
prevent a secure connection
between the child seat and the
anchors. Usethepullstraptolowerthe
anchor cover on the lower seat
cushion that covers the LATCH
anchor holes in the seat.
The location of each lower anchor is
indicated by a small button above the
anchor point. The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
1.3. 2.
CONT INUED
Installing a Child Seat with
LATCH
Installing a Child Seat
Driver and Passenger Saf ety
47
LOWER ANCHORSOuter seating positionCOVERS
STRAPS
BUTTON
12/07/20 10:35:49 31TK4640_052

Push the button located next to
each rear head restraint to pivot
the head restraint down.Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.Other LATCH-compatible seats
have a f lexible-type connector as
shown above.
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
4. 5.
6.
Installing a Child Seat
48
BUTTONHEAD RESTRAINT
Outer seating position Rigid type Flexible type
12/07/20 10:35:56 31TK4640_053

Tighten the tether strap as
instructed by the child seat maker.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
Route the tether strap over the
head restraint, then attach the
tether strap hook to the anchor,
making sure the strap is not
twisted. With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle and remove any slack f rom
the lap portion of the belt.
7.
8.
9. 1.
CONT INUED
Installing a Child Seat
Installing a Child Seat with a L ap/
Shoulder Belt
Driver and Passenger Saf ety
49
TETHER STRAP HOOK
ANCHOR COVER
12/07/20 10:36:04 31TK4640_054

Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps. To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt. Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
2.
3.
4. 5.
Installing a Child Seat
50
12/07/20 10:36:11 31TK4640_055
