2014.5 Citroen DS4 RHD Owner's Manual

223

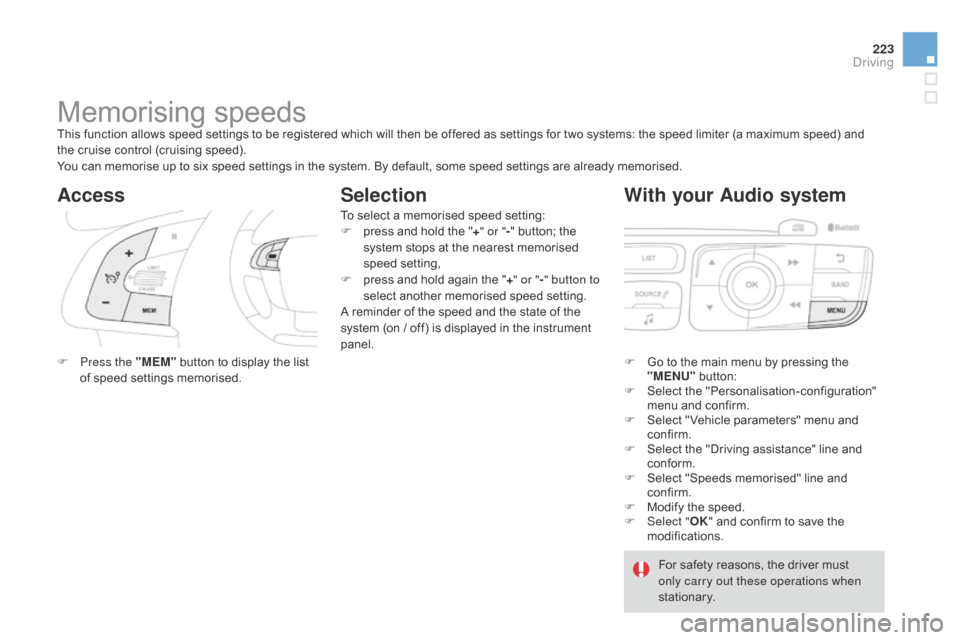

Memorising speedsThis function allows speed settings to be registered which will then be offered as settings for two systems: the speed limiter (a maximum speed) and
the cruise control (cruising speed).
You can memorise up to six speed settings in the system. By default, some speed settings are already memorised.
Access
F Press the "MEM" button to display the list
of speed settings memorised.
Selection
To select a memorised speed setting:
F p ress and hold the " +" or " -" button; the
system stops at the nearest memorised
speed setting,
F

p
ress and hold again the " +" or " -" button to
select another memorised speed setting.
A reminder of the speed and the state of the
system (on / off) is displayed in the instrument
panel.
F

G
o to the main menu by pressing the
"MENU" button:
F

Sel
ect the "Personalisation-configuration"
menu and confirm.
F

S
elect " Vehicle parameters" menu and
confirm.
F

S
elect the "Driving assistance" line and
conform.
F

S
elect "Speeds memorised" line and
confirm.
F

M
odify the speed.
F

Sel
ect "OK" and confirm to save the
modifications.
With your Audio system
For safety reasons, the driver must
only carry out these operations when
stationary.
Driving

With the touch screen tablet
For safety reasons, the driver must
carry out these operations when
stationary.
F

Sel

ect the "
Driving assistance "
menu.
F

I

n the secondary page, press "
Speed
settings ".
F

S

elect the system for which you want to
memorise speed settings:
●

s

peed limiter
or
●

c

ruise control.
F

C

hoose the speed setting you want to
m o di f y. F

E

nter the new value using the numerical
keypad and confirm.
F

C

onfirm to save the modification and quit
the menu.
This button restores the factory
settings.

225
System which prevents the vehicle from exceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has any effect.
Speed limiter
The speed limiter cannot, in any circumstances, replace
the need to observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
The functions of this system are grouped
together on the steering mounted controls.
1.
S
peed limiter mode selection wheel.
2.
P

rogrammed value decrease button.
3.
P

rogrammed value increase button.
4.
S

peed limiter on / off button.
5.
L

ist of memorised speeds display button.
Steering mounted controls
The programmed information is grouped
together in the instrument panel screen.
6.
S
peed limiter on / off indication.
7.
S

peed limiter mode selection indication.
8.
P

rogrammed speed value.
9.
S

election of a memorised speed.
Displays in the instrument panelOperation
The speed limiter is switched on manually:
it requires a programmed speed of at least
20
mph (30 km/h).
The speed limiter is switched off by manual
operation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The programmed speed remains in the memory
when the ignition is switched off.
Driving

F Turn dial 1 to the "LIMIT" position: the
speed limiter mode is selected but is not
switched on (Pause).
You do not have to switch the speed limiter on
in order to set the speed.
F

S
et the speed value by pressing button 2
or 3 (e.g.: 55 mph (90 km/h)).
Programming
You can then change the programmed speed using buttons 2 and 3 :
- b y + or - 1 mph (km/h) = short press,
-

i
n steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle, the
programmed speed will stop at the closest memorised speed; refer to the
corresponding section.
Exceeding the programmed speed
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed
speed.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

d
o not fit one mat on top of another.
Exiting the speed limiter mode
Operating fault
F Switch the speed limiter on by pressing button 4 .
F S witch the speed limiter off by pressing button 4 : the display
confirms that it has been switched off (Pause).
F

S
witch the speed limiter back on by pressing button 4 again.
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmly past the point of resistance.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed. F

T
urn dial 1 to the "0"
position: the speed
limiter mode is deselected. It disappears
from the screen.
In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the
dashes.
Have it checked by a CITROËN dealer or a
qualified workshop.

227
Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.The functions of this system are grouped
together on the steering mounted controls.
1.
C

ruise control mode selection dial.
2.
S

peed programming / value decrease
button.
3.
S

peed programming / value increase
button.
4.
C

ruise control off / resume button.
5.
M

emorised speeds display button.Steering mounted controls
The cruise control system cannot, in
any circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
You are advised to keep your feet near the
pedals at all times.
The programmed information is grouped
together in the instrument panel screen.
6.
C
ruise control off / resume indication.
7.
C

ruise control mode selection indication.
8.
P

rogrammed speed value.
9.
S

electing a stored speed.
Displays in the instrument panel
Operation
The cruise control is switched on manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and engagement of:
-

f
ourth gear on the manual gearbox,
-

s
econd gear on the electronic or automatic
gearbox, in manual driving mode,
-

p
osition A on the electronic gearbox or D
on an automatic gearbox.
The cruise control is switched off manually
or by pressing the brake or clutch pedal or on
triggering of the trajectory control systems, for
safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Driving

Programming
F Turn dial 1 to the "CRUISE" position: the
cruise control mode is selected but is not
switched on (Pause).
F

S
et the programmed speed by
accelerating to the required speed,
then press button 2 or 3 (e.g.: 70 mph
(110 km/h)); the cruise control system is
activated (ON).
You can then change the programmed speed using buttons 2 and 3 :
-

b

y + or - 1 mph (km/h) = short press,
-

i

n steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle, the
programmed speed will stop at the closest stored speed; refer to the
corresponding section.
F

S

top the cruise control system by pressing button 4 : this is
confirmed in the screen (Pause).
F

S

witch on the cruise control again with another press on button 4 .
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Exiting cruise control mode
F Turn dial 1 to the "0" position: the cruise control mode is deselected.
It disappears from the screen.
Operating fault
In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes.
Have it checked by a CITROËN dealer or a
qualified workshop.
When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed changing
buttons: this may result in a very rapid
change in the speed of your vehicle.
Do not use the cruise control on slippery
roads or in heavy traffic.
On a steep descent, the cruise control will
not be able to prevent the vehicle from
exceeding the programmed speed.
On steep climbs or when towing, the
programmed speed may not be reached or
maintained.
To avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

n
ever fit one mat on top of another.

229
Parking sensors
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.
This function cannot, in any circumstances,
take the place of the vigilance of the driver.
The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you come out
of reverse gear.
Rear parking
sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left)
indicates the side on which the obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"
symbol is displayed in the screen.
Driving

Front parking
sensorsOperating fault
In the event of a malfunction of the
system, when reverse gear is engaged
this warning lamp is displayed in the
instrument panel and/or a message
appears in the screen, accompanied
by an audible signal (short beep).
Contact a CITROËN dealer or a
qualified workshop.
In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.Deactivation/Activation
of the front and rear parking
sensors
The function is deactivated by pressing this button.
The indicator lamp in the button comes on.
Pressing this button again reactivates the function.
The indicator lamp in the button goes off.
The sound emitted by the speaker
(front or rear) indicates whether the
obstacle is in front or behind.
