2014.5 Citroen DS4 RHD tailgate

69
"Keyless Entry and Starting" system
System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.The electronic key can also be used
as a remote control; refer to the "Key /
remote control" section. The direction indicators flash for a
few
seconds.
Depending on version, the door mirrors
unfold, the welcome lighting comes on,
the alarm is deactivated.
Unlocking the vehicle
Complete unlocking
F With the electronic key on your person and in the recognition zone A , pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control.
Selective unlocking
F To unlock only the drivers door, with the electronic key on your person, pass your
hand behind the driver's door handle.
F

T
o unlock the complete vehicle, pass
your hand behind one of the door handle
of the front passenger door with the
electronic key close to the passenger
door, or press the tailgate opening control
with the electronic key close to the rear of
the
vehicle.
Activation or deactivation of the selective
unlocking is done in the " Driving assistance"
menu, then " Vehicle settings ".
By default, complete unlocking is activated.
Access

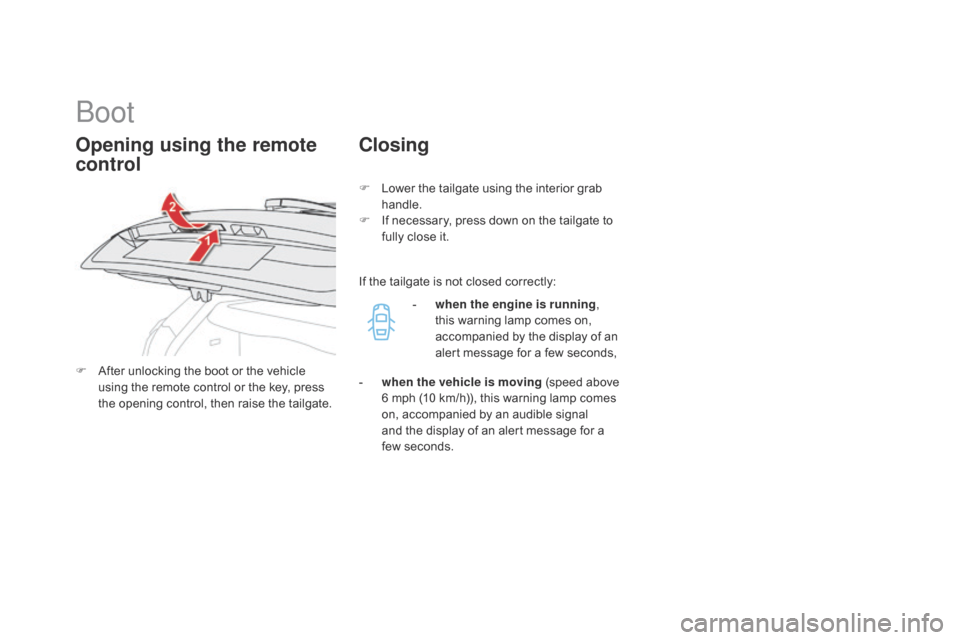

Boot
F After unlocking the boot or the vehicle using the remote control or the key, press
the opening control, then raise the tailgate.
Opening using the remote
control Closing
F Lower the tailgate using the interior grab
handle.
F

I
f necessary, press down on the tailgate to
fully close it.
-

w
hen the engine is running ,
this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,
-

w
hen the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal
and the display of an alert message for a
few
seconds.
If the tailgate is not closed correctly:

85
Opening using the Keyless
Entry and Starting system
Complete unlocking
F With the electronic key on your person in the recognition zone A , press the opening
control then raise the tailgate.
Selective unlocking
By default, complete unlocking is activated.
This setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
When unlocking of the boot only is activated:
F

W
ith the electronic key in the recognition
zone A , press the boot unlocking control
to unlock just the tailgate, then raise the
tailgate.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.
Use this button for access to
additional information. F

L
ower the tailgate using one of the interior
grab handles.
If the boot is not closed correctly, with the
engine running or when moving (speed
above 6 mph (10 km/h)), a message appears
for a few seconds.
Closing
Access

System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.

145
B. Rear wiper selection ring: turn the ring to place the desired symbol against the
marking.
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle configuration
menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Programming
Rear wiper
The function is activated or
deactivated via the vehicle
configuration menu.
This function is activated by default.
Visibility

281
1. Brake lamps (P21/5W).
2. Sidelamps (LEDs) *.
3.
D

irection indicators (PY21W amber).
4.
R

eversing lamp (P21W).
5.
R

ear foglamps (P21W).
Rear lamps
Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
o n l y.
Changing stop lamp, reversing lamp and direction indicator bulbs
These three bulbs are changed from inside the boot:
F
o
pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside, F

r
emove the foam seal,
F

u
nclip the two small secondary connectors,
F

s
pread the two tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the
lamp.
* LED: light-emitting diodes.
Practical information

Changing the light guides /
sidelampsNumber plate lamps (W5W)
Third brake lamp (LEDs)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
For the replacement of this type of light-
emitting diode lamp, contact a CITROËN dealer
or a qualified workshop. To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F

I

nsert a thin screwdriver into the lens
cutout.
F

P

ush it outwards.
F

R

emove the lens.
F

C

hange the faulty bulb.
To refit, press on the lens to clip it in place.
