2014.5 Citroen DS4 RHD Owner's Manual

05
415
USING THE TELEPHONE
The telephone connection automatically includes hands free operation
and audio streaming.
The ability of the system to connect to just one profile depends on the
telephone. Both profiles may connect by default.Press MENU.
Select "Bluetooth connection " and
confirm. Indicates connection of the audio steaming profile.
Managing connections
Select "Connections management"
and confirm. The list of paired
telephones is displayed. Select a telephone and confirm.
Indicates connection of the hands-free profile.
Then select and confirm:
-
"
Connect telephone
" / "Disconnect
telephone": to connect / disconnect
the telephone or the hands-free
connection only.
-
"
Connect media player" /
"Disconnect media player": to
connect / disconnect only streaming.
- " Connect telephone + media
player" / "Disconnect telephone +
media player": to connect /
disconnect the telephone (hands-free
and streaming).
-

"
Delete connection": to delete the
pairing.
Indicates that a device is connected.

05USING THE TELEPHONE
To display the "TELEPHONE" menu:
-
Make along press on SOURCE

or
SRC.
-

Or
, press OK to display the
contextual menu. Select " Call" and
confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Select "Dial" to enter a number and
confirm. To display the "
TELEPHONE" menu:
-

Make a long press on SRC/TEL

.
-

Or
, press the dial to display the
contextual menu. Select " Call" and
confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Select OK and confirm to start the
call. Select "Calls list" and confirm.
Making a call - Dialling
Select numbers one at a time using
the 7 and 8 buttons and confirm.
Making a call - Recently called numbers*
Select the number and confirm to
start the call.
The calls list includes calls sent and received in the vehicle using
the

connected telephone.
*
Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time. It is possible to make a call directly from the telephone; park the
vehicle first as a safety measure.

05
417
USING THE TELEPHONE
To display the "TELEPHONE" menu:
-
Make a long press on SRC/TEL

.
-

Or
, press the dial to display the
contextual menu. Select " Call" and
confirm.
-

Or
, press MENU, select
"Telephone" and confirm. Select
"Call" and confirm.
Select "Directory " and confirm. An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected). "YES" to accept the call is selected by
default.
Press OK to accept the call.
Select "NO" and confirm to reject the
call.
or
Press one of these buttons to accept
the call.
Making a call - From the directory of contacts
Select a contact then confirm.
Receiving a call
Select the number and confirm.
A long press on ESC or on TEL,
SOURCE
or SRC also rejects an
incoming call.
Business Home

05USING THE TELEPHONE
During a call, press OK to display the
contextual menu.
Hang up In the contextual menu:
-

select "
Micro OFF" to switch off the
microphone.
-

deselect "
Micro OFF" to switch the
microphone on.
Managing calls
A long press on one of these buttons
also ends the call. In the contextual menu, select
"Hang up
" to end the call. Secret - Mute
(so that the caller cannot hear)

05
419
In the contextual menu:
-

select "

Telephone mode " to
transfer the call to the telephone.
-

deselect "

Telephone mode" to
transfer the call to the vehicle.
In certain cases, the combined mode has to activated from
the

telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).
Combined mode
(to leave the vehicle without ending the call)
USING THE TELEPHONE
From the contextual menu, select
"DTMF tones" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"Switch" and conform to return to a call
left on hold.
Interactive voice response
Consultation call

05USING THE TELEPHONE

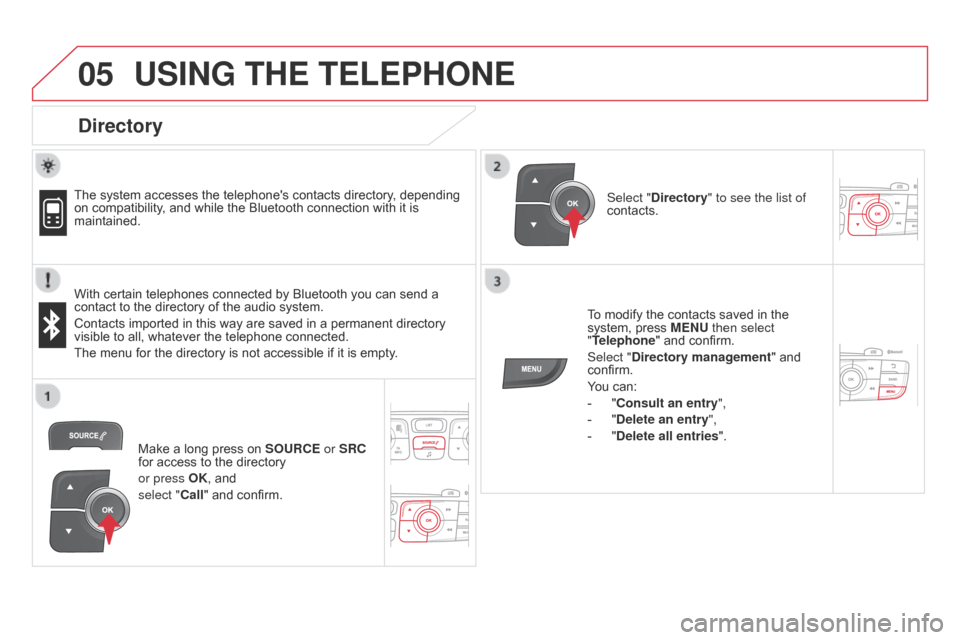

Directory
The system accesses the telephone's contacts directory, depending
on compatibility, and while the Bluetooth connection with it is
maintained.
With certain telephones connected by Bluetooth you can send a
contact to the directory of the audio system.
Contacts imported in this way are saved in a permanent directory
visible to all, whatever the telephone connected.
The menu for the directory is not accessible if it is empty. To modify the contacts saved in the
system, press MENU then select
"Telephone" and confirm.
Select "Directory management
" and
confirm.
You can:
-

"
Consult an entry",
-

"
Delete an entry",
-

"
Delete all entries".
Select "Directory
" to see the list of
contacts.
Make a long press on SOURCE or SRC
for access to the directory
or press OK, and
select "Call" and confirm.

06
421
Press ¯ to display the audio settings
menu.
The settings available are:
-

Ambience,
-


Bass,
-


T

reble,
-

Loudness,
-


Distribution: Personalised or Driver

,
-

Left / right balance,
-


Fader (front / rear balance),
-


Auto. volume.
Screen C
The distribution (or spatialisation using the Arkamys© system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.
AUDIO SETTINGS
Select and confirm " Other settings…"
to display the next setting in the list. The Ambience, Treble and Bass
audio settings are different and
independent for each sound source.
On-board audio: Arkamys
© Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
© software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.

07
MAIN FUNCTION
Option A1
Option A11
Option A
Option B...1
2
3
1
SCREEN MENU MAP(S)
S
creen C
Dial2
Media parameters
Choice of playback mode
Normal
1
2
3
Random3
Random all3
Repeat3
Choice of track listingBy folders2
3
By artists3
By genres3
By playlists3
Call1
Directory2
Calls list2
Voice mail box2
Directory management
Consult an entry
1
2
Delete an entry2
Delete all entries2
Telephone management
Telephone status
1
2
Hang up1
MEDIA TELEPHONE
Radio parameters
1
