3. If the oil is below the brim of the filler hole,add sufficient oil of the recommended
type to raise it to the correct level.
NOTICE: Be sure no foreign material
enters the final gear case.
4. Install the oil filler bolt and its new O-ring,
and then tighten the bolt to the specified
torque. Changing the final gear oil
1. Park the vehicle on a level surface.
2. Remove the final gear case guard by re- moving the bolts and the collars.
1. Final gear case guard 2. Bolt and collar ( × 7)
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
2
1
2
1RB7A_EE.book Page 16 Tuesday, April 24, 2012 9:07 AM

8-17
3. Place an oil pan under the final gear caseto collect the used oil.
4. Remove the final gear oil filler bolt and its
O-ring, the final gear oil drain bolt and its
gasket to drain the oil.1. Final gear oil drain bolt 2. Gasket5. Install the drain bolt and its new gasket,and then tighten the bolt to the specified
torque. 6. Refill with the recommended final gear oil
up to the brim of the filler hole. NOTICE:
Be sure no foreign material enters the
final gear case.
7. Install the oil filler bolt and its new O-ring, and then tighten the bolt to the specified
torque.
8. Check for oil leakage. If oil leakage is found, check for the cause.
Tightening torque: Final gear oil drain bolt: 20 Nm (2.0 m·kgf, 14 ft·lbf)
21
Recommended oil:SAE 80 API GL-4 Hypoid gear oil
Oil quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
Tightening torque: Final gear oil filler bolt: 23 Nm (2.3 m·kgf, 17 ft·lbf)
1RB7A_EE.book Page 17 Tuesday, April 24, 2012 9:07 AM

8-18
9. Install the final gear case guard by install-ing the bolts and the collars, and then
tightening the bolts to the specified
torque.
5B410014Differential gear oil
Checking the differential gear oil level1. Park the vehicle on a level surface.
2. Remove the differential gear oil filler bolt and its gasket, and then check the oil lev-
el. It should be up to the brim of the filler
hole.
3. If the level is low, add sufficient oil of the
recommended type to raise it to the spec-
ified level. NOTICE: Be sure no foreign
material enters the differential gear
case.
Tightening torque:
Final gear case guard bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1RB7A_EE.book Page 18 Tuesday, April 24, 2012 9:07 AM

8-19
1. Differential gear oil filler bolt
2. Gasket 3. Differential gear oil
4. Correct oil level
4. Check the gasket for damage, and re-
place it if necessary.
5. Install the differential gear oil filler bolt
and its gasket, and then tighten the bolt
to the specified torque.
1
2
3
4
Tightening torque:Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1RB7A_EE.book Page 19 Tuesday, April 24, 2012 9:07 AM

8-20
Changing the differential gear oil1. Park the vehicle on a level surface.
2. Remove the differential gear case guard by removing the bolts and the collars.1. Differential gear case guard
2. Bolt and collar ( × 7)
3. Place an oil pan under the differential
gear case to collect the used oil.
4. Remove the differential gear oil filler bolt,
the differential gear oil drain bolt and their
gasket to drain the oil.1. Differential gear oil drain bolt
2. Gasket5. Install the differential gear oil drain boltand its new gasket, and tighten the bolt to
the specified torque.
1
2
2 2
12
1RB7A_EE.book Page 20 Tuesday, April 24, 2012 9:07 AM

8-21
6. Refill the differential gear case with therecommended oil. NOTICE: Be sure no
foreign material enters the differential
gear case.
7. Check the oil filler bolt gasket for dam- age, and replace it if necessary.
8. Install the differential gear oil filler bolt
and its gasket, and then tighten the bolt
to the specified torque. 9. Check for oil leakage. If oil leakage is
found, check for the cause.
10. Install the differential gear case guard by
installing the bolts and the collars, and
then tightening the bolts to the specified
torque.
Tightening torque:
Differential gear oil drain bolt: 9.8 Nm (0.98 m·kgf, 7.1 ft·lbf)
Recommended oil: SAE 80 API GL-4 Hypoid gear oil
Oil quantity: 0.18 L (0.19 US qt, 0.16 Imp.qt)
Tightening torque: Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Tightening torque:Differential gear case guard bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1RB7A_EE.book Page 21 Tuesday, April 24, 2012 9:07 AM

8-22
5B410015Coolant
The coolant level should be checked before
each ride.
Checking the coolant level1. Park the vehicle on a level surface.
2. Check the coolant level in the coolant
reservoir when the engine is cold as the
coolant level varies with engine tempera-
ture. TIPThe coolant should be between the minimum
and maximum level marks.
1. Coolant reservoir cap
2. Maximum level mark 3. Minimum level mark3. If the coolant is at or below the minimum level mark, remove the coolant reservoir
cap, add coolant to the maximum level
mark, install the reservoir cap.
Coolant reservoir capacity
(up to the maximum level mark): 0.32 L (0.34 US qt, 0.28 Imp.qt)
1
2
3
1RB7A_EE.book Page 22 Tuesday, April 24, 2012 9:07 AM

8-23
Changing the coolant
The coolant must be changed by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.
Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant, have a Yamaha deal-
er check the antifreeze content of the coolant
as soon as possible.
The radiator fan is automatically switched on
or off according to the coolant temperature in
the radiator.NOTICEMix antifreeze with distilled water only.
However, if distilled water is not available,
soft water may be used for refilling.If your vehicle overheats, see page 8-63 for
instructions.

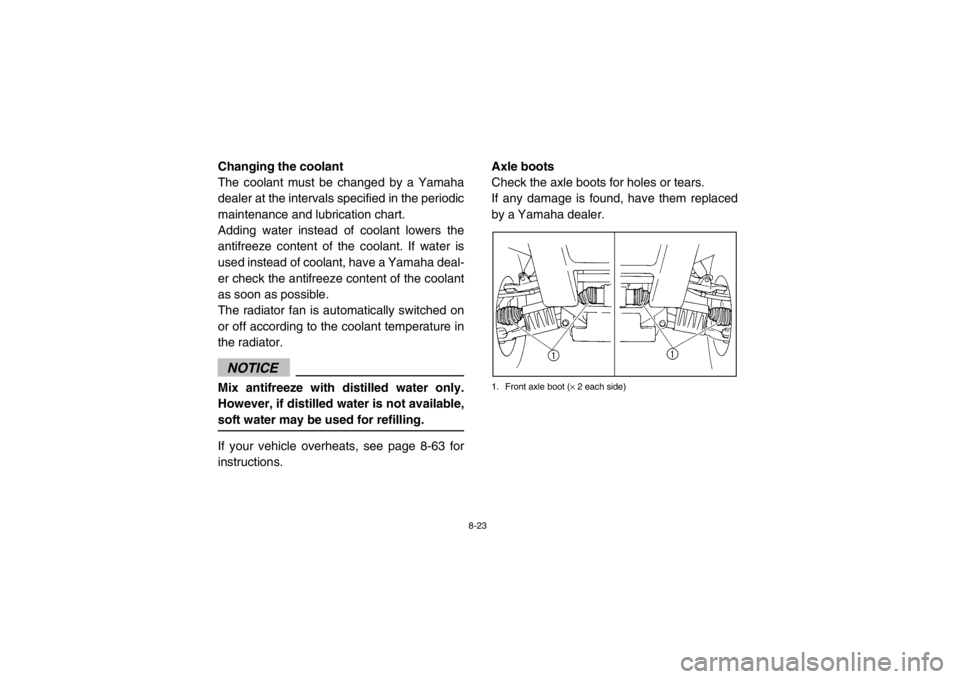

EVU00740Axle boots
Check the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.1. Front axle boot (× 2 each side)
